Oven Interior Dimensions (W x H x D) (in.)
25 x 17-3/8 x 20 1/4
Approximate Shipping Weight
184 lb
Oven Door Features
Drop-Down, Oven Window, Soft-Close Hinges
Oven Rack Positions (Single or Upper/Lower)
6
Cooking System
True European Convection with Direct Air, Variable Speed, Reverse Air Convection
Cleaning Time
Variable with Delay Clean Option
Parts Warranty
Limited 2-year entire appliance
Collection
EcoBalance, Minimalist
Labor Warranty
Limited 2-year entire appliance
Self-Clean Oven Door Lock
Automatic
Connected Capabilities
Amazon Alexa, Fresco, Google Home, IFTTT, Innit, Sonos, The Google Assistant
Oven Rack Features
1 Self-Clean Heavy-Duty, Full Extension Oven Rack, 2 Self-Clean Heavy-Duty Oven Racks, Ladder-Rack Positions
Oven Control Features
12-Hour Shut-Off Capability, Audible Preheat Signal, Auto Recipe Conversion, Control Lock Capability, Cook Time, C° or F° Programmable, Delay Time, Electronic Clock & Kitchen Timer, Mis-Wire Detection, Proof Mode, Remote Enabled, Sabbath Mode, Temperature Probe, Warm Mode
Short Description

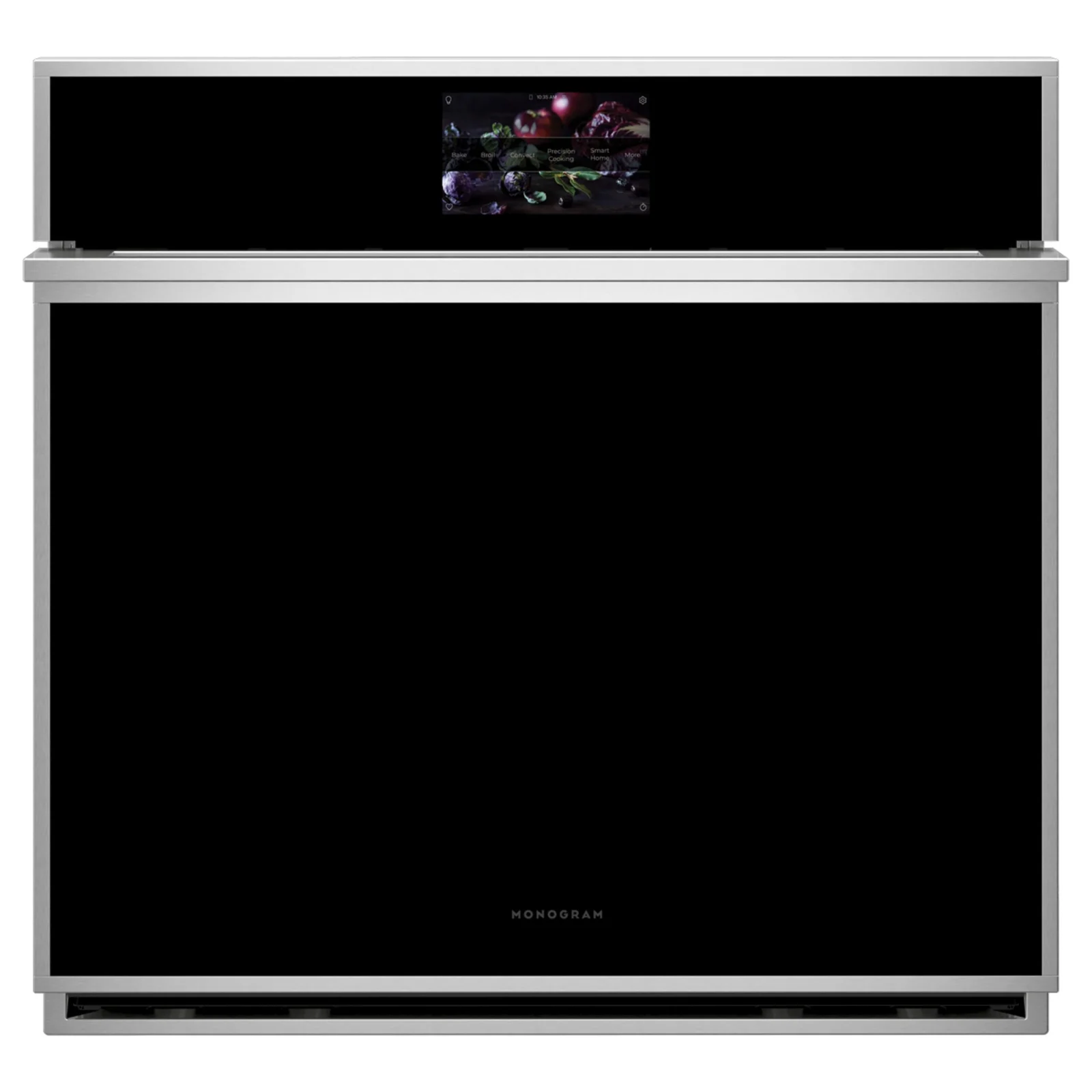

30" Minimalist Single Wall Oven
Handle
Minimalist Collection
Overall Height
28.6875 in
Color Appearance
Stainless Steel
Oven Features
10-Pass Bake Element, 10-Pass Dual Broil Element, Closed Door Broiling
App Filter - WiFi Connect
Built-In
Oven Cooking Modes
Convection Bake, Convection Bake Multi-Rack, Convection Broil Hi/Lo, Convection Roast, Dehydrate, Keep Warm, No-Preheat Air Frying, Precision Cooking Modes, Proof, Thermal Bake, Thermal Broil Hi/Lo
Control Type
7" Full-Color Touch LCD Screen
Design Style
Minimalist Collection
Optional Accessories
ZX30VT1 Flush Vent Trim Accessory
Frameless Oven Door(s)
Stainless Steel
Cooking Technology
Convection
Oven Interior
2 Halogen Interior Oven Lights, Black Gloss Finish, Hidden Bake
Handle Color
Stainless Steel
Total Capacity (cubic feet)
5 cu ft
Configuration
Single Oven
Installation
Flush Appearance, Over Warming Drawer, Side-by-Side, Under Built-In Advantium, Under Built-In Microwave, Under Cooktop, Under Hearth Oven, Undercounter
App Filter - Cabinet Width
Cooking 30 in. (Standard)
Oven Cleaning Type
Self-Clean with Steam Clean Option
Warranty Notes
See written warranty for full details
Electrical Requirements
240V/208V; 60Hz; 20A
Cutout Dimensions (w x h x d) (in.)
28-5/8 x 27-5/16 x 23-1/2
| Oven Interior Dimensions (W x H x D) (in.) |
25 x 17-3/8 x 20 1/4 |
| Approximate Shipping Weight |
184 lb |
| Oven Door Features |
Drop-Down, Oven Window, Soft-Close Hinges |
| Broiler Wattage |
4300W |
| Oven Rack Positions (Single or Upper/Lower) |
6 |
| Cooking System |
True European Convection with Direct Air, Variable Speed, Reverse Air Convection |
| Cleaning Time |
Variable with Delay Clean Option |
| Parts Warranty |
Limited 2-year entire appliance |
| KW Rating at 208V |
3.4 |
| Convection Wattage |
2400W |
| Bake Wattage |
2850W |
| Collection |
EcoBalance, Minimalist |
| Labor Warranty |
Limited 2-year entire appliance |
| Self-Clean Oven Door Lock |
Automatic |
| Overall Width |
29.75 in |
| Connected Capabilities |
Amazon Alexa, Fresco, Google Home, IFTTT, Innit, Sonos, The Google Assistant |
| Cabinet Width |
30 in |
| Oven Rack Features |
1 Self-Clean Heavy-Duty, Full Extension Oven Rack, 2 Self-Clean Heavy-Duty Oven Racks, Ladder-Rack Positions |
| KW Rating at 240V |
4.5 |
| Overall Depth |
26.8125 in |
| Oven Control Features |
12-Hour Shut-Off Capability, Audible Preheat Signal, Auto Recipe Conversion, Control Lock Capability, Cook Time, C° or F° Programmable, Delay Time, Electronic Clock & Kitchen Timer, Mis-Wire Detection, Proof Mode, Remote Enabled, Sabbath Mode, Temperature Probe, Warm Mode |
| Short Description |
30" Minimalist Single Wall Oven |
| Handle |
Minimalist Collection |
| Overall Height |
28.6875 in |
| Amp Rating at 208V |
20 |
| Oven Features |
10-Pass Bake Element, 10-Pass Dual Broil Element, Closed Door Broiling |
| App Filter - WiFi Connect |
Built-In |
| Oven Cooking Modes |
Convection Bake, Convection Bake Multi-Rack, Convection Broil Hi/Lo, Convection Roast, Dehydrate, Keep Warm, No-Preheat Air Frying, Precision Cooking Modes, Proof, Thermal Bake, Thermal Broil Hi/Lo |
| Control Type |
7" Full-Color Touch LCD Screen |
| Design Style |
Minimalist Collection |
| Optional Accessories |
ZX30VT1 Flush Vent Trim Accessory |
| Frameless Oven Door(s) |
Stainless Steel |
| Cooking Technology |
Convection |
| Oven Interior |
2 Halogen Interior Oven Lights, Black Gloss Finish, Hidden Bake |
| Handle Color |
Stainless Steel |
| Total Capacity (cubic feet) |
5 cu ft |
| Configuration |
Single Oven |
| Installation |
Flush Appearance, Over Warming Drawer, Side-by-Side, Under Built-In Advantium, Under Built-In Microwave, Under Cooktop, Under Hearth Oven, Undercounter |
| Amp Rating at 240V |
20 |
| Hertz |
60 |
| Fuel Type |
Electric |
| WiFi Connect |
Built-In |
| App Filter - Cabinet Width |
Cooking 30 in. (Standard) |
| Oven Cleaning Type |
Self-Clean with Steam Clean Option |
| Net Weight |
166 lb |
| Product Type |
Single Oven |
| Warranty Notes |
See written warranty for full details |
| Electrical Requirements |
240V/208V; 60Hz; 20A |
| Cutout Dimensions (w x h x d) (in.) |
28-5/8 x 27-5/16 x 23-1/2 |
