Product Description

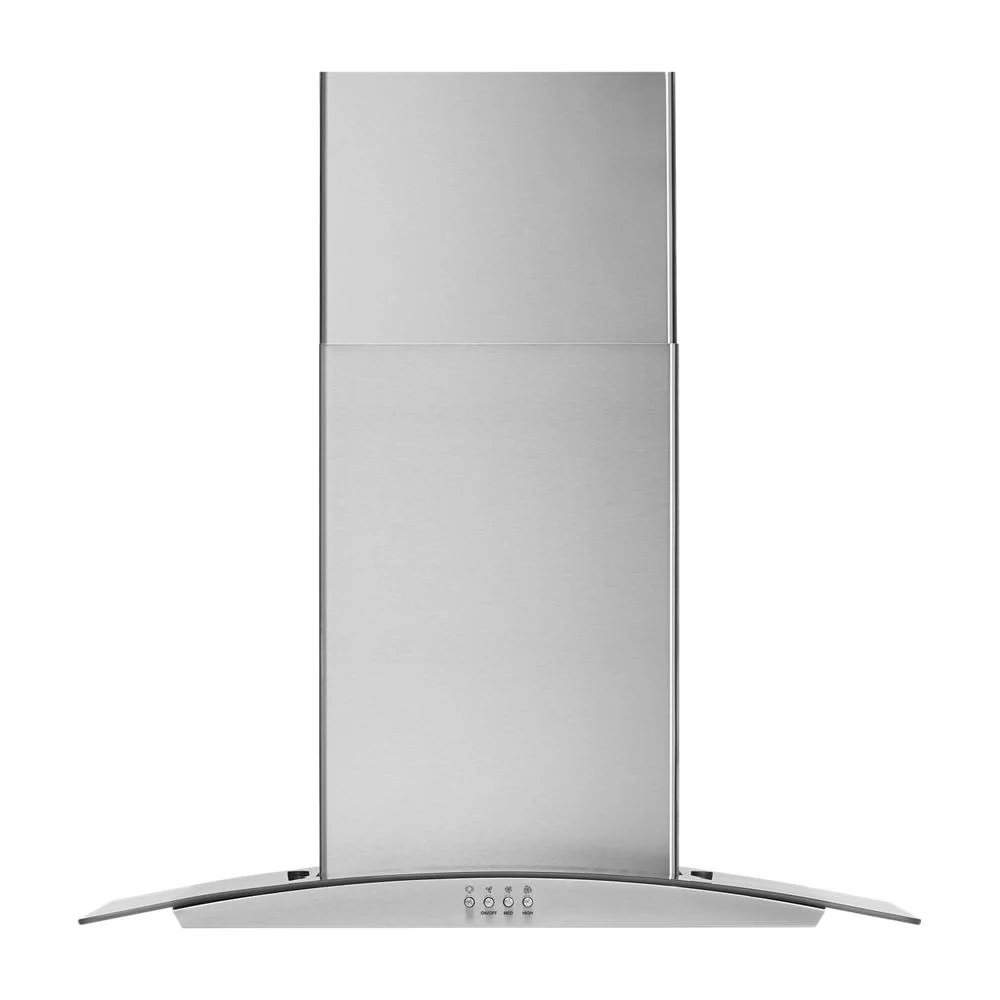

Easily vent smoke and odors with this 400 CFM Motor Class range hood that comes equipped with a 3-speed kitchen exhaust fan for powerful ventilation. This 30" wall mount range hood also comes with a detachable grease filter for convenient cleaning, LED range hood lights and a 65K BTU cooktop threshold. (Performance varies based oninstallation. Resources available at aham.org.)
Features
- 3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.) : Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
- 6" Round Damper Included : Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
- Optional Chimney Extension Kit : Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT10ES.
- Grease Filter : Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.
- LED Task Lighting : Bright, long-lasting LED Task Lighting makes it easy to see what you're cooking.
- 65K BTU Cooktop Threshold : Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
- 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.) : Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.
- Push Button Controls :
Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
- ADA Compliant : When the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
- Convertible Ventilation (Recirculating or Vented) : A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back into the home.
- Optional Recirculation Kit (non-vented/duct-free) : This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548457.
Specifications
Night Light Type | N/A |
---|
BTU Threshold | 65 K |
---|
Blower Motor | N/A |
---|
Cutout Height (in) | 10 13/16 inch |
---|
Night Light Type | N/A |
---|
Depth | 17 11/16 in |
---|
Cutout Height (in) | 10 13/16 in |
---|
Duct Direction | Vertical |
---|
Width | 30 in |
---|
Net Weight | 37.0 in |
---|
Minimum Height(IN,inches) | 27.1250 |
---|
Lighting Control Type | Push Button |
---|
Carton Width(IN,inches) | 34.0000 |
---|
Filters | Aluminum Mesh Filter |
---|
Blower Motor | N/A |
---|
Cutout Height(IN,inches) | 10.8125 |
---|
Accessory Relationships | Yes |
---|
Maximum Height(IN,inches) | 45.1250 |
---|
CFM Motor Class | 400 |
---|
Height(IN,inches) | 10.8125 |
---|
Minimum Height(IN,inches) | 27.1250 |
---|
Maximum Height | 45 1/8 inch |
---|
Hz | 60 |
---|
Damper Included | Yes |
---|
Filters | Aluminum Mesh Filter |
---|
Carton Width(IN,inches) | 34.0000 |
---|
Duct Type | Round |
---|
BTU Threshold | 65 K |
---|
Blower Type | Centrifugal |
---|
Accessory Relationships | Yes |
---|
Maximum Height | 45 1/8 in |
---|
Carton Width(IN,inches) | 34.0000 |
---|
Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
---|
Volts | 120 |
---|
Width(IN,inches) | 30.0000 |
---|
Carton Depth | 17 1/2 in |
---|
Sound Max Speed (Sones) | 7.0 |
---|
Number of Vent Speeds | 3 |
---|
Hz | 60 |
---|
Filters | Aluminum Mesh Filter |
---|
Net Weight | 37.0 in |
---|
Size (in.) | 30 |
---|
CFM Motor Class | 400 |
---|
Height(IN,inches) | 10.8125 |
---|
Blower Motor | N/A |
---|
Damper Included | Yes |
---|
Minimum Height | 27 1/8 in |
---|
Net Weight | 37.0 in |
---|
Maximum Height(IN,inches) | 45.1250 |
---|
Carton Width | 34 in |
---|
Auto On | No |
---|
Carton Height | 25 1/2 inch |
---|
Vent Material | Metal |
---|
Venting | Exterior or Recirculating |
---|
Auto On | No |
---|
Hood Type | Wall-Mount Canopy |
---|
Control Location | Front |
---|
Number of Task Light Settings | 1 |
---|
Sound Max Speed (Sones) | 7.0 |
---|
HVI (CFM HS Vertical) | 340 |
---|
Sound Max Speed (Sones) | 7.0 |
---|
Task Lighting | Yes |
---|
Energy Star® Qualified | No |
---|
Height | 27 1/8 inch |
---|
Exhaust Vent Location | Top |
---|
Accessory Relationships | Yes |
---|
Duct Type | Round |
---|
Night Light | No |
---|
Gross Weight | 46 inch |
---|
Prop 65 | Standard |
---|
Carton Height(IN,inches) | 25.5000 |
---|
Cutout Height Min(IN,inches) | 10.8125 |
---|
Task Lighting | Yes |
---|
Duct Direction | Vertical |
---|
Amps | 2 |
---|
Sound Min Speed (Sones) | 0.60 |
---|
Hz | 60 |
---|
Night Light Type | N/A |
---|
Duct Length | 45.500 |
---|
Night Light | No |
---|
Size (in.) | 30 |
---|
Volts | 120 |
---|
Energy Star® Certified | No |
---|
Depth(IN,inches) | 17.6875 |
---|
Auto Function | No |
---|
Venting | Exterior or Recirculating |
---|
Vent Material | Metal |
---|
Exhaust Vent Location | Top |
---|
Height(IN,inches) | 10.8125 |
---|
Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
---|
Power Cord Included | No |
---|
Width(IN,inches) | 30.0000 |
---|
Sound Max Speed (dB(A) | 66.0 |
---|
Hood Type | Wall-Mount Canopy |
---|
HVI (CFM HS Vertical) | 340 |
---|
Number of Vent Speeds | 3 |
---|
Amps | 2 |
---|
Blower Type | Centrifugal |
---|
Volts | 120 |
---|
Lighting Control Type | Push Button |
---|
Depth | 17 11/16 inch |
---|
Control Type | Push Button |
---|
Task Light Type | LED |
---|
Carton Height(IN,inches) | 25.5000 |
---|
Damper Included | Yes |
---|
Height | 27 1/8 in |
---|
Cutout Height (in) | 10 13/16 in |
---|
Minimum Height(IN,inches) | 27.1250 |
---|
Auto Function | No |
---|
Venting | Exterior or Recirculating |
---|
Prop 65 | Standard |
---|
Task Lighting | Yes |
---|
Gross Weight | 46 in |
---|
Carton Height | 25 1/2 in |
---|
HVI (CFM HS Vertical) | 340 |
---|
Duct Length | 45.500 |
---|
Carton Depth | 17 1/2 in |
---|
Exhaust Vent Location | Top |
---|
Minimum Height(IN,inches) | 27.1250 |
---|
Duct Direction | Vertical |
---|
HVI (Sones HS Vertical) | 7 |
---|
Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
---|
Number of Vent Speeds | 3 |
---|
Carton Depth | 17 1/2 in |
---|
BTU Threshold | 65 K |
---|
Sound Max Speed (dB(A) | 66.0 |
---|
Carton Width | 34 in |
---|
Control Type | Push Button |
---|
UL | Yes |
---|
Maximum Height | 45 1/8 in |
---|
Sound Min Speed (Sones) | 0.60 |
---|
Hz | 60 |
---|
Canopy Height (IN,inches) | 10.81250 |
---|
Blower Type | Centrifugal |
---|
HVI (Sones HS Vertical) | 7 |
---|
Size (in.) | 30 |
---|
Depth(IN,inches) | 17.6875 |
---|
Carton Height(IN,inches) | 25.5000 |
---|
Duct Type | Round |
---|
Carton Width | 34 in |
---|
Lighting Control Type | Push Button |
---|
UL | Yes |
---|
Energy Star® Certified | No |
---|
Duct Outlet Size (in.) | 6 |
---|
Sound Max Speed (dB(A) | 66.0 |
---|
Minimum Height | 27 1/8 in |
---|
Night Light Type | N/A |
---|
Auto Function | No |
---|
Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
---|
Depth | 17 11/16 in |
---|
Cutout Height(IN,inches) | 10.8125 |
---|
CFM Motor Class | 400 |
---|
Height(IN,inches) | 10.8125 |
---|
Vent Material | Metal |
---|
Control Type | Push Button |
---|
Night Light | No |
---|
Minimum Height | 27 1/8 in |
---|
Duct Type | Round |
---|
Energy Star® Certified | No |
---|
Size (in.) | 30 |
---|
Task Light Type | LED |
---|
Cutout Height Min(IN,inches) | 10.8125 |
---|
Height | 27 1/8 in |
---|
Control Location | Front |
---|
Carton Depth(IN,inches) | 17.5000 |
---|
Duct Length | 45.500 |
---|
Width(IN,inches) | 30.0000 |
---|
Prop 65 | Standard |
---|
Hood Type | Wall-Mount Canopy |
---|
Power Cord Included | No |
---|
Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
---|
UL | Yes |
---|
Control Location | Front |
---|
Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
---|
Number of Task Light Settings | 1 |
---|
Canopy Height (IN,inches) | 10.81250 |
---|
Width | 30 inch |
---|
Maximum Height(IN,inches) | 45.1250 |
---|
Carton Depth | 17 1/2 inch |
---|
UL | Yes |
---|
Canopy Height (IN,inches) | 10.81250 |
---|
Number of Vent Speeds | 3 |
---|
Control Type | Push Button |
---|
Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
---|
Carton Height | 25 1/2 in |
---|
Damper Included | Yes |
---|
Depth(IN,inches) | 17.6875 |
---|
Duct Outlet Size (in.) | 6 |
---|
Net Weight | 37.0 inch |
---|
Cutout Height Min(IN,inches) | 10.8125 |
---|
Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
---|
Task Light Type | LED |
---|
HVI (Sones HS Vertical) | 7 |
---|
Hood Type | Wall-Mount Canopy |
---|
Blower Motor | N/A |
---|
Night Light | No |
---|
Blower Type | Centrifugal |
---|
Carton Depth(IN,inches) | 17.5000 |
---|
Maximum Height | 45 1/8 in |
---|
Carton Width(IN,inches) | 34.0000 |
---|
Width(IN,inches) | 30.0000 |
---|
Sound Min Speed (Sones) | 0.60 |
---|
Cutout Height (in) | 10 13/16 in |
---|
Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
---|
Sound Min Speed (Sones) | 0.60 |
---|
Cutout Height(IN,inches) | 10.8125 |
---|
Auto Function | No |
---|
Power Cord Included | No |
---|
Duct Outlet Size (in.) | 6 |
---|
Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
---|
HVI (CFM HS Vertical) | 340 |
---|
Depth | 17 11/16 in |
---|
Height | 27 1/8 in |
---|
Number of Task Light Settings | 1 |
---|
Prop 65 | Standard |
---|
Venting | Exterior or Recirculating |
---|
Amps | 2 |
---|
Task Light Type | LED |
---|
Maximum Height(IN,inches) | 45.1250 |
---|
Auto On | No |
---|
Lighting Control Type | Push Button |
---|
Width | 30 in |
---|
Number of Task Light Settings | 1 |
---|
Exhaust Vent Location | Top |
---|
Carton Depth(IN,inches) | 17.5000 |
---|
HVI (Sones HS Vertical) | 7 |
---|
Sound Max Speed (dB(A) | 66.0 |
---|
Carton Height | 25 1/2 in |
---|
BTU Threshold | 65 K |
---|
Accessory Relationships | Yes |
---|
Depth(IN,inches) | 17.6875 |
---|
CFM Motor Class | 400 |
---|
Task Lighting | Yes |
---|
Amps | 2 |
---|
Duct Outlet Size (in.) | 6 |
---|
Gross Weight | 46 in |
---|
Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
---|
Volts | 120 |
---|
Carton Height(IN,inches) | 25.5000 |
---|
Auto On | No |
---|
Vent Material | Metal |
---|
Sound Max Speed (Sones) | 7.0 |
---|
Minimum Height | 27 1/8 inch |
---|
Duct Direction | Vertical |
---|
Duct Length | 45.500 |
---|
Carton Depth(IN,inches) | 17.5000 |
---|
Carton Width | 34 inch |
---|
Gross Weight | 46 in |
---|
Control Location | Front |
---|
Canopy Height (IN,inches) | 10.81250 |
---|
Cutout Height(IN,inches) | 10.8125 |
---|
Power Cord Included | No |
---|
Width | 30 in |
---|
Cutout Height Min(IN,inches) | 10.8125 |
---|
Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
---|
Filters | Aluminum Mesh Filter |
---|
