Japa 315+TR/E Firewood Processor

Japa 315+TR/E Firewood Processor

SKU W315PLUS
Out of Stock Online
Check In-Store Availability

Add to Cart
Free Shipping Icon

Flexible Pickup & Delivery

Choose from shipping or buy online, pick up in-store options. Did we mention that you get free shipping on All Festool orders?

Learn More
Authorized Dealer Icon

Authorized Dealer

We are an authorized dealer of several top brands, providing high-quality products with unmatched service.

Learn More
HRM Heart - Family Owned Icon

Family-owned

We are a fourth-generation family-owned business built on community, trust, and family values.

Learn More
Hartville Hardware Logo - Price Pledge Icon

Price Pledge

We will price-match items our customers find at local competitors for less money on in-store and online purchases.

Learn More

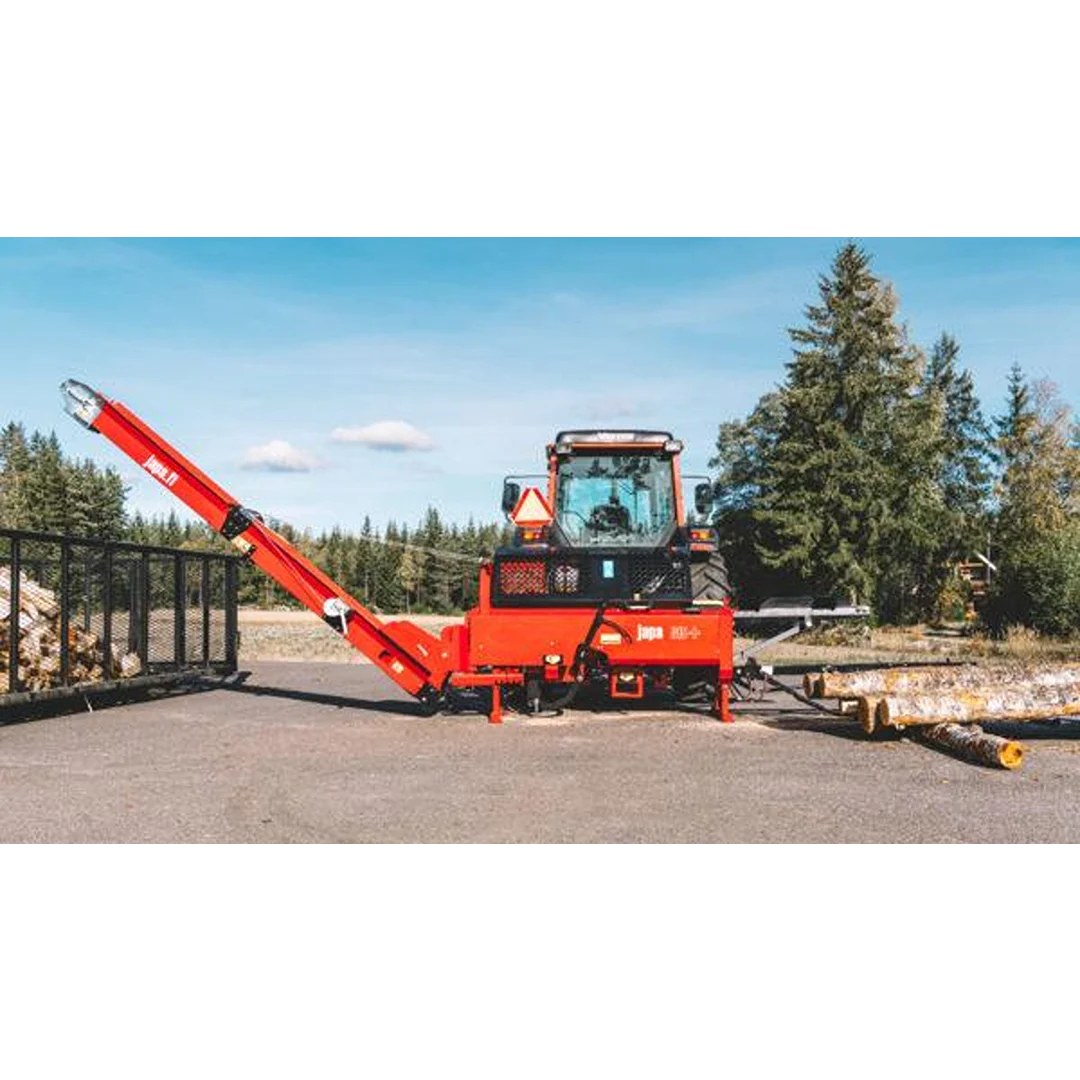

Japa 315+TR/E Firewood Processor is ideal for commercial or part-time work, accommodating logs up to 31 cm (12.2-in.) in diameter and 50 cm (19.7-in.) in length. This processor features a log feed and splitting mechanism that allows minimal pusher movements to cut logs faster and increase output. The safety grills and guards provide high visibility while a reinforced log press and full-length input belt allow faster, easier, and safer operation. Japa’s emphasis on safety is reinforced by the log stopper that automatically retracts during sawing, allowing the log to fall freely into the splitting channel.

Order your 315+ firewood processor with one of the following power sources:
  • Tractor PTO
  • Electric motor

Note: Product images may show optional equipment not included in base price. See below for additional options.

Japa products are special-order items. Call or stop in-store to order.

The 315+TR/E firewood processor is available with any of the following output conveyor options:
  • 1.6 m (5.25’) discharge tray
  • 2.3 m x 200 mm (7.55’ x 7.87”) (LxW) conveyor with hydraulic drive and conveyor turning device
  • 3.8 m x 200 mm (12.47’ x 7.87”) (LxW) conveyor with hydraulic drive and conveyor turning device

The 315+TR/E firewood processor may be special-ordered with any of the following options at an additional cost:
  • 5-way wedge
  • 6-way wedge
  • Cup holder
  • Sawdust bag holder
  • Log lift, 45 kg. (99.2 lbs.)
  • Conveyor turning device, 20 kg. (44.1 lbs.)

General

Hydraulic Oil Volume

30 L

Hydraulic Pump Flow

30 l/minutes

Chainsaw

Hydraulic

Chainsaw Flange

13 inches / 0.325 / 1.3 mm (0.05 inches)

Chain Dimensions

13 inches / .325 / 56 L

Chainsaw Oil Tank Volume

3 l

Splitting Wedge

4-Way

Maximum Log Diameter

31 cm (12.2 inches)

Maximum Firewood Length

50 cm (19.68 inches)

Splitting Power

5.6T

Cylinder Diameter

60 mm (2.36 inches)

Electric

Motor Power

4 kW

Motor Voltage

400 V

Fuse

16 A

Dimensions (w/o conveyor)

1400 x 2130 x 1000 mm (4.59 feet x 6.99 feet x 3.28 feet) (HxWxD)

Weight (w/o conveyor)

550 kg. (1212.54 pounds)

Tractor

Power Output

400 rpm

Dimensions (w/o conveyor)

1400 x 2130 x 975 mm (4.59 feet x 6.99 feet x 3.2 feet) (HxWxD)

Weight (w/o conveyor)

450 kg (992.08 pounds)

General
Hydraulic Oil Volume 30 L
Hydraulic Pump Flow 30 l/minutes
Chainsaw Hydraulic
Chainsaw Flange 13 inches / 0.325 / 1.3 mm (0.05 inches)
Chain Dimensions 13 inches / .325 / 56 L
Chainsaw Oil Tank Volume 3 l
Splitting Wedge 4-Way
Maximum Log Diameter 31 cm (12.2 inches)
Maximum Firewood Length 50 cm (19.68 inches)
Splitting Power 5.6T
Electric
Motor Power 4 kW
Motor Voltage 400 V
Fuse 16 A
Dimensions (w/o conveyor) 1400 x 2130 x 1000 mm (4.59 feet x 6.99 feet x 3.28 feet) (HxWxD)
Weight (w/o conveyor) 550 kg. (1212.54 pounds)
Tractor
Power Output 400 rpm
Dimensions (w/o conveyor) 1400 x 2130 x 975 mm (4.59 feet x 6.99 feet x 3.2 feet) (HxWxD)
Weight (w/o conveyor) 450 kg (992.08 pounds)
