Product Description

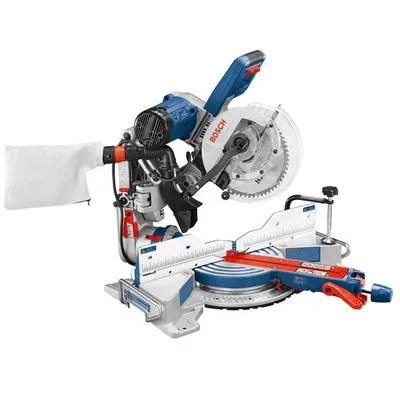

The Bosch 10" Dual-Bevel Glide Miter Saw delivers accurate and controlled cuts at all angles. It features 15-amp motor that delivers no-load cutting speed up to 4,800 RPM and tall sliding 4-1/4-inch fences for easy bevel set ups. The Axial-Glide System provides wider cross-cuts, enhanced alignment and smoother glide. Additionally, the compact design of this saw takes up 10-inches less front-to-back workspace when compared to other slide miter saws. Users can make accurate miter and bevel cuts with this tool’s adjustable miter and bevel detents while the override push-button allows for easy angle adjustment. For enhanced safety, the tool has a bevel lock lever and a range selector in front so that operators don’t need to reach behind the saw blade to make bevel adjustments. For added convenience, the tool is equipped with large, easy-to-read scales in degrees and roof pitch angles, an ergonomic ambidextrous trigger handle with soft-grip and a 90% dust collection system ready to cut 2x the material with a vacuum.
Includes:
- (1) 10-in. 60-Tooth Carbide-Tipped Saw Blade
- (1) Wrench
- (1) Work Clamp
- (1) Dust Bag
- (1) Vacuum adapter/elbow
Manufacturer ID: CM10GD
Specifications
- Amperage: 15
- No Load RPM: 4,800
- Voltage: 120V
- Blade Diameter: 10-inches
- Depth Front-To-Back (Not Including Arm): 30-inches
- Height: 20.5-inches
- Height of Table (From Base Feet to Table Surface): 4-inches
- Length: 32-inches
- Width: 26.5-inches
- Weight: 64-lbs.
- Bevel Angle Range: 47° Left and 47° Right
- Bevel Stops: 0°, 33.9°, 45°, and 47° (L/R)
- Max. Base Molding Against Fence: 3-1/4-inches
- Max. Crown Molding (38° Spring) Angled Against Fence: 5-1/4-inches
- Max. Crown Molding (45° Spring) Angled Against Fence: 6-inches
- Max. Cut Capacity - 0° Miter 45° Left Bevel: 1-1/2” x 12” (Can Cut 2x12 Dimensional Lumber)
- Max. Cut Capacity -0° Miter 45° Right Bevel: 1” x 12” (Can Cut 1x12 Dimensional Lumber)
- Max. Cut Capacity - 45° Miter 0° Bevel: 3-1/8” x 8” (Can Cut 4x8 Dimensional Lumber When Adjustable Depth Stop Is Used)
- Max. Cut Capacity - 45° Miter 45° Left Bevel: 1-1/2” x 8” (Can Cut 2x8 Dimensional Lumber)
- Max. Cut Capacity - 45° Miter 45° Right Bevel: 1” x 8” (Can Cut 1x8 Dimensional Lumber)
- Miter Angle Range: 52° Left, 60° Right
- Miter Detents: 0°, 15°, 22.5°, 31.6°, 45° (Left/Right) 60° (Right)
- Miter Positive Stops: 0°, 15°, 22.5°, 31.6°, 45° (Left/Right) 60° (Right)
- Dust Collection: Yes
- Electric Motor Brake: Yes
- Category: Compound Miter Saws
