Product Description

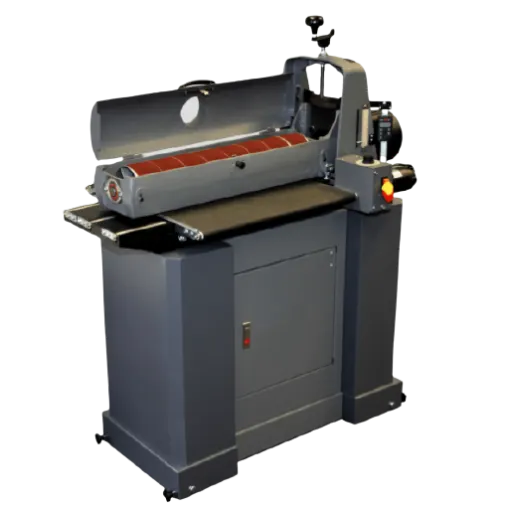

The SuperMax 25-50 Drum Sander is the largest open-ended drum sander on the market. It is built to be able to sand 25″ in a single pass and up to 50″ in a double pass. Not only does this sanding machine increasing speed and consistency, but it also expands the possibilities and scope of projects that are able to be completed. Equipped with INTELLISAND™ Technology, this sander is built to automatically adjust conveyor speed based on load. This prevents users from gouging, damaging or burning stock while providing consistent finishes even on varied grain patterns and densities. The INTELLISAND™ Technology significantly increases abrasive planing and dimensioning speed. This 25-50 Drum Sander comes standard on the Closed Mobile Base Stand and the drum is pre-wrapped with 80 grit sandpaper. Additional accessories and sandpaper are sold separately.
Other Features:
- Simple Alignment Feature – One nut adjusts the conveyor to parallel the sanding head which makes aligning the conveyor to the sanding head fast & easy
- Indexed Alignment Setting – For aligning narrow and wide stock
- Never Go “Out of Alignment” Drum – Drum Carriage is bolted to the base to prevent movement
- INTELLISAND™ Technology – Automatically adjusts conveyor speeds based on load
- Flatness Guarantee – Offers no “flex” in conveyor which guarantees flatness to less than .010” across the width of the sander
- Abrasive Conveyor Belt – Offers the best grip in raw wood
- Patented Abrasive Attachment System – Tensions the abrasive wraps and prevents loose abrasives and overlap
- Easy Access to Fastening System – Enhances access to fasteners and eliminates the need for special tools
- Self-cooling Drum – Prevents overheating and extends abrasive life
- Adjustable Height Tension Rollers & Hold Down Pressure – Eliminates snipe
- Excellent Dust Extraction – Dust Cover is formed to the shape of drum
- Metal Dust Cover Construction – Maximizes air flow and dust extraction
- Heavy-duty Cast Iron Overall Construction – Adds strength, rigidity and reduced vibration
- Mobile Base – Enables the machine to be moved easily
Model Number: SUPMX-72550
Specifications
- Maximum Sanding Width: 50″ (Two Passes)
- Minimum Sanding Length: 2-1/4″
- Maximum Sanding Thickness: 4″
- Minimum Sanding Thickness: 1/32″
- Dimensions (On Stand): (D) 27″ x (W) 46″ x (H) 53″
- Drum: 5″ x 25″ Extruded Aluminum
- Drum Speed: 1740 RPM
- Drum Speed: 1740 RPM
- Dust Hood: 1 – 4″ Vacuum Port, Min. 600 CFM Recommended
- Conveyor Motor: 43 in.-lb torque, direct drive D.C. motor, ranged variable 0-10 FPM
- Drive Motor (TEFC): 1-3/4 HP
- Power Requirements: 110 V 20 amp
- Table Height (Floor to Top of Table): 33″
