Product Description

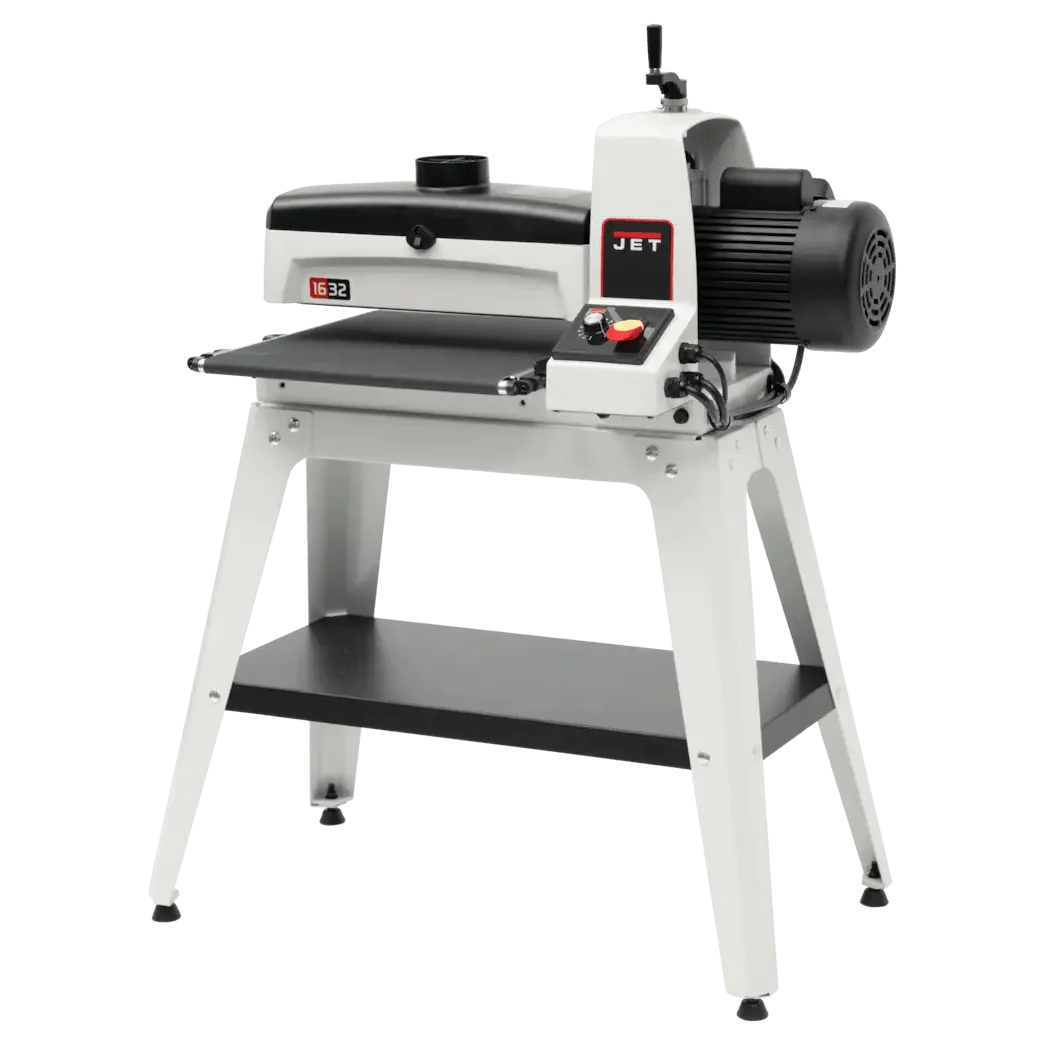

The newly re-designed JET 16” Drum Sander (JWDS-1632) features a tool-less parallelism system that keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. Plus, the variable-speed rate permits users to choose which optimal feed rate they need for a full range of projects, while the Sandsmart™ feature continuously monitors the load on the drum motor to prevent overloading. The mirrored design of the dust hood optimizes dust collection and prevents chips and dust from getting between the work-piece and the finish. This JWDS-1632 Drum Sander from JET delivers everything you need for an effortless finish.
Other Features:
Self-Cooling Drum
Drum is easily removable
Sealed Drum and permanently lubricated ball bearings – Offer longer life
Infinitely variable speed control (up to 10 feet per minute) – Allows users to choose the optimal feed rate
Conveniently located on/off switch and variable speed control knob
Precision-flattened reinforced steel conveyor bed
Precision-machined and dynamically balanced extruded aluminum drum – Dissipates heat and protects the work surface from heat-damage
Separate feed and drum motors – Provide independent control, optimizing the performance of the sander
(20" x 37") Stand Footprint – Increases stability and has a storage shelf and pre-drilled holes for casters
Relative depth scale on the handwheel – Allows the user to reset and measure the depth for every project
Includes:
(1) Sander with conveyor table
(1) Handle
(1) Instruction manual
(1) Warranty card
Style Number: 723520K
Specifications
Drum Bearing Diameter: 1”
Drum Diameter: 5”
Maximum Board Thickness: 3”
Minimum Board Length: 2-3/8”
Minimum Board Thickness: 1/32”
Weight: 156 lbs.
Motor Power: 1-1/2 HP
Dust Collection Minimum CFM Required: 400
Dust Port Outside Diameter: 4”
Motor Amps: 14
Recommended Circuit Size: 2 Amps
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the instruction manual for the JET 723520K Drum Sander With Stand. Read it before you buy it, or come back and download it if you have questions.
JET 723520K Drum Sander With Stand Instruction Manual
