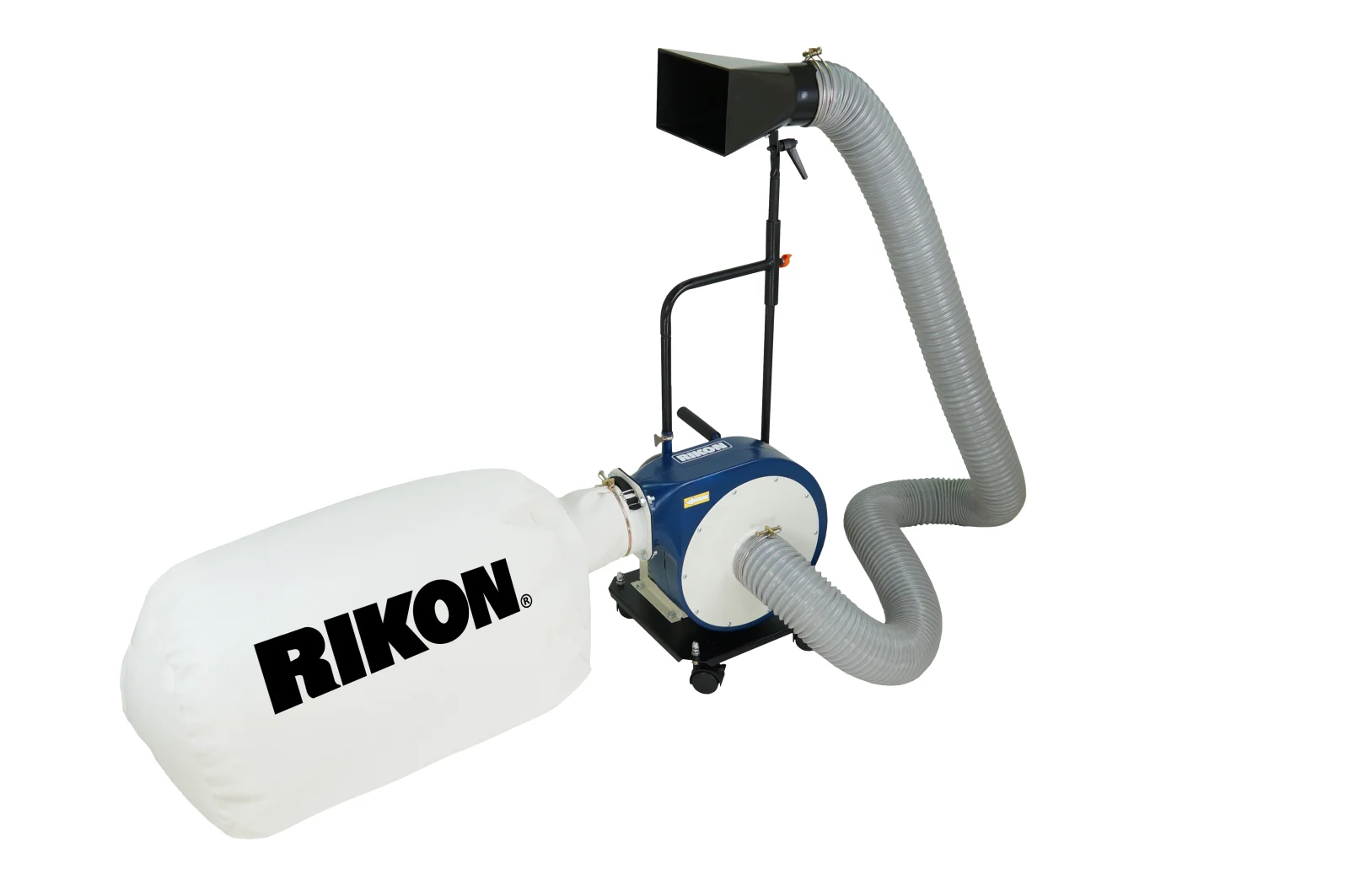

RIKON 1HP Snail Dust Collector

| SKU T60105

IN STORE ONLY

Check In-Store Availability

Add to Cart

Product Description

RIKON 1HP Snail Dust Collector is a unique and innovative tool that keeps your workshop clean and safe. With its 1 horsepower motor and efficient snail-shaped design, this dust collector can handle even the biggest projects and messiest workshops. The single 4" dust port draws 660 CFM which is more than enough vacuum power for big chip makers, like jointers and planers. This dust collector also comes with built-in casters and a handle which makes moving it easy! The compact design and size make it easy to move from one location to another, while the innovative snail shape maximizes airflow and minimizes noise.

Includes:

(2) Micron Cloth Filter Bag
(1) 108" long x 4" dust hose
(1) Adjustable Pipe and Funnel Attachment System
(1) Safety on/off switch
(1) Wall Mounting Brackets

Model Number: 60-105

Specifications

Horsepower: 1 HP TEFC
Amps: 7.5/3.75
Volts: 115/230V, 60 Hz
Speed (No Load): 3,400 RPM
Air Flow @ 4″ Diameter: 660 CFM
Blower Impeller: 9” Diameter, Steel
Cloth Bag Filtration: 2 Microns
Bag Diameter: 16”
Bag Length: 22”
Bag Capacity: 2.4 Cubic Feet
Dust Ports/Hose Connections: 1@4”
Intake Funnel Size: 9” x 4-3/4”
Maximum Funnel Height: 55”
Dust Hose Size: 9’ Long x 4” Diameter
Sound Rating @ 3 feet: <78dB
Dimensions: 19" x 14-1/2"
Depth: 18"
Weight: 48 lbs.
Warranty: 5 Years

Manuals

Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the RIKON Dust Collector. Read it before you buy it, or come back and download it if you have any questions after getting your dust collector home.

RIKON Dust Collector User Guide
