Festool 576223 OF 2200 EB-F-Plus Router

Only 3 left at Hartville

    Free Shipping Badge

    Festool 576223 OF 2200 EB-F-Plus Router

    SKU T576223

    Free Shipping Icon

    Free Shipping

    We offer free shipping on many of our items. Did we mention that you get free shipping on ALL Festool orders?

    Learn More
    Authorized Dealer Icon

    Authorized Dealer

    We are an authorized dealer of several top brands, providing high-quality products with unmatched service.

    Learn More
    HRM Heart - Family Owned Icon

    Family-owned

    We are a fourth-generation family-owned business built on community, trust, and family values.

    Learn More
    Hartville Hardware Logo - Price Pledge Icon

    Price Pledge

    We will price-match items our customers find at local competitors for less money on in-store and online purchases.

    Learn More

    Dust Extraction Column

    Dust Extraction Column

    The Dust Extraction Column is placed on the back of the OF 2200 and extends to the top of the router and includes a swivel nozzle. A design which keeps the power cord (also top mounted) and dust extraction hose out of your way. Coupled with the Festool Boom Arm (492 753), work smarter and take full advantage of operation without being impeded by cords and hoses. Festool recommends using a 36mm hose.

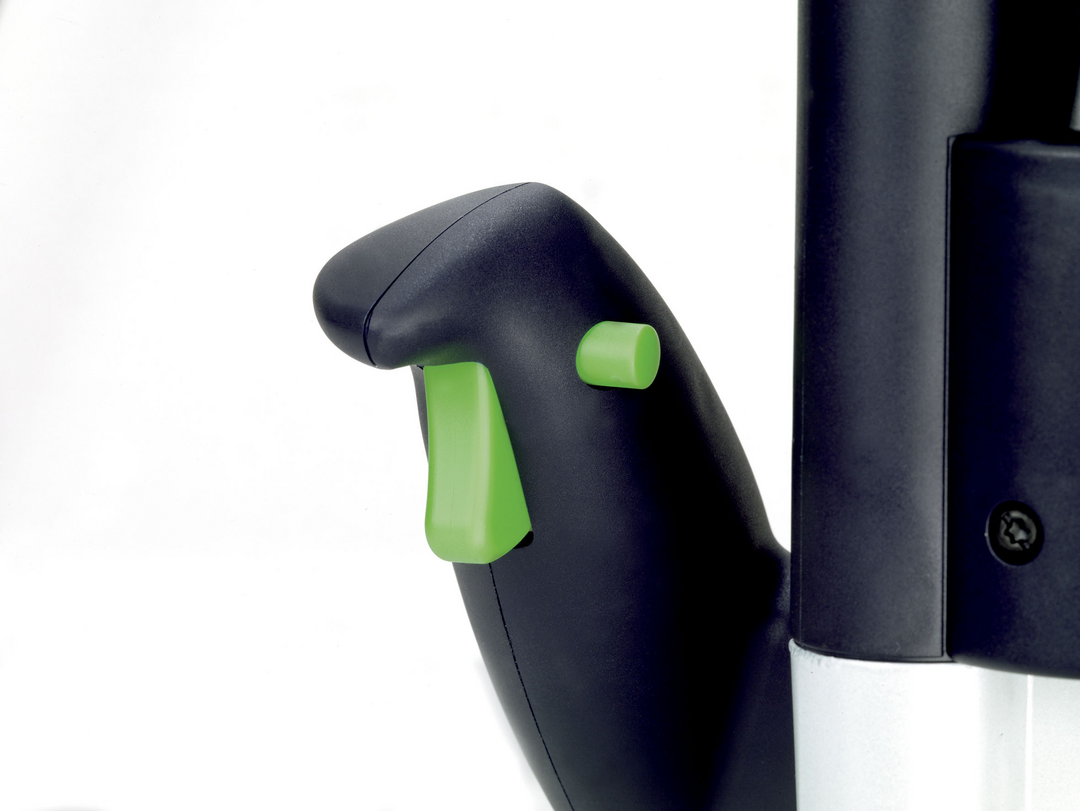

    Intuitive Controls

    Intuitive Controls

    Operating the OF 2200 could never be easier. Controls are clearly labeled with icons indicating purpose and adjustment direction. Work smarter without having to locate the manual to make less common adjustments. Use the onboard variable speed dial cross reference to select the appropriate spindle speed based on material and application. Sales and support numbers are also directly on the router for your convenience.

    Magnetic Spindle Brake

    Magnetic Spindle Brake

    The Magnetic Spindle Brake of the OF 2200 is a faster, more reliable method of retarding spindle motion. The use of magnetic force to stop the spindle also prolongs the service life of the motor versus a mechanical or electronic method.

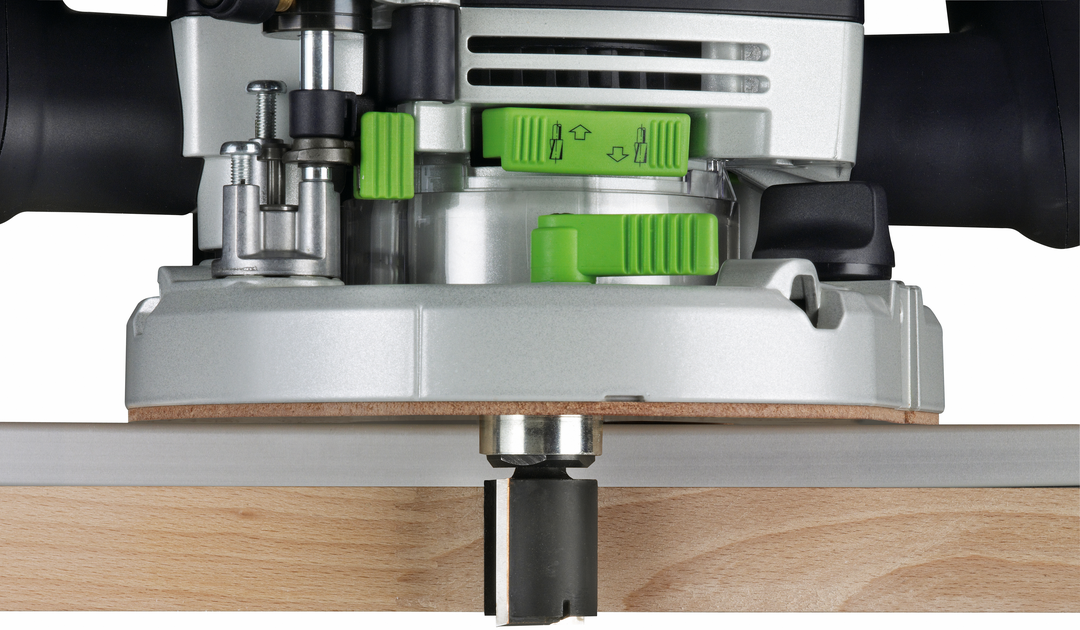

    Tremendous Plunge Depth Capacity

    Tremendous Plunge Depth Capacity

    With 80mm of travel, the plunge depth of the OF 2200 is phenomenal. The collet actually plunges 10mm below the base of the router providing another option for bit changes. Use the micro-adjustment knob to fine tune plunge depth in increments of 1/256" (1/10mm). The four position depth stop turret provides pre-configurable plunge depths including a 5/64" (2mm) finishing pass setting.

    Triple Bearing Design

    Triple Bearing Design

    The OF 2200 Router features a Triple Bearing Design which dampens spindle and bit deflection. With bearings at the top, middle and bottom, the spindle is less likely to wobble. This is particularly important considering the sheer power of the OF 2200 and the centrifugal forces exerted with spinning large bits at speeds up to 22,000 RPM.

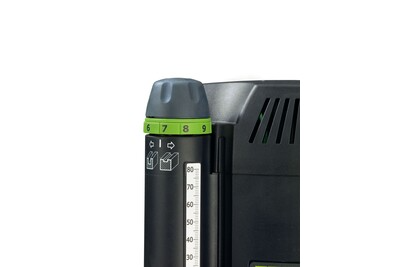

    Variable speed control

    Variable speed control

    Use the Variable Speed Control of the OF 2200 to dial in the appropriate spindle speed based on the material and application. An onboard cross reference guide shows the spindle RPM for each setting. The OF 2200 employs Multi-Material Control (MMC) electronics to ensure constant speed under load. That means that the speed of the bit is constant as you plunge and move through the workpiece.

    Locking Depth Stop Rod

    Locking Depth Stop Rod

    The Locking Depth Stop Rod allows you save time by locking the OF 2200 in its plunged position and calibrate the plunge depth using the four-position depth stop turret in a single step. Dial the micro-adjustment knob in increments of 1/256" (1/10mm) for the ultimate plunge depth precision.

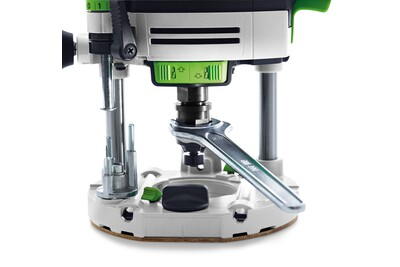

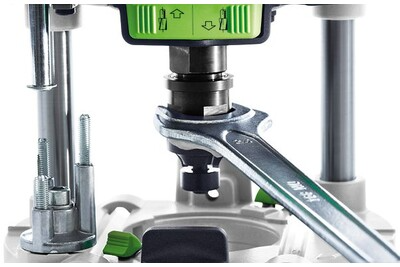

    Single-Tool Ratcheting Collet

    Single-Tool Ratcheting Collet

    Bit changes have never been easier. Use the spindle locking lever to disengage spindle movement and loosen the collet with a ratcheting motion. The ingenious retractable 360° dust shroud and wide plunge column spacing enables open access to the collet.

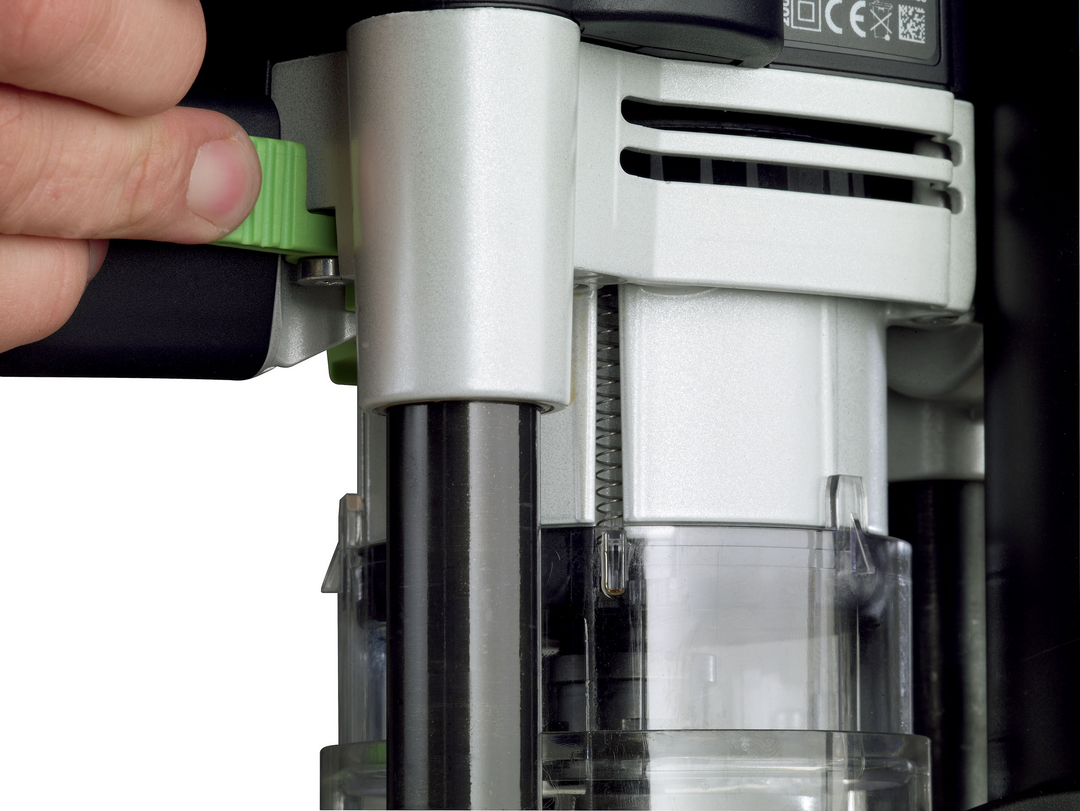

    Retractable, Spring-Loaded 360º Dust Shroud

    Retractable, Spring-Loaded 360º Dust Shroud

    Work smarter with the Retractable, Spring-Loaded 360° Dust Shroud of the OF 2200. The shroud maximizes dust extraction while providing high visibility of the workpiece. Release the dust shroud using a release lever at your fingertips. The shroud retracts back into the locked position after the router is fully plunged.</p>

    1/2

    1/2" Collet

    The 1/2" collet of the OF 2200 allows you to take full advantage of its 2200 Watts of power. With an opening of 3-3/8 on the standard base, the OF 2200 can take advantage of a full assortment of router bits.

    Dust Extraction Column

    Dust Extraction Column

    The Dust Extraction Column is placed on the back of the OF 2200 and extends to the top of the router and includes a swivel nozzle. A design which keeps the power cord (also top mounted) and dust extraction hose out of your way. Coupled with the Festool Boom Arm (492 753), work smarter and take full advantage of operation without being impeded by cords and hoses. Festool recommends using a 36mm hose.

    Intuitive Controls

    Intuitive Controls

    Operating the OF 2200 could never be easier. Controls are clearly labeled with icons indicating purpose and adjustment direction. Work smarter without having to locate the manual to make less common adjustments. Use the onboard variable speed dial cross reference to select the appropriate spindle speed based on material and application. Sales and support numbers are also directly on the router for your convenience.

    Magnetic Spindle Brake

    Magnetic Spindle Brake

    The Magnetic Spindle Brake of the OF 2200 is a faster, more reliable method of retarding spindle motion. The use of magnetic force to stop the spindle also prolongs the service life of the motor versus a mechanical or electronic method.

    Tremendous Plunge Depth Capacity

    Tremendous Plunge Depth Capacity

    With 80mm of travel, the plunge depth of the OF 2200 is phenomenal. The collet actually plunges 10mm below the base of the router providing another option for bit changes. Use the micro-adjustment knob to fine tune plunge depth in increments of 1/256" (1/10mm). The four position depth stop turret provides pre-configurable plunge depths including a 5/64" (2mm) finishing pass setting.

    Triple Bearing Design

    Triple Bearing Design

    The OF 2200 Router features a Triple Bearing Design which dampens spindle and bit deflection. With bearings at the top, middle and bottom, the spindle is less likely to wobble. This is particularly important considering the sheer power of the OF 2200 and the centrifugal forces exerted with spinning large bits at speeds up to 22,000 RPM.

    Variable speed control

    Variable speed control

    Use the Variable Speed Control of the OF 2200 to dial in the appropriate spindle speed based on the material and application. An onboard cross reference guide shows the spindle RPM for each setting. The OF 2200 employs Multi-Material Control (MMC) electronics to ensure constant speed under load. That means that the speed of the bit is constant as you plunge and move through the workpiece.

    Locking Depth Stop Rod

    Locking Depth Stop Rod

    The Locking Depth Stop Rod allows you save time by locking the OF 2200 in its plunged position and calibrate the plunge depth using the four-position depth stop turret in a single step. Dial the micro-adjustment knob in increments of 1/256" (1/10mm) for the ultimate plunge depth precision.

    Single-Tool Ratcheting Collet

    Single-Tool Ratcheting Collet

    Bit changes have never been easier. Use the spindle locking lever to disengage spindle movement and loosen the collet with a ratcheting motion. The ingenious retractable 360° dust shroud and wide plunge column spacing enables open access to the collet.

    Retractable, Spring-Loaded 360º Dust Shroud

    Retractable, Spring-Loaded 360º Dust Shroud

    Work smarter with the Retractable, Spring-Loaded 360° Dust Shroud of the OF 2200. The shroud maximizes dust extraction while providing high visibility of the workpiece. Release the dust shroud using a release lever at your fingertips. The shroud retracts back into the locked position after the router is fully plunged.</p>

    1/2

    1/2" Collet

    The 1/2" collet of the OF 2200 allows you to take full advantage of its 2200 Watts of power. With an opening of 3-3/8 on the standard base, the OF 2200 can take advantage of a full assortment of router bits.

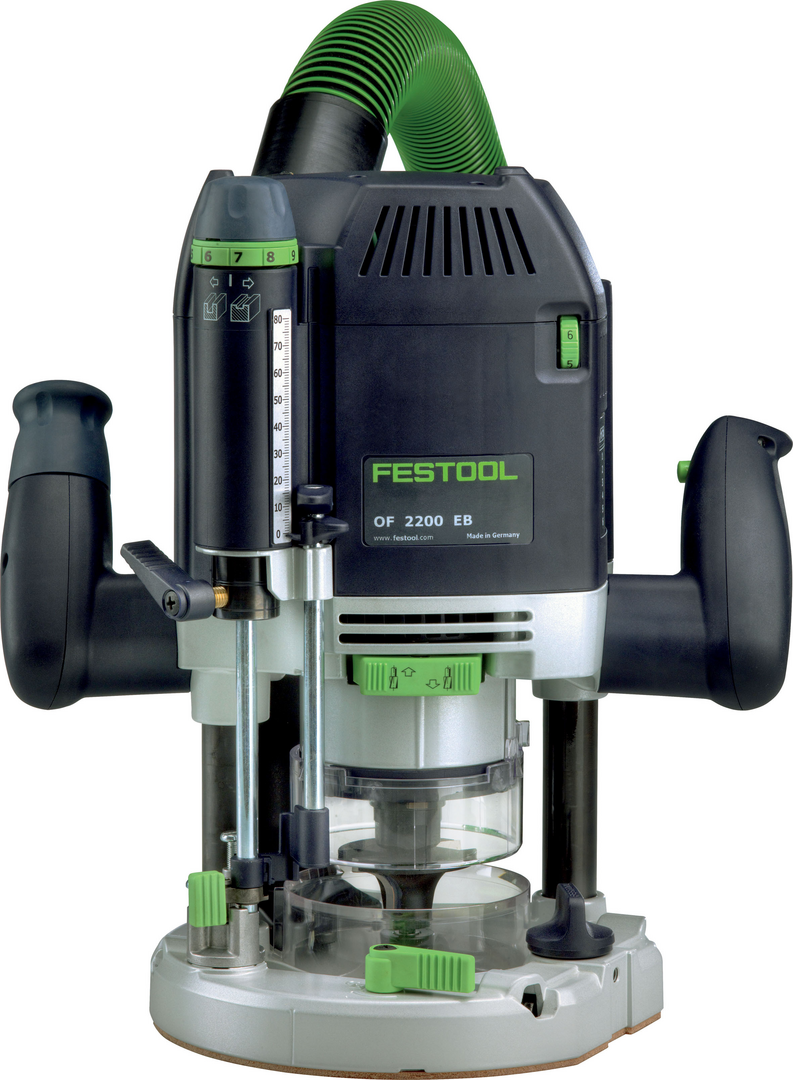

    You might even think it is a portable shaper

    The OF 2200 is our most powerful router. It can easily plunge into 8/4 hard maple and make a 1/2" groove in a single pass. With 2200 watts of power, you might think you are working with a portable shaper. Designed for exceptional maneuverability, the OF 2200 incorporates many new ergonomic design features, making it easy to control, and a pleasure to use on the jobsite or in the shop.

    Model Number: 576223

    • Dia. 1/2" Clamping Collet (12.7 Mm)
    • Chip Catcher
    • Open Ended Spanner
    • Waf 24
    • Systainer Sys3 M 337

    Idle engine speed 10000 - 22000 RPM

    Max. cutter diameter 3-1/2" (89 mm)

    Routing stroke 3-5/32" (80 mm)

    Weight 18.30 lbs (8.30 kg)

    Routing depth fine adjustment range 3/4" (20.00 mm)

    Drive type 120 VAC

    Collet dia. 1/4" - 1/2" (6 - 12.7 mm)

    Dust extraction connection dia. 1-1/16"/1-7/16" (27/36 mm)

    Cable length 13.123 ft (4.00 m)

    Power consumption 2200 watt

    Idle engine speed 10000 - 22000 RPM
    Max. cutter diameter 3-1/2" (89 mm)
    Routing stroke 3-5/32" (80 mm)
    Weight 18.30 lbs (8.30 kg)
    Routing depth fine adjustment range 3/4" (20.00 mm)
    Collet dia. 1/4" - 1/2" (6 - 12.7 mm)
    Dust extraction connection dia. 1-1/16"/1-7/16" (27/36 mm)
    Cable length 13.123 ft (4.00 m)
    Power consumption 2200 watt

    Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the Festool 576223 OF 2200 EB-F-Plus Router. Read it before you buy it, or come back and download it if you have any questions after getting your Festool 576223 OF 2200 EB-F-Plus Router home.

    Festool 576223 OF 2200 EB-F-Plus Router User Guide

    Festool offers and all-inclusive warranty on all their tools.

    3-Year Comprehensive Warranty Coverage - including wear and tear!
    3-Year free shipping to and from Festool service department.
    10-Year spare parts availability guarantees long-term support.
    1-Month money back guarantee.
