Power

The TS 75 is our most powerful plunge cut saw, providing enough power to slice through the toughest of materials with little concern for swirl or burn marks.

Depth Of Cut

At 2 3/4 inch depth of cut, the TS 75 can power through thick stock with ease.

Slip Clutch

A perfect cut the first time, every time, with laser-straight, splinter-free cuts.

Guide rail precision

The TS 75 makes the actual cut right on the edge of the scribe line, even on bevel cuts.

Scribe Line = Cut Line

Spring-loaded riving knife (splitter) retracts into the housing during plunge cuts. The riving knife keeps the cut kerf open so that the material does not pinch the blade. This reduces the chance of kickback, leaving you in control of the operation.

Riving knife

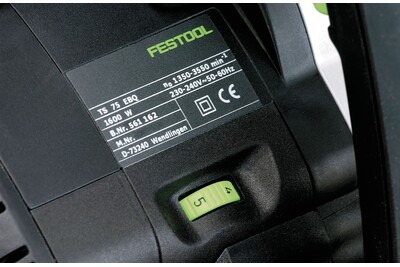

Variable speed allows you to match the speed of the saw to the material. The electronics also maintain a consistent speed under load, improving cut performance and protecting the saw's motor from thermal and current overload.

MMC Electronics

Blade changes are easier and safer using the FastFix system. When engaged, the power switch and arbor are locked simultaneously. The saw is also locked into a position to facilitate easy arbor bolt removal.

Power

The TS 75 is our most powerful plunge cut saw, providing enough power to slice through the toughest of materials with little concern for swirl or burn marks.

Depth Of Cut

At 2 3/4 inch depth of cut, the TS 75 can power through thick stock with ease.

Slip Clutch

A perfect cut the first time, every time, with laser-straight, splinter-free cuts.

Guide rail precision

The TS 75 makes the actual cut right on the edge of the scribe line, even on bevel cuts.

Scribe Line = Cut Line

Spring-loaded riving knife (splitter) retracts into the housing during plunge cuts. The riving knife keeps the cut kerf open so that the material does not pinch the blade. This reduces the chance of kickback, leaving you in control of the operation.

Riving knife

Variable speed allows you to match the speed of the saw to the material. The electronics also maintain a consistent speed under load, improving cut performance and protecting the saw's motor from thermal and current overload.

MMC Electronics

Blade changes are easier and safer using the FastFix system. When engaged, the power switch and arbor are locked simultaneously. The saw is also locked into a position to facilitate easy arbor bolt removal.

Power and precision in the palm of your hand

Experience the incredible power of the TS 75 plunge cut saw. No other saw comes close to its power and pinpoint accuracy. Capable of cutting material that is 2-3/4" thick, this saw will leave an edge that is both burn and splinter-free, creating edges that are clean enough to glue without any further prep work. The TS 75 is suitable for cutting solid doors, truing rough lumber, cutting out window frames, and a host of other applications. Save time and create matched panels by cutting stacked sheet goods with one cut. Try the TS 75 once, and you will never look back.

When used with Festool guide rails, you can achieve perfectly straight and splinter-free cuts.
Spring-loaded riving knife (splitter) keeps the cut kerf open so that the material does not pinch the blade. This reduces the chance of kickback.
The slip clutch helps to minimize the risk of a kickback and minimizes wear on the blade, gear case, and motor.
Blade changes are easier and safer using the FastFix system which locks switch and arbor simultaneously for easy arbor bolt removal.

Model Number: 576118

Hw Standard Saw Blade W36
Splinterguard
Sight Window
Hex Key 5 Mm
Plug It-Power Cable (4 M)
Systainer Sys3 M 437

Cable length 13.123 ft

Cable length 13.123 ft (4.00 m)

Idle engine speed 1350 - 4400 RPM

Cable length 4.00 m

Saw blade diameter 8-1/4" (210 mm)

Drive type 120 VAC

Cutting depth at 45° 2-1/8" (55 mm)

Dust extraction connection dia. 1-1/16"/1-7/16" (27/36 mm)

Power consumption 1600 watt

Cutting depth 0" - 3" (0 - 75 mm)

Angular range 0 - 47 °

Cable length 13.123 ft
Cable length 13.123 ft (4.00 m)
Idle engine speed 1350 - 4400 RPM
Cable length 4.00 m
Saw blade diameter 8-1/4" (210 mm)
Drive type 120 VAC

Cutting depth at 45° 2-1/8" (55 mm)
Dust extraction connection dia. 1-1/16"/1-7/16" (27/36 mm)
Power consumption 1600 watt
Cutting depth 0" - 3" (0 - 75 mm)
Angular range 0 - 47 °

Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the Festool 576118 TS 75 Track Saw Only. Read it before you buy it, or come back and download it if you have any questions after getting your Festool 576118 TS 75 Track Saw home.

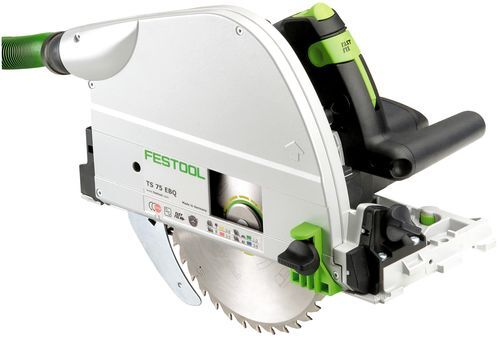

Festool 576118 TS 75 Track Saw Only

Festool offers and all-inclusive warranty on all their tools.

3-Year Comprehensive Warranty Coverage - including wear and tear!
3-Year free shipping to and from Festool service department.
10-Year spare parts availability guarantees long-term support.
1-Month money back guarantee.
