Product Description

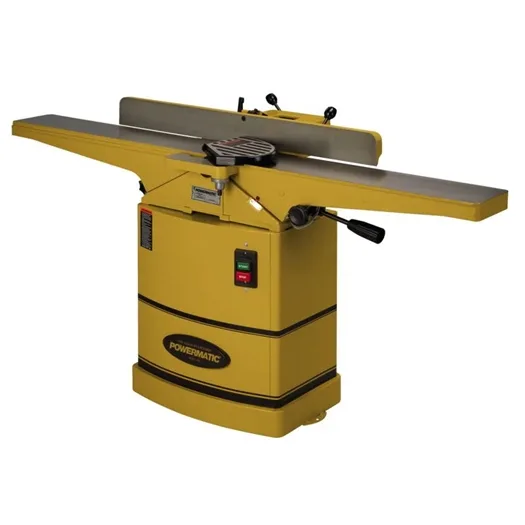

This 6" Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts – this design provides a superior finish and quieter operation compared to conventional cutterheads, and the inserts require no adjustment once they are installed. If a knife insert becomes nicked, simply rotate it for a fresh edge and continue working. Oversized infeed/outfeed tables are mounted in dovetailed ways. The fence is 38" in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a 1 HP motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.
Specifications
Helical cutterhead with 40 four sided carbide inserts provides smoother, quieter cutting and finer finish than conventional systems.
66" long adjustable infeed and outfeed tables provide more working surface.
Fine/quick adjustment lever on infeed table for precision cuts.
Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts.
Enlarged sheet metal stand provides a sturdy base.
Fence controls are center-mounted for convenience.
Push button switch is lockable to prevent accidental starting.
