RIKON 22" Variable Speed Scroll Saw

Only 2 left at Hartville

RIKON 22" Variable Speed Scroll Saw

SKU T10622VS
Add to Cart
Free Shipping Icon

Flexible Pickup & Delivery

Choose from shipping or buy online, pick up in-store options. Did we mention that you get free shipping on All Festool orders?

Learn More
Authorized Dealer Icon

Authorized Dealer

We are an authorized dealer of several top brands, providing high-quality products with unmatched service.

Learn More
HRM Heart - Family Owned Icon

Family-owned

We are a fourth-generation family-owned business built on community, trust, and family values.

Learn More
Hartville Hardware Logo - Price Pledge Icon

Price Pledge

We will price-match items our customers find at local competitors for less money on in-store and online purchases.

Learn More

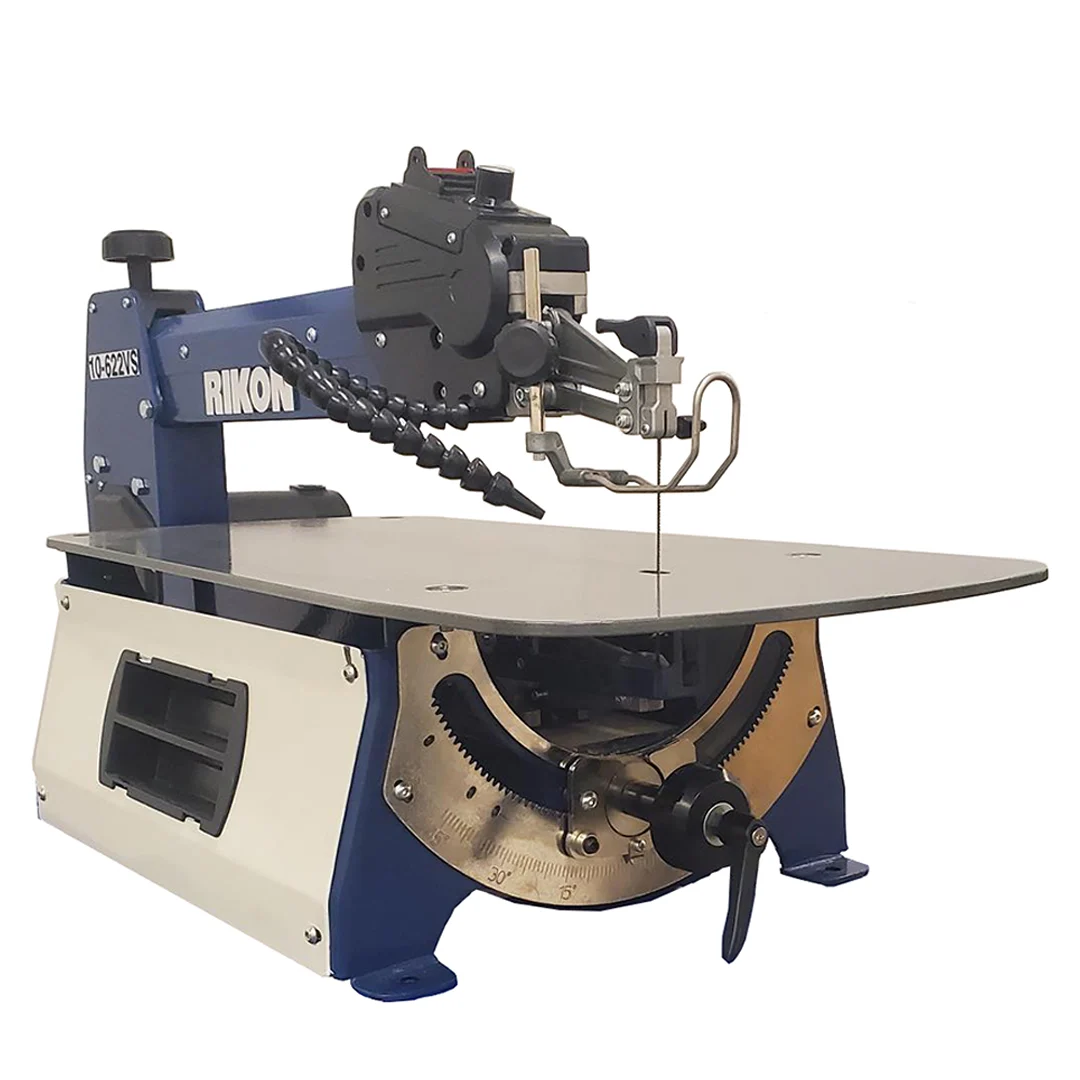

RIKON 22″ Variable Speed Scroll Saw  is designed for making small, intricate curved cuts in thinner woods that are used in making decorative scroll work, puzzles, inlays, and craft items. The thin, working blade allows the material being cut to be freely turned in tight arcs, unlike any other power saw. The DC motor provides variable operating speeds, so adjusting the blade’s cutting action to different materials is easily done with just a twist of the dial. The saw’s extra deep 22” throat and large steel table give extra access and stability when sawing large projects. Table also tilts left and right for making angled cuts. Machine uses 5” long plain end (pinless) blades. Includes sturdy, all-metal base, adjustable built-in dust blower nozzle, lower dust port with vacuum attachment and blade/tool storage in the base.



Model Number: 10-622VS

Motor Volts

120V, 60Hz

Motor Amps

1.6

Electronic Variable Speed (SPM)

550 - 1,550

Pinless Blade Length

5 inches / 130mm

Maximum Cutting Height

2 inches / 50mm

Stroke

3/4 inches / 20mm

Throat Depth

22 inches / 560mm

Table Size (LxW)

.25-5/8 inches x 13-3/4 inches / 650 x 350mm

Table Tilting

30 degrees Left, 0 degrees, 45 degrees Right

Base to Table Height

7-9/16“ / 192mm

Dust Port Diameter (O.)

1-3/8 inches / 35mm

Maximum Sound Level (at 0.3m / 11.8“)

<80dB

Overall Size (LxWxH)

34 inchesx14-1/8 inchesx16-9/16 inches / 865x360x420mm

Base Size (Approximate. LxW)

18-5/8 inches x 13-1/4 inches / 475 x 335mm

Net Weight

68 pounds

Motor Volts 120V, 60Hz
Motor Amps 1.6
Electronic Variable Speed (SPM) 550 - 1,550
Pinless Blade Length 5 inches / 130mm
Maximum Cutting Height 2 inches / 50mm
Stroke 3/4 inches / 20mm
Throat Depth 22 inches / 560mm
Table Size (LxW) .25-5/8 inches x 13-3/4 inches / 650 x 350mm
Table Tilting 30 degrees Left, 0 degrees, 45 degrees Right
Base to Table Height 7-9/16“ / 192mm
Dust Port Diameter (O.) 1-3/8 inches / 35mm
Maximum Sound Level (at 0.3m / 11.8“) <80dB
Overall Size (LxWxH) 34 inchesx14-1/8 inchesx16-9/16 inches / 865x360x420mm
Base Size (Approximate. LxW) 18-5/8 inches x 13-1/4 inches / 475 x 335mm
Net Weight 68 pounds

Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the operator's manual for the RIKON Variable Speed Scroll Saw . Read it before you buy it, or come back and download it if you have questions.

RIKON Variable Speed Scroll Saw Owners Manual
