Product Description

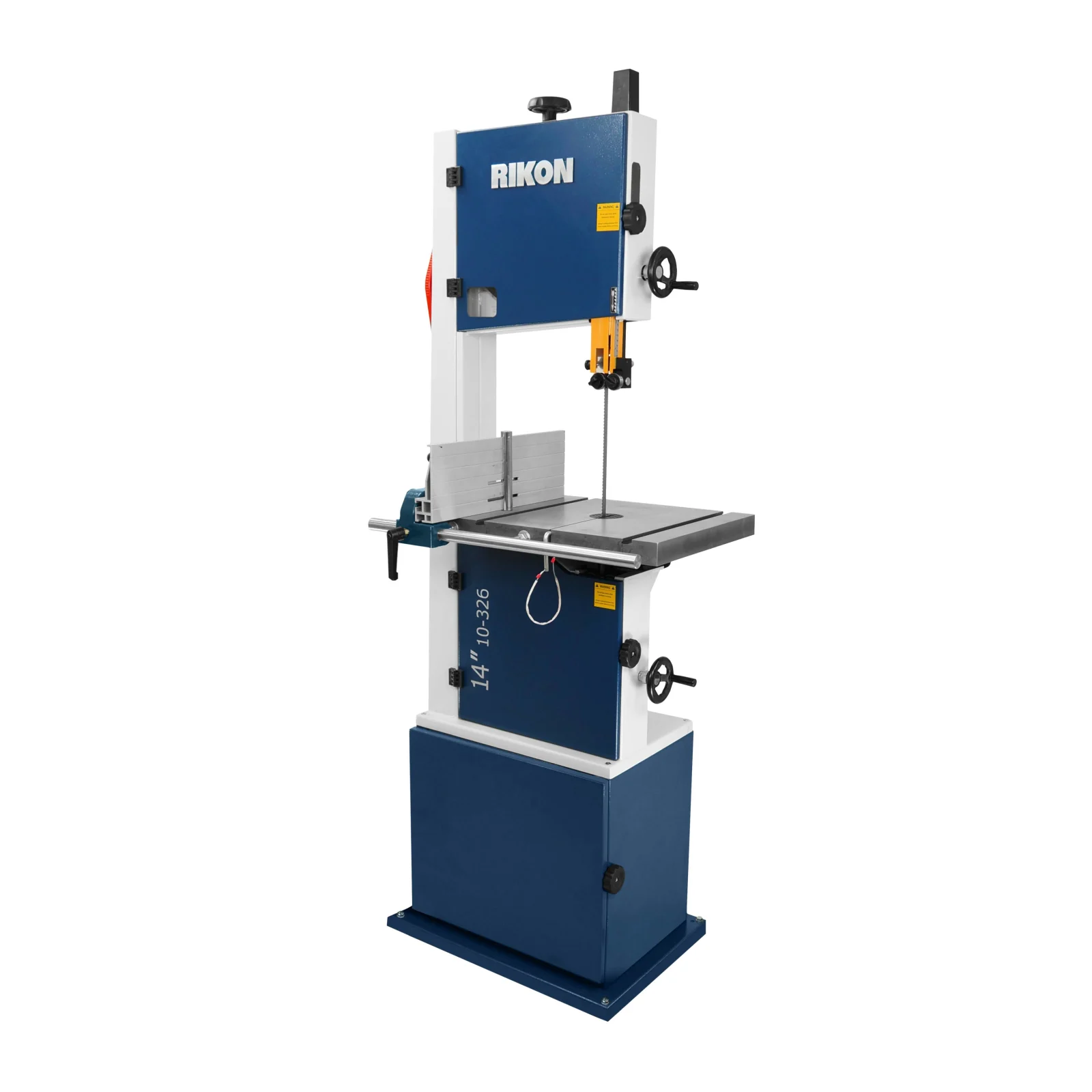

One of RIKON’s latest model band saws, this 14″ Deluxe Bandsaw, (Model 10-326) features a dual voltage 1-3/4-hp motor and a 13” cutting capacity. It is also designed with two speed options – simply change the drive belt on the pulleys to change the blade speed from fast to slower. The incorporated Spring-Loaded Tool-Less Guide System also helps make guide bearing adjustments quick because no tools are required. This bandsaw is wired for use with 3-wire 120V receptacles. It includes a 6” tall rip fence with re-saw bar.
Main Features:
Cutting Capacity – Up to 13”
Spring Loaded Tool-Less Guide System – Makes guide bearing adjustments quick and easy
Quick Adjust 6” Tall Fence System – Allows easy adjustments of the fence to either side of the blade
Quick Lock Cast Iron Trunnion System – Comes with a large handle and locking arm for fast adjustments
Quick Release Blade Tension
Hinged Blade Guard with Sight Window
High Work Table Height
Storage Cabinet Base
Model Number: 10-326
Specifications
Motor
Horsepower: 1-3/4 HP TEFC
Amps: 14/7
Volts: 115/230V, 60Hz, 1Ph
Blade Speed: 1,445/2,950 FT/MIN
Cutting Capacity
Height: 13”
Width: 13-5/8”
Blade (Includes 111” x 5/8”, 4 TPI, Reg.)
Width: 3/16” – 3/4”
Length: 111”
Table
Size: 21-1/2” x 15-3/4”
Left Tilt: -7°
Right Tilt: 45°
Miter Gauge “T” Slot: (2) 3/4” x 3/8”
Height to Floor: 40-1/2”
Height to Base: 20-7/8”
Fence Size: 18-3/4” x 1-3/4” x 6”
Overall
Height: 74-1/2”
Width: 33-3/4”
Depth: 25”
Base Size: 24” x 17-5/8”
Dust Port: 1 @ 4”
Net Weight: 285 lbs.
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the instruction manual for the RIKON 10-326 14-inch Deluxe Bandsaw. Read it before you buy it, or come back and download it if you have questions.
RIKON 10-326 14-inch Deluxe Bandsaw Instruction Manual
