Product Description

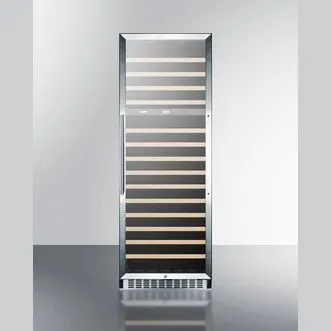

Sized at just under 24" wide and 27" deep, the SWC1966 can store up to 160 standard 750ml Bordeaux bottles on slide-out wooden shelves. Alternatively, this unit can hold up to 118 larger Burgundy style bottles (often used for Chardonnay or Pinot Noir) or a combination of 22 champagne bottles and 132 Bordeaux style. Two digital thermostats let you manage the temperature zones with ease and include an LED temperature display that can be shown in Celsius or Fahrenheit. The larger lower compartment is best suited for red wines stored between 55º and 72ºF, while the upper zone is designed for white wine and champange stored between 41º and 55ºF. Recessed LED lighting offers an attractive touch. Additional features include a Sabbath mode setting, open door alarm, temperature memory function in case of power loss, and high temperature alarm for added protection.
Features
- Large capacity : Interior can hold up to 160 standard 750ml Bordeaux style bottles. If using this wine cellar for wider Burgundy style bottles, you can hold up to 118. For champagne, the interior can hold 22 bottles (plus an additional 132 of the standard Bordeaux style)
- Double pane tempered glass door : Slightly tinted glass provides full view of interior, with a stainless steel trim for added accent
- Two temperature zones: Lower zone is ideal for storing red wine (temperature range: 55ºF to 72ºF) while the upper zone accommodates white and sparkling wine stored between 41ºF and 55ºF
- Digital thermostats : Set and adjust two temperature zones separately with easy-to-use digital controls with an LED display in Celsius or Fahrenheit
- LED lighting : Recessed lighting offers an elegant, efficient view of your collection
- Slide-out wooden shelves : 14 wooden shelves offer proper storage
- Factory installed lock : Keyed lock for trusted security
- Reversible door : User-reversible door swing allows for more flexibility in placing the unit
- Fully finished black cabinet : Allows the unit to be used freestanding
- Professional handle : Stainless steel handle completes the professional look
- Automatic defrost : Reduced user maintenance with auto defrost operation
- Modified built-in use : Unit can be installed in built-in applications with at least 2" of clearance in the rear to ensure adequate ventilation
- High temperature alarm : Audible alarm sounds if the storage temperature rises out of recommended range
- Open door alarm : Alarm sounds if the door is left open for more than 60 seconds
- Temperature Memory Function : Unit will retain its last settings when power is restored in the event of power loss
- Sabbath Mode : Optional setting lets you disable the lighting and alarm for up to 96 hours
- Stainless steel kickplate : Sleek look with added protection
- 100% CFC free : Environmentally safe operation with no ozone-damaging chemicals
Specifications
| Shipping Weight | 220.0 lbs. (100 kg) |
|---|
| Interior Width 1 | 19.75" (50 cm) |
|---|
| Bottles | 160 bottles |
|---|
| Amps | 1.7 |
|---|
| Number of Zones | 2 |
|---|
| Interior Depth 2 | 21.0" (53 cm) |
|---|
| Door Swing | RHD |
|---|
| Parts & Labor Warranty | 1 Year |
|---|
| Depth | 26.63" (68 cm) |
|---|
| Reversible | Yes |
|---|
| Interior Width 2 | 19.75" (50 cm) |
|---|
| Door | Glass |
|---|
| Refrigerant Amount | 1.91 oz. |
|---|
|
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
|
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
|
|---|
| Compressor Step Height | 3.75" (10 cm) |
|---|
| Compressor Step Depth | 5.5" (14 cm) |
|---|
| Interior Height 1 | 29.5" (75 cm) |
|---|
| Width | 23.63" (60 cm) |
|---|
| Height of Cabinet | 69.75" (177 cm) |
|---|
| Depth with Handle | 27.75" (70 cm) |
|---|
| US Electrical Safety | ETL |
|---|
| Interior Depth 1 | 21.0" (53 cm) |
|---|
| Interior Light | Yes |
|---|
| Low Side PSI | 105.0 |
|---|
| Compressor Warranty | 5 Years |
|---|
| High Side PSI | 270.0 |
|---|
| Shelf Qty | 14 |
|---|
| Depth with door at 90° | 48.75" (124 cm) |
|---|
| Refrigerant Type | R600a |
|---|
| Capacity | 15.9 cu.ft. (450 L) |
|---|
| Interior Height 2 | 31.0" (79 cm) |
|---|
| Canadian Electrical Safety | ETL-C |
|---|
| Voltage/Frequency | 115 V AC/60 Hz |
|---|
| Temperature Range | 41°F to 55°F (upper zone); 55°F to 72°F (lower zone) |
|---|
| Thermostat Type | Digital |
|---|
| Compressor Step Width | 19.75" (50 cm) |
|---|
| Defrost Type | Automatic |
|---|
| Weight | 187.0 lbs. (85 kg) |
|---|
| Shelf Type | Wood |
|---|
| Cabinet | Black |
|---|
|
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
|
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
|
|---|
| Fan Type | Interior and Exterior |
|---|
|
KEY
Extra keys available for purchase
|
LHD
Door reversal to left hand swing
|
|---|
