Product Description

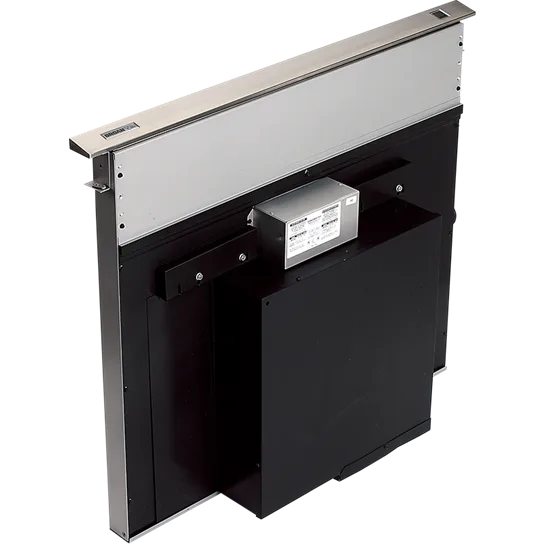

Designed specifically to be compatible with most conventional and commercial style cooktops, combines a sensational appearance with high performance features. The compact design is installed directly behind the cooktop for an unobtrusive appearance, while the thin profile saves precious space under the cabinet (not for installation behind ovens). Choose from Exterior or In-Line blower options (sold separately).
Features
- "Compact design is installed directly behind the cooktop for an unobtrusive appearance. (Not for use behind ovens.) Thin profile saves precious space under the cabinet
- Chimney rises over 9-1/2 inches when activated, ideal for large pots and pans
- Infinitely adjustable control is designed to provide convenient access to govern the blower speed for effective and quiet operation
- Optional remote control will activate down draft from an alternate location (RMDDRBK sold separately)
- Dishwasher-safe filters are easy to remove and feature a stylish brushed stainless steel appearance for a professional look
- Unique ducting capability allows the remote, external blower connection to be ducted to the left, right or downward (from left to right)
- Heat Sentry adjusts speed of blower to high automatically in case of excess heat, to prolong product life
- Your choice of exterior blowers ranging from 600 to 1500 CFM or In-Line blowers from 280 to 1100 CFM (blower required and sold separately)
- Compatible with optional Broan Make-up Air Dampers (MD6TU or MD8TU, sold separately) to fit 6" or 8" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable"
Specifications
| Sones Certified Vertical Rectangular Low | N/A |
|---|
| HVI Certified | Yes |
|---|
| Sones Certified Vertical Rectangular High | N/A |
|---|
| Digital Clock | No |
|---|
| Dishwasher Safe Filters | Yes |
|---|
| Filter Included | Yes |
|---|
| Lighting Function | N/A |
|---|
| Boost Mode | No |
|---|
| Duct Connector Size | 3-1/4" x 14" to 10" Round |
|---|
| Rated Amps | 6.0 |
|---|
| Non-Stick Coated | No |
|---|
| Switch Style | Rotary Dial |
|---|
| UL Listed | Yes |
|---|
| Heat Sentry - Temperature Sensor | Yes |
|---|
| ENERGY STAR® certified product | No |
|---|
| Flue Accommodates ceilings up to xx ft | N/A |
|---|
| Product Depth (inches) | 7" |
|---|
| Sones Certified Horizontal Rectangular Low | N/A |
|---|
| Minimum Height Above Cook Top | N/A |
|---|
| Light Bulbs Included | No |
|---|
| Product Width (inches) | 36" |
|---|
| Accessories Optional | Yes |
|---|
| Filter Type | Stainless Steel |
|---|
| Timer | No |
|---|
| Product Height (inches) | 29-1/2" |
|---|
| Remote Control | Optional |
|---|
| Damper Included | No |
|---|
| Blower Included | No |
|---|
| Delay Shut Off | No |
|---|
| Nightlight Setting | No |
|---|
| Accommodates Ceiling Height | N/A |
|---|
| Sones Certified Vertical Round High | N/A |
|---|
| Color/Finish | Stainless Steel |
|---|
| Control Feature Filter Reminder | No |
|---|
| Sones Certified Vertical Round Low | N/A |
|---|
| Blower Air Mover Type | External Blower Option |
|---|
| Switch Control Settings | Variable |
|---|
| Light Bulb Quantity | 0 |
|---|
| Max Sones/100 CFM | 1.1 |
|---|
| Rated Voltage | 120 |
|---|
| Sones Certified Horizontal Rectangular High | N/A |
|---|
| Mounting Type | Under Counter |
|---|
