Product Description

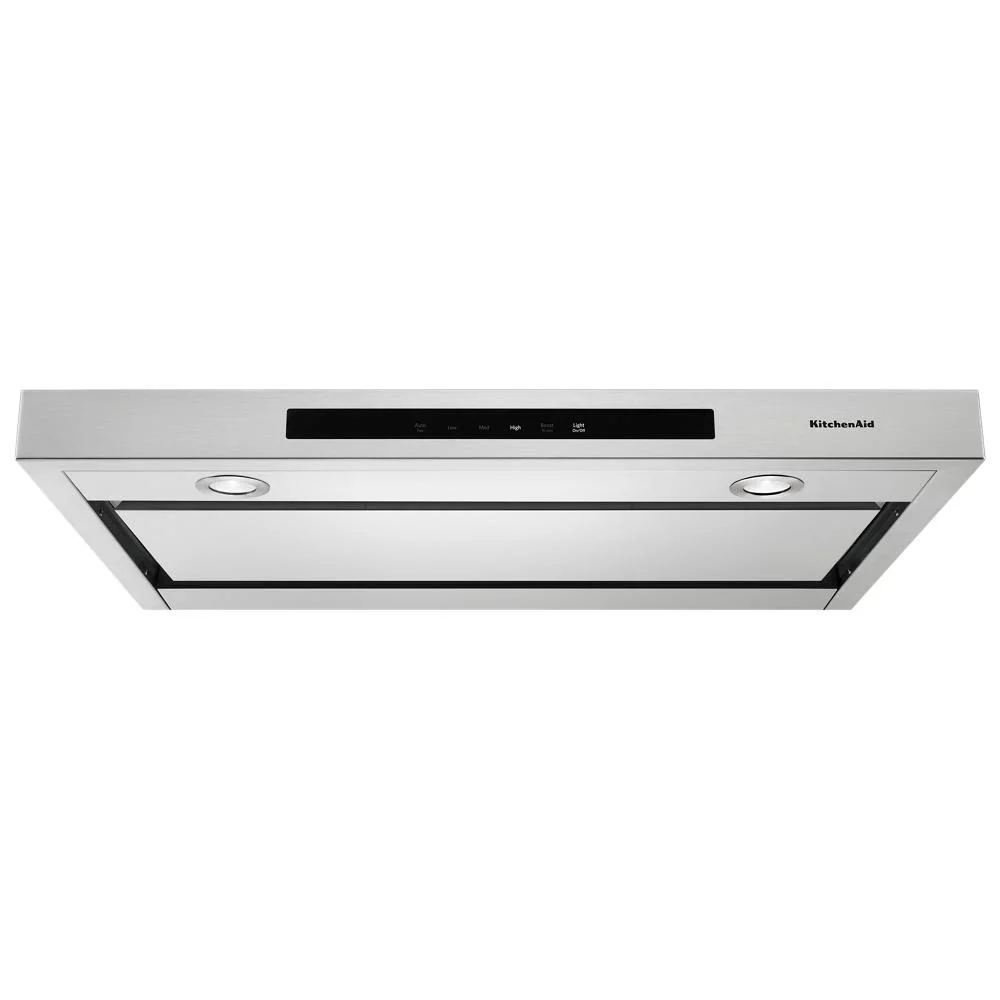

For cooks who have more to make but less undercounter space, this Perimeter Ventilation hood clears the air edge-to-edge with a powerful 400 CFM Class motor, yet with a low profile that leaves room for culinary exploration. Heat-sensor-enabled Auto Speed Setting helps busy cooks keep their cool. (Performance varies based on installation)
Features
- Low Profile Design : Affords more space between the bottom of the hood and the cooking surface. The visible portion of the hood extends just 2-3/8" below the cabinetry above it, enabling ventilation even in limited spaces and offering more room for creativity.
- 400 CFM Motor Class Ventilation System : Helps capture smoke, grease and odors from the cooking surface below for everything from simmering to high temperature cooking techniques like pan searing and stir-frying so you can experiment with confidence.
- Perimeter Ventilation : Can handle up to a 65,000 BTU total output by pulling air from the edges of the hood and speeding up the movement of the air at the center
- Auto Speed Setting : Detects via a heat sensor when your cooktop is in use, then automatically adjusts the fan. The feature keeps your kitchen ventilation up to speed with even your most adventurous cooking techniques, so you can pan-sear scallops without a second thought.
- Automatic Turn On : Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
- 3-Speed Electronic Glass Touch Control with Boost Function : Provides precise electronic control with visual feedback on settings and selections. Supports cooking methods such as pan-searing meats by initiating a 10-minute burst of high-speed ventilation to filter smoke and steam, then returning to normal setting.
- Two LED Task Lights with Night Light Setting :
Helps you fully utilize the extra cooktop workspace afforded by the hood's Low Profile Design. Brilliant dual LEDs let you keep a sharp eye on the back burner, and provide a convenient Night Light low setting.
- Removable Filters : help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
- 65,000 BTU Rating : Pairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.
Specifications
| Control Location | Front |
|---|
| Task Lighting | Yes |
|---|
| HVI (Sones HS Vertical) | 3 |
|---|
| Carton Height | 23 1/4 in |
|---|
| Exhaust Vent Location | Top |
|---|
| CFM Motor Class | 400 |
|---|
| Energy Star® Certified | No |
|---|
| Number of Task Light Settings | 2 |
|---|
| Size (in.) | 36 |
|---|
| Control Location | Front |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 100 |
|---|
| Night Light | Yes |
|---|
| Number of Vent Speeds | 4 |
|---|
| CFM Motor Class | 400 |
|---|
| Task Light Type | LED |
|---|
| UL | Yes |
|---|
| Hz | 60 |
|---|
| Auto On | Yes |
|---|
| Gross Weight | 51 in |
|---|
| Amps | 15 |
|---|
| Blower Type | Centrifugal |
|---|
| Duct Direction | Vertical |
|---|
| Venting | Exterior or Recirculating |
|---|
| Blower Motor | N/A |
|---|
| Number of Night Light Settings | 1 |
|---|
| Width(IN,inches) | 35.9375 |
|---|
| Energy Star® Qualified | No |
|---|
| Auto Function | Auto On |
|---|
| Carton Depth | 18 1/8 inch |
|---|
| Width | 35 15/16 inch |
|---|
| Auto Function | Auto On |
|---|
| Carton Width | 39 inch |
|---|
| HVI (Sones HS Vertical) | 3 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Width(IN,inches) | 35.9375 |
|---|
| Control Location | Front |
|---|
| Control Type | Electronic Touch |
|---|
| Carton Width | 39 in |
|---|
| Night Light Type | LED |
|---|
| Exhaust Vent Location | Top |
|---|
| Carton Height | 23 1/4 in |
|---|
| Size (in.) | 36 |
|---|
| CFM Motor Class | 400 |
|---|
| Volts | 120 |
|---|
| Gross Weight(LB,pounds) | 51 |
|---|
| Auto On | Yes |
|---|
| Carton Depth(IN,inches) | 18.1250 |
|---|
| Hood Type | Under Cabinet |
|---|
| Net Weight | 38.5 in |
|---|
| Prop 65 | Standard |
|---|
| Net Weight | 38.5 in |
|---|
| Depth | 19 11/16 in |
|---|
| Depth(IN,inches) | 19.6875 |
|---|
| Number of Vent Speeds | 4 |
|---|
| Number of Night Light Settings | 1 |
|---|
| Blower Motor | N/A |
|---|
| Carton Width | 39 in |
|---|
| Carton Height | 23 1/4 in |
|---|
| Filters | Grease Filters |
|---|
| Duct Type | Round |
|---|
| UL | Yes |
|---|
| Minimum Height(IN,inches) | 2.3750 |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 100 |
|---|
| Carton Depth | 18 1/8 in |
|---|
| Gross Weight(LB,pounds) | 51 |
|---|
| Task Lighting | Yes |
|---|
| Blower Type | Centrifugal |
|---|
| Volts | 120 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Night Light | Yes |
|---|
| Hz | 60 |
|---|
| Blower Type | Centrifugal |
|---|
| Accessory Relationships | Yes |
|---|
| Task Lighting | Yes |
|---|
| Maximum Height(IN,inches) | 16.5000 |
|---|
| Night Light Type | LED |
|---|
| Gross Weight(LB,pounds) | 51 |
|---|
| Carton Width(IN,inches) | 39.0000 |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| UL | Yes |
|---|
| Control Type | Electronic Touch |
|---|
| Duct Type | Round |
|---|
| Height | 2 3/8 in |
|---|
| Blower Motor | N/A |
|---|
| Net Weight(LB,pounds) | 38 |
|---|
| Width | 35 15/16 in |
|---|
| Duct Type | Round |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Maximum Height(IN,inches) | 16.5000 |
|---|
| Carton Height(IN,inches) | 23.2500 |
|---|
| Hz | 60 |
|---|
| Accessory Relationships | Yes |
|---|
| Auto On | Yes |
|---|
| Carton Depth(IN,inches) | 18.1250 |
|---|
| Gross Weight(LB,pounds) | 51 |
|---|
| Gross Weight | 51 in |
|---|
| Duct Direction | Vertical |
|---|
| Number of Night Light Settings | 1 |
|---|
| Gross Weight | 51 inch |
|---|
| Volts | 120 |
|---|
| Exhaust Vent Location | Top |
|---|
| Net Weight | 38.5 inch |
|---|
| Maximum Height(IN,inches) | 16.5000 |
|---|
| Blower Motor | N/A |
|---|
| Carton Width(IN,inches) | 39.0000 |
|---|
| Height | 2 3/8 in |
|---|
| Style | Hoods |
|---|
| Prop 65 | Standard |
|---|
| Number of Task Light Settings | 2 |
|---|
| Task Light Type | LED |
|---|
| Duct Direction | Vertical |
|---|
| HVI (Sones HS Vertical) | 3 |
|---|
| Minimum Height(IN,inches) | 2.3750 |
|---|
| Filters | Grease Filters |
|---|
| Duct Type | Round |
|---|
| Carton Depth(IN,inches) | 18.1250 |
|---|
| Accessory Relationships | Yes |
|---|
| Night Light Type | LED |
|---|
| Carton Width | 39 in |
|---|
| Depth(IN,inches) | 19.6875 |
|---|
| Carton Width(IN,inches) | 39.0000 |
|---|
| Duct Direction | Vertical |
|---|
| Number of Night Light Settings | 1 |
|---|
| Filters | Grease Filters |
|---|
| Size (in.) | 36 |
|---|
| Auto On | Yes |
|---|
| Control Type | Electronic Touch |
|---|
| Night Light Type | LED |
|---|
| Prop 65 | Standard |
|---|
| Net Weight(LB,pounds) | 38 |
|---|
| Amps | 15 |
|---|
| Accessory Relationships | Yes |
|---|
| Auto Function | Auto On |
|---|
| Number of Task Light Settings | 2 |
|---|
| Depth | 19 11/16 in |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Energy Star® Certified | No |
|---|
| Gross Weight | 51 in |
|---|
| Carton Depth(IN,inches) | 18.1250 |
|---|
| CFM Motor Class | 400 |
|---|
| Hood Type | Under Cabinet |
|---|
| Control Location | Front |
|---|
| Carton Height(IN,inches) | 23.2500 |
|---|
| Width(IN,inches) | 35.9375 |
|---|
| Energy Star® Certified | No |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 100 |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 100 |
|---|
| Number of Vent Speeds | 4 |
|---|
| Carton Depth | 18 1/8 in |
|---|
| Depth | 19 11/16 in |
|---|
| Hood Type | Under Cabinet |
|---|
| Prop 65 | Standard |
|---|
| Carton Height(IN,inches) | 23.2500 |
|---|
| Maximum Height(IN,inches) | 16.5000 |
|---|
| Filters | Grease Filters |
|---|
| Style | Hoods |
|---|
| Height | 2 3/8 inch |
|---|
| Minimum Height(IN,inches) | 2.3750 |
|---|
| Depth | 19 11/16 inch |
|---|
| Depth(IN,inches) | 19.6875 |
|---|
| Hood Type | Under Cabinet |
|---|
| Amps | 15 |
|---|
| Style | Hoods |
|---|
| Height | 2 3/8 in |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Volts | 120 |
|---|
| Control Type | Electronic Touch |
|---|
| HVI (Sones HS Vertical) | 3 |
|---|
| Exhaust Vent Location | Top |
|---|
| Size (in.) | 36 |
|---|
| Depth(IN,inches) | 19.6875 |
|---|
| Task Lighting | Yes |
|---|
| Width | 35 15/16 in |
|---|
| Night Light | Yes |
|---|
| Carton Depth | 18 1/8 in |
|---|
| Minimum Height(IN,inches) | 2.3750 |
|---|
| Amps | 15 |
|---|
| Task Light Type | LED |
|---|
| Net Weight | 38.5 in |
|---|
| Style | Hoods |
|---|
| Width(IN,inches) | 35.9375 |
|---|
| Carton Height | 23 1/4 inch |
|---|
| Carton Height(IN,inches) | 23.2500 |
|---|
| Task Light Type | LED |
|---|
| UL | Yes |
|---|
| Number of Task Light Settings | 2 |
|---|
| Hz | 60 |
|---|
| Width | 35 15/16 in |
|---|
| Venting | Exterior or Recirculating |
|---|
| Net Weight(LB,pounds) | 38 |
|---|
| Auto Function | Auto On |
|---|
| Blower Type | Centrifugal |
|---|
| Carton Width(IN,inches) | 39.0000 |
|---|
| Net Weight(LB,pounds) | 38 |
|---|
| Night Light | Yes |
|---|
| Number of Vent Speeds | 4 |
|---|
