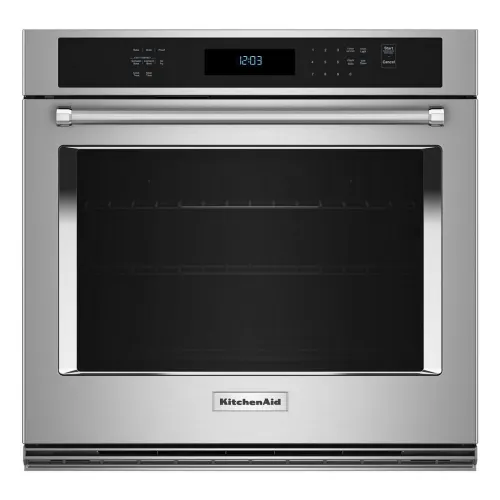

KitchenAid® 30" Single Wall Oven with Air Fry Mode

KitchenAid® 30" Single Wall Oven with Air Fry Mode

  • | SKU KOES530PPS
$3,299.00
This appliance is temporarily out of stock.
Click here to learn more.
Add to Cart

Product Description

Get the crisp you crave, right from your oven. This 30" Single Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like. *When compared to deep frying.


Features

  • Air Fry Mode. : Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*
  • Self-Close Door. : Features specialized hinges that make it easy to shut the oven when your hands are full. Just give the door a nudge, and it will gently close itself
  • PrintShield™ Finish. : Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up
  • Self-Cleaning Cycle. : Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth
  • 5.0 Cu. Ft. Oven Capacity. : Provides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once..
  • Star-K Certified. : To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled
  • What's in the box. : Single Wall Oven includes - Dishwasher-Safe Air Fry Basket - Integrated Meat Thermometer.
  • Dishwasher-Safe Air Fry Basket. : Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup
  • Even-Heat™ True Convection. : Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables..
  • Integrated Meat Thermometer. : Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached
  • SatinGlide™ Roll-Out Extension Rack. : Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading
  • FIT System Limited Guarantee. : Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout. *
  • EasyConvect™ Conversion System. : Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds
  • Even-Heat™ Preheat. : Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots
  • 4,000-Watt Broil Element. : Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more

Specifications

Light Type Halogen
Cutout Depth(IN,inches) 24.0000
Language Conversion English/French/Spanish
Light Control Oven Light Touch Pad
Convection Functions Bake,Broil,Convection Conversion
UL Yes
Electronic Display Type Digital
Carton Width 34 13/16 in
Cutout Height (in) 28 in
Net Weight 143.0 in
Installable Under Cooktop Yes
Cutout Width(IN,inches) 28.5000
Cooktop Combinations KCES550,KCES556,KCES950,KCES956,KCGS350,KCGS356,KCGS550,KCGS556,KCGS950,KCGS956,KECC604,KECC607,KECC664,KECC667,KGCC506,KGCC566,KICU509,KICU569
Depth Closed Excluding Handles(IN,inches) 24.5000
Carton Depth 30 13/16 in
Oven Automatic Shut-Off Yes
Oven Interior Width(IN,inches) 25.000
Capacity (Cu Ft) 5.00 in
Power On Indicator Light Yes
Door Removable Yes
Display Color White
Cutout Width(IN,inches) 28.5000
Door Broil Position Closed
Accessory Relationships Yes
Number of Oven Lights 2
Flush Installation Approved Yes
Oven Rack 3 Type Gliding Roll-Out
Depth With Door Open 90 Degree 46 3/4 in
Height(IN,inches) 28.7500
Handle Color Stainless Steel
Connectivity Amazon Alexa,Android,Google Assistant,iOS
Delay Clean No
Oven Interior Depth(IN,inches) 19.000
Gross Weight 161 in
Depth Closed Excluding Handles(IN,inches) 24.5000
Capacity (Cu Ft) 5.00 in
Maximum Height(IN,inches) 28.7500
Convection Functions Bake,Broil,Convection Conversion
Oven Cleaning Type Self-Cleaning
Installable Under Oven Yes
Depth Closed Including Handles(IN,inches) 27.1250
Handle Color Stainless Steel
Capacity(FT3,cubic feet) 5.00
Number of Bake Elements 2
Depth With Door Open 90 Degree(IN,inches) 46.7500
Installable Under Cooktop Yes
Number of Broil Elements 1
Cutout Width (in) 28 1/2 in
Flush Installation Approved Yes
Oven Interior Height(IN,inches) 18.000
Self-Cleaning Oven Racks No
Maximum Height(IN,inches) 28.7500
Number of Broil Elements 1
Number of Oven Racks 3
Broiler Element Power 4,000 W
Installable Under Cooktop Yes
Light Type Halogen
Oven Automatic Shut-Off Yes
Electronic Display Type Digital
Width(IN,inches) 29.7500
CUL Yes
Selection Air Fry,Audible Signal,Bake,Broil,Cancel/Off,Clock,Control Lock,Cook Time Indicator,Delay Start,Frozen Bake,Keep Warm/Warm Hold,Language Conversion,Proofing,Rapid Preheat,Sabbath Mode,Start Time,Temperature Probe,Temperature-Sensor Baking,Timer
Door Type Metal & Glass
Power Cord Included No
Prop 65 Standard
Depth 27 1/8 in
Depth With Door Open 90 Degree(IN,inches) 46.7500
Display Color White
Number of Oven Lights 2
Oven Interior Width(IN,inches) 25.000
Cutout Depth(IN,inches) 24.0000
Gross Weight 161 in
Language Conversion English/French/Spanish
Carton Height 30 3/4 in
UL Yes
Electronic Display Type Digital
Self-Cleaning Oven Racks No
Cutout Depth (in) 24 in
Capacity(FT3,cubic feet) 5.00
Maximum Height(IN,inches) 28.7500
Convection Element Type True Convection
Number of Bake Elements 2
Power Cord Included No
Air Fry Yes
Convection Element Power (watts) 3,200
Number of Broil Elements 1
Kosher Consumer Friendly Star K Certified
Depth Closed Including Handles(IN,inches) 27.1250
Oven Rack 3 Type Gliding Roll-Out
Door Removable Yes
Number of Rack Guides 6
Oven Capacity (cu.ft) 5.0
Kosher Consumer Friendly Star K Certified
Selection Air Fry,Audible Signal,Bake,Broil,Cancel/Off,Clock,Control Lock,Cook Time Indicator,Delay Start,Frozen Bake,Keep Warm/Warm Hold,Language Conversion,Proofing,Rapid Preheat,Sabbath Mode,Start Time,Temperature Probe,Temperature-Sensor Baking,Timer
Interior Color Blue
Number of Oven Lights 2
Width 29 3/4 in
Cutout Depth(IN,inches) 24.0000
Door Lock Yes
Oven Rack 2 Type Standard
Light Type Halogen
Power Cord Included No
Display Color White
Convection Element Power (watts) 3,200
Amps 20
Size (in.) 30
Oven Type Single
Height 28 3/4 in
Interior Coating Porcelain
Control Type Electronic Touch
Depth Closed Including Handles(IN,inches) 27.1250
Oven Rack 1 Type Standard
Oven Rack 1 Type Standard
Cutout Width(IN,inches) 28.5000
Broiler Location Top of Oven
Door Type Metal & Glass
Oven Cleaning Type Self-Cleaning
Power On Indicator Light Yes
Height(IN,inches) 28.7500
Handle Material Metal
Carton Depth 30 13/16 in
Door Type Metal & Glass
LP Convertible No
Prop 65 Standard
Broiler Location Top of Oven
Amps 20
Cutout Height(IN,inches) 28.0000
Broiler Element Power 4,000 W
Volts 240/208
Carton Width 34 13/16 in
Cutout Height (in) 28 in
Accessory Relationships Yes
Depth With Door Open 90 Degree 46 3/4 in
Depth(IN,inches) 27.1250
Cutout Height(IN,inches) 28.0000
Capacity (Cu Ft) 5.00 in
Depth With Door Open 90 Degree(IN,inches) 46.7500
Volts 240/208
Number of Bake Elements 2
Door Broil Position Closed
Interior Color Blue
Oven Interior Depth(IN,inches) 19.000
Convection Functions Bake,Broil,Convection Conversion
Oven Interior Height(IN,inches) 18.000
Cooktop Combinations KCES550,KCES556,KCES950,KCES956,KCGS350,KCGS356,KCGS550,KCGS556,KCGS950,KCGS956,KECC604,KECC607,KECC664,KECC667,KGCC506,KGCC566,KICU509,KICU569
Depth Closed Excluding Handles 24 1/2 in
Depth Closed Including Handles 27 1/8 in
Width(IN,inches) 29.7500
Language Conversion English/French/Spanish
CUL Yes
Oven Capacity (cu.ft) 5.0
Width 29 3/4 in
Cutout Height(IN,inches) 28.0000
ADA Compliant Yes
Depth(IN,inches) 27.1250
Interior Coating Porcelain
Height(IN,inches) 28.7500
Oven Interior Height(IN,inches) 18.000
Hidden Bake Element Yes
Flush Installation Approved Yes
Gross Weight 161 in
Bake Element Power 2,800 W
Cutout Width (in) 28 1/2 in
Cooktop Combinations KCES550,KCES556,KCES950,KCES956,KCGS350,KCGS356,KCGS550,KCGS556,KCGS950,KCGS956,KECC604,KECC607,KECC664,KECC667,KGCC506,KGCC566,KICU509,KICU569
Convection Element Type True Convection
Door Lock Yes
Selection Air Fry,Audible Signal,Bake,Broil,Cancel/Off,Clock,Control Lock,Cook Time Indicator,Delay Start,Frozen Bake,Keep Warm/Warm Hold,Language Conversion,Proofing,Rapid Preheat,Sabbath Mode,Start Time,Temperature Probe,Temperature-Sensor Baking,Timer
Depth 27 1/8 in
Power On Indicator Light Yes
Carton Depth 30 13/16 in
Height 28 3/4 in
Bake Element Power 2,800 W
Oven Rack 2 Type Standard
Handle Material Metal
Oven Cleaning Type Self-Cleaning
Works With WiFi,App,Remote Access,Voice Controlled
Depth(IN,inches) 27.1250
Light Control Oven Light Touch Pad
Oven Window Size Extra Large
Installable Under Oven Yes
LP Convertible No
Number of Rack Guides 6
Carton Height 30 3/4 in
Handle Color Stainless Steel
Size (in.) 30
Control Type Electronic Touch
Oven Automatic Shut-Off Yes
Capacity(FT3,cubic feet) 5.00
Oven Window Size Extra Large
Interior Coating Porcelain
Air Fry Yes
Oven Interior Width(IN,inches) 25.000
Width(IN,inches) 29.7500
LP Convertible No
Prop 65 Standard
ADA Compliant Yes
Height 28 3/4 in
Depth Closed Including Handles 27 1/8 in
Hz 60
Oven Type Single
Depth Closed Excluding Handles 24 1/2 in
Installable Under Oven Yes
Door Broil Position Closed
Fuel Type Electric
Oven Rack 3 Type Gliding Roll-Out
Delay Clean No
Width 29 3/4 in
Depth Closed Including Handles 27 1/8 in
Oven Type Single
Door Removable Yes
Bake Element Power 2,800 W
Oven Capacity (cu.ft) 5.0
Kosher Consumer Friendly Star K Certified
Fuel Type Electric
UL Yes
Carton Width 34 13/16 in
Size (in.) 30
Light Control Oven Light Touch Pad
Net Weight 143.0 in
Volts 240/208
Depth With Door Open 90 Degree 46 3/4 in
Hidden Bake Element Yes
Hz 60
Depth Closed Excluding Handles(IN,inches) 24.5000
Carton Height 30 3/4 in
Depth 27 1/8 in
Delay Clean No
Cutout Depth (in) 24 in
Hidden Bake Element Yes
CUL Yes
Fuel Type Electric
Oven Interior Depth(IN,inches) 19.000
Net Weight 143.0 in
Broiler Element Power 4,000 W
Convection Element Type True Convection
Self-Cleaning Oven Racks No
Cutout Height (in) 28 in
Oven Window Size Extra Large
Convection Element Power (watts) 3,200
Cutout Depth (in) 24 in
Handle Material Metal
Accessory Relationships Yes
Door Lock Yes
Oven Rack 2 Type Standard
Hz 60
Oven Rack 1 Type Standard
ADA Compliant Yes
Number of Oven Racks 3
Control Type Electronic Touch
Cutout Width (in) 28 1/2 in
Broiler Location Top of Oven
Interior Color Blue
Air Fry Yes
Depth Closed Excluding Handles 24 1/2 in
Number of Oven Racks 3
Amps 20
Number of Rack Guides 6
