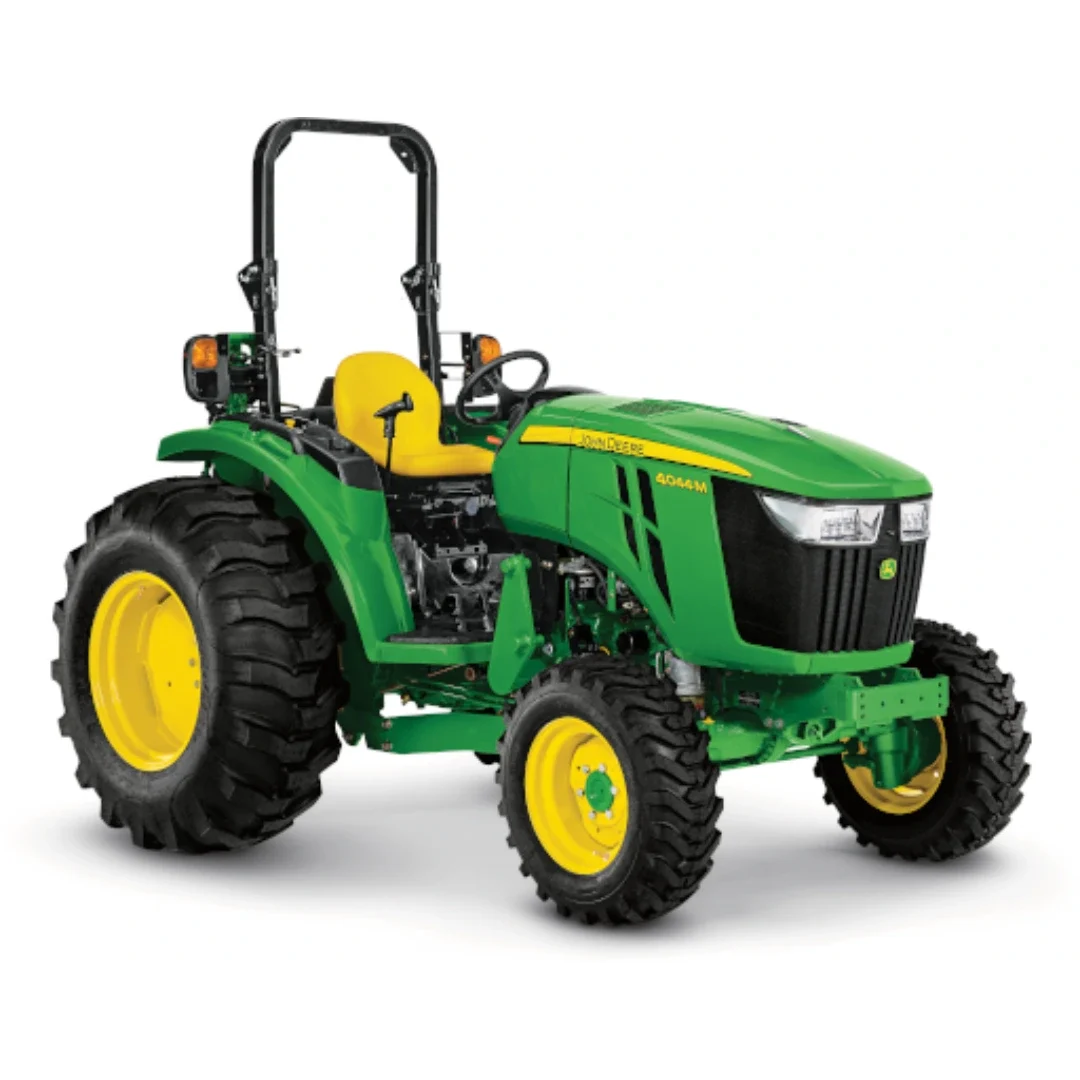

The John Deere 4044M Compact Tractor is designed for those who demand power and reliability in their agricultural tasks. Equipped with a powerful Yanmar® diesel engine, this tractor is ready to handle heavy loads with ease. The PowrReverser transmission allows for seamillilitersess clutchless direction changes, while the eHyardsro transmission maximizes productivity. Standard features include 4-wheel-drive and a Category 1, 3-point hitch compatible with the iMatch Quick-Hitc The operator station is designed for comfort and convenience, ensuring a productive and enjoyable experience.
Features:
Powerful and reliable Yanmar Diesel Engine
PowrReverser or eHyardsrostatic Transmission options
Standard 4-wheel-drive
Category 1, 3-point hitch compatible with iMatch Quick-Hitch
Attractive styling provides improved visibility and serviceability
Operator station is comfortable and convenient
View Brochure
View Implements & Attachments
Model Number	031ALV
This model is the tractor only. Model may be pictured with optional features. Additional options may be available to add for an additional price.
*This model also comes in a cabless version. Please see SKU JD3046R
Looking for John Deere equipment" We are a certified John Deere dealer
with all the equipment accessories and parts you need to maintain your perfect lawn. Does your mower or tractor need serviced or repaired" Schedule a service appointment and one of our trained experts will get it running like ne Near downtown Hartville our location is perfect for Stark Summit and Portage County residents in Hartville Uniontown Alliance Mogadore Jackson Township and the Canton area including North Canton.
pounds pounds pounds Specifications
Engine:
Model Number	031ALV
Engine power (gross)	31.7 kW (42.5 hp) / 43.1 PS at 2600 rpm
Power take-off (PTO) power:
PowrReverser transmission	25 kW (33.6 hp)
eHyardsro transmission	24.1 kW (32.3 hp)
Steering Hydraulics	23.5 L/min (6.2 gpm)
Implement Hydraulics	42.3 L/min (11.2 gpm)
Hitch type	Category 1
Lift capacity, 24 inches behind link arms	1135 kg (2500 pounds)
Standard transmission; forward/reverse	PowrReverser transmission
Cruise control	Optional
Approximateimate shipping weight (open-station)	1705 kg (3759 pounds)
Wheepoundsase	185.5 cm (73 inches)
Key Specs:
Family	EyardsXL2.19NDA, FyardsXL2.19NDA, GyardsXL2.19NDA
Manufacturer	Yanmar®
Engine model	4TNV88C-MJT
Engine power (gross)	31.7 kW (42.5 hp) / 43.1 PS at 2600 rpm
Power take-off (PTO) power:
PowrReverser transmission	25 kWh (33.6 hp)
eHyardsro transmission	24.1 kW (32.3 hp)
Rated engine speed	2600 rpm
Type	Diesel
Injection pump type	High pressure common rail direct injection
Aspiration	Natural
Emissions compliance	Final Tier 4
Cylinders/displacement	4 / 2.189 L (4 / 133.5 cu inches)
Number of cylinders	Four
Cylinder liners	Cast-in-block
Bore and stroke	88x90 mm (3.46x3.54 inches)
Compression ratio	19.1:1
Lubrication	Pressurized
Cooling system	Liquid
Air cleaner	Dual element
Engine torque at rated speed	116 Nm (85.6 pounds-ft)
Fuel tank capacity	56.9 L (15 U.S. gallons)
Electrical:
Battery Dimensions	770 CCA
Alternator (12-V)	75 amp
Starter Dimensions	2 kW (2.68 hp)
Fuel System:
Type	High pressure common rail direct injection

Standard transmission; forward/reverse	PowrReverser transmission
Optional transmission; forward/reverse	eHyardsro transmission
Left-hand reverser	PowrReverser transmission only
Transmission gear ranges	12F/12R PowrReverser, Infinitely-variable, three range
Final drive	Planetary
Brakes	Multi-plate wet disc
Steering	Hyardsrostatic power steering
Clutch, wet/dry	Wet
Clutch disk diameter wet clutch	129 mm (5.08 inches)
AXLe capacity:
Front	1600 kg (3528 pounds)
Rear	2400 kg (5292 pounds)
Creeper	No
Cruise control	Optional
Differential lock	Yes
Hydraulics:
Type	Open center
Pump rated output:
Steering	23.5 L/min (6.2 gpm)
Implement	42.3 L/min (11.2 gpm)
Total	65.8 L/min (17.4 gpm)
Pump type	Single gear
Draft control sensing	Position control
Remote control valves available	Up to six rear remotes
3-Point Hitch:
Type	Category 1
Lift capacity, 24 inches behind link arms	1135 kg (2500 pounds)
Power Take-Off (PTO):
Standard	Independent, 540 rpm at 2600 rpm
Control	Position
Clutch	Wet disc
Fluid Capacities:
Crankcase with filter	5.3 L (1.4 gallons)
Transmission and Hydraulic system	47.3 L (12.5 gallons)
Final Drive:
Type	Planetary
Differential lock	Yes
Operator Station:
Rollover protective structure	Type - Foldable
Platform	Flat
Gear shift location	PowrReverser - Left-hand side
Dimensions:
Wheepoundsase	185.5 cm (73 inches)
Front aXLe clearance	35.1 cm (13.8 inches)
Turning radius with brakes	2.8 m (9.19 ft)
Turning radius without brakes	3.0 m (9.84 ft)
Approximateimate shipping weight (open-station)	1705 kg (3759 pounds)
Tires:
Front:
Farm - 8-16
Turf - 27x10.5-15 or 27x12LL-15
Industrial - 10-16.5
Rear:
Farm - 13.6-28
Turf - 44x18-20 or 22.5LL-16.1
Industrial - 16.9Lx24
Front tread range	148.1 cm (58.3 inches)
Rear tread spacing	137.2 cm (54 inches)
