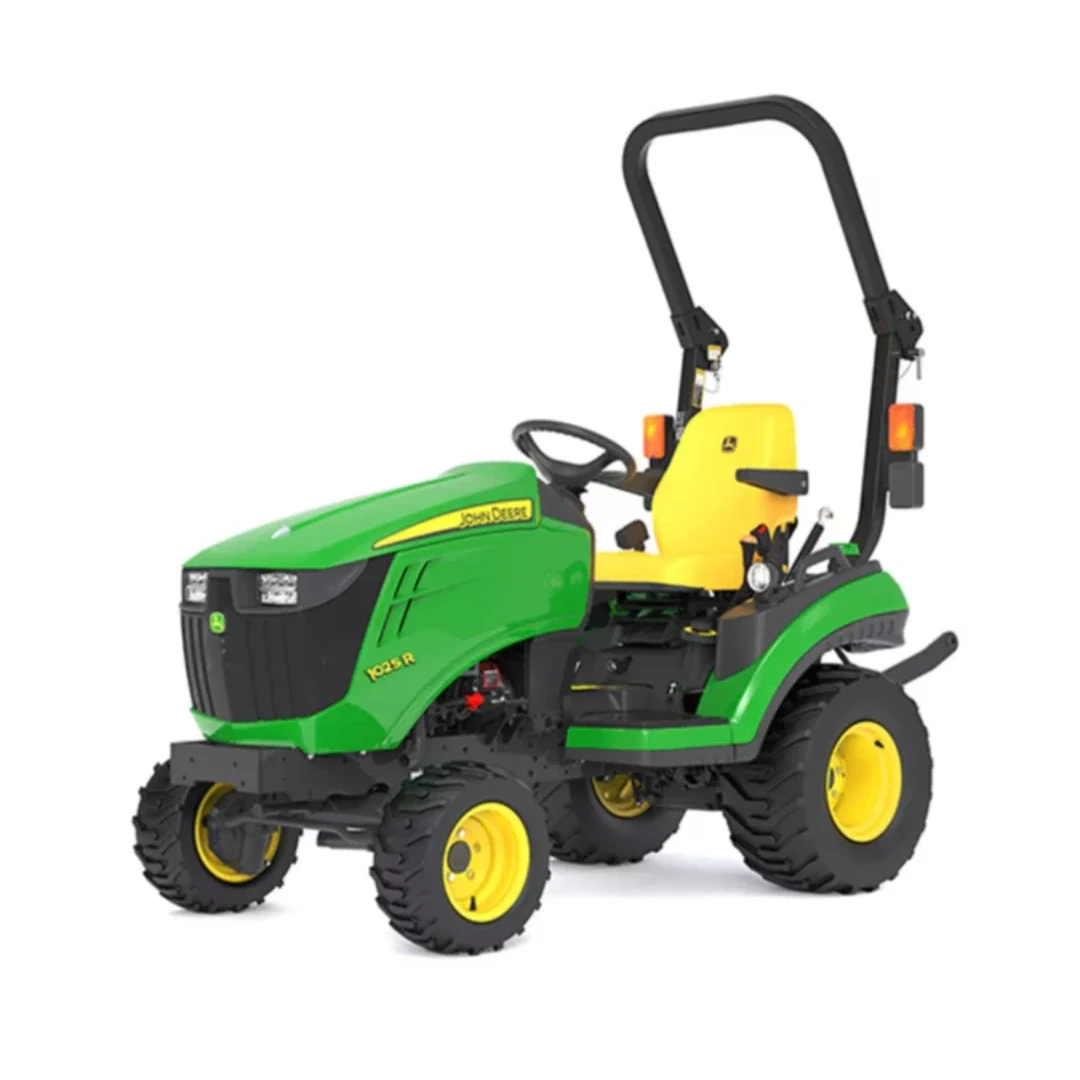

John Deere 1025R Sub-Compact Utility Tractor

In Stock at Hartville

John Deere 1025R Sub-Compact Utility Tractor

SKU JD1025R

Add to Cart
Free Shipping Icon

Flexible Pickup & Delivery

Choose from shipping or buy online, pick up in-store options. Did we mention that you get free shipping on All Festool orders?

Learn More
Authorized Dealer Icon

Authorized Dealer

We are an authorized dealer of several top brands, providing high-quality products with unmatched service.

Learn More
HRM Heart - Family Owned Icon

Family-owned

We are a fourth-generation family-owned business built on community, trust, and family values.

Learn More
Hartville Hardware Logo - Price Pledge Icon

Price Pledge

We will price-match items our customers find at local competitors for less money on in-store and online purchases.

Learn More

John Deere 1025R Sub-Compact Utility Tractor is designed to make your tasks easier and more efficient.

Features:

  • Mower deck lift components (deck sold separately)
  • Implement compounding improves efficiency
  • Easy-open, gas-lift hood
  • Hydrostatic transmission (HST) with Twin Touch™ foot controls
  • Open operator's station is comfortable and convenient
  • Optional cab offers protection from elements
  • Powerful Tier 4-compliant diesel engine and standard dual mid-selective control valve (SCV)
  • Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
  • Fast and easy implement changeover
  • Easy operation four-wheel drive (4WD) power steering

View Brochure

View Implements & Attachments

Model Number: 028NLV



Model may be pictured with optional features. Options shown may affect the final price. Tractor only, no attachments.

Looking for John Deere equipment? We are a certified John Deere dealer with all the equipment, accessories, and parts you need to maintain your perfect lawn. Does your mower or tractor need serviced or repaired? Schedule a service appointment, and one of our trained experts will get it running like new. Near downtown Hartville, our location is perfect for Stark, Summit, and Portage County residents in Hartville, Uniontown, Alliance, Mogadore, Jackson Township, and the Canton area, including North Canton.

Engine:

Manufacturer

Yanmar®

Model

3TNV80F-NCJT

Power (gross)

17.8 kW / 23.9 hp / 24.2 PS at 3200 rpm

Power take-off (PTO) power

12.8 kW / 17.2 hp

Rated engine speed

3200 rpm

Type

Diesel

Injection pump type

Indirect injection

Aspiration

Natural

Emissions compliance

Final Tier 4

Cylinders/displacement

Three cylinders, 1.267 L / 77.3 cu inches

Bore and stroke

80 x 84 mm / 3.15 x 3.31 inches

Compression ratio

23.1:1

Lubrication

Pressurized

Cooling system

Water pump

Air cleaner

Dual element with mechanical restriction indicator

Engine torque at rated speed

53.1 Nm / 39.2 pounds-ft

Fuel tank capacity

24 L / 6.3 U.S. gallons

Electrical:

Battery Dimensions

500 CCA

Alternator (12-V)

40 amp

Starter Dimensions

1.2 kW / 1.6 hp

Transmission:

Type

Hyardsrostatic - two range

Forward/reverse

Hyardsrostatic

Cruise control

Standard

Differential lock

Yes

Final drive

Spur gear

Brakes

Wet disc (left-hand pedal)

Steering

Power

AXLe capacity

Front 612 kg / 1349 pounds; Rear 715 kg / 1576 pounds

Hydraulics:

Type

Open center

Pump rated output

Steering 13.2 L/min / 3.5 gpm; Implement 13.2 L/min / 3.5 gpm; 24 L/min / 6.3 gpm

Pump type

Single gear

Maximum operating pressure

138 bar / 2000 psi

Draft control sensing

Position control

Remote control valves available

Three

3-point hitch:

Type

Limited Category 1

Lift capacity, 24 inches behind link arms

344 kg / 758 pounds

Power take-off (PTO):

Standard

Rear 540 rpm; Mid 2100 rpm

Control

Independent

Clutch

Wet disk

Brake (for mid and rear PTO)

Wet disk

Fluid capacities:

Crankcase with filter

2.7 L / 2.9 gallons

Transmission and Hydraulic system

12.3 L / 3.2 gallons

Operator station:

Type

Foldable Rollover protective structure

Platform

One-piece semi flat

Gear shift location

Left-hand side

Air conditioning, temperature differential

Heat only

Doors

Two

Seat equipment

Premium seat

Dimensions:

Wheepoundsase

1450 mm / 57.1 inches

Front aXLe clearance

195 mm / 7.7 inches

Turning radius without brakes

Outside front tire 2.51 m / 8.2 ft

Limited slip differential

No

Approximateimate shipping weight

Open station 706 kg / 1556 pounds; Cab 906 kg / 1996 pounds

Tires:

Front

R3 Turf 18x8.50-10; R3 Turf Radial 18x8.50-10; R4 18x8.5-10

Rear

R3 Turf 26x12-12; R4 26x12-12

Front tread range

931 mm / 36.7 inches

Rear tread spacing

895 mm / 35.2 inches

Engine:
Manufacturer Yanmar®
Model 3TNV80F-NCJT
Power (gross) 17.8 kW / 23.9 hp / 24.2 PS at 3200 rpm
Power take-off (PTO) power 12.8 kW / 17.2 hp
Rated engine speed 3200 rpm
Type Diesel
Injection pump type Indirect injection
Aspiration Natural
Emissions compliance Final Tier 4
Cylinders/displacement Three cylinders, 1.267 L / 77.3 cu inches
Bore and stroke 80 x 84 mm / 3.15 x 3.31 inches
Compression ratio 23.1:1
Lubrication Pressurized
Cooling system Water pump
Air cleaner Dual element with mechanical restriction indicator
Engine torque at rated speed 53.1 Nm / 39.2 pounds-ft
Fuel tank capacity 24 L / 6.3 U.S. gallons
Electrical:
Battery Dimensions 500 CCA
Alternator (12-V) 40 amp
Starter Dimensions 1.2 kW / 1.6 hp
Transmission:
Type Hyardsrostatic - two range
Forward/reverse Hyardsrostatic
Cruise control Standard
Differential lock Yes
Final drive Spur gear
Brakes Wet disc (left-hand pedal)
Steering Power
AXLe capacity Front 612 kg / 1349 pounds; Rear 715 kg / 1576 pounds
Hydraulics:
Type Open center
Pump rated output Steering 13.2 L/min / 3.5 gpm; Implement 13.2 L/min / 3.5 gpm; 24 L/min / 6.3 gpm
Pump type Single gear
Maximum operating pressure 138 bar / 2000 psi
Draft control sensing Position control
Remote control valves available Three
3-point hitch:
Type Limited Category 1
Lift capacity, 24 inches behind link arms 344 kg / 758 pounds
Power take-off (PTO):
Standard Rear 540 rpm; Mid 2100 rpm
Control Independent
Clutch Wet disk
Brake (for mid and rear PTO) Wet disk
Fluid capacities:
Crankcase with filter 2.7 L / 2.9 gallons
Transmission and Hydraulic system 12.3 L / 3.2 gallons
Operator station:
Type Foldable Rollover protective structure
Platform One-piece semi flat
Gear shift location Left-hand side
Air conditioning, temperature differential Heat only
Doors Two
Seat equipment Premium seat
Dimensions:
Wheepoundsase 1450 mm / 57.1 inches
Front aXLe clearance 195 mm / 7.7 inches
Turning radius without brakes Outside front tire 2.51 m / 8.2 ft
Limited slip differential No
Approximateimate shipping weight Open station 706 kg / 1556 pounds; Cab 906 kg / 1996 pounds
Tires:
Front R3 Turf 18x8.50-10; R3 Turf Radial 18x8.50-10; R4 18x8.5-10
Rear R3 Turf 26x12-12; R4 26x12-12
Front tread range 931 mm / 36.7 inches
Rear tread spacing 895 mm / 35.2 inches

John Deere offers a warranty for all Turf and Utility Equipment that they manufacture.

Each piece of equipment carries a specific warranty including a specific warranty period. Please contact your Hartville Hardware Outdoor Power Sales Team Member for more details.
