Handle	Designer Style
Depth Without Handle	26.25 in
App Filter - Convection	No
Drawer Type	Storage
App Filter - Voltage	240V
App Filter - Drawer Type	Storage
Textured Steel Side Panels	Yes
Broiler Wattage	3410W
Cooktop Burner Type	Coil
Height to Cooking Surface (in.)	36 - 36 1/2
Overall Depth	28.75 in
Element - Right Rear	6" 1250W Temp Limiting Coil
Storage Drawer Features	Removable Full-Width
Oven Control Features	Audible Preheat Signal, Auto Oven Shut-Off with Override, Control Lock Capability, Electronic Clock & Kitchen Timer, Hi / Low Broil, Oven "ON" Light
Element - Right Front	8" 2400W Temp Limiting Coil
Overall Height	47 in
Parts Warranty	Limited 1-year entire appliance
Handle Color	White
Lift-Up Cooktop With Support Rods	Yes
Cooking System	Traditional
Oven Rack Positions (Single or Upper/Lower)	6
Warranty Notes	See written warranty for full details
Depth with Door Open	46.25 in
Oven Features	4-Pass Bake Element, 4-Pass Broil Element
Control Type	Digital Temperature Display, Electronic, Touchpads
Fuel Type	Electric
OU Certified	No
App Filter - Cleaning Type	Manual
Oven Rack Features	2 Oven Racks
Cooking Technology	Traditional
Overall Width	30 in
Color Appearance	White
Hertz	60

Labor Warranty	Limited 1-year entire appliance
Electrical Requirements	208/240V ; 60Hz ; 40A

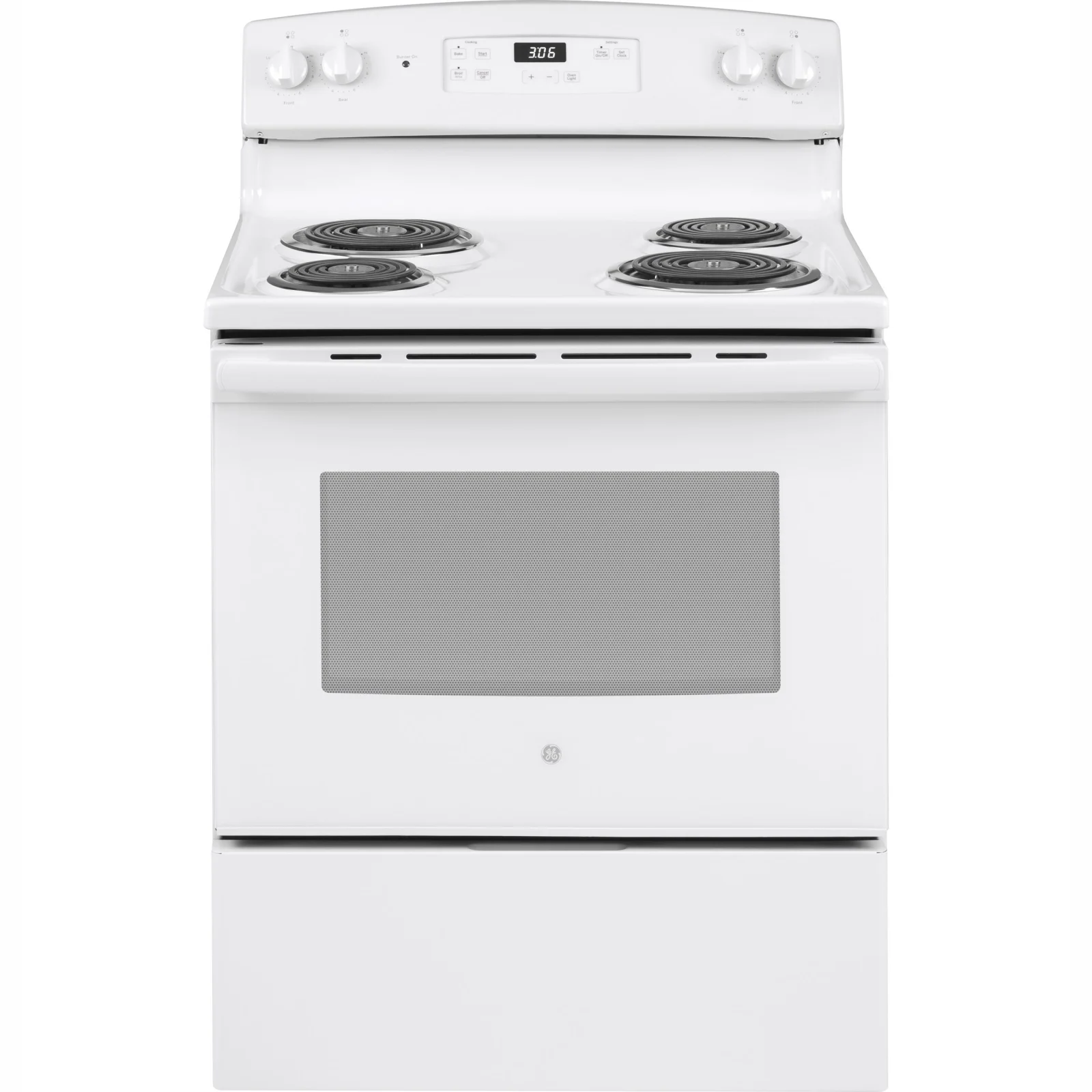

Product Type	Free-Standing Single Oven
Element - Left Rear	8" 2400W Temp Limiting Coil
Removable One-Piece Drip Bowls	Chrome
Control Knobs	Color-Matched
Oven Interior Dimensions (W x H x D) (in.)	23-3/4 x 19 x 18-1/2
App Filter - Cooking Technology	Traditional
KW Rating at 208V	7.6
Heating Element "ON" Indicator Light	Yes
App Filter - Cooktop Type	Coil
Cabinet Width	30 in
Oven Cleaning Type	Standard Clean
Control Location	Backsplash
KW Rating at 240V	10.2
App Filter - Cabinet Width	Cooking 30 in. (Standard)
Cooktop Surface	One-Piece Upswept, Porcelain-Enamel
Cooktop Type	Coil
Net Weight	142 lb
Oven Door Features	Big View Oven Window, Glass Door
Amp Rating at 208V	40
Element - Left Front	6" 1250W Temp Limiting Coil
Amp Rating at 240V	40
Bake Wattage	2585W
Configuration	Range with Storage Drawer
Sabbath Mode	Yes
Oven Interior	1 Incandescent Light
Total Capacity (cubic feet)	5 cu ft
App Filter - Fuel Type	Electric
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Control Type	Electronic touchpad
Approximate Shipping Weight	162 lb
