Product Description

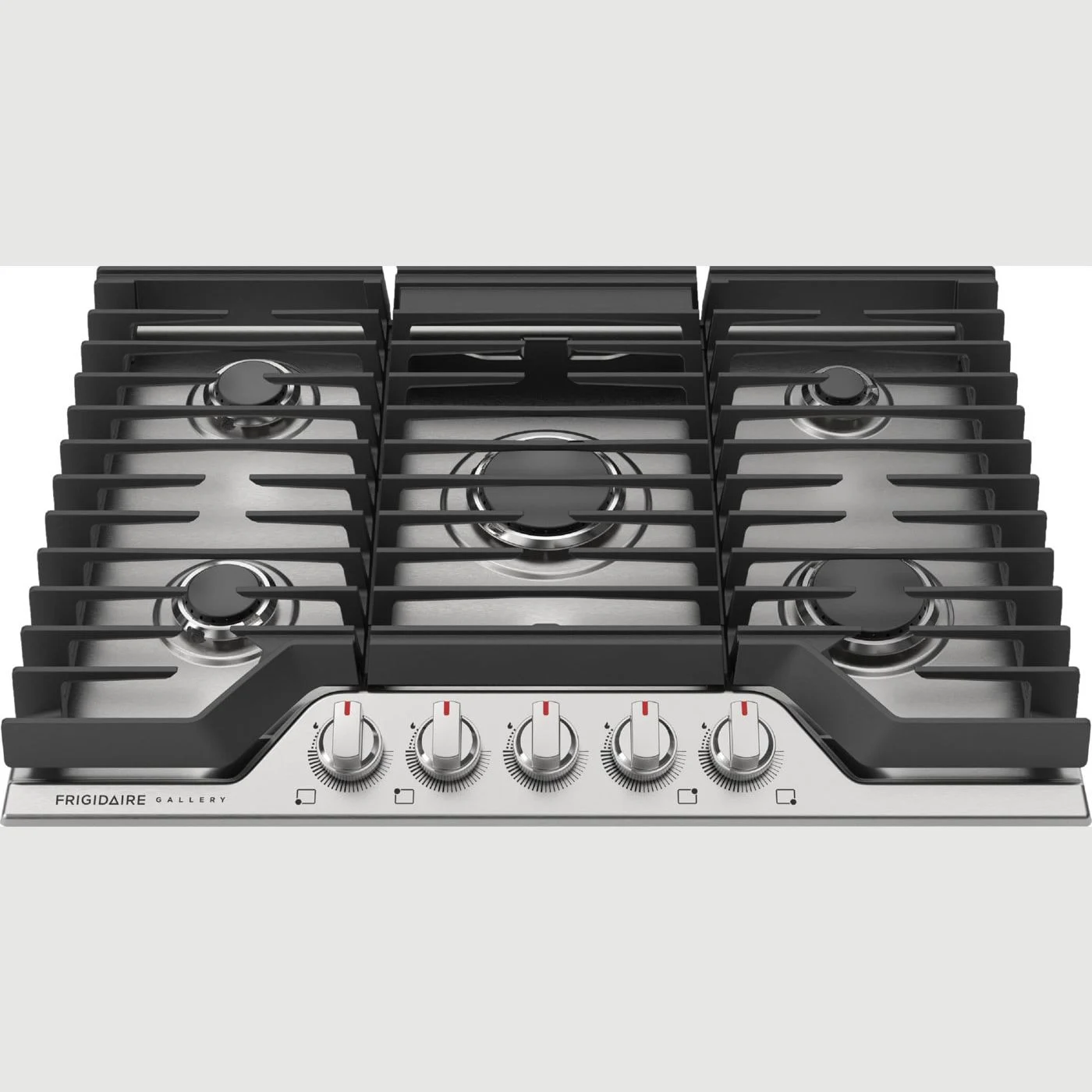

The Frigidaire Gallery 30" Gas Cooktop allows you to get meals on the table faster with the Quick Boil 18,000 BTU burner. Enjoy ultimate cooking flexibility with powerful burners designed to meet all your cooking needs, from the 5,000 BTU simmer burner to the Quick Boil Burner. These cooktops feature new design elements like Backlit LED Knobs and Dishwasher Safe Burner Caps to make cooking and cleaning easier.
Features
- Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
- This cooktop features five burners including a 5,000-BTU simmer burner and a 18,000-BTU Quick Boil Burner that gets meals on the table, faster.
- Lights up when the cooktop is turned on.
- Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
- Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
- We promise that your new 30" Frigidaire Gallery gas cooktop will fit your existing cut-out, or we will reimburse up to one hundred dollars for professionally modifying the countertop.1
- Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Specifications
| Grate Quantity | 3 |
|---|
| Cooking Surface Type | Gas |
|---|
| Left Rear Element Burner | 7500 BTU |
|---|
| Voltage Rating | 120 V |
|---|
| Installed Over a Wall Oven | Yes |
|---|
| Minimum Cutout Depth | 19" |
|---|
| Backlit Knobs | Yes |
|---|
| Right Front Element Burner | 12000 BTU |
|---|
| Power Supply Connection Location | Top Right |
|---|
| Maximum Cutout Depth | 20" |
|---|
| Warranty - Labor | 1 Year |
|---|
| Cutout Height | 7 1/2" |
|---|
| CSA Listed | Yes |
|---|
| Center Front Element Burner | 18000 BTU |
|---|
| Backlit Knobs | Yes |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| Center Front Element Burner | 18000 BTU |
|---|
| LP Conversion Kit Included | Yes |
|---|
| Minimum Cutout Depth | 19" |
|---|
| Power Cord Included | Yes |
|---|
| Warranty - Labor | 1 Year |
|---|
| Grate Quantity | 3 |
|---|
| Maximum Cutout Depth | 20" |
|---|
| Product Weight | 43 lbs |
|---|
| Cutout Height | 7 1/2" |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| Product Weight | 43 lbs |
|---|
| Minimum Cutout Width | 27 1/4" |
|---|
| Warranty - Labor | 1 Year |
|---|
| Product Weight | 43 lbs |
|---|
| Installed Over a Wall Oven | Yes |
|---|
| Prop 65 Label | Yes |
|---|
| Backlit Knobs | Yes |
|---|
| Warranty - Parts | 1 Year |
|---|
| Gas Supply Connection Location | Top Right |
|---|
| Prop 65 Label | Yes |
|---|
| Minimum Cutout Depth | 19" |
|---|
| Voltage Rating | 120 V |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| Grate Style | Continuous |
|---|
| Minimum Circuit Required | 5 Amps |
|---|
| Right Front Element Burner | 12000 BTU |
|---|
| Left Front Element Burner | 9500 BTU |
|---|
| Maximum Cutout Width | 29 5/16" |
|---|
| Grate Quantity | 3 |
|---|
| Maximum Cutout Width | 29 5/16" |
|---|
| Left Front Element Burner | 9500 BTU |
|---|
| UL Listed | Yes |
|---|
| Control Location | Front |
|---|
| Left Rear Element Burner | 7500 BTU |
|---|
| Center Front Element Burner | 18000 BTU |
|---|
| Power Cord Included | Yes |
|---|
| Right Rear Element Burner | 5000 BTU |
|---|
| Installed Over a Wall Oven | Yes |
|---|
| LP Conversion Kit Included | Yes |
|---|
| Cooking Surface Type | Gas |
|---|
| Warranty - Parts | 1 Year |
|---|
| Minimum Cutout Width | 27 1/4" |
|---|
| Cooking Surface Type | Gas |
|---|
| Grate Material | Cast Iron |
|---|
| CSA Listed | Yes |
|---|
| Left Rear Element Burner | 7500 BTU |
|---|
| Power Supply Connection Location | Top Right |
|---|
| UL Listed | Yes |
|---|
| Control Location | Front |
|---|
| ADA Compliant | Yes |
|---|
| Cutout Height | 7 1/2" |
|---|
| Right Rear Element Burner | 5000 BTU |
|---|
| Maximum Cutout Depth | 20" |
|---|
| Minimum Cutout Width | 27 1/4" |
|---|
| Grate Material | Cast Iron |
|---|
| Grate Style | Continuous |
|---|
| CSA Listed | Yes |
|---|
| Minimum Circuit Required | 5 Amps |
|---|
| Warranty - Parts | 1 Year |
|---|
| Left Front Element Burner | 9500 BTU |
|---|
| Maximum Cutout Width | 29 5/16" |
|---|
| Grate Material | Cast Iron |
|---|
| Grate Style | Continuous |
|---|
| ADA Compliant | Yes |
|---|
| Right Front Element Burner | 12000 BTU |
|---|
| Voltage Rating | 120 V |
|---|
| Minimum Circuit Required | 5 Amps |
|---|
| Prop 65 Label | Yes |
|---|
| Power Cord Included | Yes |
|---|
| Right Rear Element Burner | 5000 BTU |
|---|
| UL Listed | Yes |
|---|
| Control Location | Front |
|---|
| Gas Supply Connection Location | Top Right |
|---|
| LP Conversion Kit Included | Yes |
|---|
| ADA Compliant | Yes |
|---|
| Gas Supply Connection Location | Top Right |
|---|
| Power Supply Connection Location | Top Right |
|---|
