Product Description

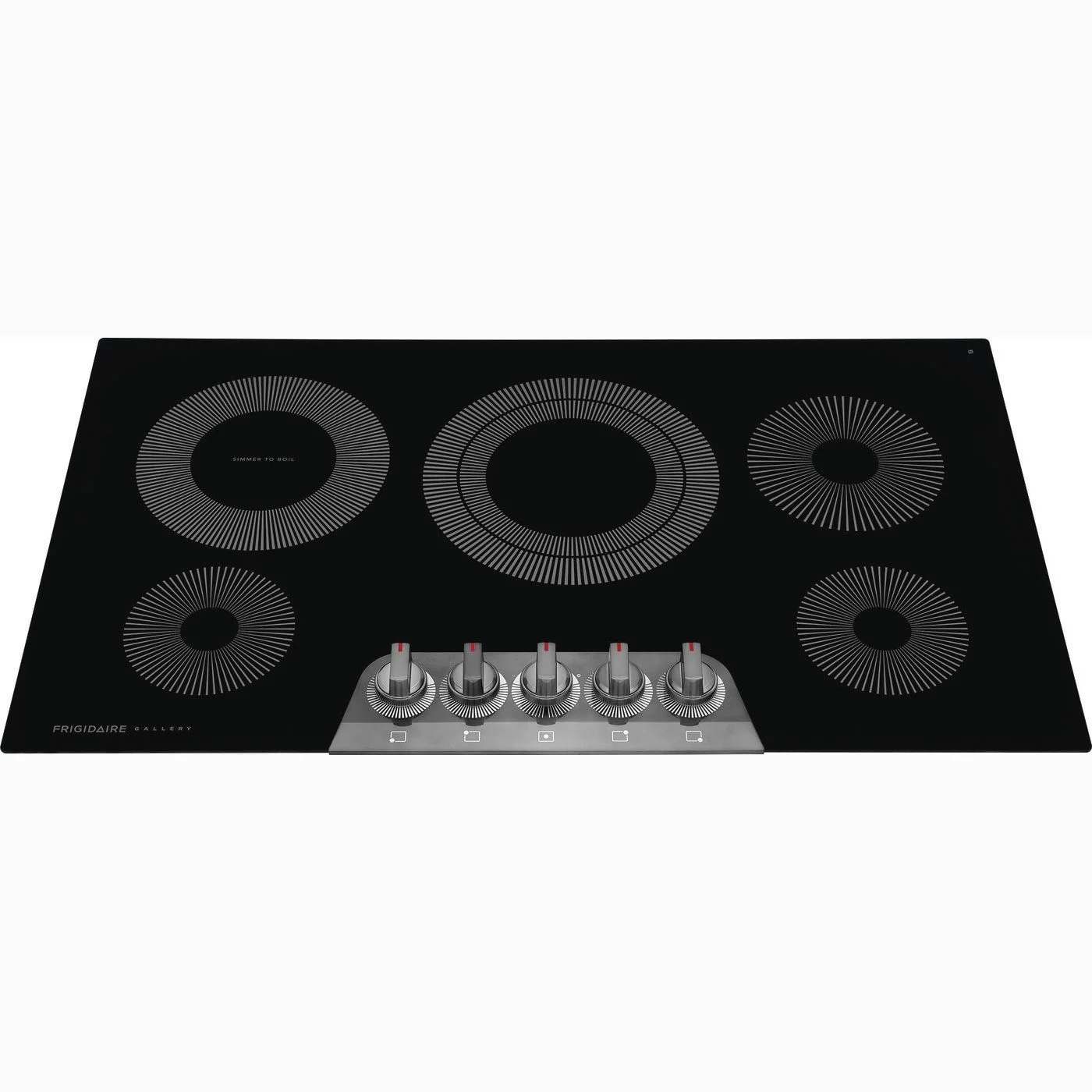

The Frigidaire Gallery 36" Electric Cooktop provides delicious results every time with the EvenTemp® Element that delivers consistent heat across the elements surface, reducing hot and cold spots in your pan. Enjoy ultimate cooking flexibility with powerful elements designed to meet all of your cooking needs, including a Dual Expandable Element and Keep Warm Zone. Plus, these cooktops feature bright, backlit LED knobs that light up when the cooktop is in use, conveniently placed on the front of the cooktop.
Features
- Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.
- Designed to meet all of your cooking needs with a powerful 3,200 Watt EvenTemp® Element, Dual Expandable Element, and convenient Keep Warm Zone.
- Lights up when the burner is turned on.
- We promise that your new 36" Frigidaire radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
- Our convenient 2-in-1 element expands from 9" for smaller pots to 12" for larger cookware, providing more cooktop flexibility.
- Keep food warm until everything - and everyone - is ready.
- Located on the front of the cooktop so you to adjust the temperature without reaching over hot items.
- Wipe away spills more easily with the smooth ceramic glass cooktop.
- Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
Specifications
Voltage Rating | 240 V |
---|
Sabbath Mode | No |
---|
Minimum Cutout Width | 33 7/8" |
---|
Voltage Rating | 240 V |
---|
Right Rear Element Burner | 1800 Watts |
---|
Installed Over a Wall Oven | Yes |
---|
ADA Compliant | Yes |
---|
Sabbath Mode | No |
---|
Right Rear Element Burner Size | 7" |
---|
Left Front Element Burner Size | 6" |
---|
Connected Load @ 240V | 10.4 kW |
---|
Frigidaire Fit Promise | Yes |
---|
Left Rear Element Burner | 3200 Watts |
---|
Minimum Cutout Depth | 19 1/8" |
---|
Right Rear Element Burner | 1800 Watts |
---|
Left Front Element Burner | 1200 Watts |
---|
Connected Load @ 240V | 10.4 kW |
---|
Right Rear Element Burner Size | 7" |
---|
Left Rear Element Burner | 3200 Watts |
---|
Display Type | Mechanical |
---|
Center Rear Element Burner (Large) | 3000 Watts |
---|
Prop 65 Label | Yes |
---|
Minimum Cutout Width | 33 7/8" |
---|
Center Rear Element Burner Size (Small) | 9" |
---|
Display Type | Mechanical |
---|
Left Front Element Burner | 1200 Watts |
---|
Voltage Rating | 240 V |
---|
Minimum Circuit Required | 50 Amps |
---|
Cutout Height | 5" |
---|
Left Rear Element Burner Size | 9" |
---|
Left Front Element Burner Size | 6" |
---|
Minimum Cutout Depth | 19 1/8" |
---|
CSA Listed | Yes |
---|
Right Front Element Burner Size | 6" |
---|
Cutout Height | 5" |
---|
ADA Compliant | Yes |
---|
Center Rear Element Burner (Small) | 1800 Watts |
---|
Hot-Surface Indicator Light | Yes |
---|
Power Supply Connection Location | Right Center |
---|
Warranty - Parts | 1 Year |
---|
Center Rear Element Burner (Small) | 1800 Watts |
---|
Right Front Element Burner Size | 6" |
---|
Control Location | Front |
---|
Right Front Element Burner | 1200 Watts |
---|
Minimum Circuit Required | 50 Amps |
---|
Cooking Surface Type | Smooth |
---|
Power Supply Connection Location | Right Center |
---|
CSA Listed | Yes |
---|
Installed Over a Wall Oven | Yes |
---|
ADA Compliant | Yes |
---|
Sabbath Mode | No |
---|
AB-1200 | Information available at frigidaire.com/en/ab1200 |
---|
Control Location | Front |
---|
Center Rear Element Burner Size (Large) | 12" |
---|
AB-1200 | Information available at frigidaire.com/en/ab1200 |
---|
Left Front Element Burner | 1200 Watts |
---|
Cooking Surface Type | Smooth |
---|
Control Location | Front |
---|
Center Rear Element Burner Size (Small) | 9" |
---|
Minimum Circuit Required | 50 Amps |
---|
Right Rear Element Burner Size | 7" |
---|
Warranty - Labor | 1 Year |
---|
Maximum Cutout Width | 36 1/8" |
---|
Center Rear Element Burner (Small) | 1800 Watts |
---|
Maximum Cutout Width | 36 1/8" |
---|
Product Weight | 35 lbs |
---|
Amps @ 240 Volts | 43.3 Amps |
---|
Center Rear Element Burner (Large) | 3000 Watts |
---|
Hot-Surface Indicator Light | Yes |
---|
Maximum Cutout Depth | 20 1/2" |
---|
AB-1200 | Information available at frigidaire.com/en/ab1200 |
---|
Prop 65 Label | Yes |
---|
Left Rear Element Burner Size | 9" |
---|
Center Rear Element Burner Size (Large) | 12" |
---|
UL Listed | Yes |
---|
Warranty - Labor | 1 Year |
---|
Cutout Height | 5" |
---|
Cooking Surface Type | Smooth |
---|
Frigidaire Fit Promise | Yes |
---|
CSA Listed | Yes |
---|
Maximum Cutout Width | 36 1/8" |
---|
Minimum Cutout Width | 33 7/8" |
---|
UL Listed | Yes |
---|
Warranty - Parts | 1 Year |
---|
Center Rear Element Burner Size (Small) | 9" |
---|
Warranty - Parts | 1 Year |
---|
Left Rear Element Burner | 3200 Watts |
---|
Installed Over a Wall Oven | Yes |
---|
Prop 65 Label | Yes |
---|
Power Supply Connection Location | Right Center |
---|
Frigidaire Fit Promise | Yes |
---|
Left Rear Element Burner Size | 9" |
---|
Amps @ 240 Volts | 43.3 Amps |
---|
Right Rear Element Burner | 1800 Watts |
---|
Right Front Element Burner Size | 6" |
---|
Amps @ 240 Volts | 43.3 Amps |
---|
UL Listed | Yes |
---|
Product Weight | 35 lbs |
---|
Center Rear Element Burner (Large) | 3000 Watts |
---|
Display Type | Mechanical |
---|
Hot-Surface Indicator Light | Yes |
---|
Connected Load @ 240V | 10.4 kW |
---|
Center Rear Element Burner Size (Large) | 12" |
---|
Maximum Cutout Depth | 20 1/2" |
---|
Right Front Element Burner | 1200 Watts |
---|
Warranty - Labor | 1 Year |
---|
Right Front Element Burner | 1200 Watts |
---|
Maximum Cutout Depth | 20 1/2" |
---|
Minimum Cutout Depth | 19 1/8" |
---|
Left Front Element Burner Size | 6" |
---|
Product Weight | 35 lbs |
---|
