Product Description

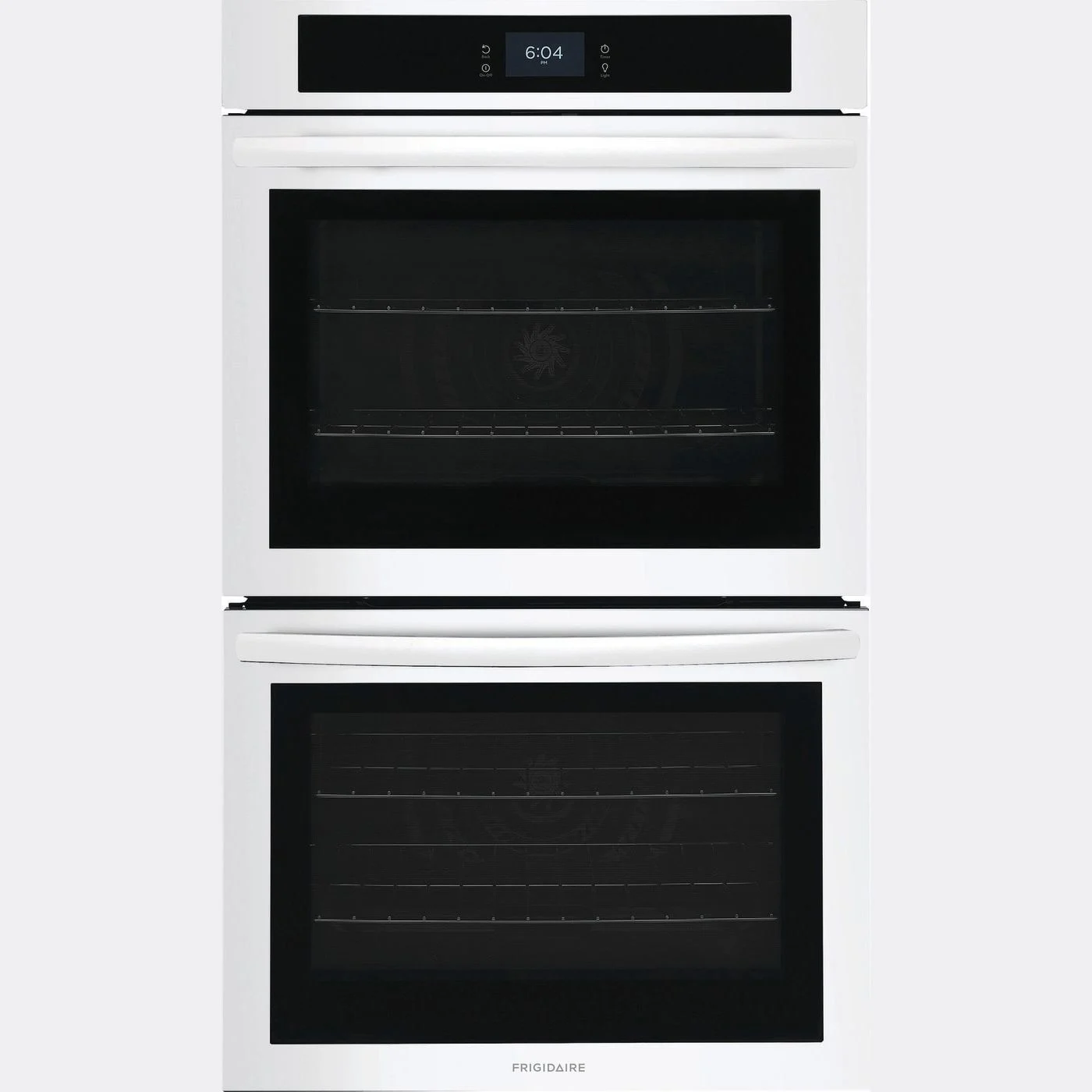

The Frigidaire 30" Double Wall Oven with Fan Convection allows you to achieve faster, more even multi-rack baking results, and has a total oven capacity of 10.6 cu. ft. It also features a premium touch screen digital control panel and provides peace of mind that it will fit existing cutouts with our Frigidaire Fit Promise.
Features
- Get faster, more even multi-rack baking results with Fan Convection - in both ovens!
- Self clean options available in convenient 2, 3 and 4-hour cycles.
- We promise that your new 30" Frigidaire® double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.
- Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
- Cook more at once with a combined 10.6 cu.ft. of oven capacity.
- Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
- Allows you to program the amount of time you want your oven to cook and then turn off.
- Meals stay warm and are ready to serve when you are, using the Keep Warm setting.
Specifications
| Control Lock | Yes |
|---|
| Display Type | Capacitive Touch |
|---|
| Preheat | Yes |
|---|
| Light | Yes |
|---|
| Cancel | Yes |
|---|
| Minimum Cutout Height | 48 7/8" |
|---|
| Temperature Display | Yes |
|---|
| Kitchen Timer | Yes |
|---|
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
|---|
| Amps @ 240 Volts | 40 Amps |
|---|
| Oven Light Watts | 40 Watts |
|---|
| Rack Position Type | Embossed |
|---|
| Maximum Cutout Width | 29" |
|---|
| Keep Warm | Yes |
|---|
| Optional Trim Kit Part Number | WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK, WOMC3TRIMWHT |
|---|
| Depth With Handle | 27 3/5" |
|---|
| Display Interface Color | White |
|---|
| Upper Oven Interior Width | 25 1/5" |
|---|
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
|---|
| Number of Convection Fans | 1 |
|---|
| Lower Oven Interior Depth | 19 7/8" |
|---|
| Minimum Cutout Width | 28 1/2" |
|---|
| Connected Load @ 240V | 7.4 kW |
|---|
| Rack Position Type | Embossed |
|---|
| Cancel | Yes |
|---|
| Amps @ 240 Volts | 40 Amps |
|---|
| Lower Oven Interior Height | 18 1/8" |
|---|
| Broil System | Yes |
|---|
| Silent Control Panel | Yes |
|---|
| Upper Oven Interior Height | 18 1/8" |
|---|
| Kitchen Timer | Yes |
|---|
| RoHS | Yes |
|---|
| Light | Yes |
|---|
| CSA Listed | Yes |
|---|
| Oven Upper Capacity | 5.3 Cu. Ft. |
|---|
| Minimum Cutout Height | 48 7/8" |
|---|
| Self Clean | Yes |
|---|
| Broil Element | 4000 Watts |
|---|
| Optional Trim Kit Part Number | WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK, WOMC3TRIMWHT |
|---|
| Clock | Yes |
|---|
| Power Supply Connection Location | Top Left |
|---|
| Oven Light Watts | 40 Watts |
|---|
| Delay Start | Yes |
|---|
| Oven Lower Capacity | 5.3 Cu. Ft. |
|---|
| Bake Time | Yes |
|---|
| Voltage Rating | 240 V |
|---|
| Oven Light Quantity | 1 |
|---|
| Cleaning System | Yes |
|---|
| Connected Load @ 240V | 7.4 kW |
|---|
| Bake | Yes |
|---|
| Upper Oven Interior Width | 25 1/5" |
|---|
| Display Interface Color | White |
|---|
| Warranty - Labor | 1 Year |
|---|
| Convection Type | Fan |
|---|
| Minimum Circuit Required | 40 Amps |
|---|
| Display Interface Color | White |
|---|
| Cook Time | Yes |
|---|
| Depth With Door 90° Open | 48 3/16" |
|---|
| Bake Element Type | Hidden |
|---|
| Display Type | Capacitive Touch |
|---|
| Minimum Circuit Required | 40 Amps |
|---|
| Off | Yes |
|---|
| Oven Light Type | Halogen |
|---|
| Bake Time | Yes |
|---|
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
|---|
| Control Lock | Yes |
|---|
| Keep Warm | Yes |
|---|
| Preheat | Yes |
|---|
| Amps @ 240 Volts | 40 Amps |
|---|
| Bake | Yes |
|---|
| Broil System | Yes |
|---|
| Convection Type | Fan |
|---|
| Warranty - Parts | 1 Year |
|---|
| Minimum Cutout Width | 28 1/2" |
|---|
| Bake Element | 2500 Watts |
|---|
| Oven Light Quantity | 1 |
|---|
| Broil Element | 4000 Watts |
|---|
| Convection Bake | Yes |
|---|
| Upper Oven Interior Height | 18 1/8" |
|---|
| Start | Yes |
|---|
| Broil Element Pass | 6 |
|---|
| Delay Start | Yes |
|---|
| Oven Lower Capacity | 5.3 Cu. Ft. |
|---|
| Prop 65 Label | Yes |
|---|
| Display Type | Capacitive Touch |
|---|
| Oven Upper Capacity | 5.3 Cu. Ft. |
|---|
| Bake | Yes |
|---|
| Rack Type 1 | Flat |
|---|
| Minimum Circuit Required | 40 Amps |
|---|
| Oven Interior Color | Midnight Black |
|---|
| Bake Element Pass | 8 |
|---|
| UL Listed | Yes |
|---|
| Number of Rack Positions | 6 |
|---|
| Oven Light | Yes |
|---|
| Silent Control Panel | Yes |
|---|
| Upper Oven Interior Depth | 19 7/8" |
|---|
| Cook Time | Yes |
|---|
| Display Light Color | White |
|---|
| Preheat | Yes |
|---|
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
|---|
| Convection Bake | Yes |
|---|
| Broil Element Pass | 6 |
|---|
| Off | Yes |
|---|
| Depth With Handle | 27 3/5" |
|---|
| Lower Oven Interior Depth | 19 7/8" |
|---|
| Sabbath Mode | Yes |
|---|
| Product Weight | 215 lbs |
|---|
| Lower Oven Interior Width | 25 1/5" |
|---|
| Number of Rack Positions | 6 |
|---|
| Maximum Cutout Width | 29" |
|---|
| Voltage Rating | 240 V |
|---|
| Handle Color | White |
|---|
| Rack Position Type | Embossed |
|---|
| Power Supply Connection Location | Top Left |
|---|
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
|---|
| Lower Oven Interior Width | 25 1/5" |
|---|
| Oven Light Quantity | 1 |
|---|
| Broil Element | 4000 Watts |
|---|
| Lower Oven Interior Depth | 19 7/8" |
|---|
| Convection | Yes |
|---|
| Depth With Handle | 27 3/5" |
|---|
| Broil Element Pass | 6 |
|---|
| Oven Light | Yes |
|---|
| Cancel | Yes |
|---|
| CSA Listed | Yes |
|---|
| Minimum Cutout Width | 28 1/2" |
|---|
| Number of Convection Fans | 1 |
|---|
| Start | Yes |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| Temperature Display | Yes |
|---|
| RoHS | Yes |
|---|
| Optional Trim Kit Part Number | WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK, WOMC3TRIMWHT |
|---|
| Light | Yes |
|---|
| Oven Lower Capacity | 5.3 Cu. Ft. |
|---|
| Prop 65 Label | Yes |
|---|
| Clock | Yes |
|---|
| Bake Element | 2500 Watts |
|---|
| Upper Oven Interior Width | 25 1/5" |
|---|
| Upper Oven Interior Depth | 19 7/8" |
|---|
| Self Clean | Yes |
|---|
| Product Weight | 215 lbs |
|---|
| Display Light Color | White |
|---|
| Maximum Cutout Height | 50 1/4" |
|---|
| Rack Type 1 | Flat |
|---|
| Delay Start | Yes |
|---|
| Handle Color | White |
|---|
| Control Lock | Yes |
|---|
| Convection Type | Fan |
|---|
| RoHS | Yes |
|---|
| Off | Yes |
|---|
| Bake Element Type | Hidden |
|---|
| Maximum Cutout Height | 50 1/4" |
|---|
| Lower Oven Interior Height | 18 1/8" |
|---|
| Total Capacity | 10.6 Cu. Ft. |
|---|
| Oven Interior Color | Midnight Black |
|---|
| Cook Time | Yes |
|---|
| Number of Rack Positions | 6 |
|---|
| Sabbath Mode | Yes |
|---|
| Power Supply Connection Location | Top Left |
|---|
| Bake Time | Yes |
|---|
| Broil System | Yes |
|---|
| Warranty - Labor | 1 Year |
|---|
| Warranty - Parts | 1 Year |
|---|
| Depth With Door 90° Open | 48 3/16" |
|---|
| Handle Color | White |
|---|
| Convection | Yes |
|---|
| Clock | Yes |
|---|
| Broil | Yes |
|---|
| Program Fahrenheit or Celsius | Yes |
|---|
| Rack Type 1 | Flat |
|---|
| Maximum Cutout Width | 29" |
|---|
| Rack Type 1 Quantity | 4 |
|---|
| Timer On / Off | Yes |
|---|
| Prop 65 Label | Yes |
|---|
| Keep Warm | Yes |
|---|
| Total Capacity | 10.6 Cu. Ft. |
|---|
| Temperature Display | Yes |
|---|
| Broil | Yes |
|---|
| Warranty - Parts | 1 Year |
|---|
| Oven Light Type | Halogen |
|---|
| Bake Element Type | Hidden |
|---|
| Bake Element Pass | 8 |
|---|
| Sabbath Mode | Yes |
|---|
| Lower Oven Interior Height | 18 1/8" |
|---|
| Timer On / Off | Yes |
|---|
| Warranty - Labor | 1 Year |
|---|
| Kitchen Timer | Yes |
|---|
| Total Capacity | 10.6 Cu. Ft. |
|---|
| Oven Interior Color | Midnight Black |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| Connected Load @ 240V | 7.4 kW |
|---|
| Oven Light Watts | 40 Watts |
|---|
| Convection Bake | Yes |
|---|
| UL Listed | Yes |
|---|
| Start | Yes |
|---|
| Cleaning System | Yes |
|---|
| Number of Convection Fans | 1 |
|---|
| Broil | Yes |
|---|
| Program Fahrenheit or Celsius | Yes |
|---|
| Rack Type 1 Quantity | 4 |
|---|
| Minimum Cutout Height | 48 7/8" |
|---|
| Oven Upper Capacity | 5.3 Cu. Ft. |
|---|
| Depth With Door 90° Open | 48 3/16" |
|---|
| Lower Oven Interior Width | 25 1/5" |
|---|
| UL Listed | Yes |
|---|
| Bake Element Pass | 8 |
|---|
| Display Light Color | White |
|---|
| Bake Element | 2500 Watts |
|---|
| CSA Listed | Yes |
|---|
| Rack Type 1 Quantity | 4 |
|---|
| Product Weight | 215 lbs |
|---|
| Program Fahrenheit or Celsius | Yes |
|---|
| Oven Light Type | Halogen |
|---|
| Upper Oven Interior Depth | 19 7/8" |
|---|
| Timer On / Off | Yes |
|---|
| Oven Light | Yes |
|---|
| Silent Control Panel | Yes |
|---|
| Cleaning System | Yes |
|---|
| Self Clean | Yes |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| Voltage Rating | 240 V |
|---|
| Maximum Cutout Height | 50 1/4" |
|---|
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
|---|
| Convection | Yes |
|---|
| Upper Oven Interior Height | 18 1/8" |
|---|
