Product Description

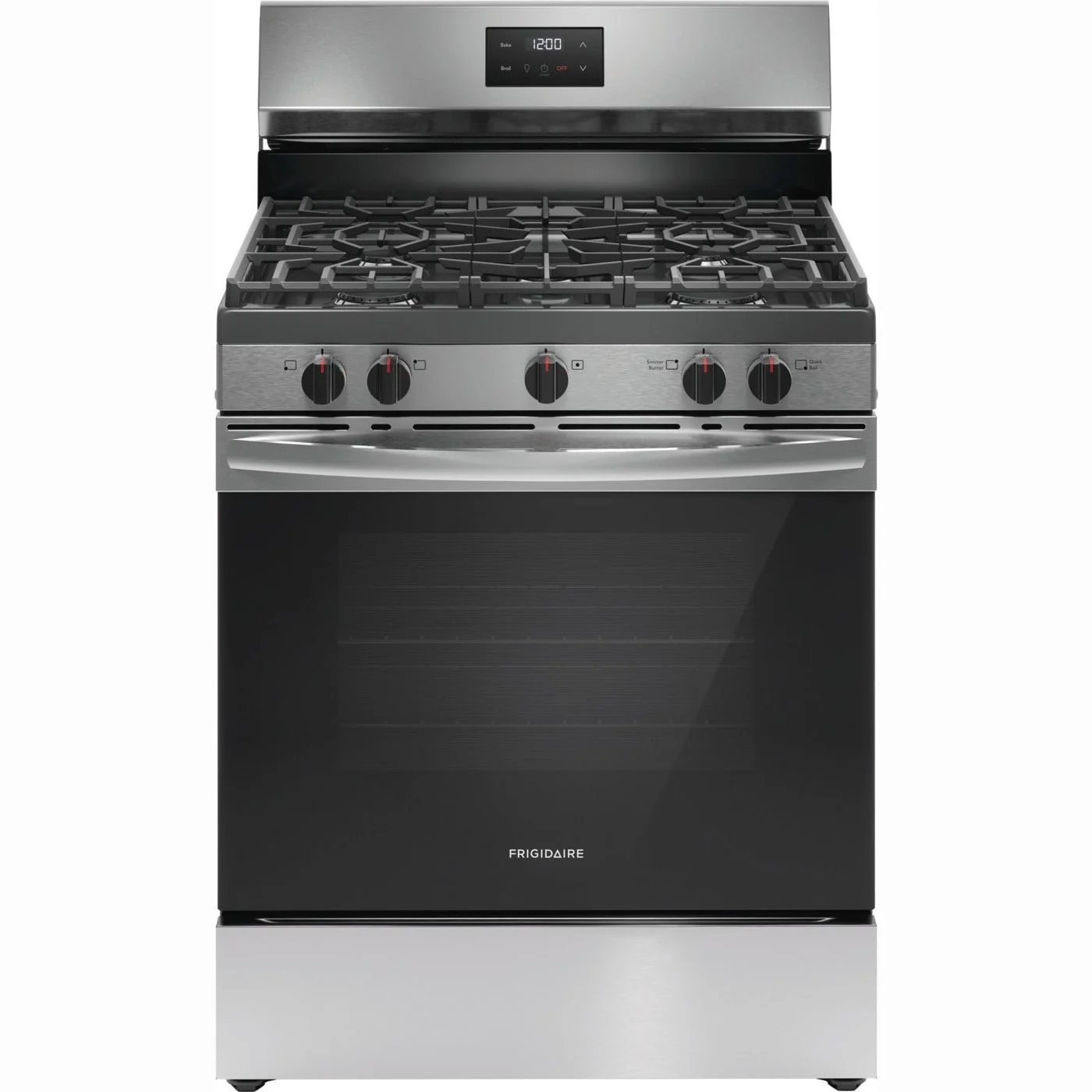

The Frigidaire 30" Gas Range allows you to get to mealtime faster with the powerful 18,000 BTU Quick Boil burner. Experience the ultimate in cooktop flexibility with our five burner cooktop, designed to handle all of your cooking needs. Enjoy consistent, even baking results with our Even Baking Technology. Plus, cook more at once with our large 5.1 cu. ft. capacity oven.
Features
- Experience faster boil times and more powerful cooking with the 18,000 BTU Quick Boil burner.
- Get the ultimate cooking flexibility with a cooktop that has five burners designed to handle all of your cooking needs.
- Designed to deliver even baking results, every time.
- Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- Large 5.1 cu. ft. oven capacity allows you to cook more at once.
- Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Specifications
| Control Location | Rear |
|---|
| Rack Type 1 Quantity | 2 |
|---|
| Up / Down Arrow | Yes |
|---|
| Oven Interior Color | Midnight Black |
|---|
| Warranty - Parts | 1 Year |
|---|
| Oven Light Watts | 40 Watts |
|---|
| Grate Quantity | 3 |
|---|
| Rack Position Type | Embossed |
|---|
| Oven Capacity | 5.1 Cu. Ft. |
|---|
| Rack Type 1 | Flat |
|---|
| Right Rear Element Burner | 5000 BTU |
|---|
| Sealed Burners | Yes |
|---|
| Power Cord Included | Yes |
|---|
| Broil Element Pass | 6 |
|---|
| Timer On / Off | Yes |
|---|
| Right Front Element Burner | 18000 BTU |
|---|
| Broil | Yes |
|---|
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
|---|
| Depth With Door 90° Open | 47 5/16" |
|---|
| Grate Style | Continuous |
|---|
| Clock | Yes |
|---|
| Drawer Handle Style | Integrated |
|---|
| Program Fahrenheit or Celsius | Yes |
|---|
| Off | Yes |
|---|
| Grate Material | Cast Iron |
|---|
| Center Element Burner | 10000 BTU |
|---|
| Oven Interior Depth | 19 7/8" |
|---|
| Prop 65 Label | Yes |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| Display Type | LED |
|---|
| Minimum Height | 46 3/4" |
|---|
| Drawer Type | Storage |
|---|
| Oven Light | Yes |
|---|
| Product Weight | 160 lbs |
|---|
| Display Interface Color | White |
|---|
| Warranty - Labor | 1 Year |
|---|
| Left Front Element Burner | 14000 BTU |
|---|
| Oven Light Quantity | 1 |
|---|
| Oven Interior Width | 25 3/16" |
|---|
| Broil Element | 1400 Watts |
|---|
| Depth With Handle | 28 1/2" |
|---|
| Oven Light Type | Halogen |
|---|
| Preheat | Yes |
|---|
| Bake Element | 17000 BTU |
|---|
| CSA Listed | Yes |
|---|
| Left Rear Element Burner | 10000 BTU |
|---|
| Bake | Yes |
|---|
| Voltage Rating | 120 V |
|---|
| Oven Interior Height | 17 5/8" |
|---|
| Number of Rack Positions | 6 |
|---|
| Cooking Surface Type | Gas |
|---|
| Adjustable Leveling Legs | Yes |
|---|
