App Filter - Cabinet Width
Cooking 30 in. (Standard)
Total Capacity (cubic feet)
1.9 cu ft
Microwave Sensor Cooking Controls
Beverage, Defrost
Door Color
Stainless Steel
Cooking Technology
Microwave
App Filter - Convection
No
Warranty Notes
See written warranty for full details
Labor Warranty
Limited 1-year entire appliance
App Filter - Voltage
120V
Exhaust Fan
4-Speed, 400-CFM, Boost/Hi/Med/Low/Off
Cavity (W x H x D)
21-15/16 x 11-5/8 x 14-9/16
Electronic Digital Display with Clock
Yes (LED)
Optional Side Filler Panel Kit
JX36BSS
Interior Oven Light
Incandescent
Microwave Oven Interior
Easy Clean Interior
Recirculating Charcoal Filter Kit
Included, JX81H, WB02X11544
Parts Warranty
Limited 1-year entire appliance, Limited 5-year magnetron tube
Multi-Language Capability
English/Spanish
App Filter - Venting Type
External
Smooth Steel Door
Yes, with Hidden Hinge
Microwave Watts (IEC-705)
1000 W
Door Swing
Hinges on Left
App Filter - Control Type
Electronic touchpad

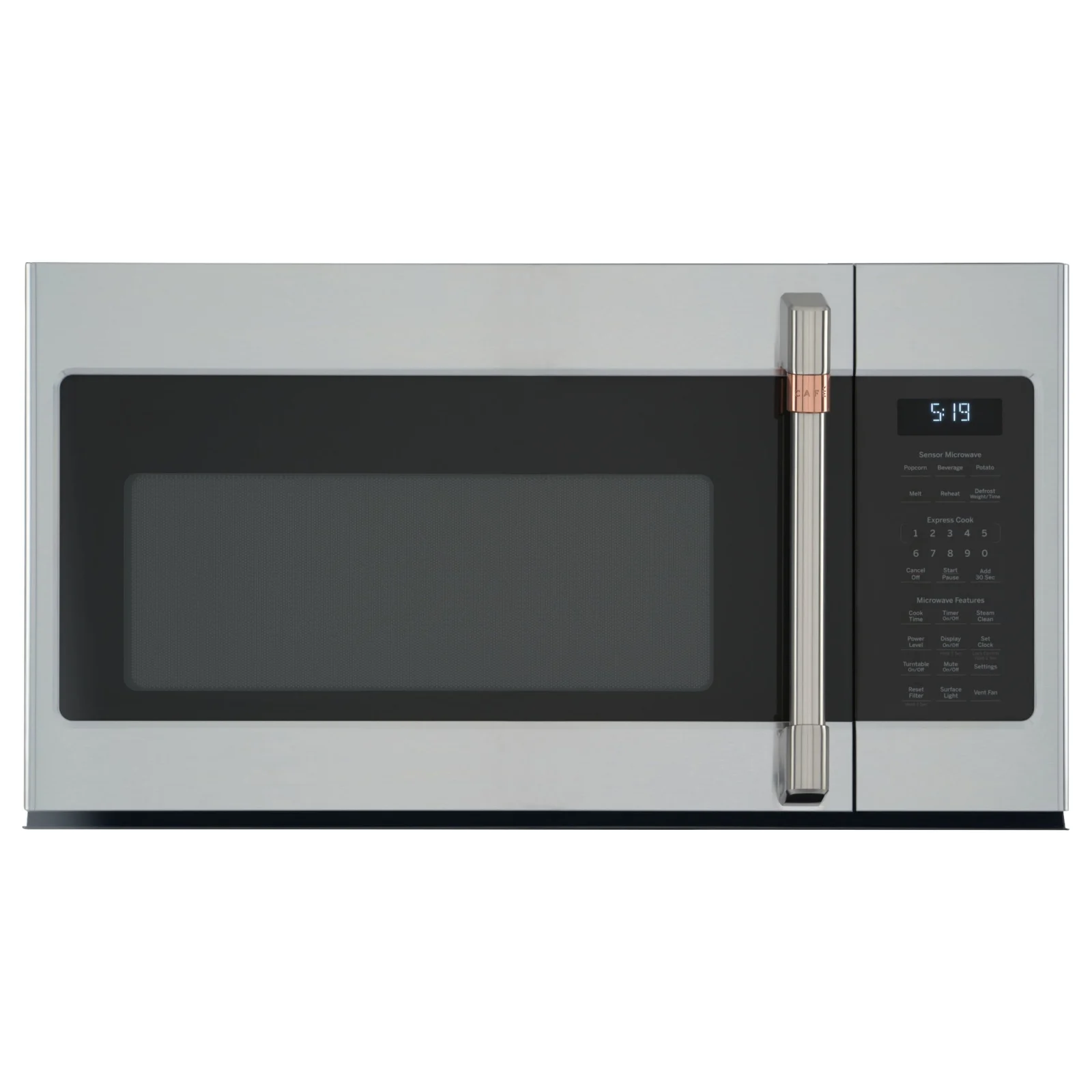

Product Type
Over-the-range Microwave
App Filter - Cooking Technology
Microwave Only
Electrical Input - 120V Amperage
15
App Filter - Capacity
Microwave Medium (1.5 - 1.8 cu. ft.)
Color Appearance
Stainless Steel
App Filter - Product Type
Microwave Over-the-Range
Display Screen Size (Diagonal Length)
3.13
Optional Kits
15" Bump Out Kit - JX15BUMPBB, CXOTRHKPMBT Brushed Black, CXOTRHKPMBZ Brushed Bronze, CXOTRHKPMCG Brushed Brass, CXOTRHKPMCU Brushed Copper, CXOTRHKPMFB Flat Black, CXOTRHKPMSS Brushed Stainless
Handle Color
Stainless Steel Appearance
Oven Door Features
Oven Window
Venting Type
Externally Vented
Approximate Shipping Weight
63 lb
Cooktop Lighting
Halogen, High/Low/Off
App Filter - Cooking Modes
Microwave Warm/Proof
Control Location
Side Controls
Control Features
Add 30 Seconds, Cancel/Off, Control Lock, Cook Time, Display On/Off, Express Cook, Mute On/Off, Power, Reset-Filter, Set Clock, Settings, Start/Pause, Steam Clean, Surface Light, Timer On/Off, Turntable On/Off, Vent Fan
Electrical Input - 120V Watts
1700
Overall Height
16.3125 in
App Filter - Wattage
1000 to 1099
Control Type
Dial, Electronic Touch
| Style |
Over-The-Range |
| App Filter - Cabinet Width |
Cooking 30 in. (Standard) |
| Total Capacity (cubic feet) |
1.9 cu ft |
| Microwave Sensor Cooking Controls |
Beverage, Defrost |
| Door Color |
Stainless Steel |
| Sound Volume Control |
Yes |
| Cooking Technology |
Microwave |
| App Filter - Convection |
No |
| Warranty Notes |
See written warranty for full details |
| Labor Warranty |
Limited 1-year entire appliance |
| App Filter - Voltage |
120V |
| Exhaust Fan |
4-Speed, 400-CFM, Boost/Hi/Med/Low/Off |
| Cavity (W x H x D) |
21-15/16 x 11-5/8 x 14-9/16 |
| Electronic Digital Display with Clock |
Yes (LED) |
| Optional Side Filler Panel Kit |
JX36BSS |
| Interior Oven Light |
Incandescent |
| Microwave Oven Interior |
Easy Clean Interior |
| Recirculating Charcoal Filter Kit |
Included, JX81H, WB02X11544 |
| Parts Warranty |
Limited 1-year entire appliance, Limited 5-year magnetron tube |
| Multi-Language Capability |
English/Spanish |
| Turntable |
Glass |
| Turntable On / Off |
Yes |
| App Filter - Venting Type |
External |
| Smooth Steel Door |
Yes, with Hidden Hinge |
| Cutout Width (in) |
30 |
| Microwave Watts (IEC-705) |
1000 W |
| Cutout Depth (in) |
13 |
| Cooking Modes |
Microwave |
| Power Levels |
10 |
| Input Volts/Hertz |
120/60 |
| Door Swing |
Hinges on Left |
| Cutout Height (in) |
16.5 |
| Cabinet Width |
30 in |
| App Filter - Control Type |
Electronic touchpad |
| Product Type |
Over-the-range Microwave |
| App Filter - Cooking Technology |
Microwave Only |
| Vent |
Back, Front, Top |
| Electrical Input - 120V Amperage |
15 |
| Net Weight |
57 lb |
| App Filter - Capacity |
Microwave Medium (1.5 - 1.8 cu. ft.) |
| Display Type |
LED |
| Overall Depth |
17.25 in |
| Color Appearance |
Stainless Steel |
| App Filter - Product Type |
Microwave Over-the-Range |
| Overall Width |
29.875 in |
| Display Screen Size (Diagonal Length) |
3.13 |
| Optional Kits |
15" Bump Out Kit - JX15BUMPBB, CXOTRHKPMBT Brushed Black, CXOTRHKPMBZ Brushed Bronze, CXOTRHKPMCG Brushed Brass, CXOTRHKPMCU Brushed Copper, CXOTRHKPMFB Flat Black, CXOTRHKPMSS Brushed Stainless |
| Handle Color |
Stainless Steel Appearance |
| Oven Door Features |
Oven Window |
| Venting Type |
Externally Vented |
| Turntable Size |
14.2 in |
| Approximate Shipping Weight |
63 lb |
| Case Color |
Gray |
| Cooktop Lighting |
Halogen, High/Low/Off |
| App Filter - Cooking Modes |
Microwave Warm/Proof |
| Control Location |
Side Controls |
| Control Features |
Add 30 Seconds, Cancel/Off, Control Lock, Cook Time, Display On/Off, Express Cook, Mute On/Off, Power, Reset-Filter, Set Clock, Settings, Start/Pause, Steam Clean, Surface Light, Timer On/Off, Turntable On/Off, Vent Fan |
| Non-Vented |
Optional |
| Electrical Input - 120V Watts |
1700 |
| Overall Height |
16.3125 in |
| App Filter - Wattage |
1000 to 1099 |
| Control Type |
Dial, Electronic Touch |
| Vent CFM |
400 |
