Product Description

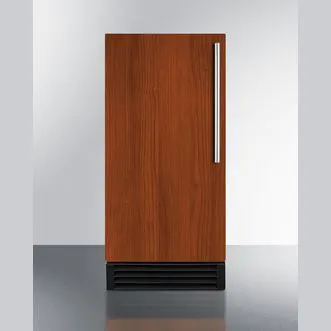

SUMMIT BIM44GIFADA is an auto defrost clear icemaker designed for true convenience under the counter in ADA compliant settings.
At just under 15" wide, the BIM44GIFADA is ideal for finishing any kitchen or wet bar. The door includes an integrated stainless steel frame that can accept full overlay panels for a seamless look that blends into matching cabinetry. Users supply their own handles. This unit is 32 3/8" high to fit under lower counters following ADA guidelines.
Automatic defrost makes maintenance simple and stress-free, while the BIM44GIFADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use.
The BIM44GIFADA can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. The ice is produced in sheets and can be easily broken into cubes using the provided scoop. This unit must be used with a drain. It is NSF listed to commercial standards and is ENERGY STAR certified for commercial use.
Features
- ADA compliant : 32 3/8" height fits under lower ADA compliant counters
- Commercially approved : NSF listed for use in commercial establishments
- Built-in pump : Internal pump allows more flexibility in placing the unit
- Built-in capable : Make the best use of space by installing your appliance under the counter
- Integrated door frame: Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)
- Clear ice cube production : Makes cubes sized at 3/4" x 3/4" x 1"
- Automatic defrost : Reduced maintenance with auto defrost system
- Insulated storage bin : Ice stays frozen longer inside this cold-protected bin
- Fully finished black cabinet : Allows the unit to be used freestanding
- 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals
Specifications
Number of Ice Cube Sizes | 1 |
---|
Interior Depth | 16.0" (41 cm) |
---|
Refrigerant Type | R134a |
---|
Height of Cabinet | 32.38" (82 cm) |
---|
High Side PSI | 350.0 |
---|
Interior Width | 12.0" (30 cm) |
---|
Canadian Electrical Safety | ULC |
---|
Size of Cube | 3/4" x 3/4" x 1" |
---|
Fan Type | Exterior |
---|
Sanitation | NSF |
---|
Low Side PSI | 130.0 |
---|
Ice Storage Capacity | 25.0 lbs. (11 kg) |
---|
Defrost Type | Automatic |
---|
Door Swing | LHD |
---|
Shipping Weight | 115.0 lbs. (52 kg) |
---|
Reversible | Factory Reversible |
---|
Voltage/Frequency | 115 V AC/60 Hz |
---|
Door | Panel-Ready |
---|
US Electrical Safety | UL |
---|
Interior Height | 18.5" (47 cm) |
---|
Amps | 4.8 |
---|
Cabinet | Black |
---|
Parts & Labor Warranty | 1 Year |
---|
Ice Shape | Cube |
---|
Level Legs | 4 |
---|
Depth | 23.5" (60 cm) |
---|
Compressor Warranty | 5 Years |
---|
Width | 14.5" (37 cm) |
---|
Daily Ice Production | 50.0 lbs. (23 kg) |
---|
Refrigerant Amount | 3.88 oz. |
---|
Drain Required | Yes |
---|
