Product Description

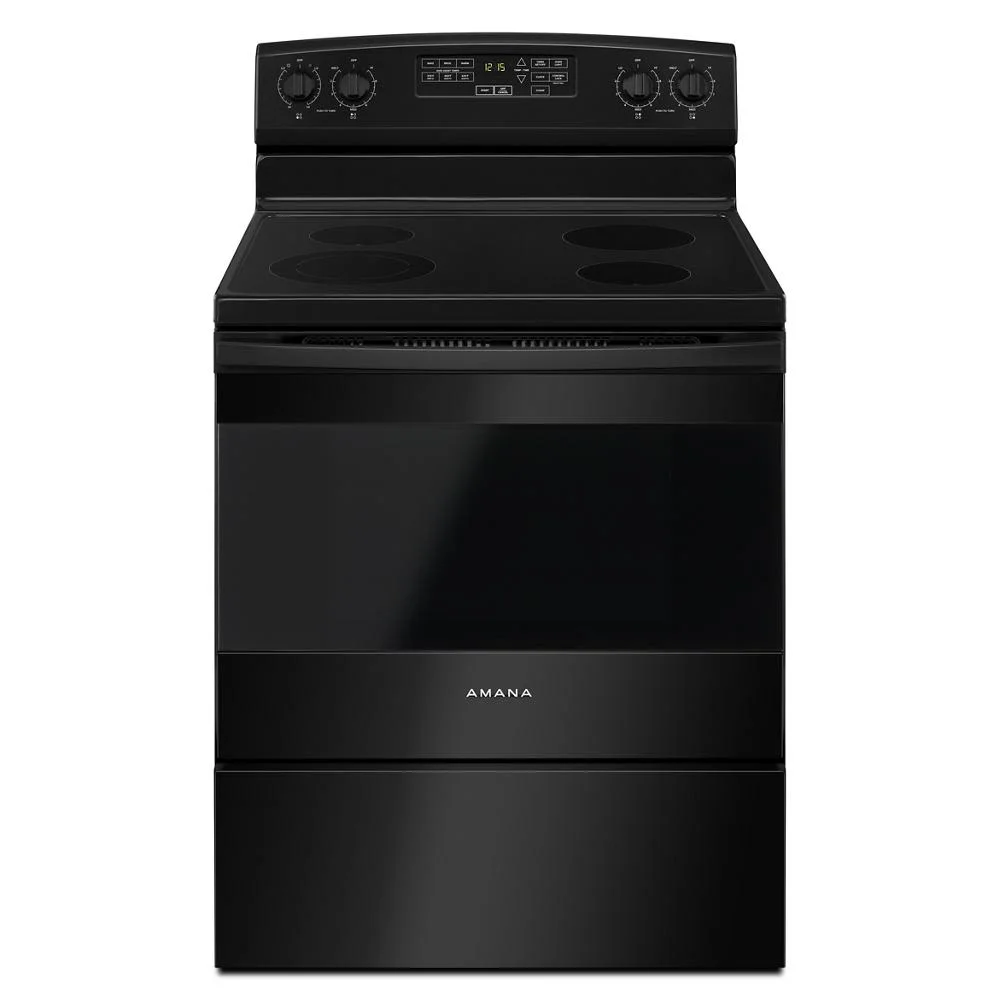

This 30-inch Amana® Electric Range comes with a Versatile Cooktop featuring up to 3,000 watts, giving you more flexibility to turn up the heat! You can also set bake or broil temperatures with our Easy Touch Electronic Controls Plus. Or choose a preset temperature setting with Bake Assist Temps. And when you're finished cooking, use the Self-Clean Option to help clean up the buildup inside your oven.
Features
- Large Oven Capacity (4.8 cu. ft.) : Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
- Indicator Lights : Check your oven's status and settings at a glance with the Indicator Lights.
- Custom Broil : Use this setting to broil in five degree-increments to melt cheese, sear steak or toast those buns with more precision.
- Self-Clean Option : There's no need to scrape and scrub with the Self-Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
- Contemparary Design : With clean lines and modern finishes, our line of free-standing ranges lets you easily choose the features and design details that best fit your budget and lifestyle
- Versatile Cooktop : Our Versatile Cooktop with multiple element options provides up to 3,000 watts on the largest burner to help you cook more of your favorites at the same time.
- Bake Assist Temps : Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
- Easy Touch Electronic Controls Plus : Quickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
- Temp Assure™ Cooking System : Temp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
- Extra-Large Oven Window : See and savor. The Extra-Large Oven Window provides a bigger view to let you check on food without having to open the oven door.
- Storage Drawer : This storage drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
- Warm Hold : Warm Hold delivers low heat to the oven so dishes are ready to serve when you are.
- Oven Lockout : Oven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.
Specifications
| Oven Light Switch Location | Oven Control |
|---|
| Gross Weight(LB,pounds) | 187 |
|---|
| Cutout Height(IN,inches) | 36.0000 |
|---|
| Broiler Element Power | 3,400 W |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Capacity (Cu Ft) | 4.80 in |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
|---|
| Convection Element Type | None |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Cutout Depth(IN,inches) | 24.0000 |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
|---|
| Carton Height | 48 3/4 in |
|---|
| Electronic Display Type | LED |
|---|
| Cutout Height (in) | 36 in |
|---|
| Width(IN,inches) | 29.8750 |
|---|
| Left Front Element-Burner Power | 3000W/1400W |
|---|
| Left Front Element-Burner Type | Dual |
|---|
| LP Convertible | No |
|---|
| Electronic Display Type | LED |
|---|
| Number of Rack Guides | 5 |
|---|
| Oven Configuration | Single Oven |
|---|
| Range Configuration | Freestanding |
|---|
| Depth Closed Excluding Handles | 25 5/16 inch |
|---|
| Oven Cleaning Type | Adjustable Self Cleaning |
|---|
| Left Front Element-Burner Type | Dual |
|---|
| Maximum Height | 47 7/8 inch |
|---|
| Cutout Height Min(IN,inches) | 36.0000 |
|---|
| Cutout Width (in) | 30 inch |
|---|
| Height | 46 7/8 inch |
|---|
| Net Weight | 0.0 inch |
|---|
| Cooktop Control Type | Knobs |
|---|
| Right Rear Element-Burner Power | 1,800W |
|---|
| Oven Control Location | Backguard |
|---|
| Depth With Door Open 90 Degree | 46 11/16 inch |
|---|
| Range Drawer Type | Storage Drawer |
|---|
| Broiler Element Power | 3,400 W |
|---|
| Knob Color | Black |
|---|
| Prop 65 | Standard |
|---|
| Carton Height | 48 3/4 inch |
|---|
| Oven Light Type | Incandescent |
|---|
| Oven Window Size | Extra Large |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
|---|
| Convection Element Type | None |
|---|
| Cutout Depth (in) | 24 in |
|---|
| Left Front Element-Burner Power | 3000W/1400W |
|---|
| Hidden Bake Element | No |
|---|
| Natural Gas Convertible | No |
|---|
| Depth Closed Excluding Handles | 25 5/16 in |
|---|
| Convection Functions | No |
|---|
| Accessory Relationships | Yes |
|---|
| Handle Color | Black |
|---|
| Net Weight | 0.0 in |
|---|
| Oven Control Location | Backguard |
|---|
| Power Cord Included | No |
|---|
| Broiler Location | Top of Oven |
|---|
| Oven Cleaning Type | Adjustable Self Cleaning |
|---|
| Display Color | Green |
|---|
| Depth With Door Open 90 Degree | 46 11/16 in |
|---|
| Cooktop Control Type | Knobs |
|---|
| Carton Depth | 29 in |
|---|
| Gross Weight | 187 in |
|---|
| Handle Type | Towel Bar |
|---|
| Bake Element Power | 2,400 W |
|---|
| Right Rear Element-Burner Type | Radiant |
|---|
| Fuel Type | Electric |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Cooktop Element Style | Smoothtop |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Range Type | Freestanding |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Oven Interior Depth(IN,inches) | 18.500 |
|---|
| Right Front Element-Burner Type | Radiant |
|---|
| Left Front Element-Burner Size | 9in./6in. |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Number of Oven Lights | 1 |
|---|
| Cooktop Element Style | Smoothtop |
|---|
| Cutout Depth (in) | 24 inch |
|---|
| Width(IN,inches) | 29.8750 |
|---|
| Convection Functions | No |
|---|
| Gross Weight | 187 in |
|---|
| Oven Interior Height(IN,inches) | 18.125 |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Width(IN,inches) | 29.8750 |
|---|
| Number of Rack Guides | 5 |
|---|
| Maximum Height | 47 7/8 in |
|---|
| Range Drawer Type | Storage Drawer |
|---|
| Capacity (Cu Ft) | 4.80 in |
|---|
| Convection Functions | No |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Cooktop Control Type | Knobs |
|---|
| Hidden Bake Element | No |
|---|
| Cooktop Surface Color | Black |
|---|
| Depth | 27 3/4 inch |
|---|
| LP Convertible | No |
|---|
| Height(IN,inches) | 46.8750 |
|---|
| Cutout Height Min(IN,inches) | 36.0000 |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Maximum Height(IN,inches) | 47.8750 |
|---|
| Power On Indicator Light | Yes |
|---|
| Oven Interior Depth(IN,inches) | 18.500 |
|---|
| Depth | 27 3/4 in |
|---|
| Height(IN,inches) | 46.8750 |
|---|
| Left Front Element-Burner Power | 3000W/1400W |
|---|
| Right Front Element-Burner Power | 1200W |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Oven Rack Type | Standard |
|---|
| Right Rear Element-Burner Type | Radiant |
|---|
| Width Doors Open 90 Degrees | 46.688 |
|---|
| Gross Weight | 187 inch |
|---|
| Selection | Audible Signal,Clock,Control Lock,Sabbath Mode,Timer,Warm Hold |
|---|
| Convection Element Type | None |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Cutout Depth(IN,inches) | 24.0000 |
|---|
| Amps | 40 |
|---|
| Knob Color | Black |
|---|
| Cutout Depth (in) | 24 in |
|---|
| Oven Cleaning Type | Adjustable Self Cleaning |
|---|
| Carton Depth(IN,inches) | 29.0000 |
|---|
| Carton Depth | 29 in |
|---|
| Knob Color | Black |
|---|
| Bake Element Power | 2,400 W |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Range Configuration | Freestanding |
|---|
| Number of Oven Lights | 1 |
|---|
| Prop 65 | Standard |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Handle Type | Towel Bar |
|---|
| Broiler Element Power | 3,400 W |
|---|
| Hidden Bake Element | No |
|---|
| Carton Width(IN,inches) | 32.0000 |
|---|
| Accessory Relationships | Yes |
|---|
| Net Weight | 0.0 in |
|---|
| Gross Weight | 187 in |
|---|
| Broiler Location | Top of Oven |
|---|
| Handle Type | Towel Bar |
|---|
| Oven Cleaning Type | Adjustable Self Cleaning |
|---|
| Cutout Height Min(IN,inches) | 36.0000 |
|---|
| Oven Window Size | Extra Large |
|---|
| Maximum Height(IN,inches) | 47.8750 |
|---|
| Depth(IN,inches) | 27.7500 |
|---|
| Carton Width(IN,inches) | 32.0000 |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Cooktop Control Location | Backguard |
|---|
| Oven Light Type | Incandescent |
|---|
| Minimum Height(IN,inches) | 46.8750 |
|---|
| Width Doors Open 90 Degrees | 46.688 |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Selection | Audible Signal,Clock,Control Lock,Sabbath Mode,Timer,Warm Hold |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
|---|
| Right Front Element-Burner Type | Radiant |
|---|
| Carton Depth(IN,inches) | 29.0000 |
|---|
| Number of Rack Guides | 5 |
|---|
| Amps | 40 |
|---|
| Carton Width | 32 in |
|---|
| Left Front Element-Burner Size | 9in./6in. |
|---|
| Size (in.) | 30 |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Cutout Depth (in) | 24 in |
|---|
| Hidden Bake Element | No |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Number of Oven Lights | 1 |
|---|
| Minimum Height | 46 7/8 in |
|---|
| Oven Configuration | Single Oven |
|---|
| Range Configuration | Freestanding |
|---|
| Cooktop Element Style | Smoothtop |
|---|
| Carton Width | 32 in |
|---|
| Carton Height | 48 3/4 in |
|---|
| Left Front Element-Burner Type | Dual |
|---|
| Depth | 27 3/4 in |
|---|
| Oven Interior Depth(IN,inches) | 18.500 |
|---|
| Carton Depth | 29 in |
|---|
| Oven Rack Type | Standard |
|---|
| Natural Gas Convertible | No |
|---|
| Right Front Element-Burner Type | Radiant |
|---|
| Left Rear Element-Burner Type | Radiant |
|---|
| Cutout Depth(IN,inches) | 24.0000 |
|---|
| Door Type | Glass Window |
|---|
| Cooktop Surface Color | Black |
|---|
| Selection | Audible Signal,Clock,Control Lock,Sabbath Mode,Timer,Warm Hold |
|---|
| Handle Type | Towel Bar |
|---|
| Minimum Height(IN,inches) | 46.8750 |
|---|
| Oven Interior Height(IN,inches) | 18.125 |
|---|
| Oven Configuration | Single Oven |
|---|
| Fuel Type | Electric |
|---|
| Interior Color | Grey |
|---|
| Power Cord Included | No |
|---|
| Maximum Height | 47 7/8 in |
|---|
| Cutout Height(IN,inches) | 36.0000 |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Width | 29 7/8 inch |
|---|
| Size (in.) | 30 |
|---|
| Volts | 120/240 |
|---|
| Knob Color | Black |
|---|
| Range Type | Freestanding |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Height | 46 7/8 in |
|---|
| Right Rear Element-Burner Power | 1,800W |
|---|
| UL | Yes |
|---|
| Right Front Element-Burner Power | 1200W |
|---|
| Prop 65 | Standard |
|---|
| Range Drawer Type | Storage Drawer |
|---|
| Left Rear Element-Burner Type | Radiant |
|---|
| Carton Height(IN,inches) | 48.7500 |
|---|
| Door Type | Glass Window |
|---|
| Oven Cooking System | Thermal |
|---|
| Cooktop Surface Color | Black |
|---|
| Maximum Height | 47 7/8 in |
|---|
| Fuel Type | Electric |
|---|
| Display Color | Green |
|---|
| Left Rear Element-Burner Type | Radiant |
|---|
| Minimum Height | 46 7/8 inch |
|---|
| Door Type | Glass Window |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Carton Depth | 29 inch |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Bake Element Power | 2,400 W |
|---|
| Oven Light Type | Incandescent |
|---|
| UL | Yes |
|---|
| Interior Color | Grey |
|---|
| Broiler Location | Top of Oven |
|---|
| Oven Interior Height(IN,inches) | 18.125 |
|---|
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
|---|
| Oven Window Size | Extra Large |
|---|
| Carton Width | 32 in |
|---|
| Range Type | Freestanding |
|---|
| Depth Closed Excluding Handles | 25 5/16 in |
|---|
| Gross Weight(LB,pounds) | 187 |
|---|
| Width | 29 7/8 in |
|---|
| Oven Interior Height(IN,inches) | 18.125 |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Accessory Relationships | Yes |
|---|
| ADA Compliant | No |
|---|
| Carton Width | 32 inch |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Door Removable | Yes |
|---|
| Oven Interior Width(IN,inches) | 24.500 |
|---|
| Gross Weight(LB,pounds) | 187 |
|---|
| Minimum Height(IN,inches) | 46.8750 |
|---|
| Oven Cooking System | Thermal |
|---|
| Natural Gas Convertible | No |
|---|
| Carton Height(IN,inches) | 48.7500 |
|---|
| Power Cord Included | No |
|---|
| Power On Indicator Light | Yes |
|---|
| Cooktop Control Knob Color | Black |
|---|
| Door Removable | Yes |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Size (in.) | 30 |
|---|
| Depth With Door Open 90 Degree | 46 11/16 in |
|---|
| Oven Control Location | Backguard |
|---|
| Oven Interior Width(IN,inches) | 24.500 |
|---|
| Electronic Display Type | LED |
|---|
| Cutout Height (in) | 36 in |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
|---|
| UL | Yes |
|---|
| Size (in.) | 30 |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Right Front Element-Burner Power | 1200W |
|---|
| Depth With Door Open 90 Degree | 46 11/16 in |
|---|
| Oven Control Location | Backguard |
|---|
| Minimum Height | 46 7/8 in |
|---|
| Maximum Height(IN,inches) | 47.8750 |
|---|
| Range Drawer Type | Storage Drawer |
|---|
| Cooktop Control Type | Knobs |
|---|
| Minimum Height(IN,inches) | 46.8750 |
|---|
| Cutout Height Min(IN,inches) | 36.0000 |
|---|
| Broiler Location | Top of Oven |
|---|
| Display Color | Green |
|---|
| Natural Gas Convertible | No |
|---|
| Cooktop Control Location | Backguard |
|---|
| Cutout Width (in) | 30 in |
|---|
| Height(IN,inches) | 46.8750 |
|---|
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
|---|
| Width Doors Open 90 Degrees | 46.688 |
|---|
| LP Convertible | No |
|---|
| Cutout Height (in) | 36 in |
|---|
| Cooktop Control Knob Color | Black |
|---|
| Right Front Element-Burner Power | 1200W |
|---|
| Power Cord Included | No |
|---|
| Width | 29 7/8 in |
|---|
| Depth Closed Excluding Handles | 25 5/16 in |
|---|
| Cooktop Surface Color | Black |
|---|
| UL | Yes |
|---|
| Depth(IN,inches) | 27.7500 |
|---|
| Number of Oven Racks | 2 |
|---|
| Cooktop Control Knob Color | Black |
|---|
| Cooktop Control Location | Backguard |
|---|
| ADA Compliant | No |
|---|
| Oven Window Size | Extra Large |
|---|
| Display Color | Green |
|---|
| Carton Height | 48 3/4 in |
|---|
| Carton Height(IN,inches) | 48.7500 |
|---|
| Convection Element Type | None |
|---|
| Height(IN,inches) | 46.8750 |
|---|
| Carton Height(IN,inches) | 48.7500 |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
|---|
| ADA Compliant | No |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Oven Cooking System | Thermal |
|---|
| Right Rear Element-Burner Power | 1,800W |
|---|
| Cutout Depth(IN,inches) | 24.0000 |
|---|
| Oven Rack Type | Standard |
|---|
| Cutout Width (in) | 30 in |
|---|
| Carton Depth(IN,inches) | 29.0000 |
|---|
| Cutout Height (in) | 36 inch |
|---|
| Left Front Element-Burner Size | 9in./6in. |
|---|
| Range Configuration | Freestanding |
|---|
| Door Removable | Yes |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Volts | 120/240 |
|---|
| Oven Interior Width(IN,inches) | 24.500 |
|---|
| Carton Width(IN,inches) | 32.0000 |
|---|
| Cutout Width (in) | 30 in |
|---|
| Interior Color | Grey |
|---|
| Oven Rack Type | Standard |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Convection Functions | No |
|---|
| Handle Color | Black |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Capacity (Cu Ft) | 4.80 inch |
|---|
| Fuel Type | Electric |
|---|
| Left Front Element-Burner Size | 9in./6in. |
|---|
| Depth | 27 3/4 in |
|---|
| Depth(IN,inches) | 27.7500 |
|---|
| Oven Interior Depth(IN,inches) | 18.500 |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Selection | Audible Signal,Clock,Control Lock,Sabbath Mode,Timer,Warm Hold |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Door Removable | Yes |
|---|
| Oven Configuration | Single Oven |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| ADA Compliant | No |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Power On Indicator Light | Yes |
|---|
| Right Rear Element-Burner Power | 1,800W |
|---|
| Width | 29 7/8 in |
|---|
| Oven Interior Width(IN,inches) | 24.500 |
|---|
| Cooktop Element Style | Smoothtop |
|---|
| Depth(IN,inches) | 27.7500 |
|---|
| Carton Depth(IN,inches) | 29.0000 |
|---|
| Cutout Height(IN,inches) | 36.0000 |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Accessory Relationships | Yes |
|---|
| Cutout Height(IN,inches) | 36.0000 |
|---|
| Electronic Display Type | LED |
|---|
| Right Rear Element-Burner Type | Radiant |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Minimum Height | 46 7/8 in |
|---|
| Maximum Height(IN,inches) | 47.8750 |
|---|
| Cooktop Control Location | Backguard |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Right Front Element-Burner Type | Radiant |
|---|
| Gross Weight(LB,pounds) | 187 |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Oven Cooking System | Thermal |
|---|
| Width(IN,inches) | 29.8750 |
|---|
| Carton Width(IN,inches) | 32.0000 |
|---|
| Height | 46 7/8 in |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Volts | 120/240 |
|---|
| Bake Element Power | 2,400 W |
|---|
| Oven Light Type | Incandescent |
|---|
| Capacity (Cu Ft) | 4.80 in |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Number of Rack Guides | 5 |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
|---|
| Prop 65 | Standard |
|---|
| LP Convertible | No |
|---|
| Left Front Element-Burner Power | 3000W/1400W |
|---|
| Left Front Element-Burner Type | Dual |
|---|
| Broiler Element Power | 3,400 W |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Door Type | Glass Window |
|---|
| Handle Color | Black |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Power On Indicator Light | Yes |
|---|
| Number of Oven Racks | 2 |
|---|
| Width Doors Open 90 Degrees | 46.688 |
|---|
| Interior Color | Grey |
|---|
| Left Rear Element-Burner Type | Radiant |
|---|
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Number of Oven Racks | 2 |
|---|
| Right Rear Element-Burner Type | Radiant |
|---|
| Handle Color | Black |
|---|
| Cooktop Control Knob Color | Black |
|---|
| Net Weight | 0.0 in |
|---|
| Number of Oven Lights | 1 |
|---|
| Number of Oven Racks | 2 |
|---|
| Amps | 40 |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Height | 46 7/8 in |
|---|
| Amps | 40 |
|---|
| Range Type | Freestanding |
|---|
| Volts | 120/240 |
|---|
Manuals
No Manuals available for this product
Warranty & Certifications
No Manuals available for this product
