Allied Tube Imc Metal Conduit

Product Description

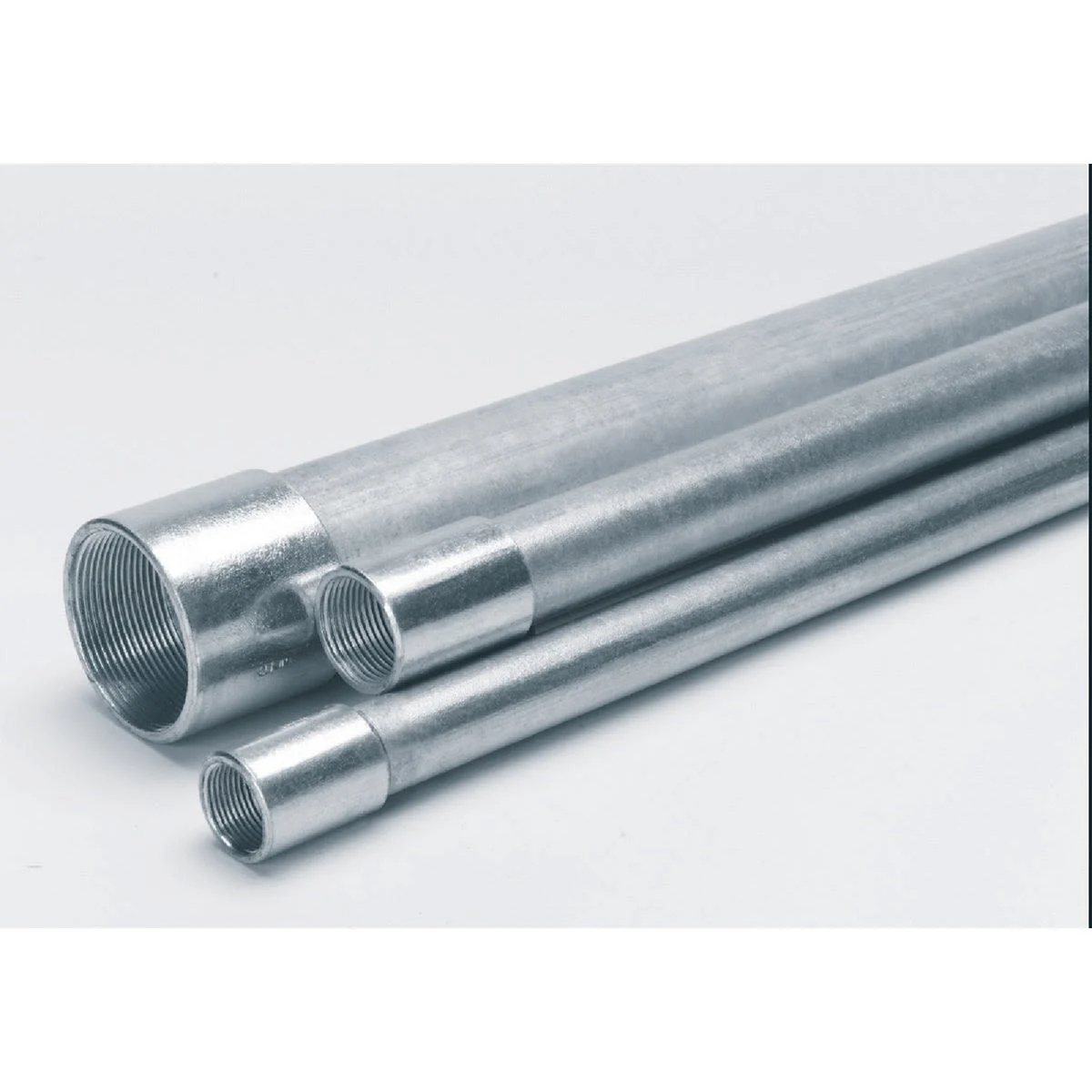

Allied Tube IMC (Intermediate Metal Conduit) is the lighter-weight ductile steel conduit for long life and easy bending. Weighs 1/3 less than rigid conduit and saves up to 30% in cost over galvanized rigid conduit. Hot galvanized exterior increases corrosion resistance and protects against white rust. Interior coating creates a smooth, continuous raceway for fast wire pulling. UL (Underwriter's Laboratories) 1242 Listed and manufactured in accordance with ANSI (American National Standards Institute) C80.6. Comes in 10' lengths with threaded ends. No. 358192: Diameter: 1/2", Length: 10', Conduit Type: Intermediate (IMC), Material: Galvanized Steel, Minimum Interior Diameter: 0.0675", Maximum Interior Diameter: 0.0675", Minimum Exterior Diameter: 0.0810", Maximum Exterior Diameter: 0.820", Threaded Ends: Yes, Weight: 6.2 lb, UL Listed: Yes, Pkg Qty: 1 No. 358184: Diameter: 3/4", Length: 10', Conduit Type: Intermediate (IMC), Material: Galvanized Steel, Minimum Interior Diameter: 0.0879", Maximum Interior Diameter: 0.0879", Minimum Exterior Diameter: 1.024", Maximum Exterior Diameter: 1.034", Threaded Ends: Yes, Weight: 8.4 lb, UL Listed: Yes, Pkg Qty: 1 No. 358176: Diameter: 1", Length: 10', Conduit Type: Intermediate (IMC), Material: Galvanized Steel, Minimum Interior Diameter: 1.120", Maximum Interior Diameter: 1.120", Minimum Exterior Diameter: 1.285", Maximum Exterior Diameter: 1.295", Threaded Ends: Yes, Weight: 11.9 lb, UL Listed: Yes, Pkg Qty: 1 No. 358119: Diameter: 1-1/4", Length: 10', Conduit Type: Intermediate (IMC), Material: Galvanized Steel, Minimum Interior Diameter: 1.468", Maximum Interior Diameter: 1.468", Minimum Exterior Diameter: 1.630", Maximum Exterior Diameter: 1.645", Threaded Ends: Yes, Weight: 15.8 lb, UL Listed: Yes, Pkg Qty: 1 No. 358101: Diameter: 1-1/2", Length: 10', Conduit Type: Intermediate (IMC), Material: Galvanized Steel, Minimum Interior Diameter: 1.703", Maximum Interior Diameter: 1.703", Minimum Exterior Diameter: 1.875", Maximum Exterior Diameter: 1.890", Threaded Ends: Yes, Weight: 19.4 lb, UL Listed: Yes, Pkg Qty: 1 No. 358168: Diameter: 2", Length: 10', Conduit Type: Intermediate (IMC), Material: Galvanized Steel, Minimum Interior Diameter: 2.170", Maximum Interior Diameter: 2.170", Minimum Exterior Diameter: 2.352", Maximum Exterior Diameter: 2.368", Threaded Ends: Yes, Weight: 25.6 lb, UL Listed: Yes, Pkg Qty: 1
