Product Description

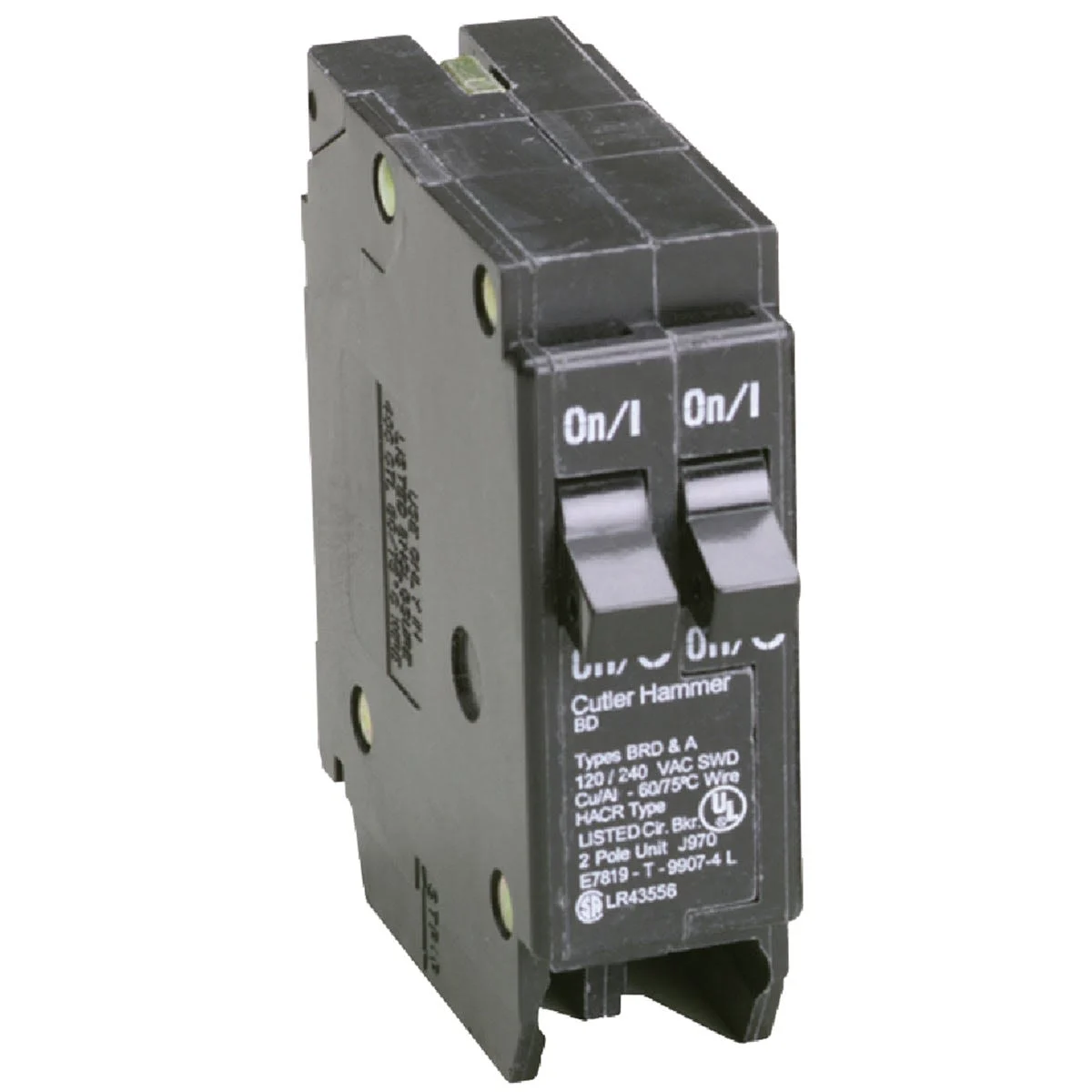

Eaton BD 20A/20A Double-Pole Duplex Circuit Breaker is designed for use in load centers that feature notched bus bars. This duplex circuit breaker allows the use of two single-pole breakers within a single space, making it more efficient in panel configurations. It is essential to note that the BD duplex circuit breakers are specific to BR series panels and are not interchangeable with any other type of breaker. The design and compatibility of this circuit breaker make it a practical choice for certain electrical applications, especially when dealing with load centers that have notched bus bars and require two single-pole breakers in one space.
Model Number: BD2020
Specifications
- Amperage: 20A/20A
- Number of Poles: 2-Pole
- Interruption Type: Standard Trip
- Voltage: 120/240
- Frame Size: 1-Space
- Breaker Size: 1 In.
- Mount Type: Plug-In
- Wire Size: #14-4 AWG
- UL Listed: UL Listed
- Brand: Eaton
- Package Quantity: 1
- Unit of Measurement: Each
- Country of Origin: Dominican Republic
