Product Description

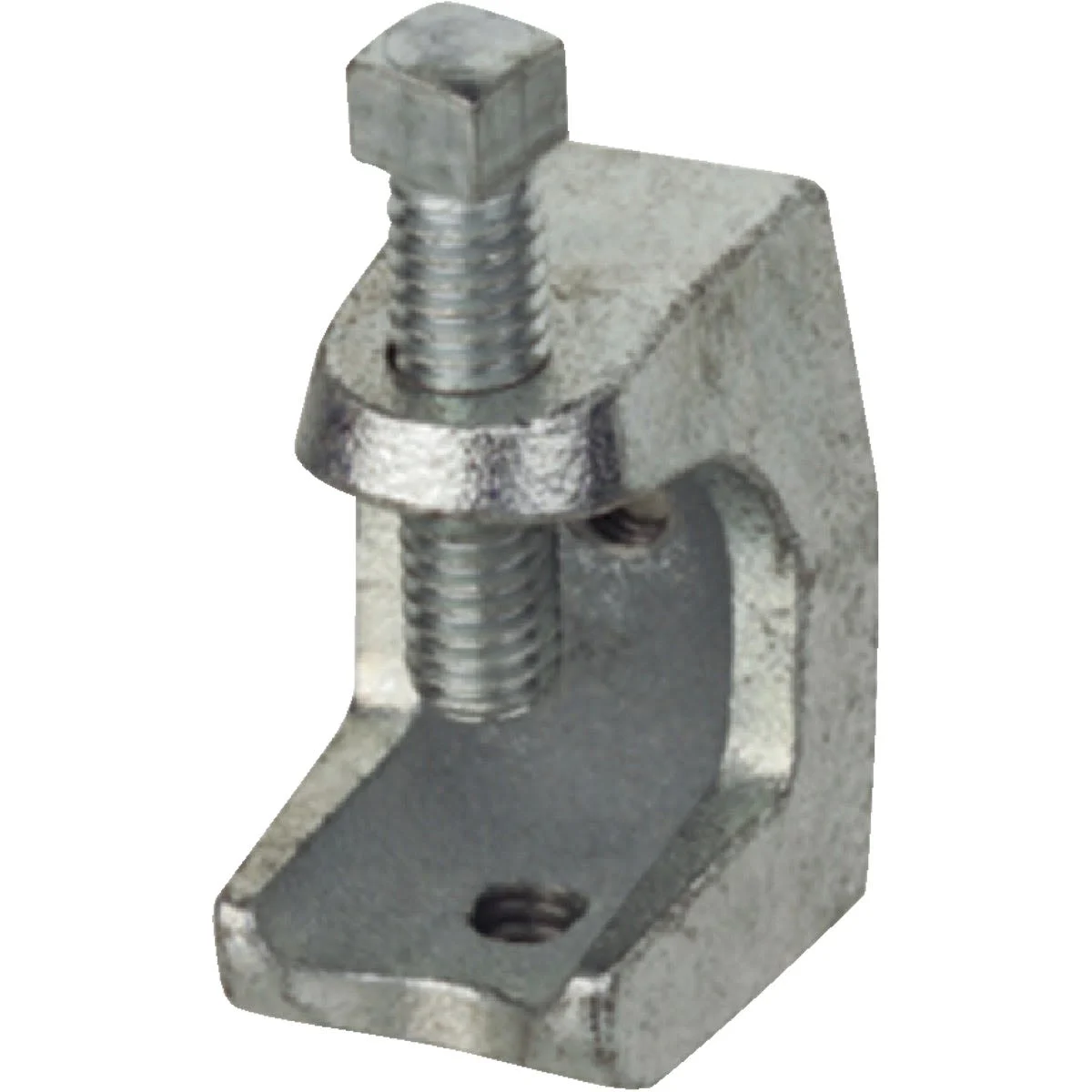

Superstrut 1/4" Electroplated Zinc Iron Beam Clamp is a versatile and durable clamp designed for attaching Superstrut pipe hangers to beams using threaded rod. It features a Goldgalv electroplated zinc finish for corrosion resistance. The clamp has tapped holes in the base and back to accept bolts or hanger rods, providing flexibility in installation. The jaw openings are designed to accommodate I-beams, columns, or angle flanges up to 1-inch thickness, making it suitable for a variety of applications in construction and support structures.
Model Number: Z500-25
Specifications
- Material: Malleable Iron
- Finish: Electroplated Zinc
- Trade Size: 1/4 In.
- Maximum Jaw Capacity: 15/16 In.
- Base Dimensions: 1 In. W. x 1-1/4 In.
- Tapping Of Base And Back Holes: 1/4 In.
- Maximum Flange Thickness: Up to 1 In.
