Product Description

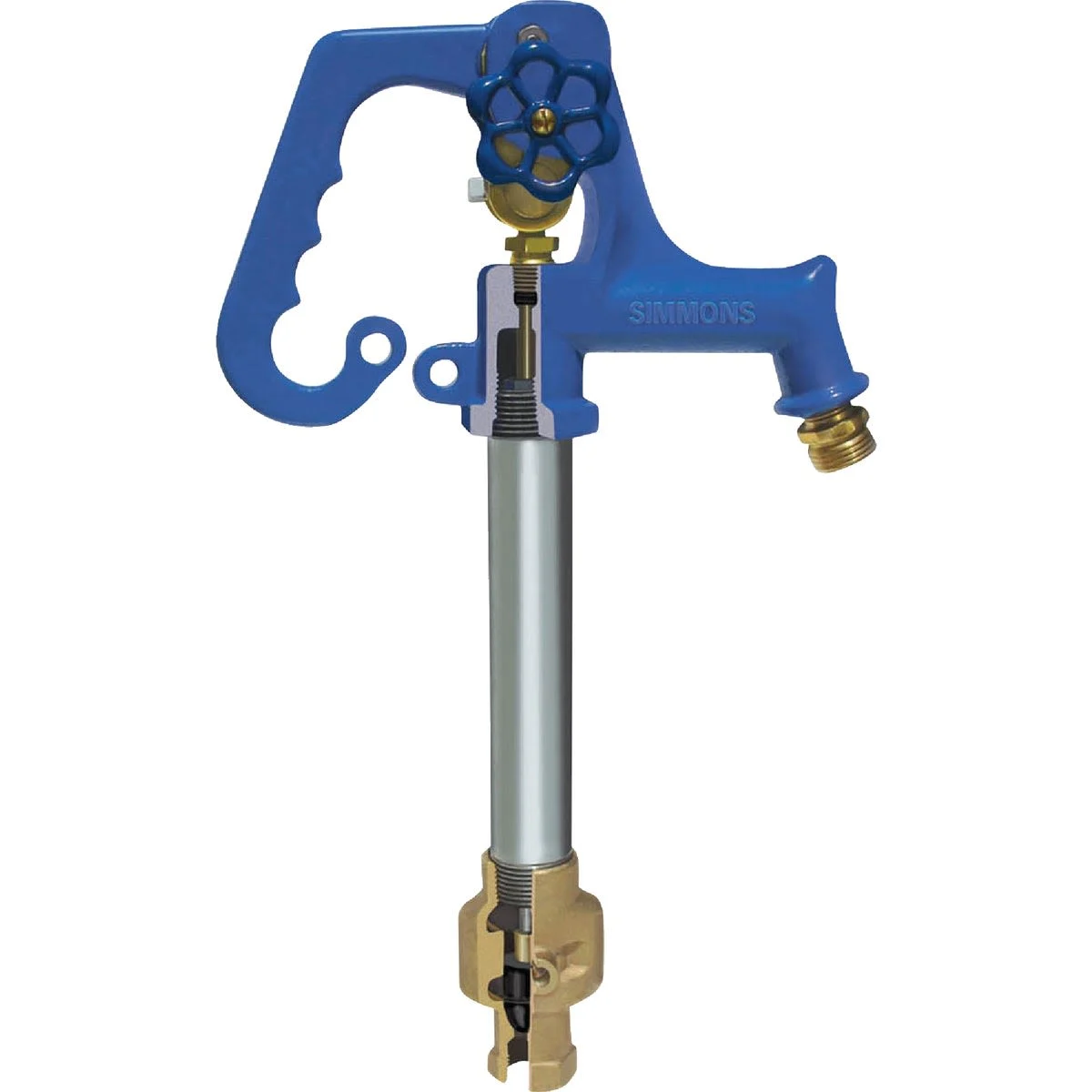

Simmons Domestic 4' Frost-Proof Yard Hydrant is a durable and reliable outdoor water supply system designed to prevent freezing in cold weather conditions. It features a 1-piece variable flow plunger with a large cushion-type seal, ensuring a positive shut-off even in the presence of foreign particles. The hydrant includes an automatic drain feature that opens to prevent freezing, helping to protect it during cold winters. For security, it has a tamper-proof lock that can be closed with a padlock or bolt through a hole in the link. This yard hydrant is constructed with a cast iron head and handle, and it has a 3/4-inch NPT (National Pipe Thread) inlet and a 1-inch galvanized steel pipe casting. The buried depth plus 24 inches determines the overall length of the hydrant, and it comes with a polyester powder-coated finish. It's proudly made in the USA, ensuring quality and reliability for your outdoor water needs.
Model Number: 804LF
Specifications
- Overall Length: 78-1/2 In.
- Head Material: Cast Iron
- Outlet Size: 3/4 In. GHT
- Inlet Size: 3/4 In. NPT
- Pipe Material: Galvanized Steel
- Casing: 1 In. Galvanized steel pipe
- Operating Rod: 7/16 In. galvanized pump rod
- Drain Hole: 1/8 In. NPT
- Bury Length: 4 Ft.
