Product Description

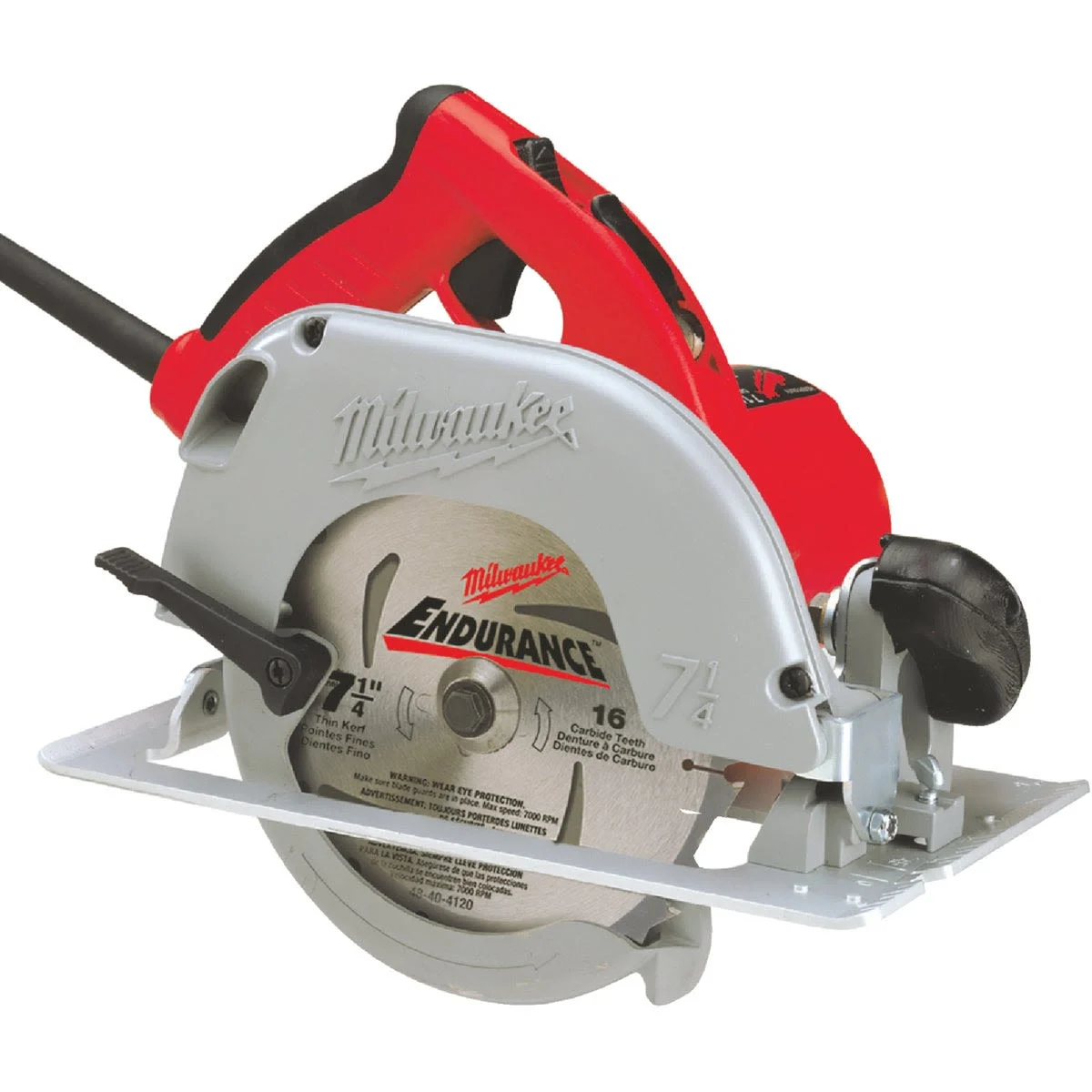

Milwaukee TILT-LOK™ 7-1/4" Circular Saw w/ Case comes with a 15 amp, 3.25 peak HP motor for cutting tough materials. The TILT-LOK™ main handle allows you to adjust to the work or most comfortable work position. The blade can bevel to 50 degrees for increased visibility and a clear sight line from both sides. It is compact and lightweight and features helical steel gears for added durability.
Includes:
(1) TILT-LOK™ 7-1/4" Circular Saw (6390-20) (1) Blade Wrench (1) Circular Saw Blade (1) Carrying Case
Style Number: 6390-21
Specifications
Amps: 15 Cord Type: 9' Fixed Tool Warranty: 5 Years Power Source: Corded Length: 13-3/4" Weight: 10.4 lbs Arbor Size: 5/8" No Load RPM: 5,800 Spindle Lock: Yes Construction Type: Double Insulated Soft Grip Handle: Yes Blade: 7-1/4" Tool Free Bevel: Yes Maximum Bevel Capacity: 50 degrees Spindle: 5/8" Adjustable Handle: Yes Depth of Cut at 45 Degrees: 1-13/16" Depth of Cut at 50 Degrees: 1-11/16" Depth of Cut at 90 Degrees: 2 and 7-16 Inch Electrical Brake: No Blade Position: Right Voltage: 120 AC/DC
Manuals
Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the Milwaukee Circular Saw. Read it before you buy it, or come back and download it if you have any questions after getting your saw home.
Milwaukee Circular Saw User Guide
Warranty & Certifications
5 Year Warranty
