Product Description

Milescraft 1325 PocketJig200. The PocketJig200 will help you to assemble work pieces quickly with strong and accurate pocket hole joints. You will be able to create tight corner joints, edge joints, T-joints, framing joints, or miter joints, and make repairs. The jig has built-in settings for different board thicknesses. Simply adjust the pocket jig to the desired setting, set the depth of your bit, and start drilling. This complete kit comes in a sturdy carrying case comes with all of the bits, drivers, screws and accessories needed to complete any pocket hole project.

Other Features:
- Spring-loaded sled adjust button allows you to slide the jig to the desired thickness setting and lock it in.
- Has both Imperial (fractional) and Metric scales built in to the jig to easily measure the thickness of your work piece
- Scales have the four most common board thickness settings - 1/2", 3/4", 1" and 1-1/2" (12, 19, 27, 38mm) - built right in
- Easy readout arrow helps define your board thickness setting
- Hardened steel drill bushings ensure precise and accurate pocket holes every time
- Tight tolerances between the bushing and the drill bit reduce tear-out and create a clean pocket hole on the first try
- The recessed Clamp Pocket has a strong rare earth magnet to help keep the clamp in the same position as you move to different locations For speed and accuracy, Milescraft FaceClamps (sold separately) are recommended
- A convenient built-in drill bit depth setter perfectly positions your bit for the correct drilling depth
- Made from high-speed steel the 3/8" HSS PocketBit, with a 1/4" quick connect hex shank, is designed to reduce clogging and drill smooth and precise holes
- Quickly and easily change from drilling to driving with the Milescraft Connector Chuck. Accepts all 1/4" hex bits
- Jig will work with wood materials from 1/2" to 1.5 thick (12-38mm), and has a drilling angle of 15°. Drill guides bushings are spaced 1 inch apart.

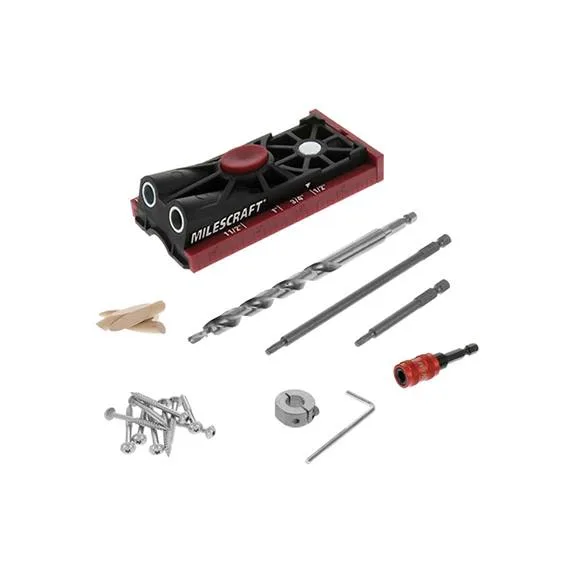

PocketJig200 Kit Includes: Double Barrel Pocket Hole Jig; Quick Connect Chuck; Magnetic 3" & 6" T-20 Torx Drive Bits, 3/8" PocketBit; 60 T-20 Pocket Hole Screws - 10 of each of 1" (25mm), 1.25" (32mm) coarse and fine, 1.5" (38mm), 2" (51mm), 2.5" (64mm); 10 Pocket Plugs; 3/8" Split Design Stop Collar with Hex Key; and an Instruction Manual; all in a sturdy storage case.

Model: 1325
