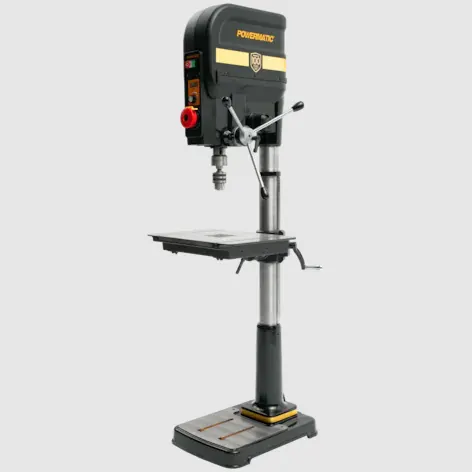

POWERMATIC 2820EVS Drill Press

POWERMATIC 2820EVS Drill Press

SKU 1581392
Add to Cart
Free Shipping Icon

Flexible Pickup & Delivery

Choose from shipping or buy online, pick up in-store options. Did we mention that you get free shipping on All Festool orders?

Learn More
Authorized Dealer Icon

Authorized Dealer

We are an authorized dealer of several top brands, providing high-quality products with unmatched service.

Learn More
HRM Heart - Family Owned Icon

Family-owned

We are a fourth-generation family-owned business built on community, trust, and family values.

Learn More
Hartville Hardware Logo - Price Pledge Icon

Price Pledge

We will price-match items our customers find at local competitors for less money on in-store and online purchases.

Learn More

The POWERMATIC 2820EVS Drill Press features a 120V motor that delivers two speed settings: high and low. The low setting delivers speed ranges from 150-870 RPM while the high setting delivers speed ranges from 600-3,600 RPM. The drill press includes POWERMATIC’s patented depth stop that makes countersinking easier. In addition, the tool includes a fence and stop designed to make repeat or production drilling more efficient. The tool stands on an oversized cast base for ultimate stability for the 20-inch swing. In addition, it has a large cast table that adjusts to a range of positions and tilts to a full 90-degrees for maximum versatility. This drill press is ideal for a wide range of materials and applications because of the gear driven power that transfers torque consistently. For added convenience, the 2820EVS Drill Press has reversible handles for left or right sided operation, a high-visibility digital readout, a laser pinpoint for drilling accuracy, and integrated LED lights that reduce shadows.

Manufacturer ID: 1792820KG

Swing

20 inches

Spindle Travel

6 inches

Style (Type)

Floor Standing Model

Distance Column to Spindle

20 inches

Table Dimensions

20-1/2 inches x 15-1/2 inches

Spindle Taper

MT2 (In x TPI)

Chuck Distance to Base

41-1/4 inches

Chuck Distance to Table

19-1/4 inches

Chuck Dimensions

5/8-inches

Quill Diameter

2.6 inches

Motor Power (HP)

1

Base Work Table

20-1/2 inches x 15-1/3 inches

Column Diameter

3.35 inches

Base Dimensions

22.7 inches x 16.33 inches x 2.75 inches

Assembled Machine Dimensions

24-1/2 inches x 20-1/2 inches x 71-3/4 inches

Fence Dimensions

19-3/4 inches x 2-5/8 inches

Motor Phase

1

Motor Voltage

120

Overall Dimensions

24-1/2 x 20-1/2 inches x 71- 3/4 inches

Prewired Voltage

115

Net Weight

336.6-pounds

Gross Weight

412.6-pounds

Swing 20 inches
Spindle Travel 6 inches
Style (Type) Floor Standing Model
Distance Column to Spindle 20 inches
Table Dimensions 20-1/2 inches x 15-1/2 inches
Spindle Taper MT2 (In x TPI)
Chuck Distance to Base 41-1/4 inches
Chuck Distance to Table 19-1/4 inches
Chuck Dimensions 5/8-inches
Quill Diameter 2.6 inches
Motor Power (HP) 1
Column Diameter 3.35 inches
Base Dimensions 22.7 inches x 16.33 inches x 2.75 inches
Assembled Machine Dimensions 24-1/2 inches x 20-1/2 inches x 71-3/4 inches
Fence Dimensions 19-3/4 inches x 2-5/8 inches
Motor Phase 1
Motor Voltage 120
Overall Dimensions 24-1/2 x 20-1/2 inches x 71- 3/4 inches
Prewired Voltage 115
Net Weight 336.6-pounds
Gross Weight 412.6-pounds
