Product Description

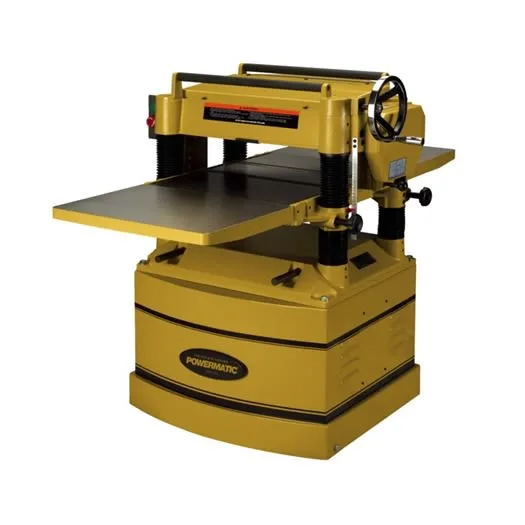

This 209HH 20" Heavy Duty Planer from POWERMATIC offers performance, value and is loaded with standard features competitor machines don’t include. It features a powerful 5HP motor and 20-inch planing capacity designed to handle even the most demanding projects. It also features a helical cutterhead that provides quieter operation and finer finishing than conventional systems. The 100 four-sided carbide knife inserts seat themselves without requiring a set-up gauge. The planer also incorporates a 5-inch dust port that connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. Built of a solid cast iron base, table and head, this heavy-duty planer is designed for production and durability. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. In addition, the corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns which gives it plenty of support to take on larger workpieces. For added convenience, the planer incorporates heavy cast iron extension wings to ensure a flat and smooth cutting performance.
Includes:
(1) 20” Heavy Duty Planer (Model 209HH)
(1) Dust Hood
(2) Cast Iron Extention Tables
(1) Hand Wheel
(1) Handle
(1) Low Speed Gear Kit (#6292822) containing:
(1) 50P Chain
(1) 12T Sprocket
(3) Open-End Wrenches (8-10,12-14,17-19mm)
(4) Hex Wrenches (3,4,5 and 6mm)
(2) Hardware Bags
(1) 1/4” Drive Screwdriver
(1) T25P Torx Plus Drive Socket Adaptor
(1) Set of 10 Knife Inserts
(1) Owner’s Manual
(1) Warranty Card
Accessories (Sold Separately):
1791212 – POWERMATIC Shelix Head Inserts for Helical Planers, Set of 10
1791212 / JWP-DRO – Digital Readout for 20” Planers
Style Number: 1791315
Specifications
Type of Cutterhead: Helical
Style (Type): Floor
Feed Rate (FPM): 24/31
Max. Depth of Cut: 3/32”
Max. Full Width Depth of Cut: 3/32”
Max. Planing Width: 20”
Cuts Per Minute: 20,000
Cutterhead Diameter: 3-3/16”
Max. Planing Thickness: 8”
Table Size: (L) 25-3/4” x (W) 20”
Min. Planing Length: 6-3/4”
Cutterhead Speed: 5000 RPM
Motor Power: 5 HP
Table Support: 4 Column
Dust Collection Minimum CFM Required: 900 CFM
Dust Port Outside Diameter: 5”
Motor Phase: 1
Motor Voltage: 230 V
Prewired Voltage: 230 V
Recommended Circuit Size: 40 Amps
