Product Description

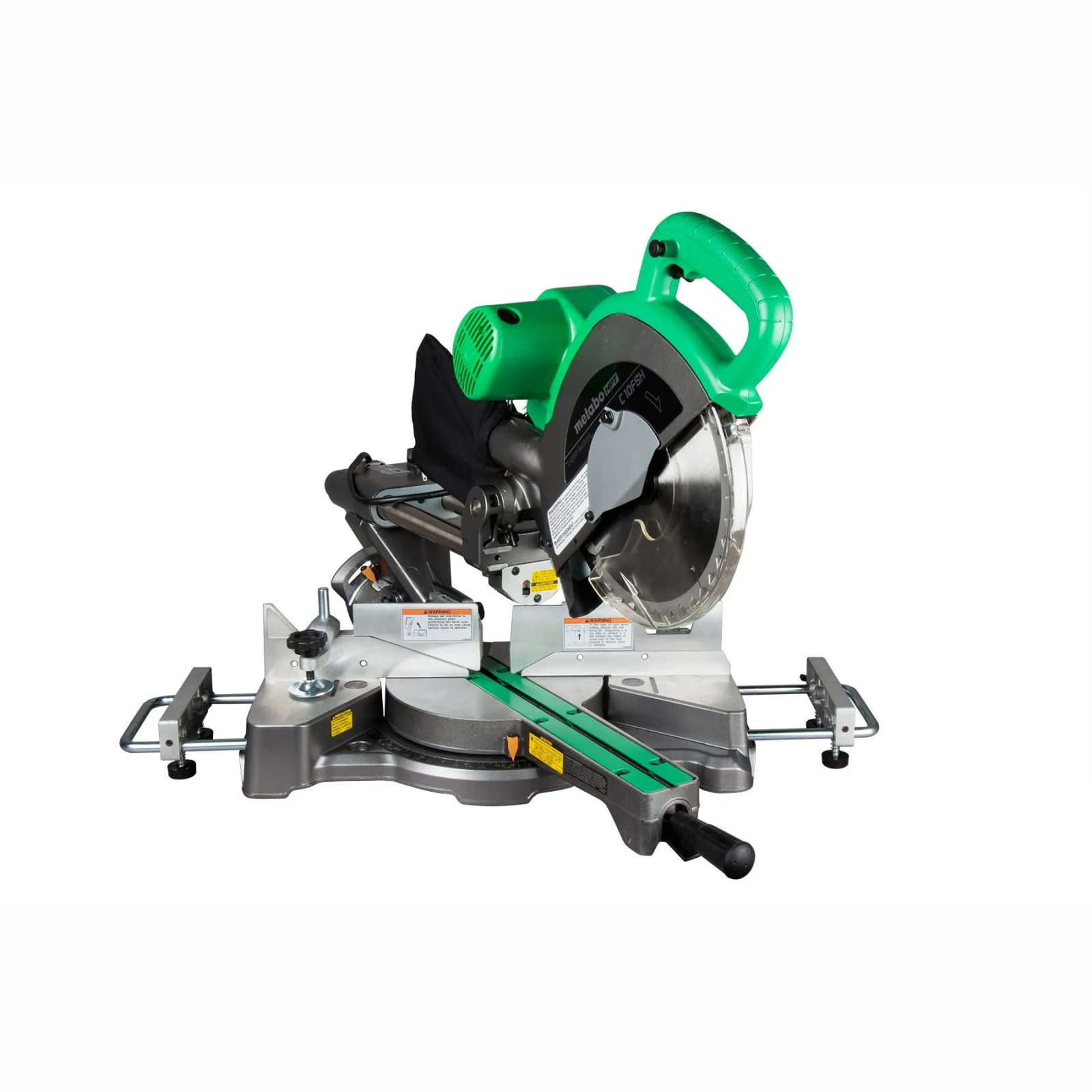

Metabo HPT 10" Sliding Dual Compound Miter Saw with Laser Marker is the ideal tool for trim carpenters, framers, and woodworkers. It has positive stops on the miter and bevel scales that make measurement reading quick and easy. The saw also has a 45-degree dual bevel angle range which allows users to flip the saw blade quickly while leaving material in place. Plus, the tool’s linear ball bearing slide system white on black miter scale offer additional visibility and accuracy.
Other Features:
Adjustable Laser Marker – Delivers precise cutting lines which can be easily adjusted to the user’s preference
12 Amp Motor – Provide power for the toughest cutting jobs
Electronic Speed Control – Maintains RPM while cutting and improves control
Soft Start – Reduces noise and recoil during start-up
Adjustable Pivot Fence – Supports the work piece for improved stability while cutting
Electric Brake – Halts the rotation of the blade within seconds which prevents unintended cuts
Carbon Brush – Allows users to replace brush as needed to increase tool longevity
Highly Efficient Dust Collector Attachment – Collects more dust than previous models
Splinter Guard – Prevents material from splintering and increases safety
Compliant with new UL regulations
Includes:
(1) 10" Sliding Dual Compound Miter Saw with Laser Marker
(1) 10" 40T TCT Saw Blade
(1) Pivoting Flip Fence
(1) 10 mm Box Wrench
(1) Dust Bag
Model Number: C10FSHSM
Specifications
Amps: 12
Laser Marker: Yes
No-Load Speed: 3,800 RPM
Blade Diameter: 10"
Arbor Size: 5/8"
Bevel Angle Range (R & L): 0-45°
Bevel Cross Cut at 90° (L): 2-3/16" x 12"
Bevel Cross Cut at 90° (R): 1-3/16" x 12"
Bevel Stops (R & L): 0° and 45°
Miter Angle Range (R): 0-57°
Miter Cross Cut at 57° (R): 3-11/32" x 6-1/2"
Miter Angle Range (L): 0-45°
Miter Cross Cut at 45° (L/R): 3-11/32" x 8-19/32"
Miter Detent Stops (R & L): 0°, 15°, 22.5°, 31.6° and 45°
Miter 45° (L/R) + Bevel 45° (L): 2-3/16" x 8-19/32"
Miter 31° (L) + Bevel 45° (R): 1-3/16" x 10-7/32"
Miter 45° (L/R) + Bevel 45° (L): 1-3/16" x 8-19/32"
Weight: 45.9 lbs.
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the safety instructions for the Metabo HPT C10FSHSM Miter Saw. Read it before you buy it, or come back and download it if you have questions.
Metabo HPT C10FSHSM Miter Saw Instruction Manual
