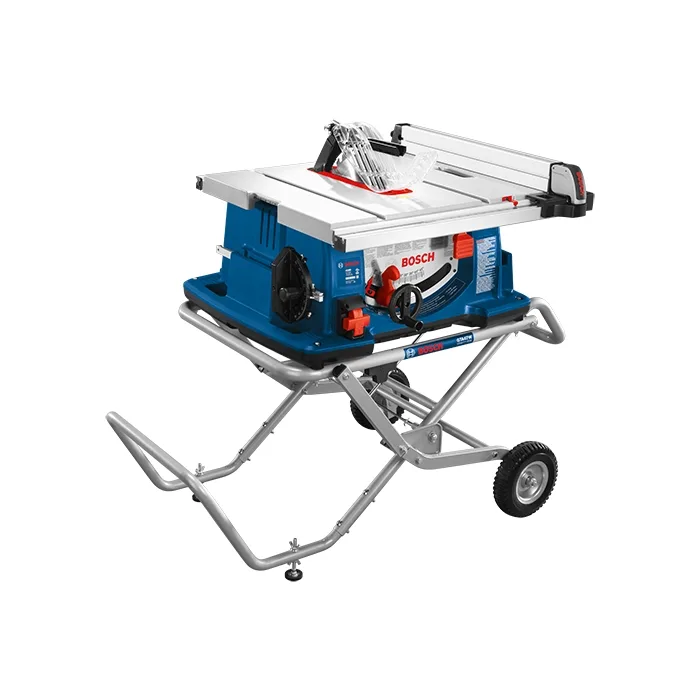

Bosch 4100-10 10 INCH WORKSITE TABLE SAW WITH GRAVITY-RISE WHEELED STAND

Bosch 4100-10 10 INCH WORKSITE TABLE SAW WITH GRAVITY-RISE WHEELED STAND

SKU 1342766
Add to Cart
Free Shipping Icon

Flexible Pickup & Delivery

Choose from shipping or buy online, pick up in-store options. Did we mention that you get free shipping on All Festool orders?

Learn More
Authorized Dealer Icon

Authorized Dealer

We are an authorized dealer of several top brands, providing high-quality products with unmatched service.

Learn More
HRM Heart - Family Owned Icon

Family-owned

We are a fourth-generation family-owned business built on community, trust, and family values.

Learn More
Hartville Hardware Logo - Price Pledge Icon

Price Pledge

We will price-match items our customers find at local competitors for less money on in-store and online purchases.

Learn More

The Bosch 4100-10 10 In. Worksite Table Saw with Gravity-Rise Wheeled Stand delivers both professional rip capacity and outstanding portability for a tool that can get the job done, wherever it is. The powerful 15-Amp saw delivers 4.0 max HP for outstanding productivity. It also incorporates soft-start circuitry for smooth but quick ramp-up to the operating speed to manage the intensity of motor start-up and minimize the possibility of tripping a circuit breaker.. It includes Constant Response circuitry to help maintain speed under load, and overload protection. The SquareLock rip fence is engineered for maximum trueness and great ease-of-use, with the fence able to easily glide along the rail for one-handed operation. The lighter GTA47W Gravity-Rise Wheeled Stand has 8 In. treaded rubber-composite tires and a single-action design for easy set-up and transport. It is jobsite-ready with heavy-duty construction. The Smart Guard System is the first modular table saw blade guard, featuring a three-position adjustable riving knife, anti-kickback pawls and non-obstructed-view barrier guard assembly. The table saw provides a 29 In. x 21-1/2 In. square tabletop with a 25 In. rip capacity for ripping 4 Ft. wide sheets goods in half.

Includes
  • (1) GTA47W Gravity-Rise Wheeled Table Saw Stand
  • (1) Smart Guard System - Barrier-Guard Device and Anti-Kickback Pawls
  • (1) 10 In. Carbide-Tipped Blade
  • (1) SquareLock Rip Fence
  • (1) Miter Gauge
  • (1) Push Stick
  • (1) Throat Plate Insert
  • (1) Multi-Function Blade Wrench
  • (1) Adjustment Wrench

TECHNICAL DATA

Amperage 15.0

Arbor 5/8 inches

Arbor Size 5/8 inches

Bevel Angle Range -2 degrees to 47 degrees

Blade Diameter 10.0

Dimensions Table saw & stand combination in working position = 30.25 inches Depth (front to back) x 47 inches Width (when extension is at in-most position) x 35.5 inches Height. Table-top dimensions = 21-1/2 inches Depth (front to back) x 29 inches Width (when extension is at in-most position)

Dust Blower No

Height 13.25 inches

Length 29.0 inches

Max. Bevel Capacity ( degrees) 47.0

Max. Depth of Cut at 45 Deg. 2-1/2 inches

Max. Depth of Cut at 90 Deg. 3-1/8 inches

No Load RPM 3,650

Voltage 120V

Weight 58.0pounds

Weight of Bare Saw - pounds 58.0

Weight of Saw and Standard Equipment (Without Stand) - pounds 63.0

Weight of Saw, Standard Equipment and Stand - pounds 92.0

Width 32.0 inches

Working Length Table Top dimensions 29 inches x 21-1/2 inches

Works With Vacuum Hoses

Common 2-1/2 inches Vacuum Hoses

Vacuum Hose Adapter for 35 mm Vacuum Cleaner Hoses

VAC004

Dust Bag

TS1004

Zero-Clearance Insert

TS1005

Dado Insert

TS1007

Molding Insert

TS1009

Outfeed Support

TS1016

Left-Side Support

TS1008

Includes (1) GTA47W Gravity-Rise Wheeled Table Saw Stand, (1) Smart Guard System - Barrier-Guard Device and Anti-Kickback Pawls, (1) 10 inches Carbide-Tipped Blade, (1) SquareLock Rip Fence, (1) Miter Gauge, (1) Push Stick, (1) Throat Plate Insert, (1) Multi-Function Blade Wrench, (1) Adjustment Wrench

Benefits

Powerful 10 inches Worksite table saw - features 15 Amp saw delivers 4.0 Max HP and 3,650 RPM, for the power required for ripping rip-cutting and cross-cutting in of fine- and rough-carpentry materials

Large cast aluminum top - provides increased work space and material support with a 25 inches ripping capacity to cover all typical jobsite rip-cutting widths

Soft-start circuitry - manages the intensity of motor start-up and minimizes the possibility of tripping a circuit breaker

Constant response circuitry - helps maintain speed under load

Portability - works seamillilitersessly with the included lighter GTA47W Gravity-Rise Wheeled Stand for easy jobsite mobility, with single-action setup and take down

SquareLock rip fence - engineered for enhanced clamping and trueness

Smart Guard System - riving knife and anti-kickback pawls provide protection, while the guard assembly provides a barrier to help prevent blade contact while allowing an unobstructed view of the cut

Onboard storage - allows for access to all included components

Arbor lock - permits easy blade changes, with arbor lock and blade wrench located onboard

TECHNICAL DATA
Amperage 15.0
Arbor 5/8 inches
Arbor Size 5/8 inches
Bevel Angle Range -2 degrees to 47 degrees
Blade Diameter 10.0
Dimensions Table saw & stand combination in working position = 30.25 inches Depth (front to back) x 47 inches Width (when extension is at in-most position) x 35.5 inches Height. Table-top dimensions = 21-1/2 inches Depth (front to back) x 29 inches Width (when extension is at in-most position)
Dust Blower No
Height 13.25 inches
Length 29.0 inches
Max. Bevel Capacity ( degrees) 47.0
Max. Depth of Cut at 45 Deg. 2-1/2 inches
Max. Depth of Cut at 90 Deg. 3-1/8 inches
No Load RPM 3,650
Voltage 120V
Weight 58.0pounds
Weight of Bare Saw - pounds 58.0
Weight of Saw and Standard Equipment (Without Stand) - pounds 63.0
Weight of Saw, Standard Equipment and Stand - pounds 92.0
Width 32.0 inches
Working Length Table Top dimensions 29 inches x 21-1/2 inches
Works With Vacuum Hoses
Common 2-1/2 inches Vacuum Hoses
Vacuum Hose Adapter for 35 mm Vacuum Cleaner Hoses
Dust Bag
TS1004
Zero-Clearance Insert
TS1005
Dado Insert
TS1007
Molding Insert
TS1009
Outfeed Support
TS1016
Left-Side Support
TS1008
Includes (1) GTA47W Gravity-Rise Wheeled Table Saw Stand, (1) Smart Guard System - Barrier-Guard Device and Anti-Kickback Pawls, (1) 10 inches Carbide-Tipped Blade, (1) SquareLock Rip Fence, (1) Miter Gauge, (1) Push Stick, (1) Throat Plate Insert, (1) Multi-Function Blade Wrench, (1) Adjustment Wrench
Benefits
Powerful 10 inches Worksite table saw - features 15 Amp saw delivers 4.0 Max HP and 3,650 RPM, for the power required for ripping rip-cutting and cross-cutting in of fine- and rough-carpentry materials
Large cast aluminum top - provides increased work space and material support with a 25 inches ripping capacity to cover all typical jobsite rip-cutting widths
Soft-start circuitry - manages the intensity of motor start-up and minimizes the possibility of tripping a circuit breaker
Constant response circuitry - helps maintain speed under load
Portability - works seamillilitersessly with the included lighter GTA47W Gravity-Rise Wheeled Stand for easy jobsite mobility, with single-action setup and take down
SquareLock rip fence - engineered for enhanced clamping and trueness
Smart Guard System - riving knife and anti-kickback pawls provide protection, while the guard assembly provides a barrier to help prevent blade contact while allowing an unobstructed view of the cut
Onboard storage - allows for access to all included components
Arbor lock - permits easy blade changes, with arbor lock and blade wrench located onboard
