Product Description
Whether you need to rapidly boil water for pasta, sear a steak, or simmer a delicate sauce, you'll appreciate the versatility of this 36-inch, five-burner gas cooktop. The performance is matched by design that includes robust, Multi-Finish Knobs and continuous cast-iron grates that give you the ability to move pots from one burner to another.
Features

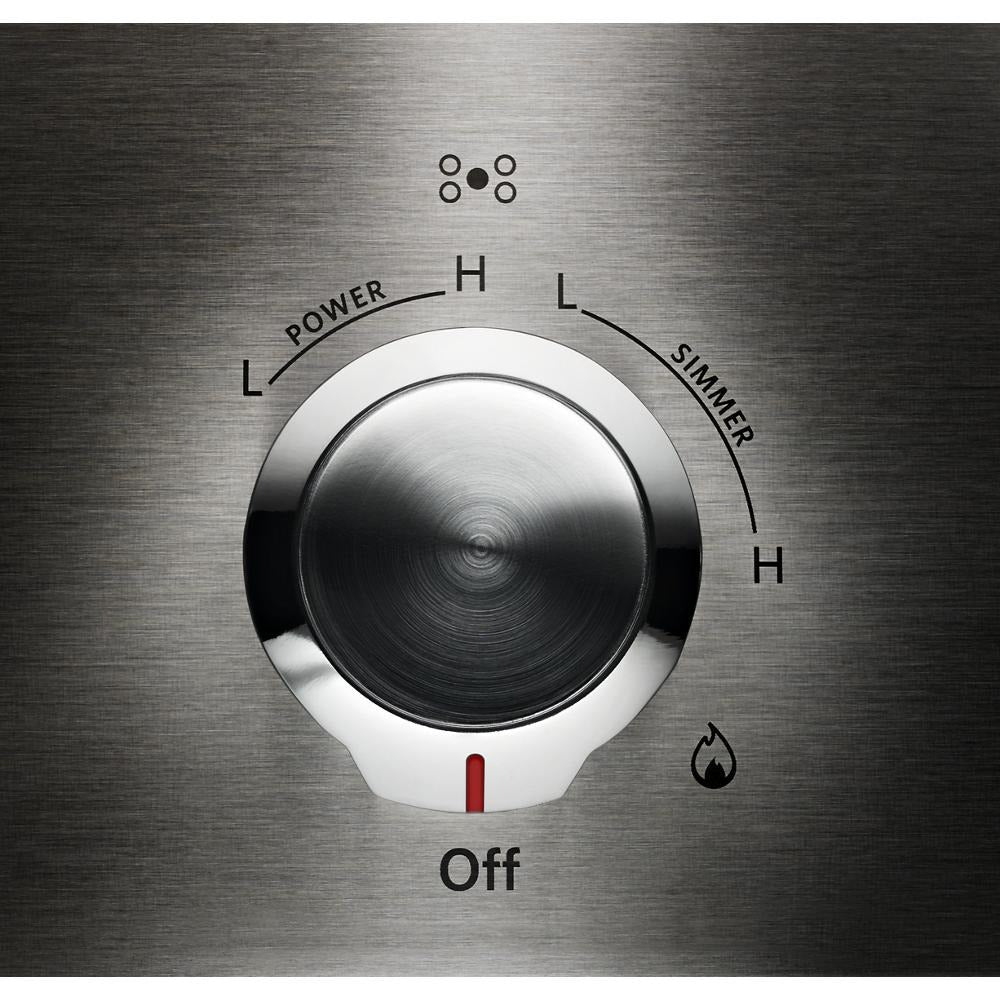

19,000 BTU Multiflame Burner: Works as an all-purpose professional burner, providing the ability to use both high- and low-temperature cooking methods so you can go from a boil to a simmer without changing burners.|5,000 BTU Even-Heat™ Simmer Burner: A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.|Electronic Ignition: Automatically lights burners so no standing pilot light is needed|Full-Width Cast-Iron Grates: Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.|Multi-Finish Knobs: Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.|LP Conversion Kit: Allows you to convert the cooktop so it can be used with LP gas.
Specifications
| Cutout Depth Max(IN,inches) | 20 |
|---|
| Cutout Depth(IN,inches) | 19 15/16 |
|---|
| Cutout Height(IN,inches) | 5 1/4 |
|---|
| Cutout Width Max(IN,inches) | 35 1/4 |
|---|
| Cutout Width(IN,inches) | 34 1/2 |
|---|
| Depth(IN,inches) | 21 |
|---|
| Height(IN,inches) | 3 11/16 |
|---|
| Maximum Height(IN,inches) | 4 |
|---|
| Width(IN,inches) | 36 |
|---|
| Combinations with Oven | KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
|---|
| Cooktop Type | Standard |
|---|
| Fuel Type | Gas |
|---|
| Size (in.) | 36 |
|---|
| Control Location | Front |
|---|
| Control Type | Knobs |
|---|
| Infinite Heat Controls | Yes |
|---|
| Knob Color | Stainless Steel |
|---|
| Knob Type | Metal |
|---|
| Automatic Pan Detection | No |
|---|
| Digital Display | No |
|---|
| Downdraft Vent | No |
|---|
| Griddle | Optional Accessory |
|---|
| Heating Element On Indicator Light | No |
|---|
| Hot Surface Indicator Light | No |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| LP Convertible | Yes - Kit Included |
|---|
| Power Boost | No |
|---|
| Power Outage Compatible | Yes |
|---|
| Selection | Simmer |
|---|
| Cooktop Element Style | Sealed Burner |
|---|
| Cooktop Surface Color | Color Coordinated |
|---|
| Ignition Type | Direct Spark Ignition |
|---|
| Number of Cooking Element-Burners | 5 |
|---|
| Cooktop Surface Material | Stainless Steel |
|---|
| Number of Open Bays | NA |
|---|
| Center Rear Element-Burner Power | 19,000 BTU |
|---|
| Center Rear Element-Burner Type | Dual |
|---|
| Left Front Element-Burner Power | 9,100 BTU |
|---|
| Left Front Element-Burner Type | Burner |
|---|
| Left Rear Element-Burner Power | 9,100 BTU |
|---|
| Left Rear Element-Burner Type | Burner |
|---|
| Right Front Element-Burner Power | 12,000 BTU |
|---|
| Cutout Height (in) | 5 1/4 in |
|---|
| Grate Details | Cast Iron Grates,Continuous,Dishwasher Safe,Matte Finish |
|---|
| Left Front Element-Burner Type | Burner |
|---|
| Selection | Simmer |
|---|
| Carton Height | 12 1/16 in |
|---|
| Automatic Pan Detection | No |
|---|
| Infinite Heat Controls | Yes |
|---|
| Maximum Height | 4 in |
|---|
| Number of Open Bays | N/A |
|---|
| Width | 36 in |
|---|
| Left Front Element-Burner Power | 9,100 BTU |
|---|
| Left Rear Element-Burner Type | Burner |
|---|
| Right Front Element-Burner Type | Burner |
|---|
| Right Rear Element-Burner Power | 5,000 BTU |
|---|
| Right Rear Element-Burner Type | Simmer |
|---|
| Grate Details | Cast Iron Grates,Continuous,Dishwasher Safe,Matte Finish |
|---|
| Number of Grates | 3 |
|---|
| ADA Compliant | ADA Height and Side Reach Compliant |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Carton Depth(IN,inches) | 25 |
|---|
| Carton Height(IN,inches) | 12 1/16 |
|---|
| Carton Width(IN,inches) | 44 7/16 |
|---|
| Cutout Height Min(IN,inches) | 5 1/4 |
|---|
| Gross Weight(LB,pounds) | 69 |
|---|
| Amps | 15 |
|---|
| Hz | 60 |
|---|
| Power Cord Included | Yes |
|---|
| Volts | 120 |
|---|
| Accessory Relationships | Yes |
|---|
| Cookshield Finish | Cookshield Finish |
|---|
| Carton Depth | 25 inch |
|---|
| Carton Height | 12 1/16 inch |
|---|
| Carton Width | 44 7/16 inch |
|---|
| Cutout Depth (in) | 19 15/16 inch |
|---|
| Cutout Height (in) | 5 1/4 inch |
|---|
| Cutout Width (in) | 34 1/2 inch |
|---|
| Depth | 21 inch |
|---|
| Height | 3 11/16 inch |
|---|
| Width | 36 inch |
|---|
| Gross Weight | 69 inch |
|---|
| Maximum Height | 4 inch |
|---|
| Net Weight | 0.0 inch |
|---|
| Volts | 120 |
|---|
| Height(IN,inches) | 3.6875 |
|---|
| Right Front Element-Burner Type | Burner |
|---|
| Fuel Type | Gas |
|---|
| Combinations with Oven | KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
|---|
| Cookshield Finish | Cookshield Finish |
|---|
| Cooktop Element Style | Sealed Burner |
|---|
| Right Front Element-Burner Power | 12,000 BTU |
|---|
| Control Location | Front |
|---|
| Cutout Height(IN,inches) | 5.2500 |
|---|
| Downdraft Vent | No |
|---|
| Carton Height(IN,inches) | 12.0625 |
|---|
| Hot Surface Indicator Light | No |
|---|
| Size (in.) | 36 |
|---|
| Cutout Width(IN,inches) | 34.5000 |
|---|
| Ignition Type | Direct Spark Ignition |
|---|
| Net Weight | 0.0 in |
|---|
| Cutout Depth(IN,inches) | 19.9375 |
|---|
| Digital Display | No |
|---|
| Cutout Width (in) | 34 1/2 in |
|---|
| Left Rear Element-Burner Power | 9,100 BTU |
|---|
| Cutout Depth Max(IN,inches) | 20.0000 |
|---|
| Center Rear Element-Burner Power | 19,000 BTU |
|---|
| Depth | 21 in |
|---|
| Cutout Height Min(IN,inches) | 5.2500 |
|---|
| ADA Compliant | ADA Height and Side Reach Compliant |
|---|
| Gross Weight(LB,pounds) | 69 |
|---|
| Maximum Height(IN,inches) | 4.0000 |
|---|
| Number of Cooking Element-Burners | 5 |
|---|
| Cooktop Surface Material | Stainless Steel |
|---|
| Carton Width(IN,inches) | 44.4375 |
|---|
| Griddle | Optional Accessory |
|---|
| Number of Grates | 3 |
|---|
| Depth(IN,inches) | 21.0000 |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Carton Width | 44 7/16 in |
|---|
| Accessory Relationships | Yes |
|---|
| Carton Depth(IN,inches) | 25.0000 |
|---|
| Right Rear Element-Burner Type | Simmer |
|---|
| Knob Type | Metal |
|---|
| LP Convertible | Yes - Kit Included |
|---|
| Right Rear Element-Burner Power | 5,000 BTU |
|---|
| Power Cord Included | Yes |
|---|
| Cooktop Surface Color | Color Coordinated |
|---|
| Prop 65 | Standard |
|---|
| Power Outage Compatible | Yes |
|---|
| Cutout Width Max(IN,inches) | 35.2500 |
|---|
| Center Rear Element-Burner Type | Dual |
|---|
| Height | 3 11/16 in |
|---|
| Heating Element On Indicator Light | No |
|---|
| UL | Yes |
|---|
| Control Type | Knobs |
|---|
| Cooktop Type | Standard |
|---|
| Carton Depth | 25 in |
|---|
| Hz | 60 |
|---|
| Cutout Depth (in) | 19 15/16 in |
|---|
| Knob Color | Stainless Steel |
|---|
| Gross Weight | 69 in |
|---|
| Amps | 15 |
|---|
| Power Boost | No |
|---|
| Installs Over Built-In Oven | Yes |
|---|
