Product Description

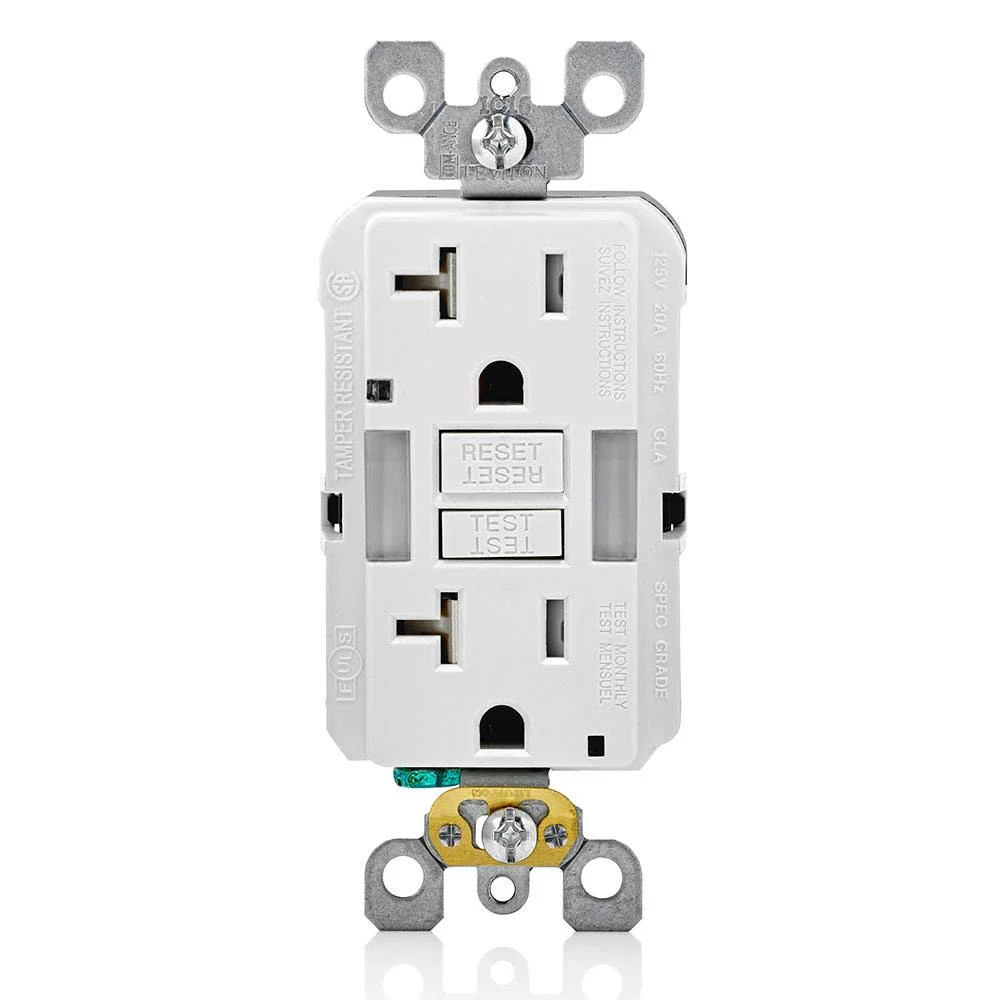

The Leviton SmartlockPro 125V Slim GFCI Receptacle Outlet is a great way to add light when it’s dark without taking up an outlet space. Instead of plugging in a nightlight, this device provides dual LED guide lights that turn ON and OFF automatically based on the light levels in that room. It only uses 1W of electricity and is designed to meet the latest UL standard for auto-monitoring (self-test). Periodically, the GFCI conducts an automatic internal test to confirm that it can respond to a ground fault. For additional protection, the Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. With a slime, sleek profile and easy installation, this SmartlockPro GFCI Receptacle is a smart choice for residential or commercial use. This receptacle does not come with a wallplate.
Additional Benefits:
- Sensor provides automatic ON/OFF based on ambient lighting
- Dual lens provides visible light with a variety of plugs or transformers
- Custom designed lenses with edge-mounted LEDs improve light dispersion
- Is energy-efficient, uses approx. 1W of electricity - No bulbs to replace
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wall plates; available in select Decora colors
- UL Fed Spec WC-596 rated
Style Number: R92-GFNL2-00W
Specifications
- Color: White
- Amperage: 20
- Grade: Residential/Commercial Specification Grade
- Grounding: Self-Grounding
- NEMA: 5-20R
- Pole: 2
- Tamper Resistant: Yes
- Termination: Back & Side 20A Feed-Thru
- Trip Level: Class A, 5mA plus or minus 1mA
- Voltage: 125 VAC
- Wire: 3
- Face Material: Thermoplastic
- Grounding Screw: Plated Steel
- Line Contacts: Brass Triple-Wipe .031 Thick
- Terminal Accom.: 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Yoke: Zinc-Plated Steel
- Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
