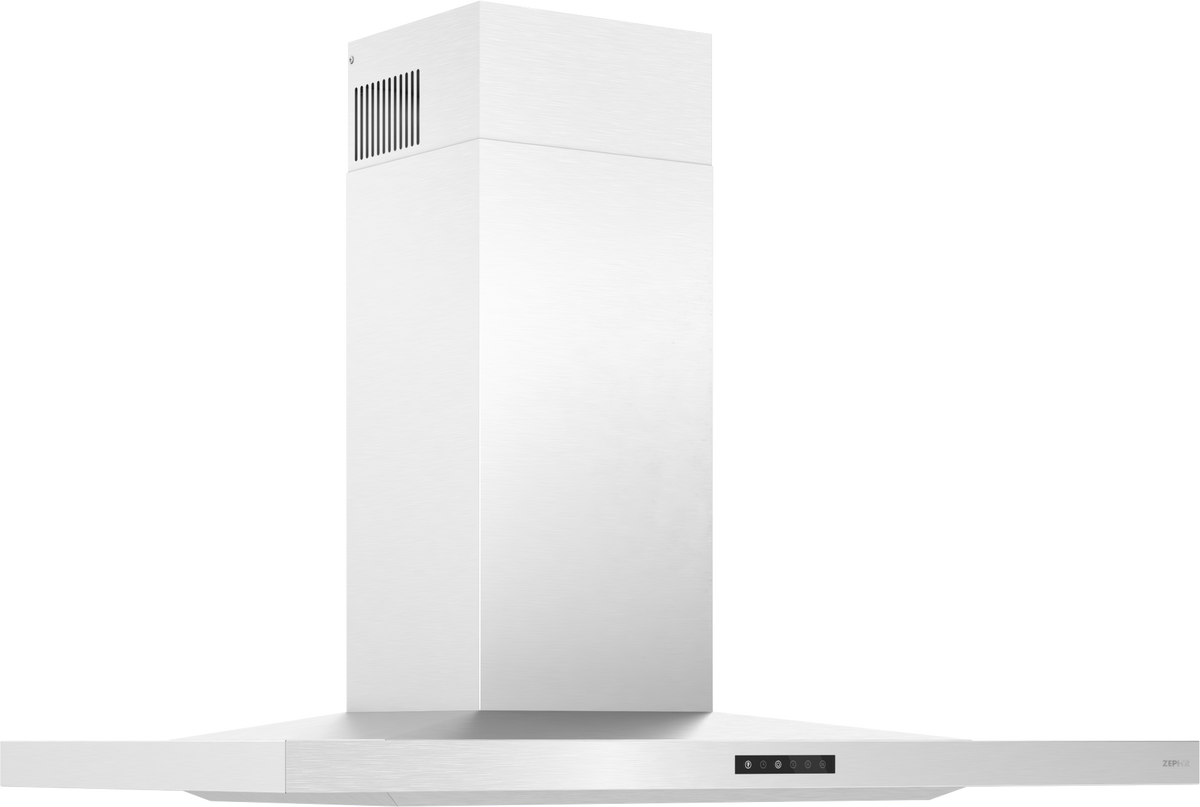

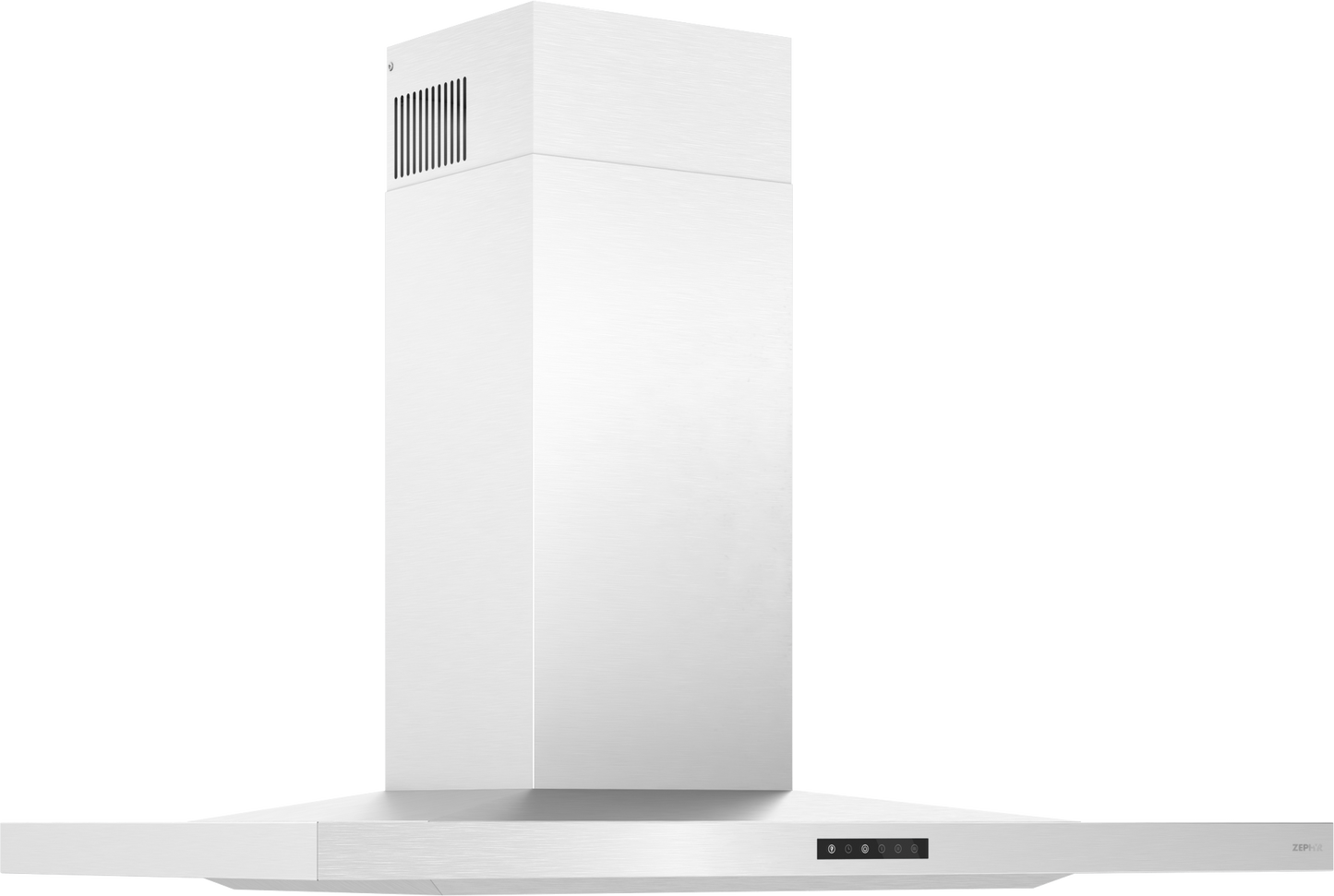

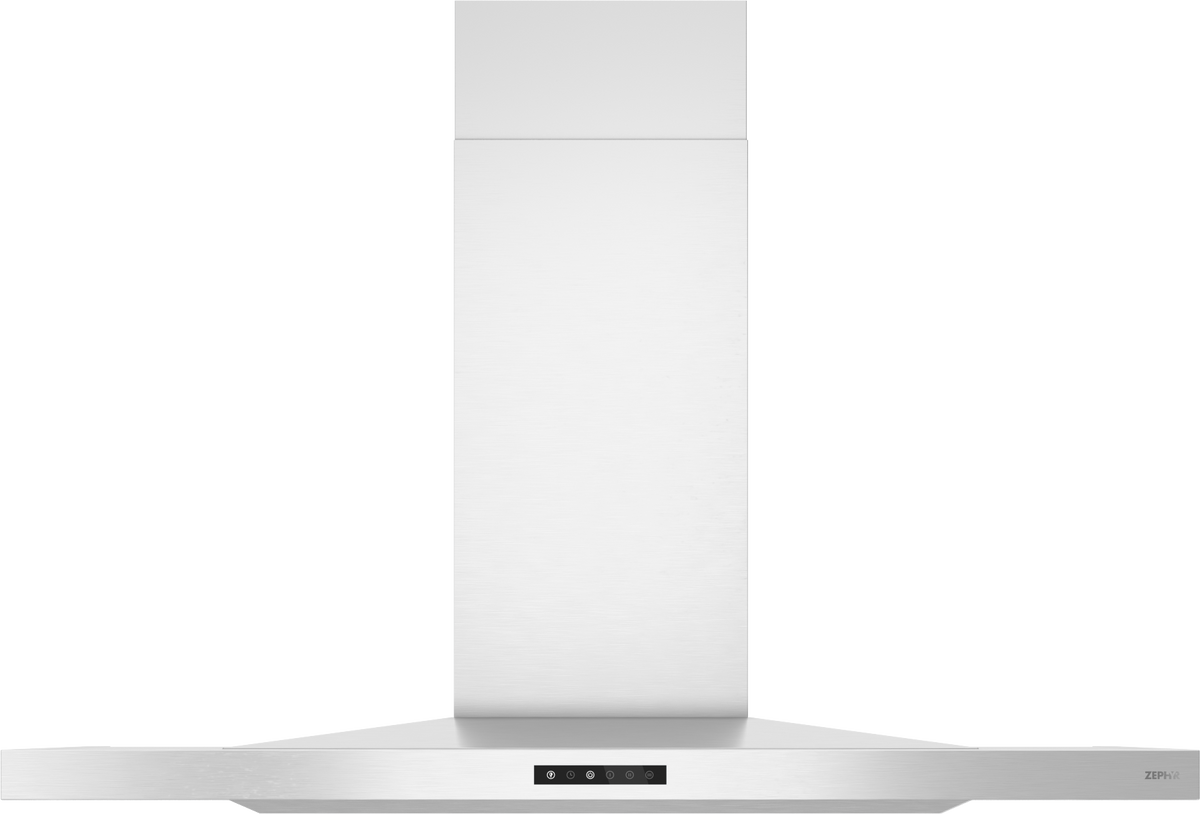

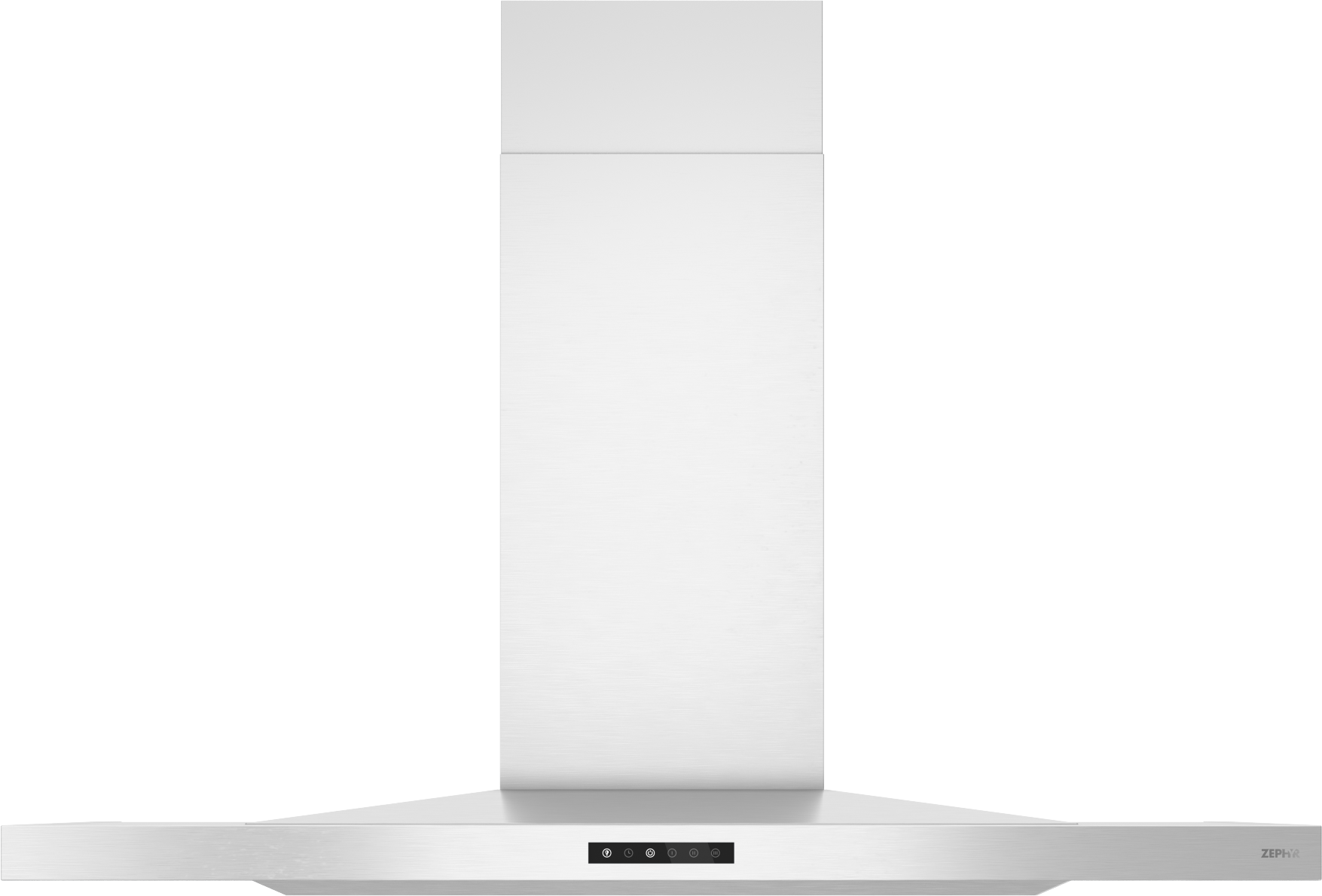

Layers Chimney Hood 36" BODY ONLY
Layers Chimney Hood 36" BODY ONLY
SKU: SKU: DLAM90ASSX
Shop All Zephyr
Sale price
now
$1,999
.00
Regular price
$2,199.00
Unit price
per

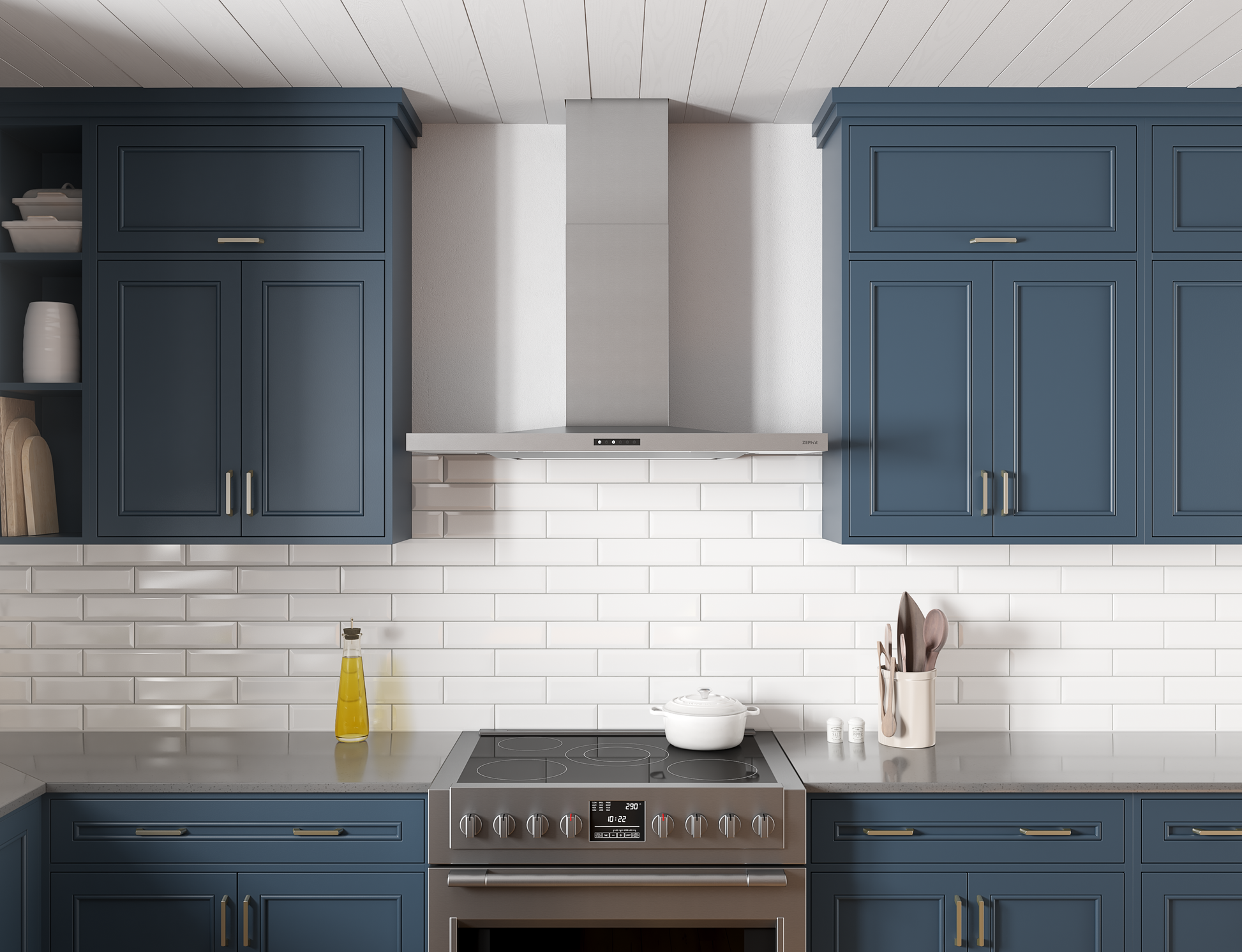

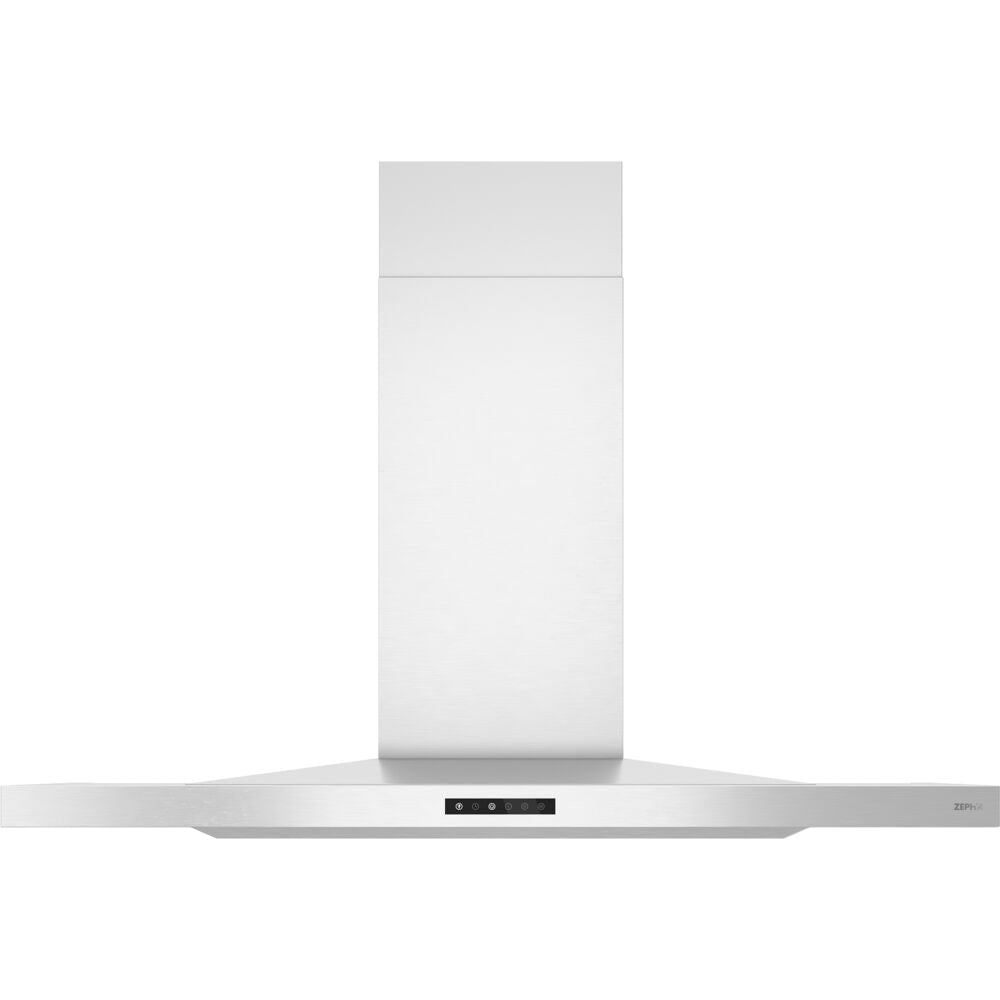

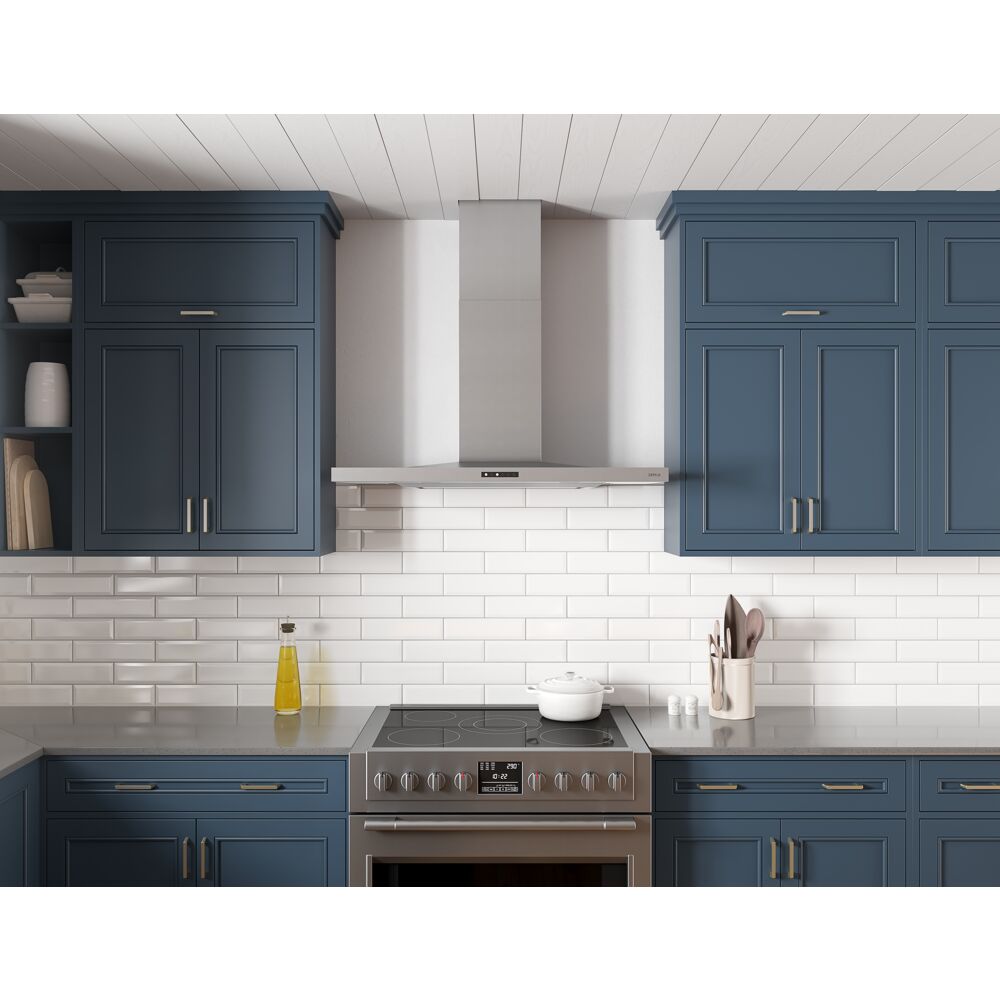

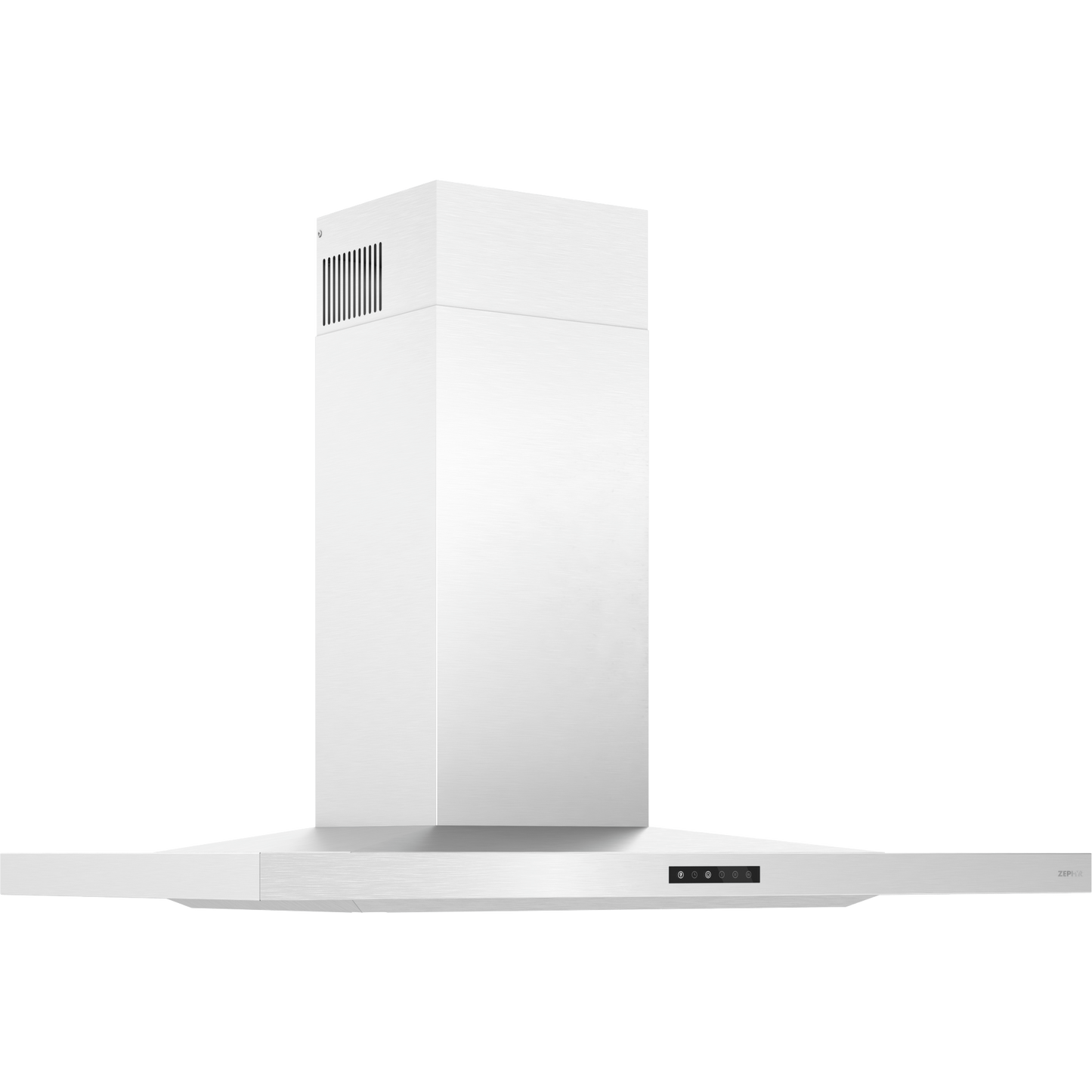

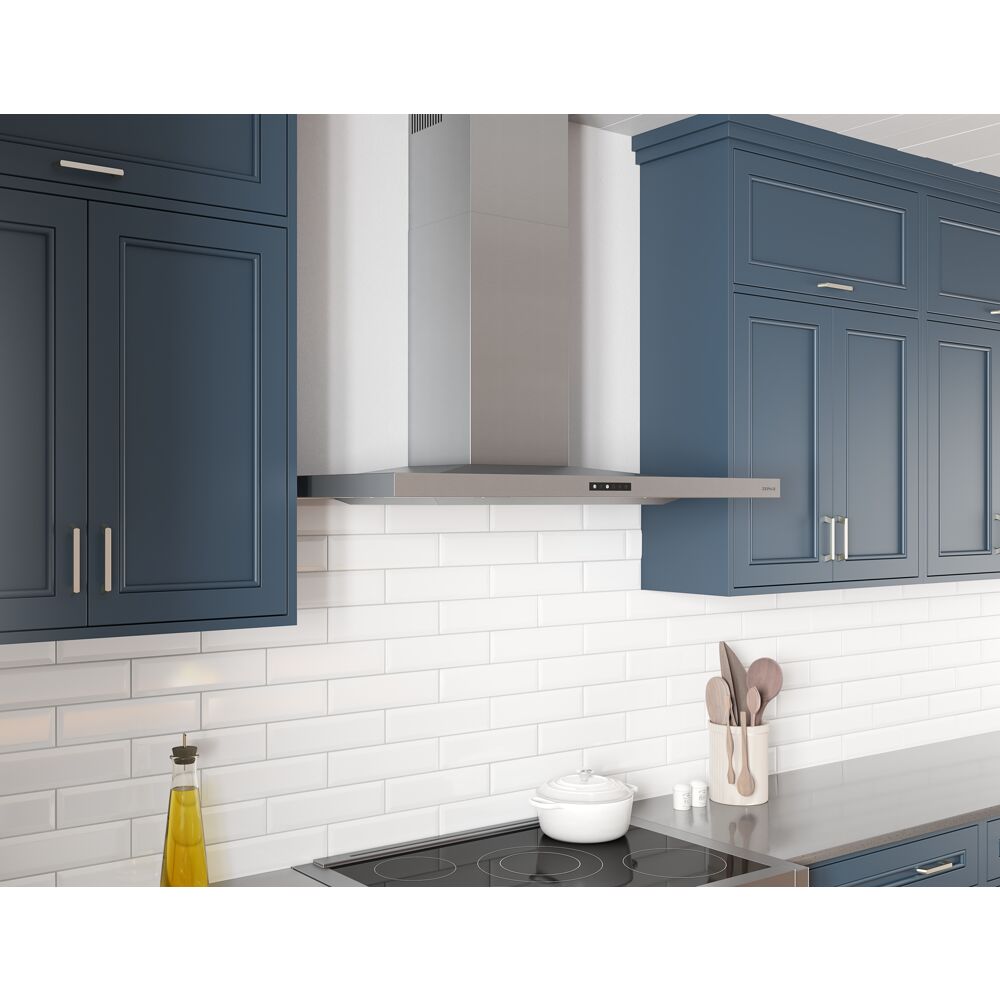

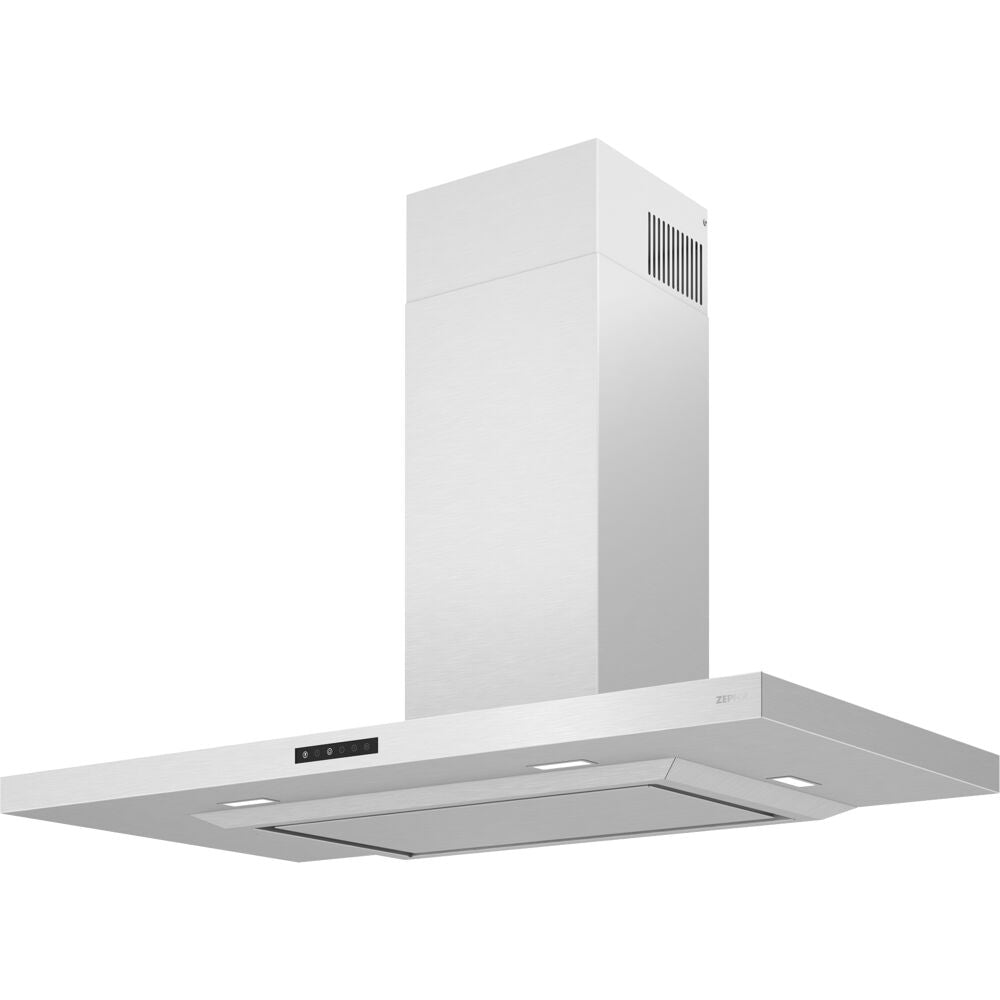

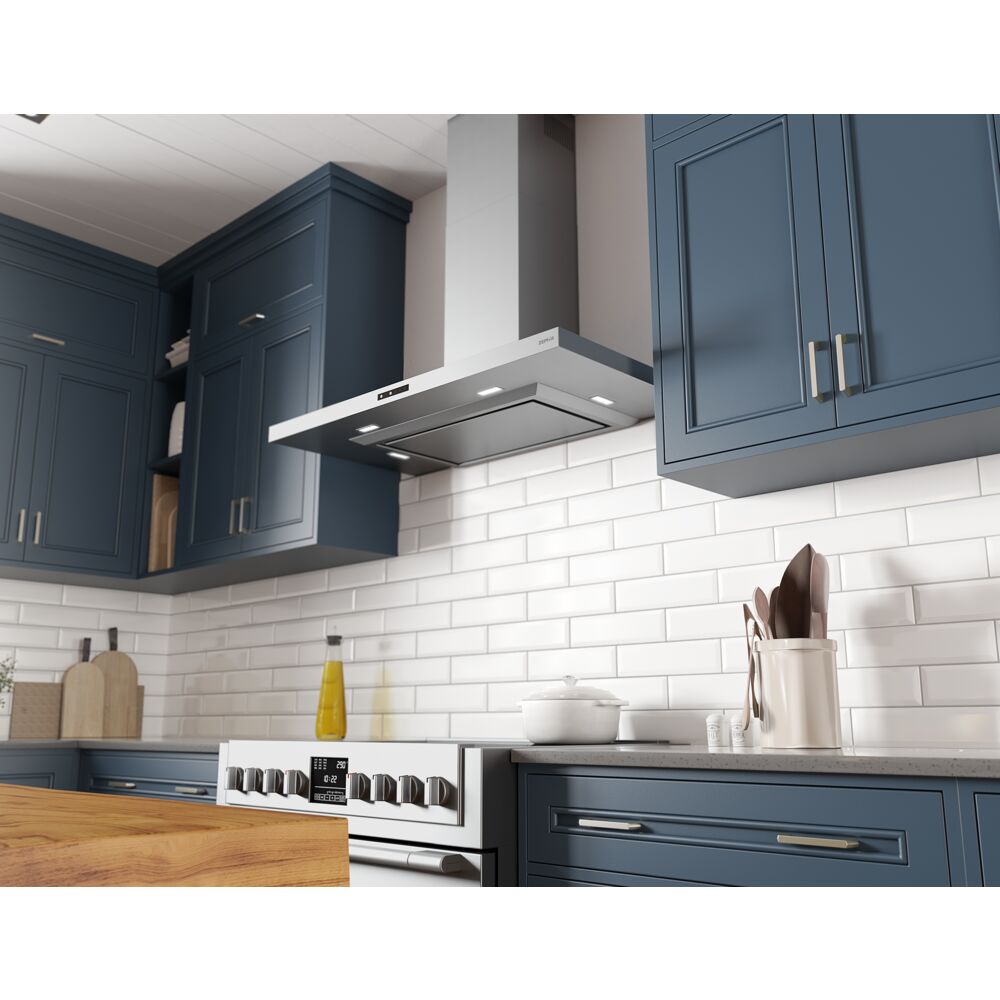

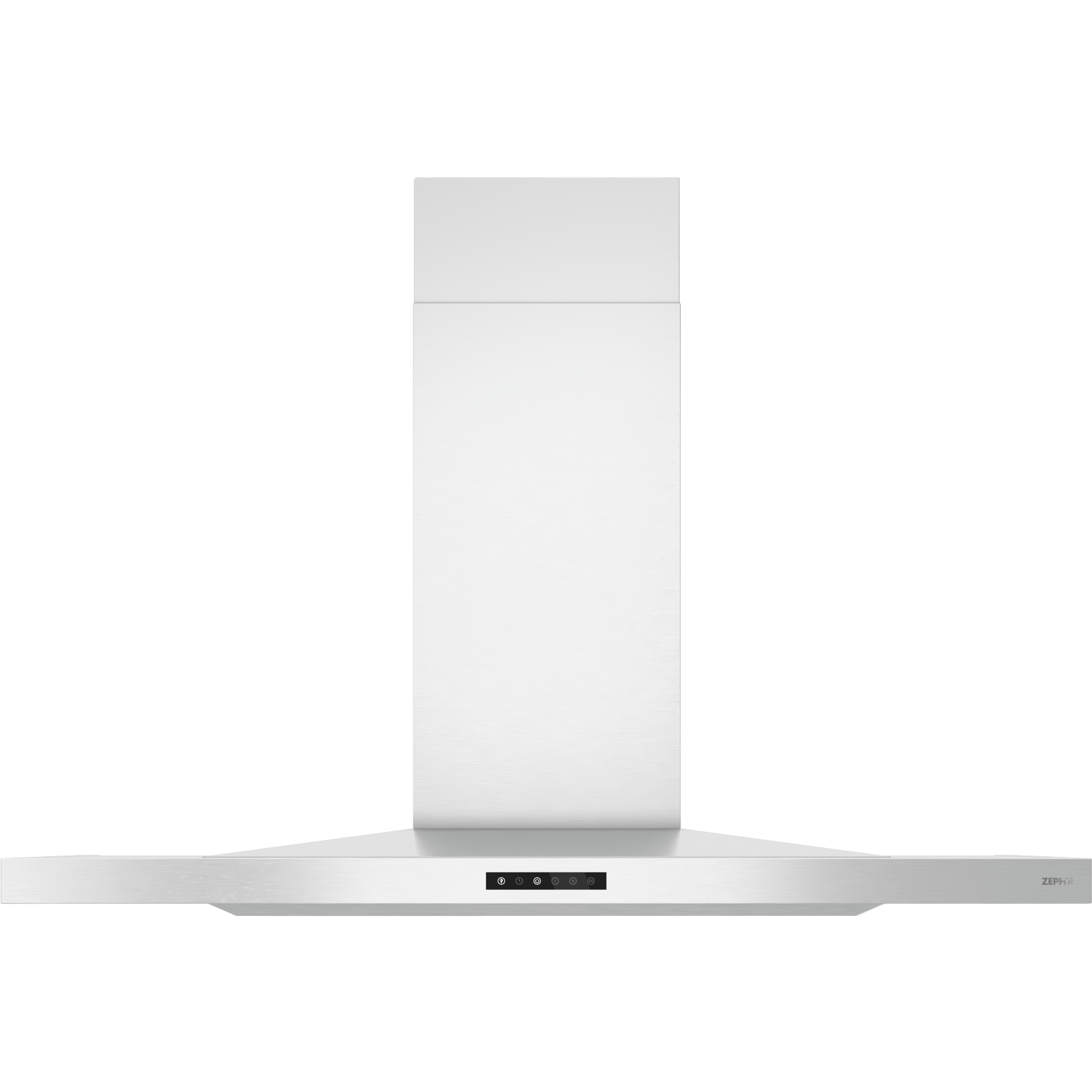

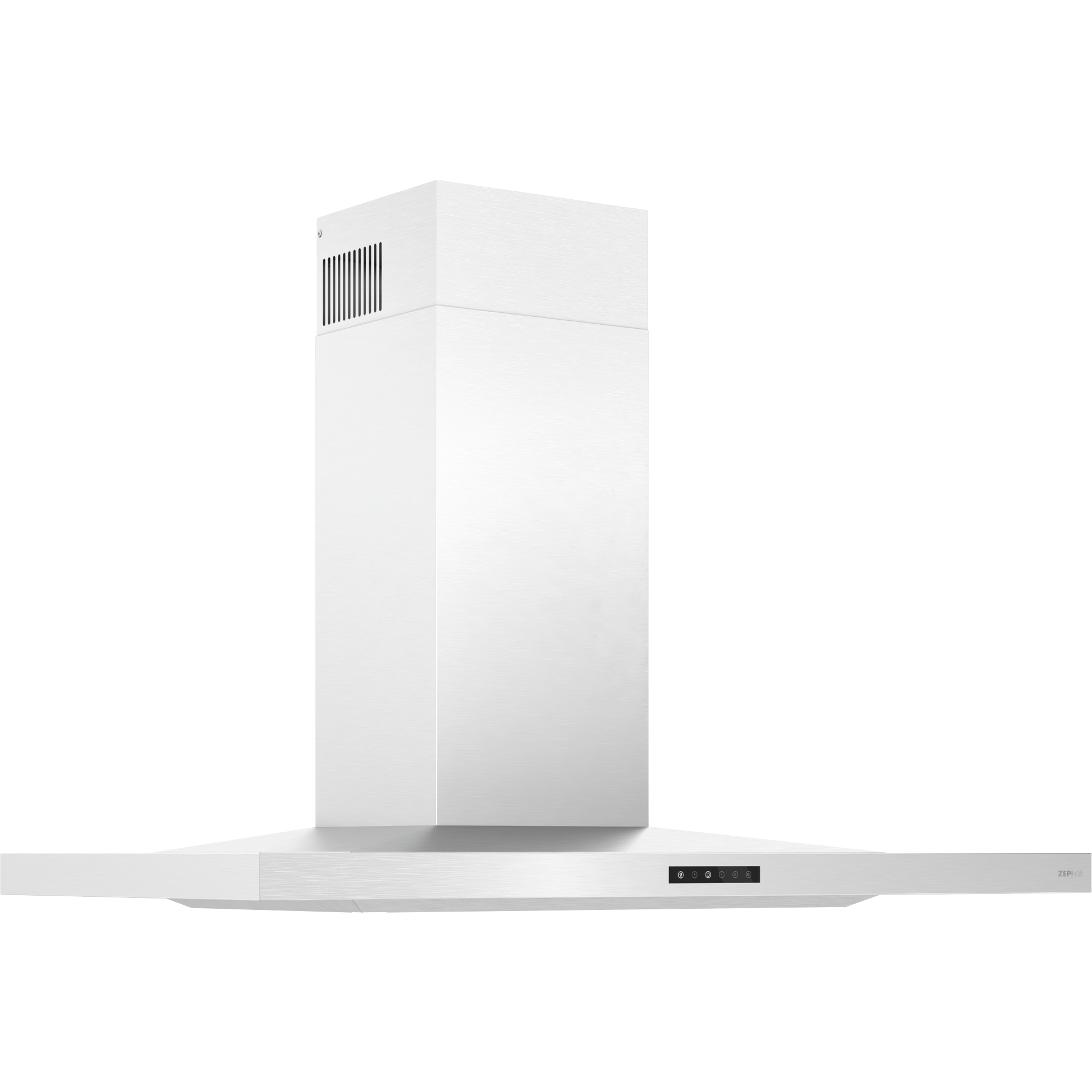

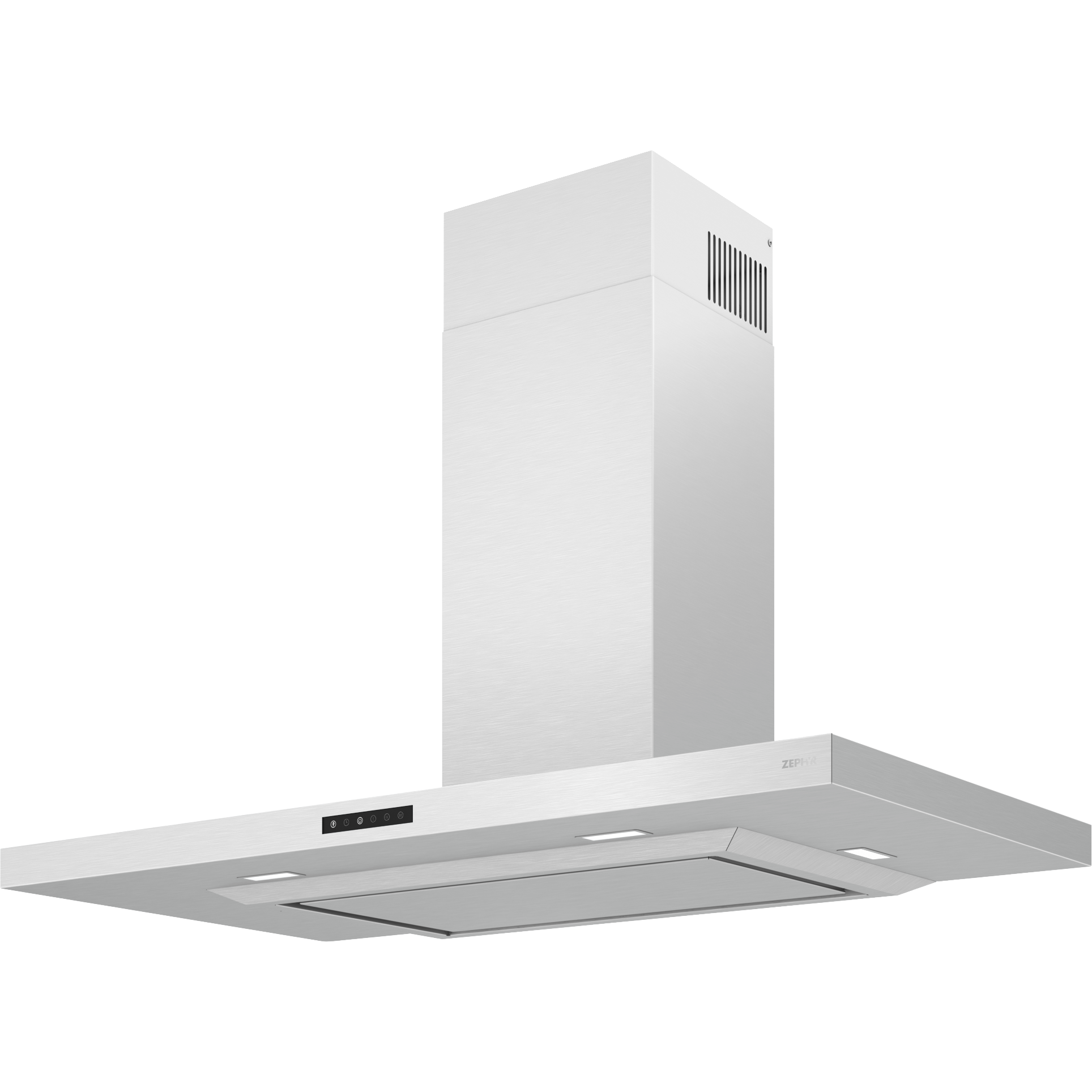

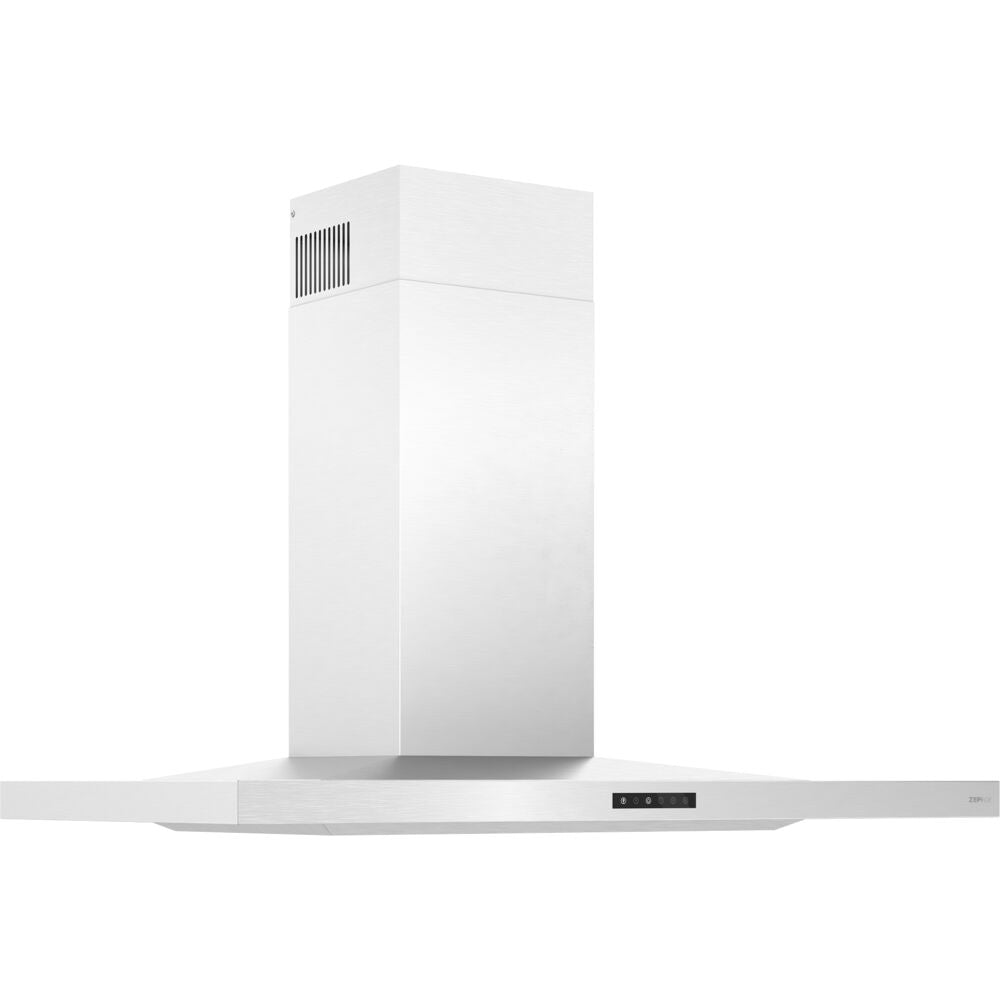

Streamlined pyramid-shaped styling and a menu of blower options make this updated & improved Layers Wall the timeless classic hood your kitchen needs. Packed with a bevy of features like Invisible Touch Controls, tri-level LED lighting, extension duct cover option, a recirculating option and wireless remote control option.
View full details
Technical Specs
Technical Specs
Overview
Streamlined pyramid-shaped styling and a menu of blower options make this updated & improved Layers Wall the timeless classic hood your kitchen needs. Packed with a bevy of features like Invisible Touch Controls, tri-level LED lighting, extension duct cover option, a recirculating option and wireless remote control option.
Measurements & Specs
-
Width
- {"value":35.375,"unit":"in"}
-
Height
- {"value":27.0,"unit":"in"}
Other Tech Specs
-
Appliance Type
- Range Hood
-
Finish Color
- Stainless Steel
-
ADA Compliant
- Yes
-
Automatic Delay Off
- Yes
-
Blower Speeds
- 3
-
CEC Title 20 Compliant
- Yes
-
Ceiling Height Maximum
- 12 Ft
-
Ceiling Height Minimum
- 8 Ft
-
Certification
- UL
-
Chimney Width In
- 27
-
Clean Air Function
- Yes
-
Clean Filter Alert
- Yes
-
Compatible Appliances
- CBI 390A, CBE 1000, CBI 290A, CBI 600A, PBN 1000A, CBI 290C, Z0F C010, Z1C 00VS, ZRC 00VS, MUA006A, MUA008A, RC 0003
-
Controls Type
- Invisible Touch
-
Duct Discharge
- Vertical
-
Duct Size Vertical In
- 6, 8
-
Duct Type
- Vertical
-
External Blower CFM
- 1000
-
For Outdoor Use
- No
-
Grease Filter Type
- Mesh
-
In Line Blower CFM
- 1000
-
Installation Type
- Wall
-
Internal Blower 1 CFM
- 600
-
Internal Blower 1 Max Sones
- 6
-
Internal Blower 1 Min Sones
- 1.4
-
Internal Blower 2 CFM
- 290
-
Internal Blower 2 Max Sones
- 3
-
Lighting Type
- LED
-
Lights Levels
- 3
-
Lights Quantity
- 4
-
Maximum Amperage
- 6.63
-
Minimum CFM
- 200
-
Mounting Height Above Cooktop In
- 24 - 36
-
Net Depth In
- 22
-
Net Height In
- 27
-
Net Width In
- 35.375
-
Nominal Width In
- 36
-
Primary Material
- Stainless Steel
-
Remote Optional
- Yes
-
Voltage
- 120
-
Warranty Parts / Labor
- 2 / 1
-
Wattage
- 795
-
Watts Per Bulb
- 5
-
Weight Lbs
- 90
