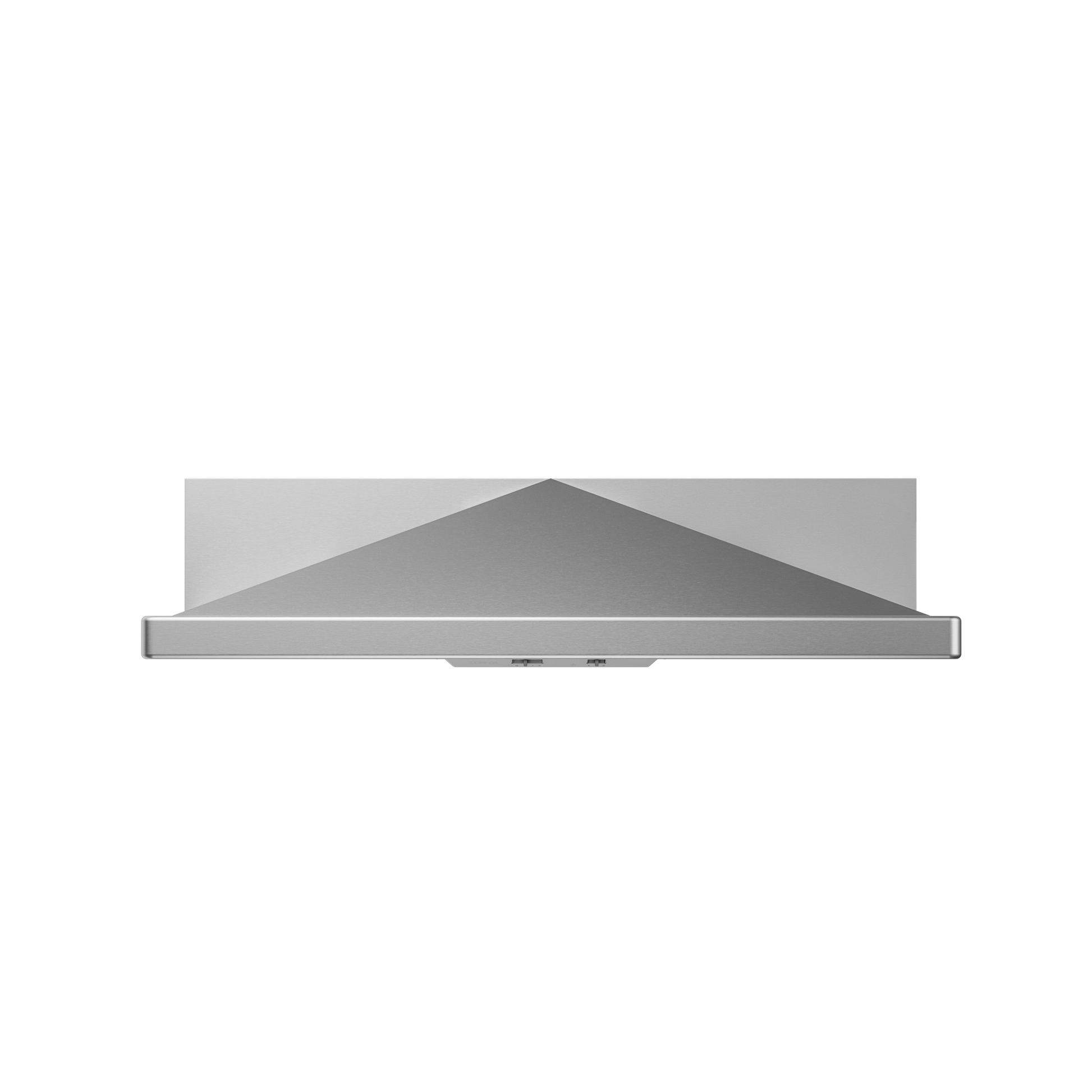

Pyramid Under Cabinet Hood 30" LED PA
Pyramid Under Cabinet Hood 30" LED PA
SKU: SKU: ZPYE30BS290
Shop All Zephyr
Sale price
now
$599
.00
Regular price
$649.00
Unit price
per

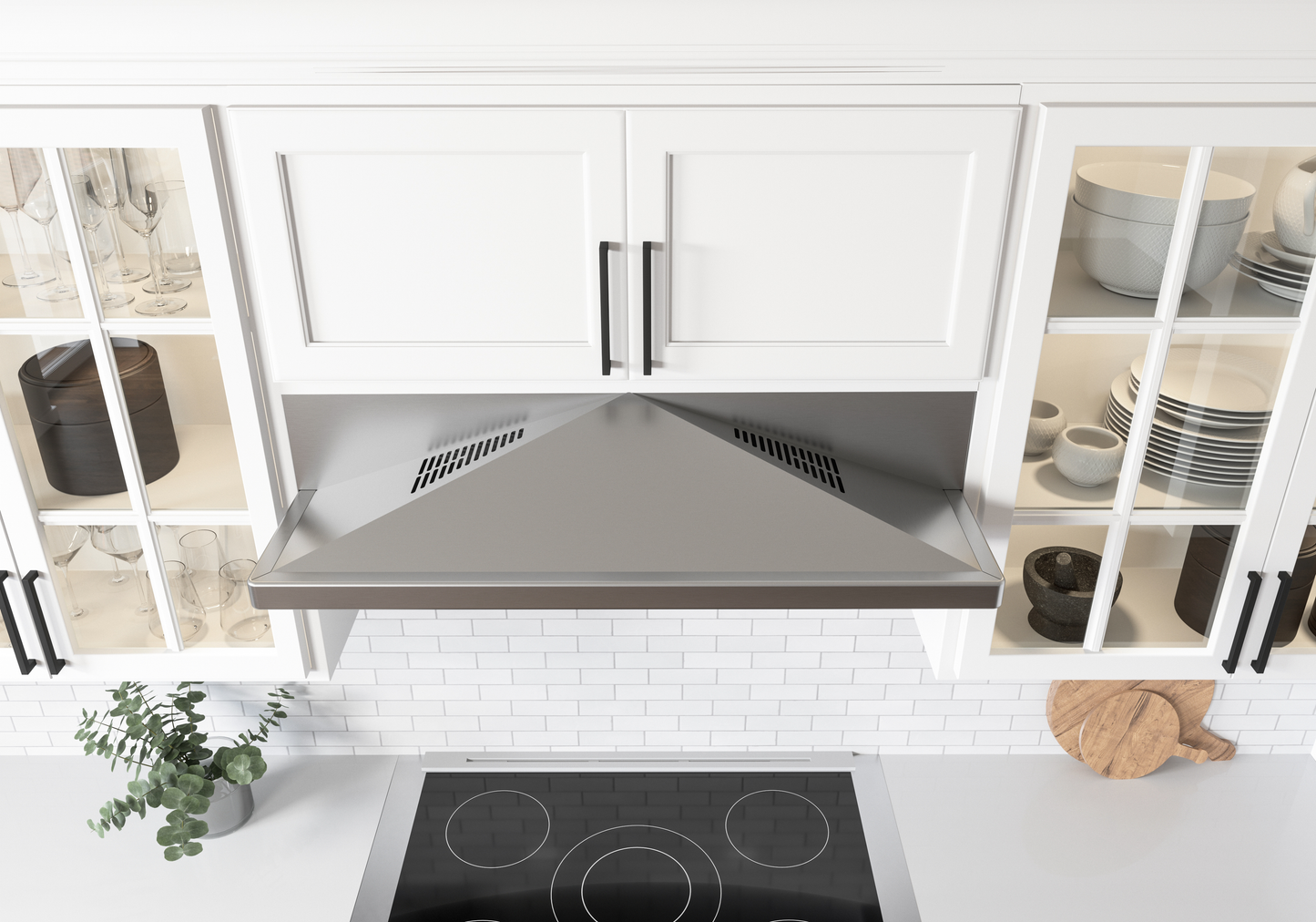

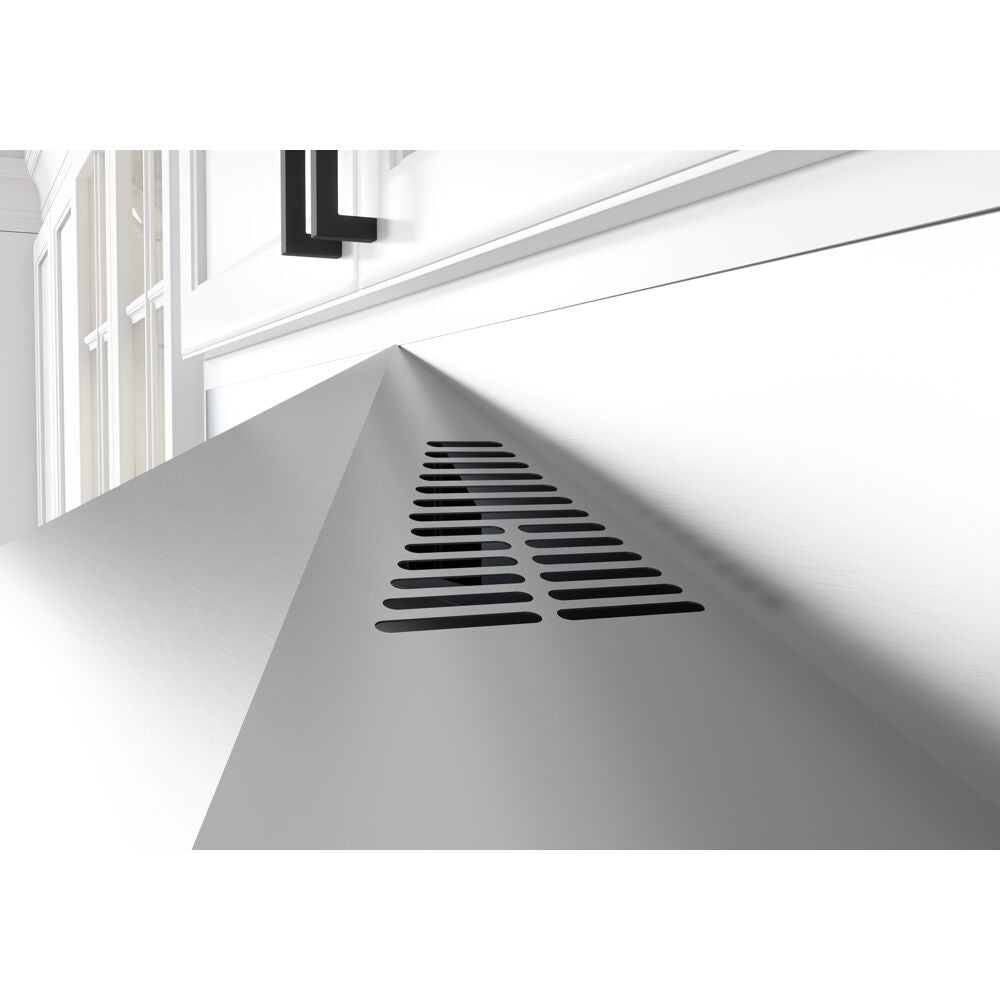

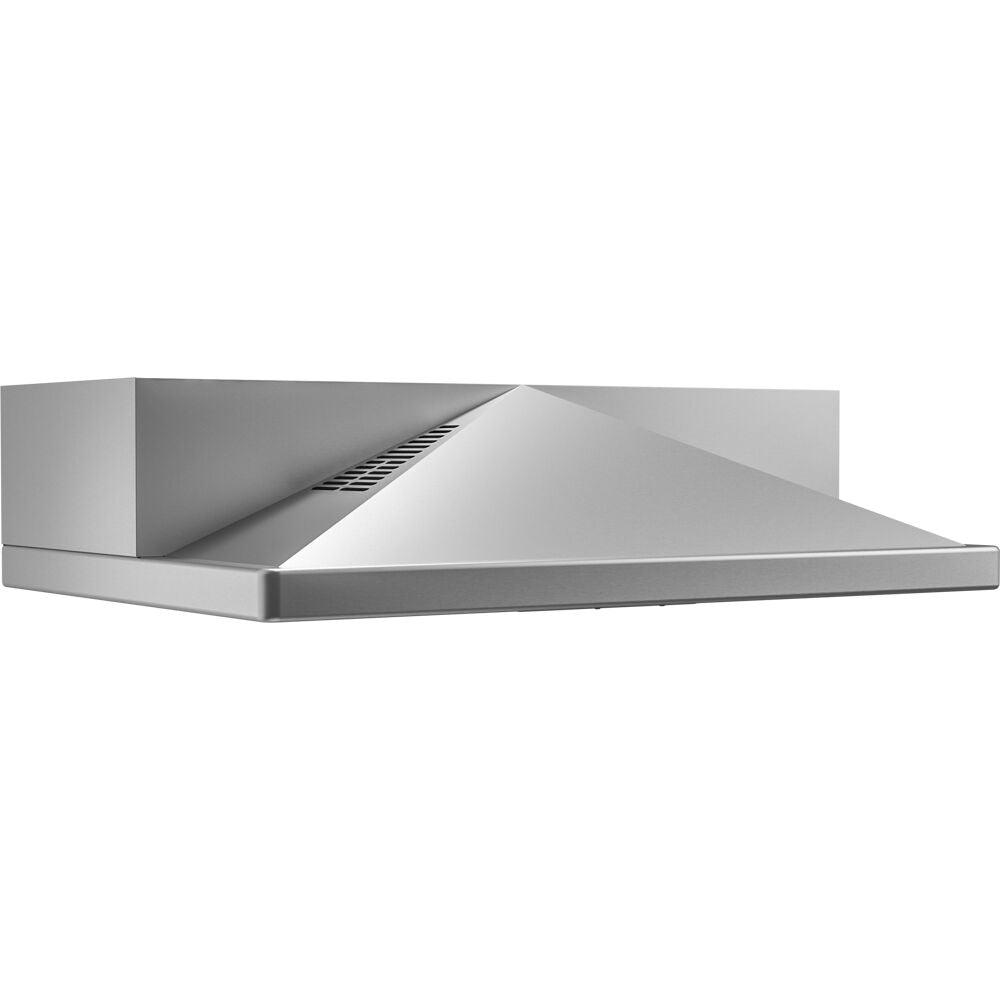

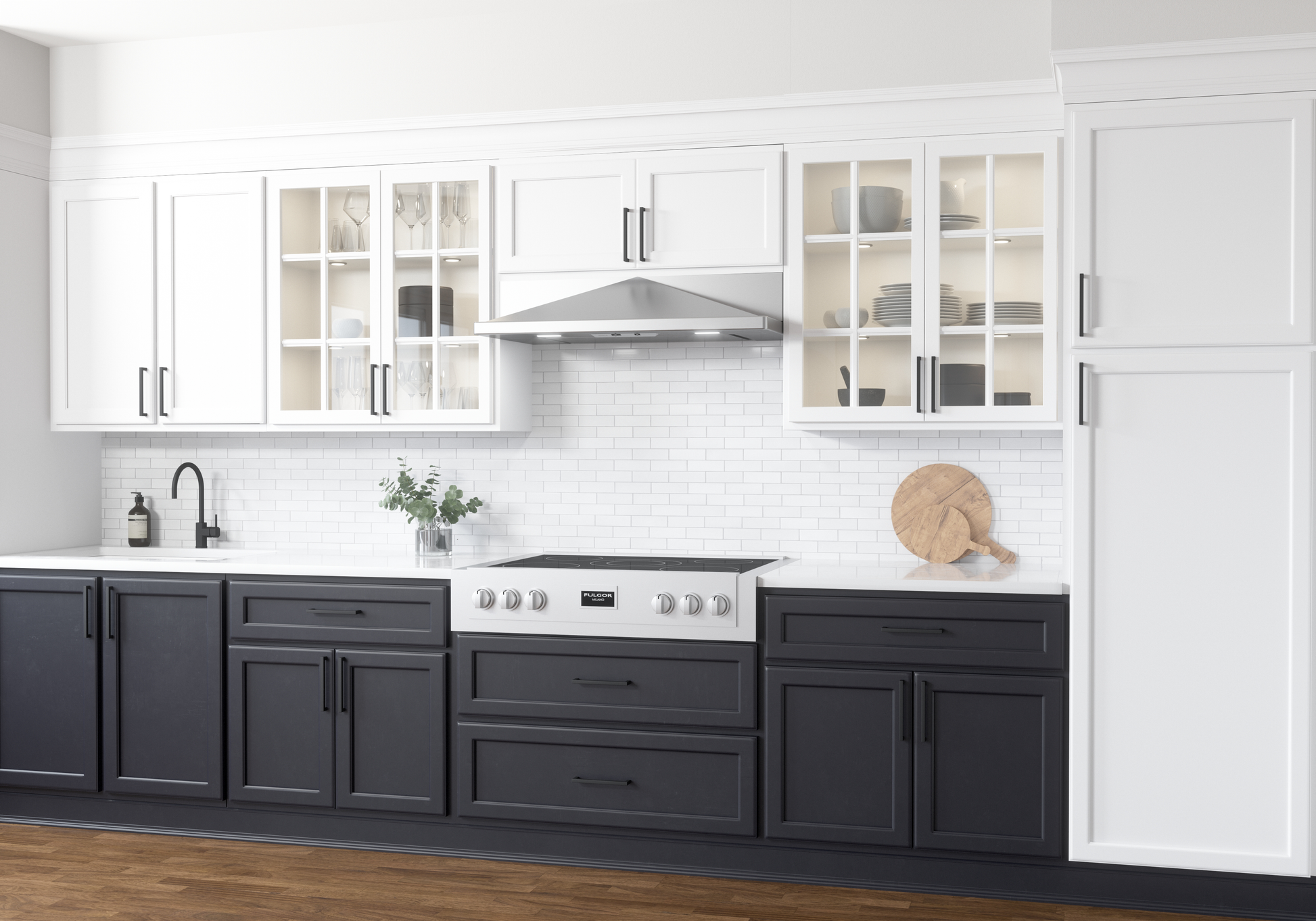

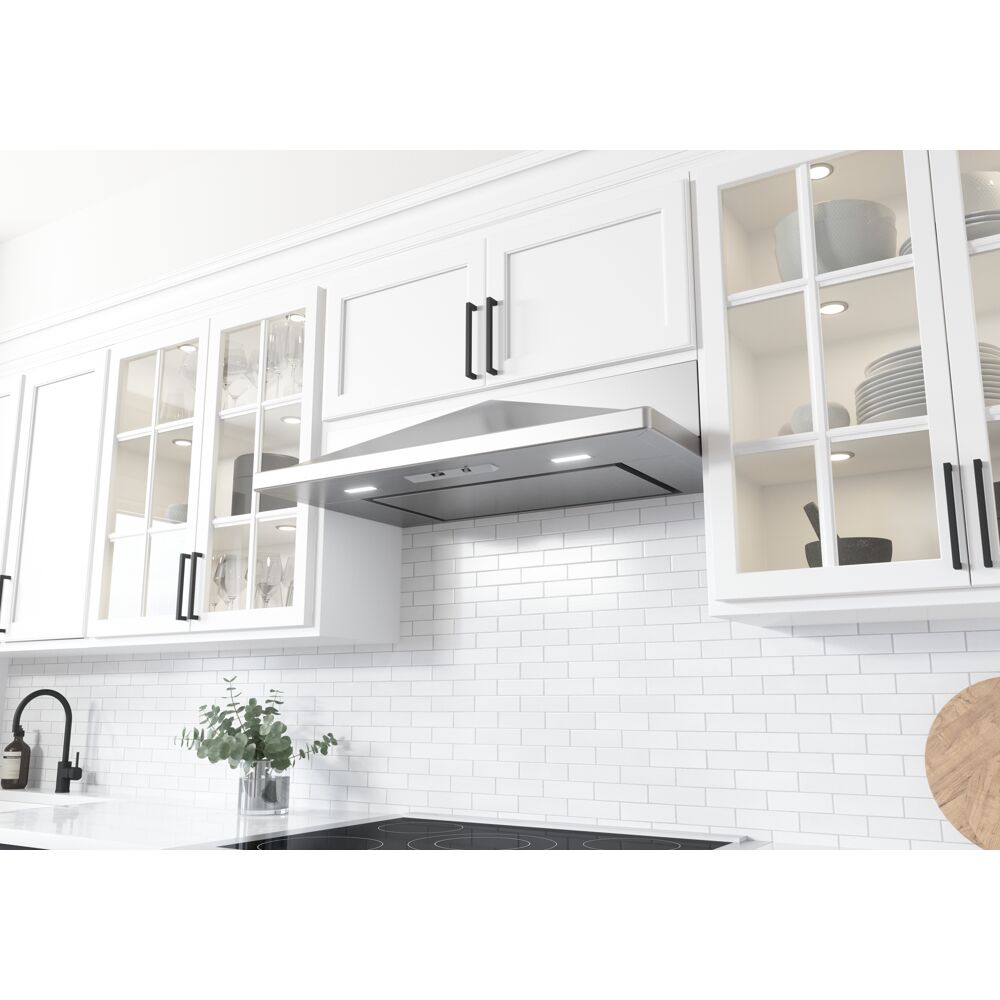

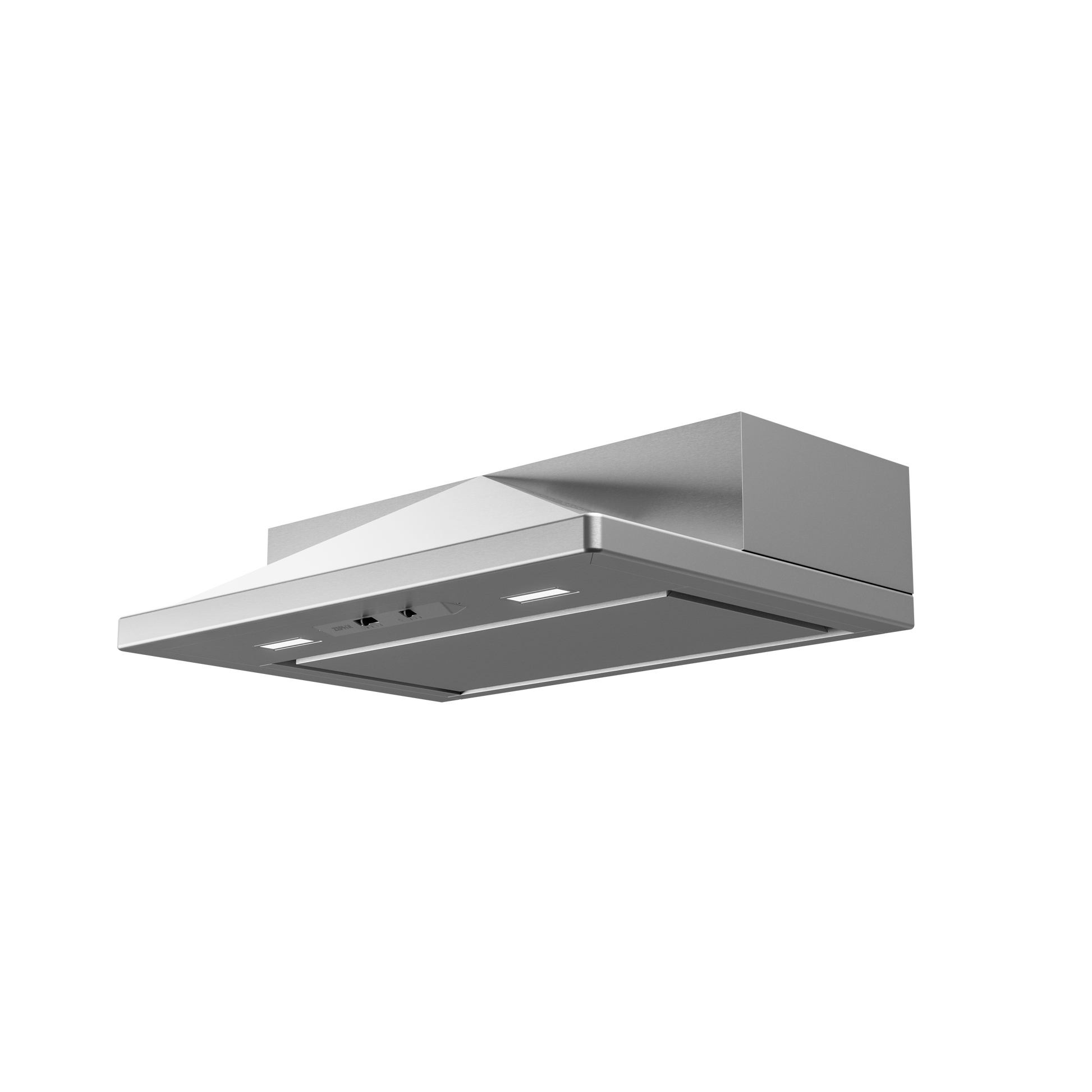

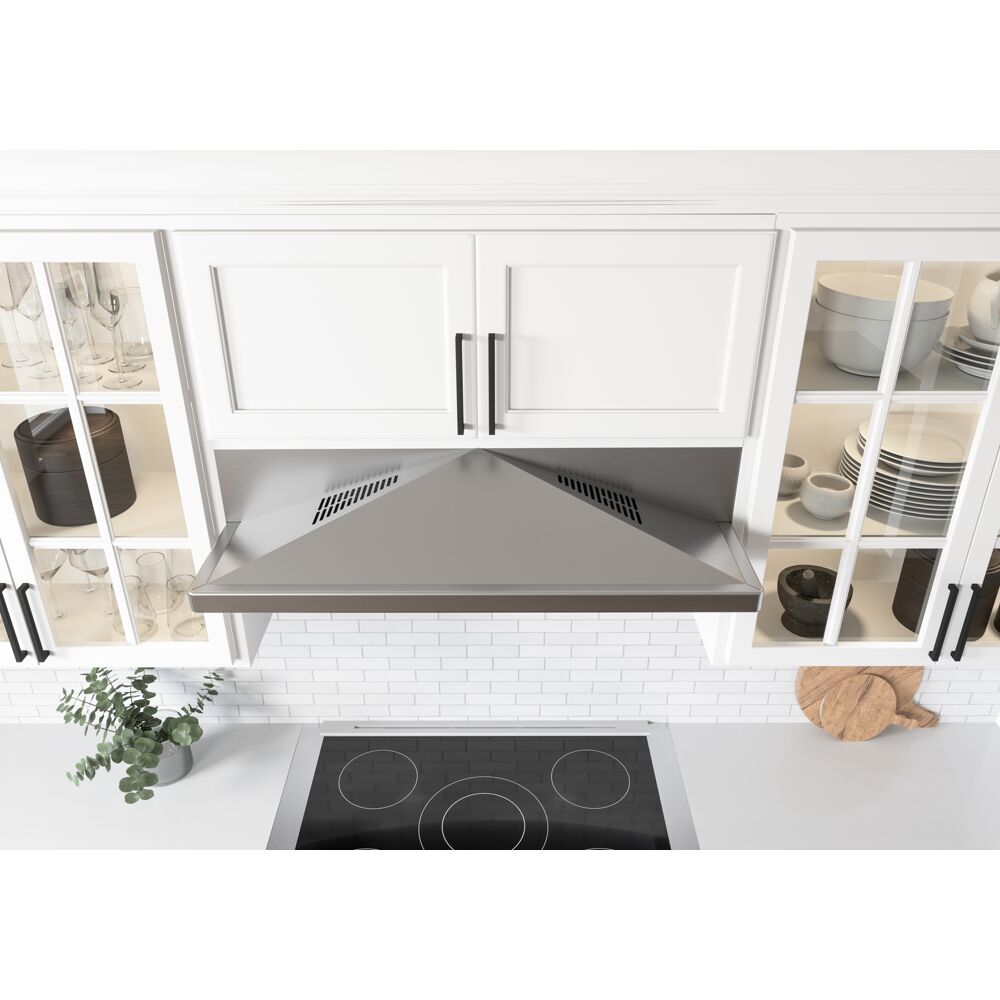

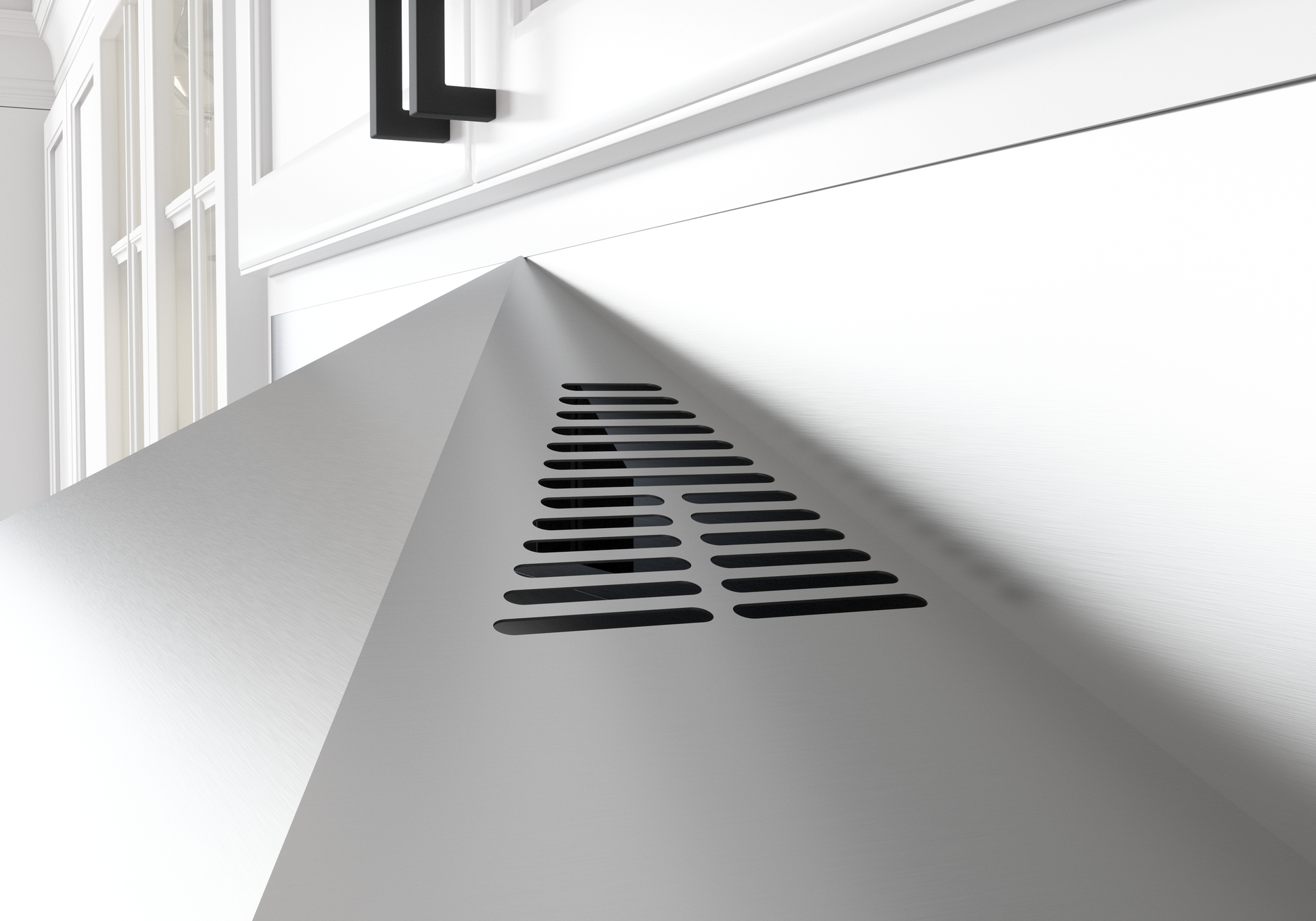

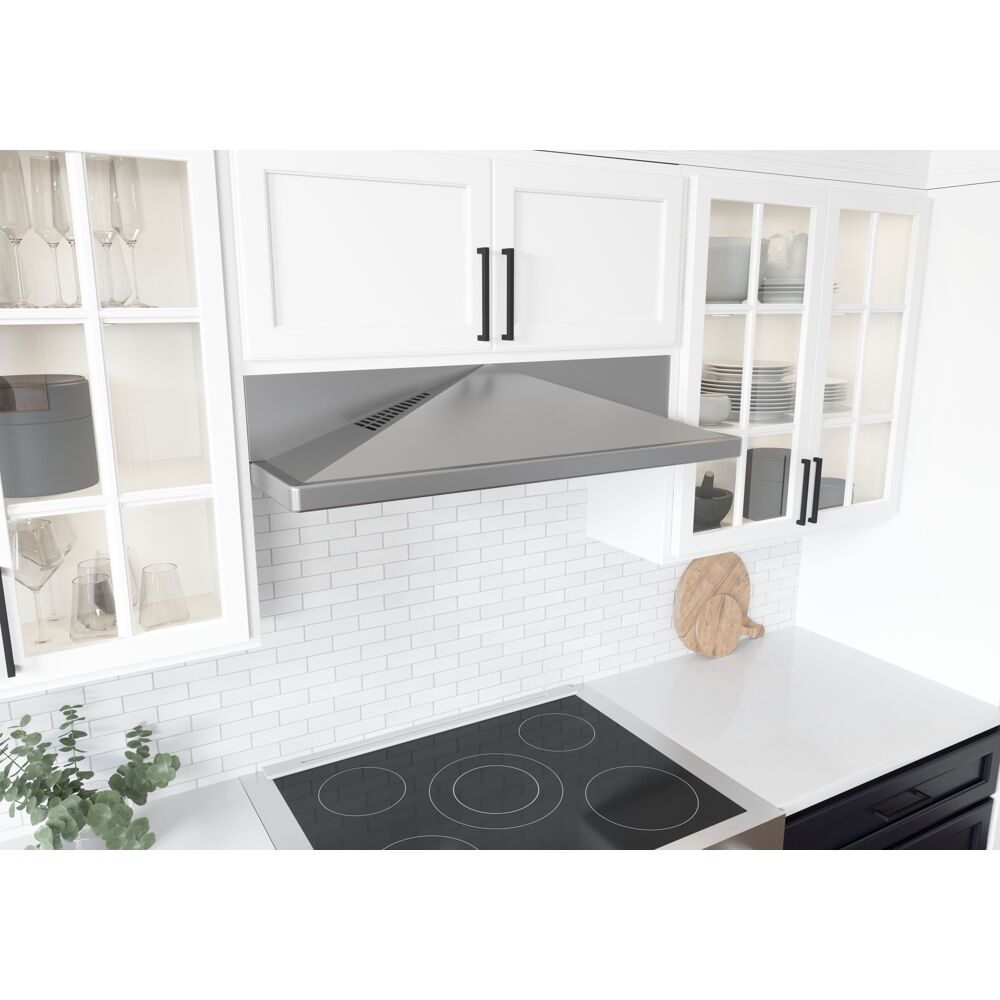

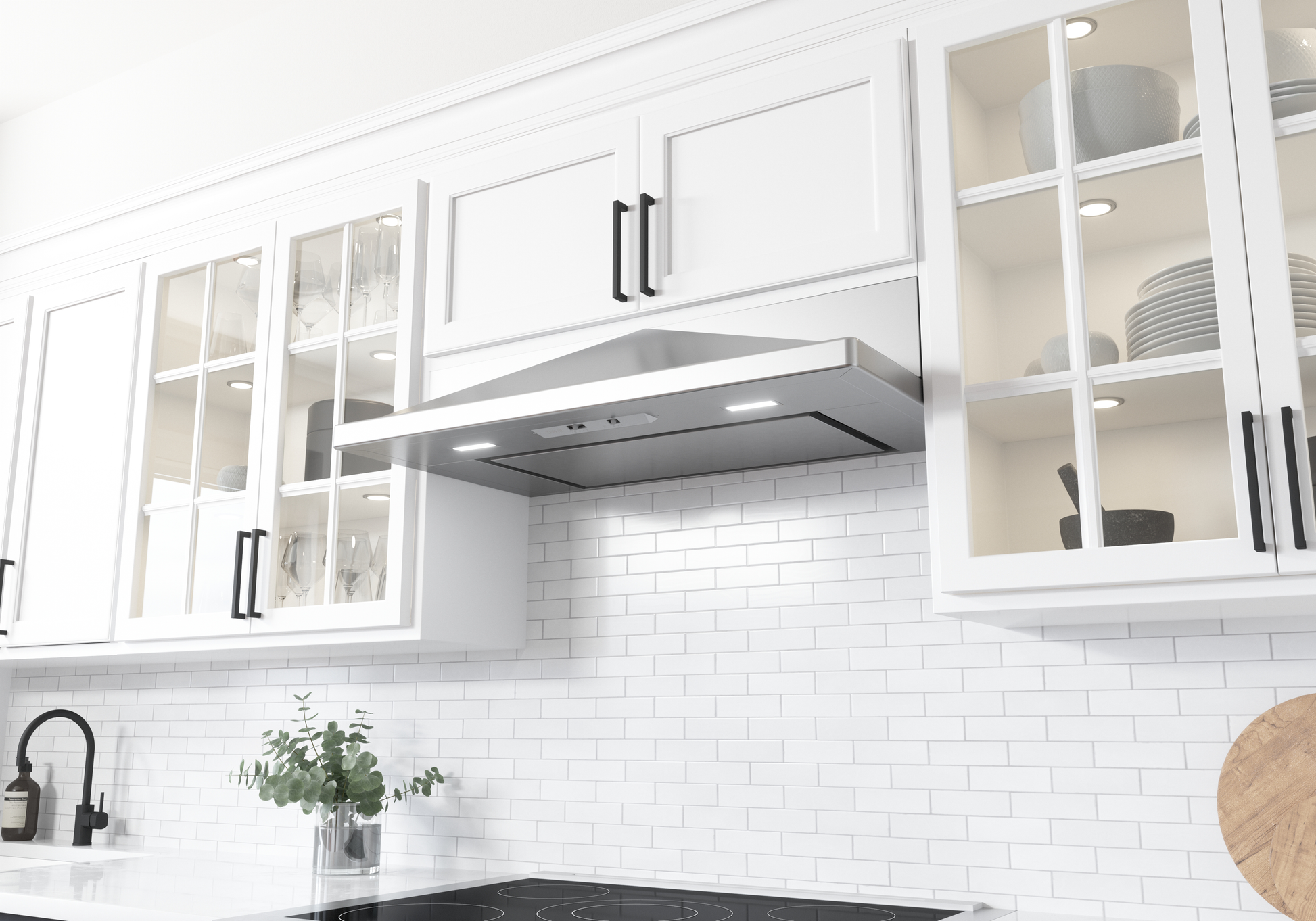

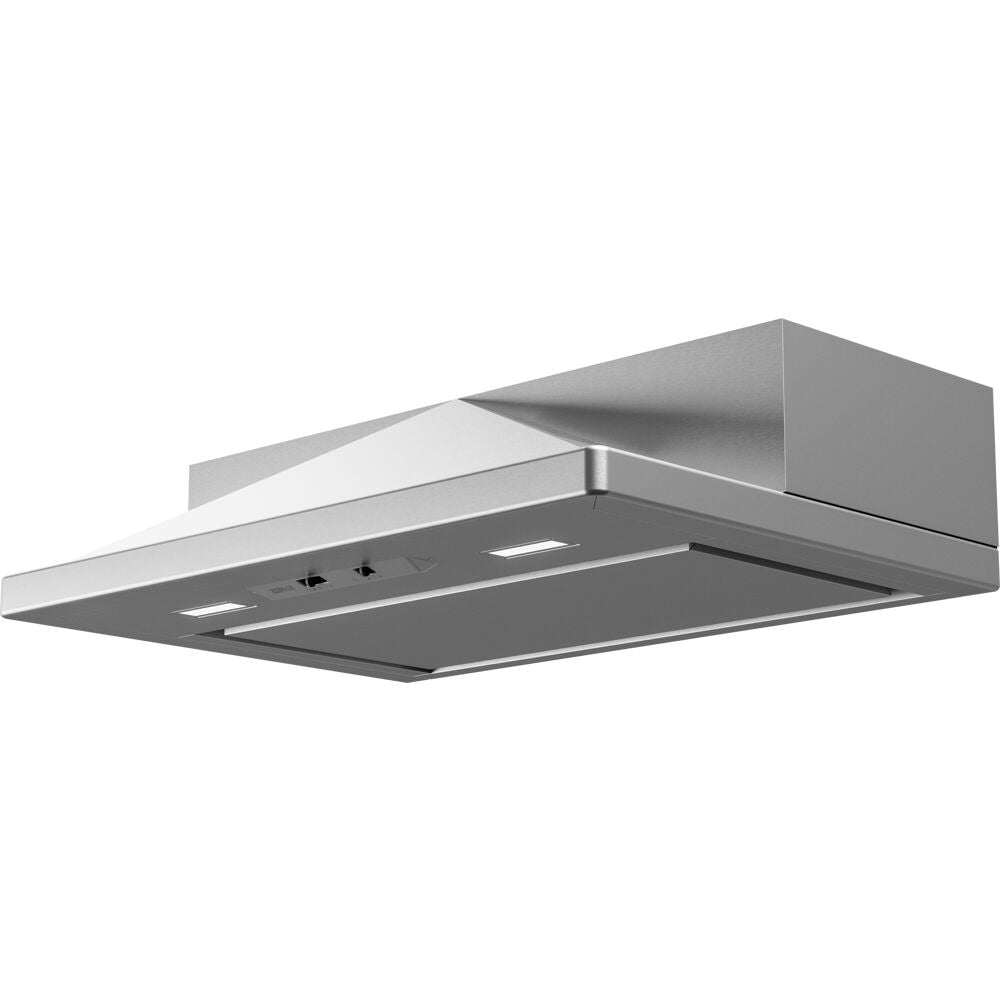

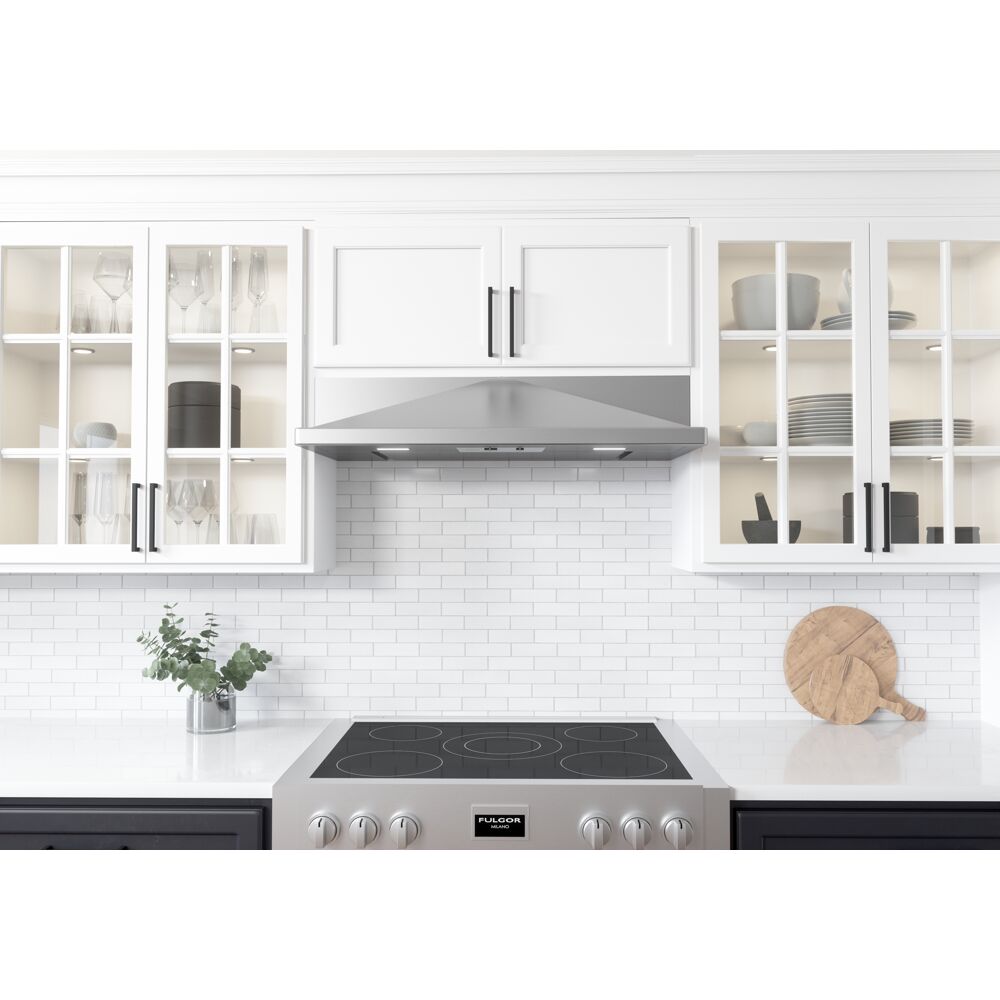

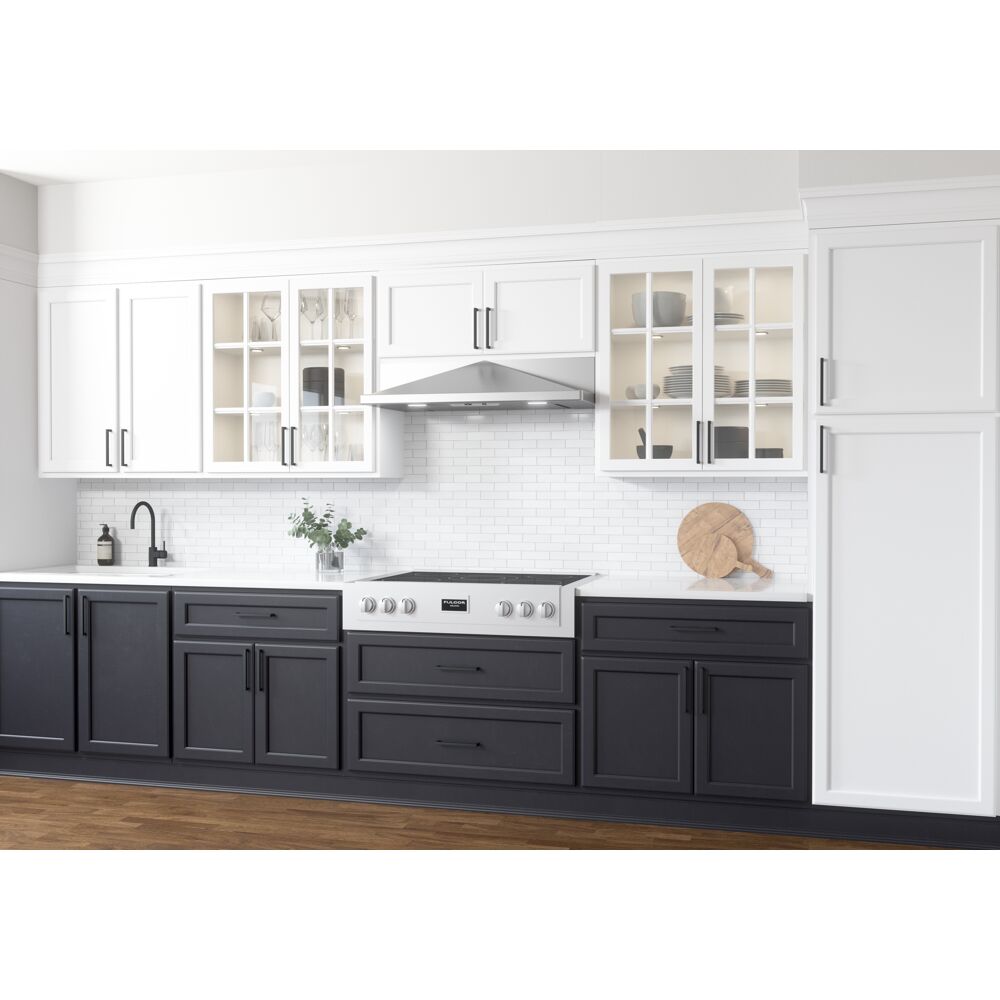

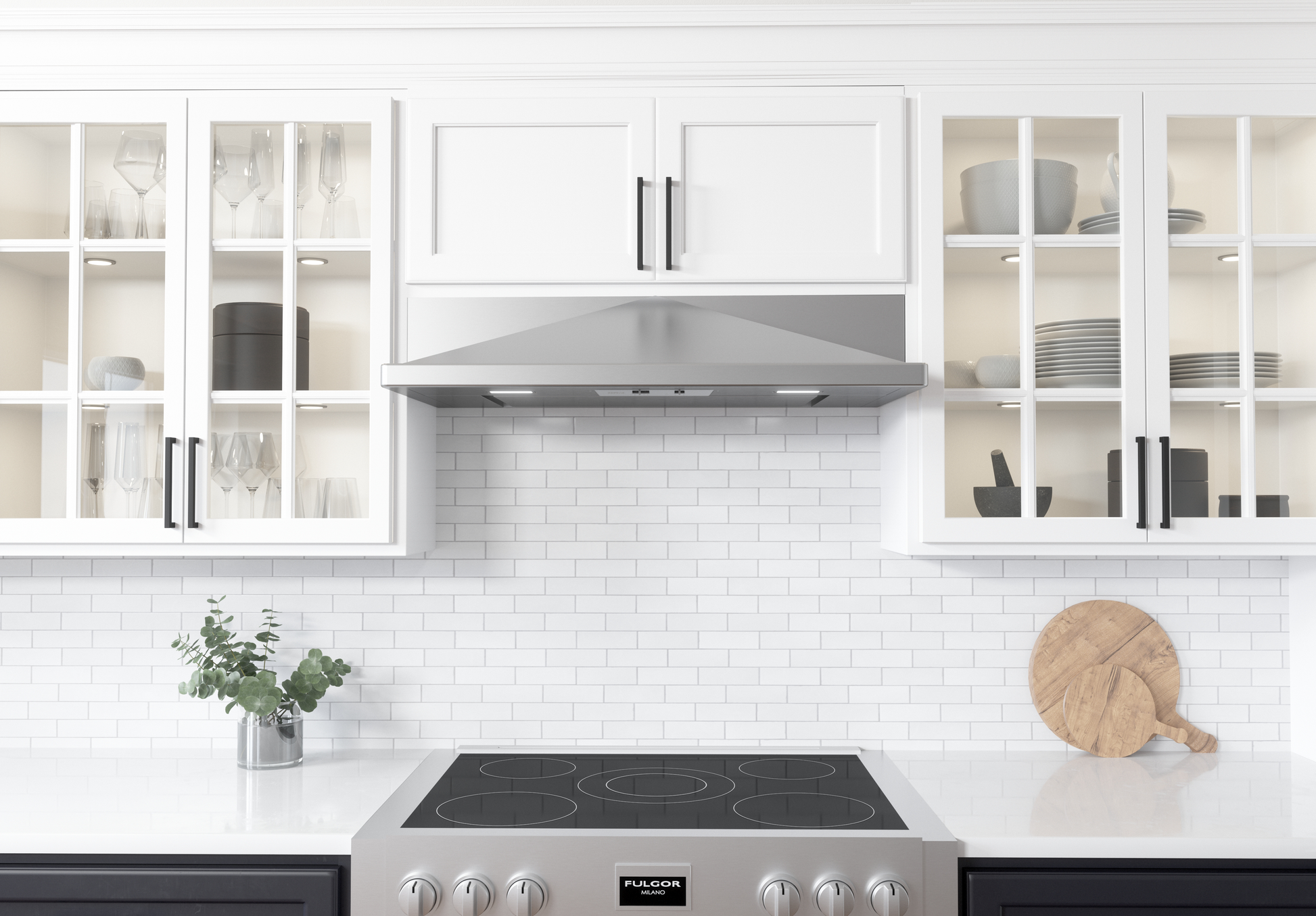

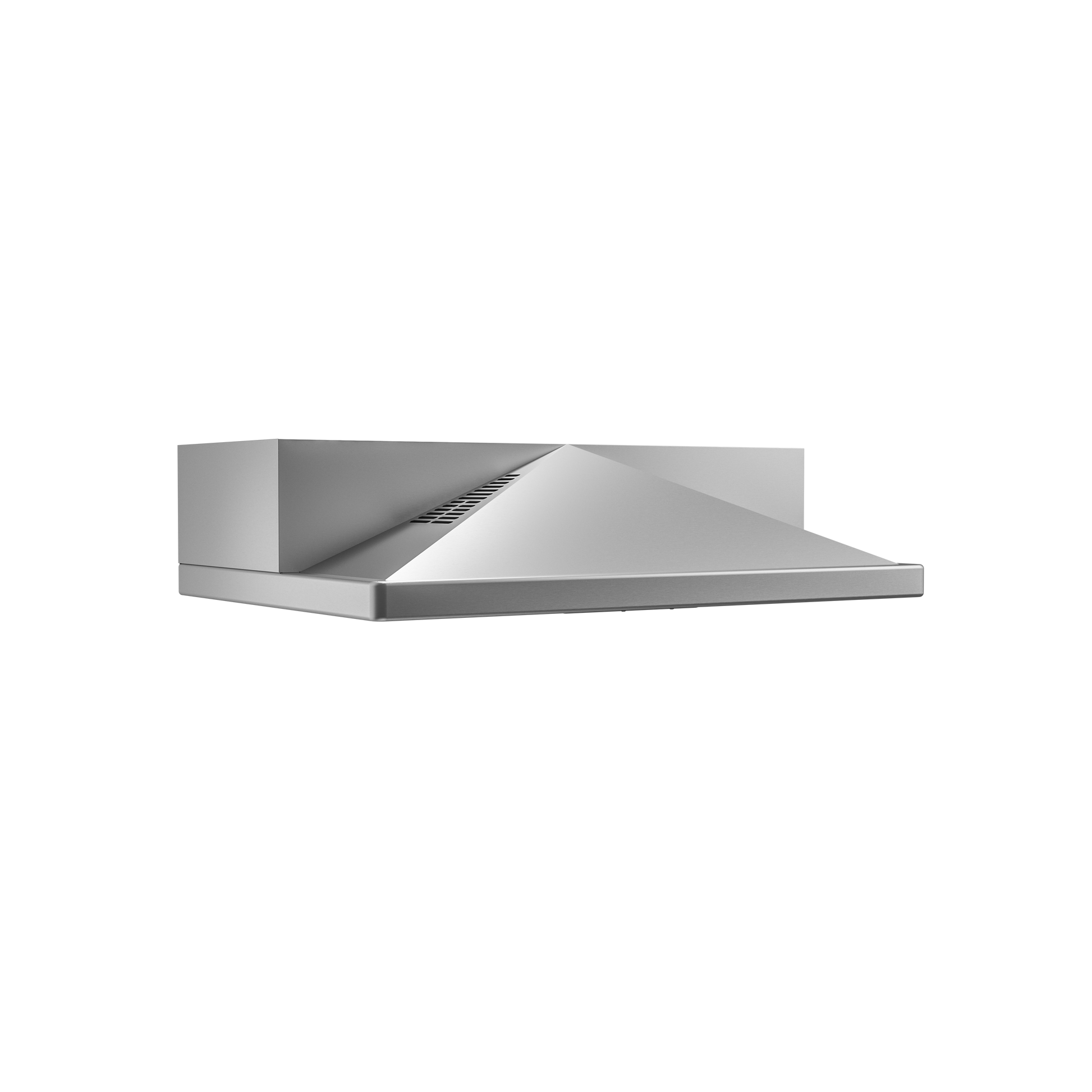

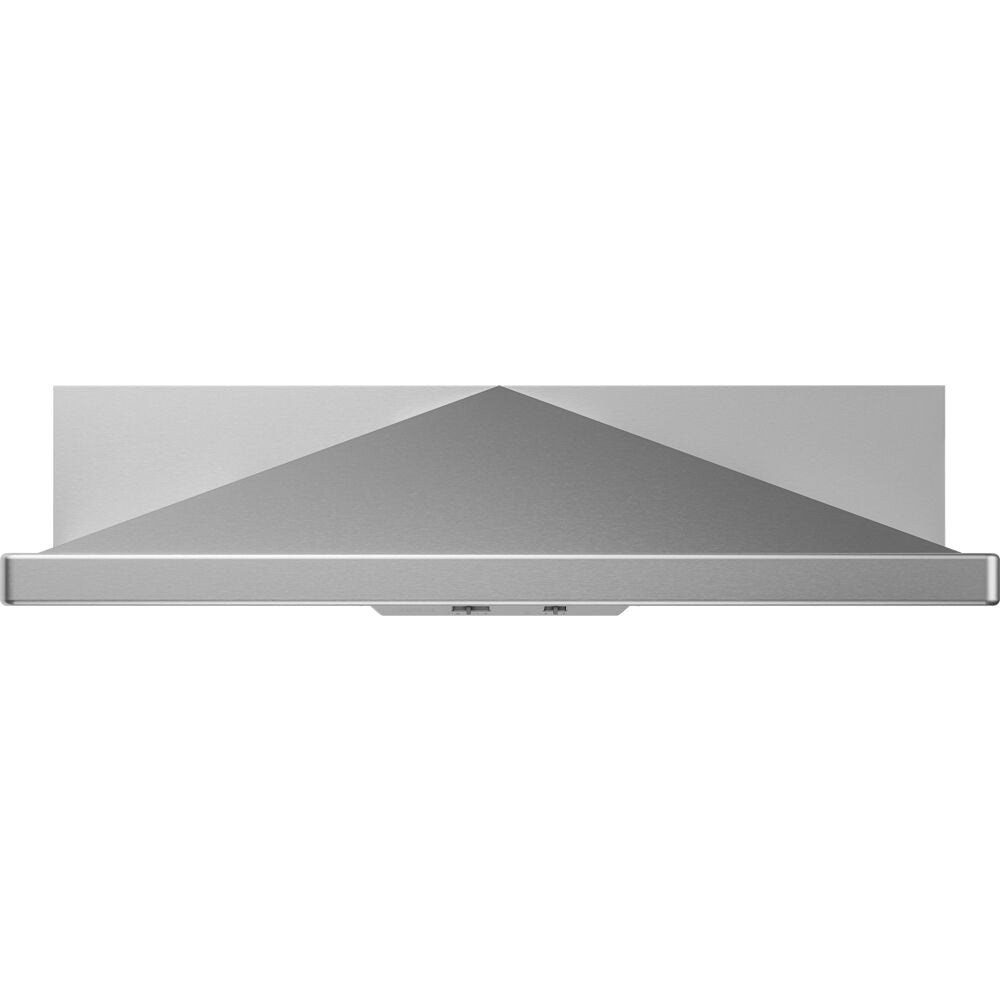

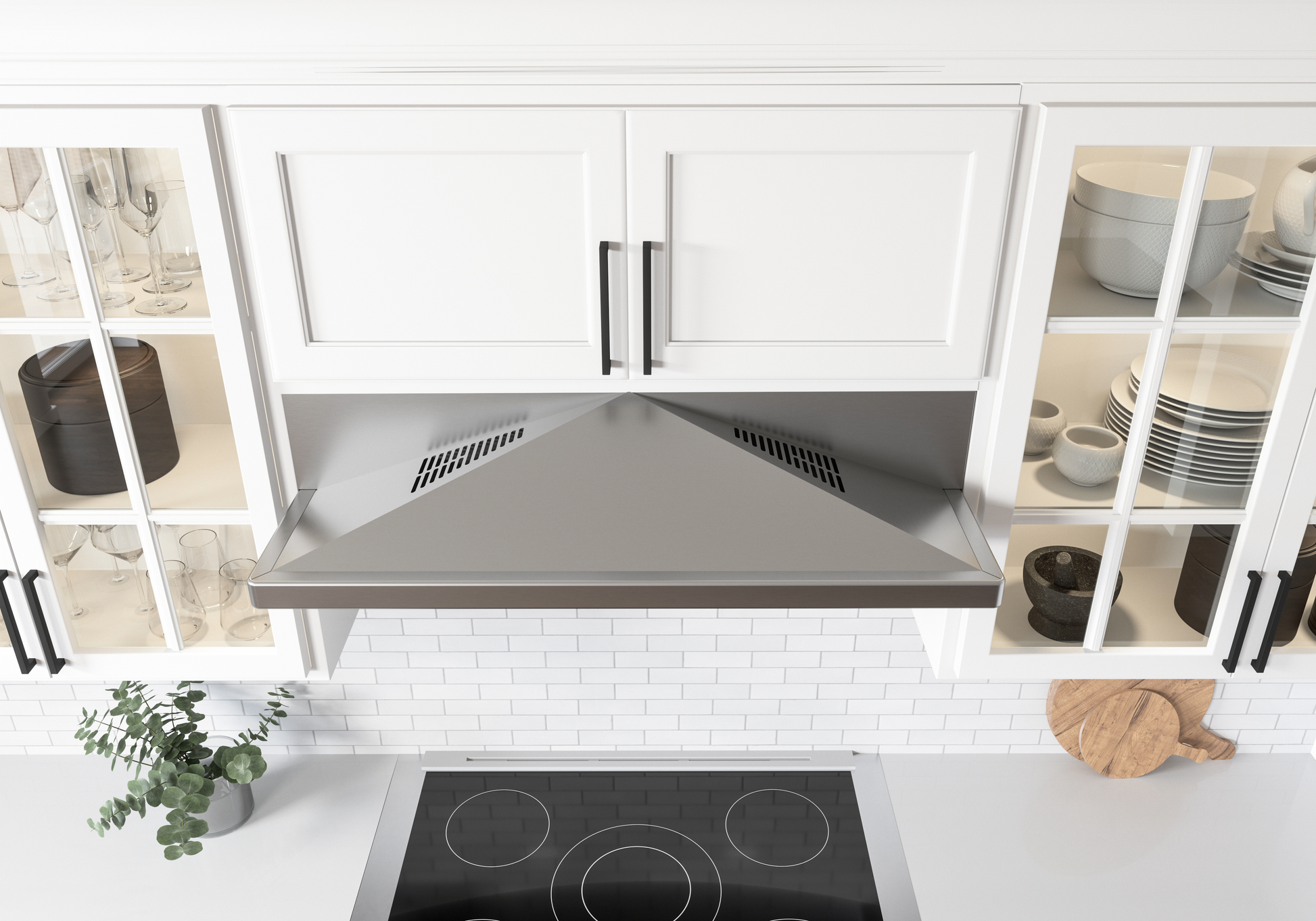

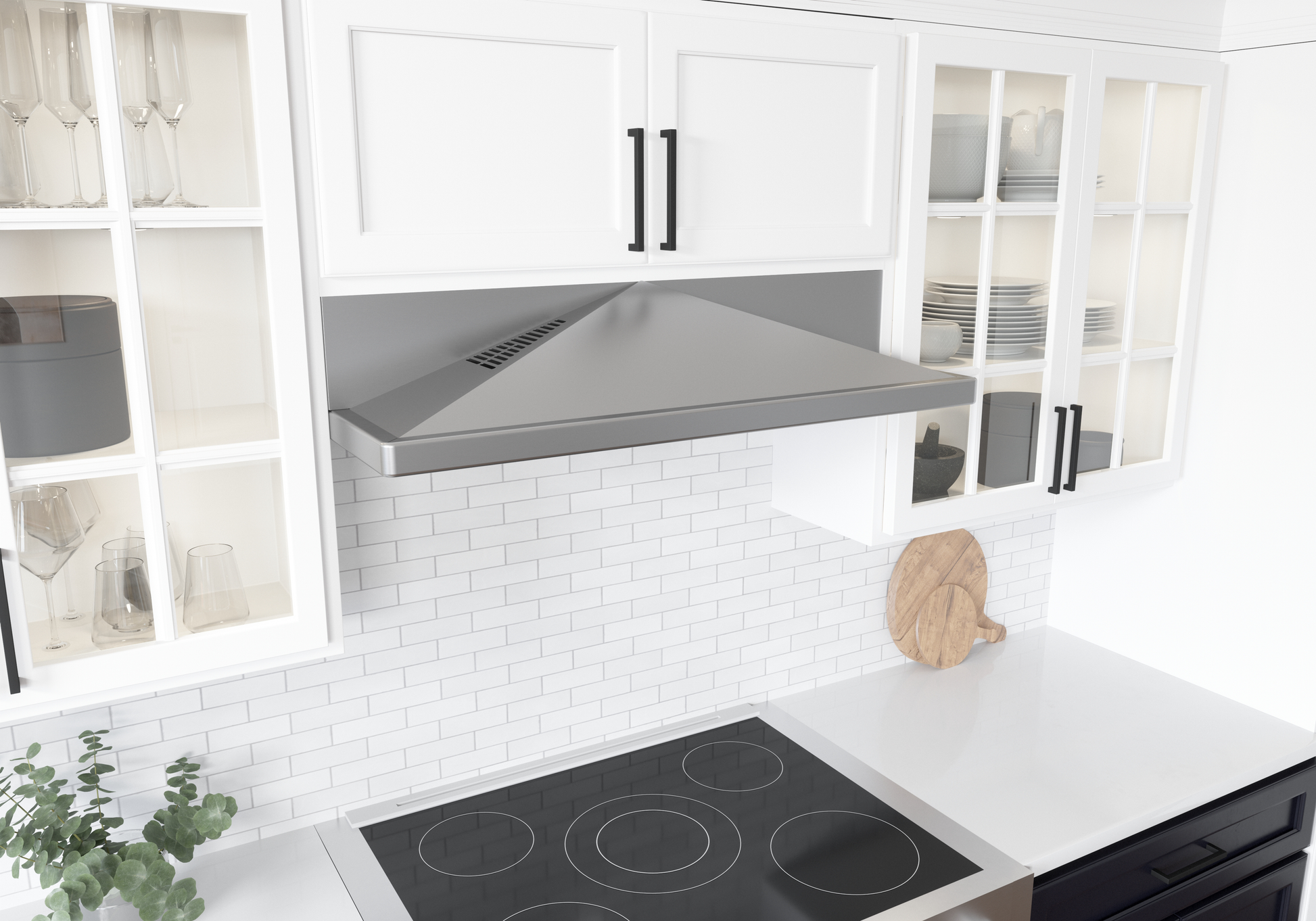

Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive yet utilitarian design is upgraded with a perimeter aspiration panel (PAS) for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below while the 12 depth ensures simple operation and a true fit with popular cabinet styles.
View full details
Technical Specs
Technical Specs
Overview
Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive yet utilitarian design is upgraded with a perimeter aspiration panel (PAS) for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below while the 12 depth ensures simple operation and a true fit with popular cabinet styles.
Measurements & Specs
-
Width
- {"value":29.938,"unit":"in"}
-
Height
- {"value":7.375,"unit":"in"}
Other Tech Specs
-
Finish Color
- Stainless Steel
-
Range Hood Type
- Under Cabinet
-
Appliance Type
- Range Hood
-
Blower Included
- Yes
-
Blower Speeds
- 3
-
CEC Title 20 Compliant
- Yes
-
Ceiling Height Maximum
- 12 ft.
-
Ceiling Height Minimum
- 8 ft.
-
Certification
- UL
-
Compatible Appliances
- ZRC 00 PY, Z0F C009, AK1710
-
Controls Type
- Mechanical Slide
-
Duct Discharge
- Vertical or Horizontal
-
Duct Size Horizontal in.
- 3.25 x 10
-
Duct Size Vertical in.
- 7, 3.25 x 10
-
Duct Type
- Vertical
-
Duct Type 2
- Horizontal
-
Grease Filter Type
- Mesh
-
Installation Type
- Under Cabinet
-
Internal Blower 1 CFM
- 290
-
Internal Blower 1 Max Sones
- 3.2
-
Internal Blower 1 Min Sones
- 1.1
-
Lighting Type
- LED
-
Lights Levels
- 2
-
Lights Quantity
- 2
-
Maximum Amperage
- 2
-
Minimum CFM
- 190
-
Mounting Height Above Cooktop in.
- 24 - 32
-
Net Depth in.
- 21
-
Net Height in.
- 7.375
-
Net Width in.
- 29.9375
-
Nominal Width in.
- 30
-
Primary Material
- Stainless Steel
-
Voltage
- 120
-
Warranty Parts / Labor
- 3 / 1
-
Wattage
- 240
-
Watts Per Bulb
- 6
-
Weight lbs.
- 31.2
