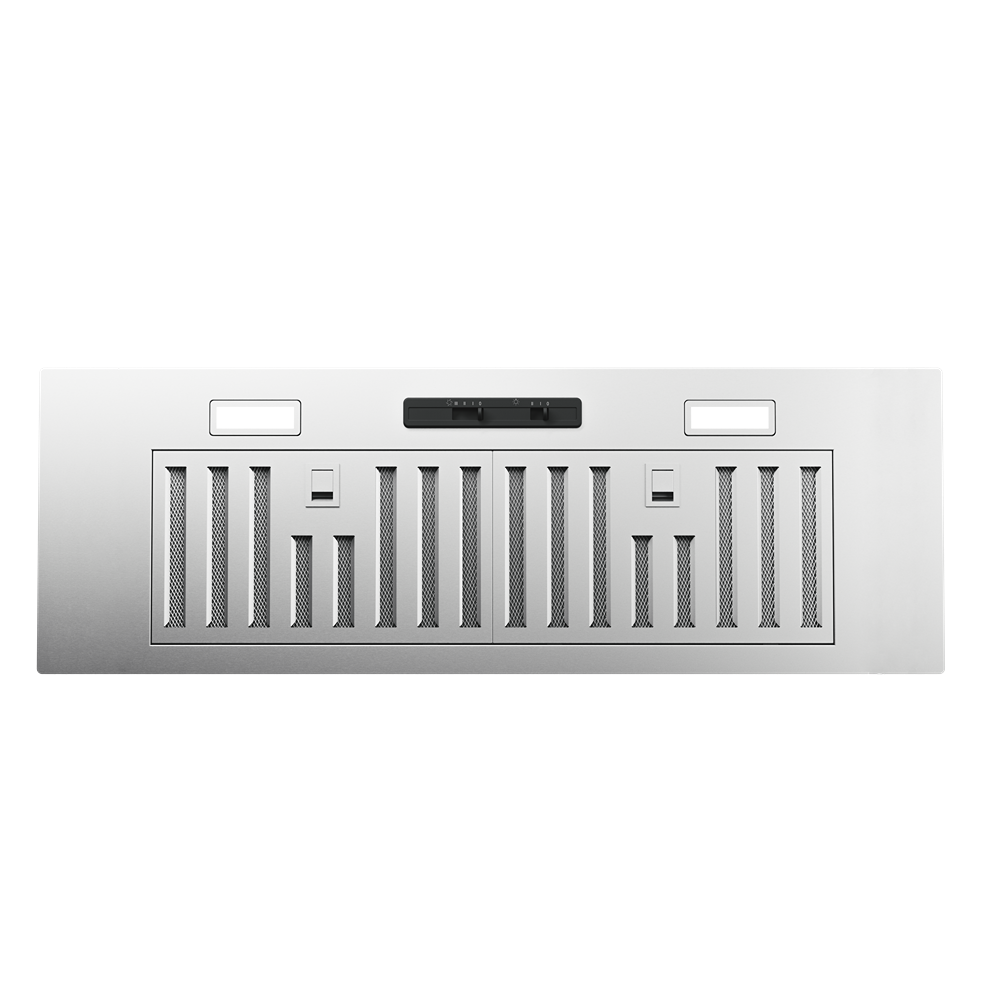

• Stainless steel insert hood with LED lights and hybrid baffle filters in Over the Range Hoods collection

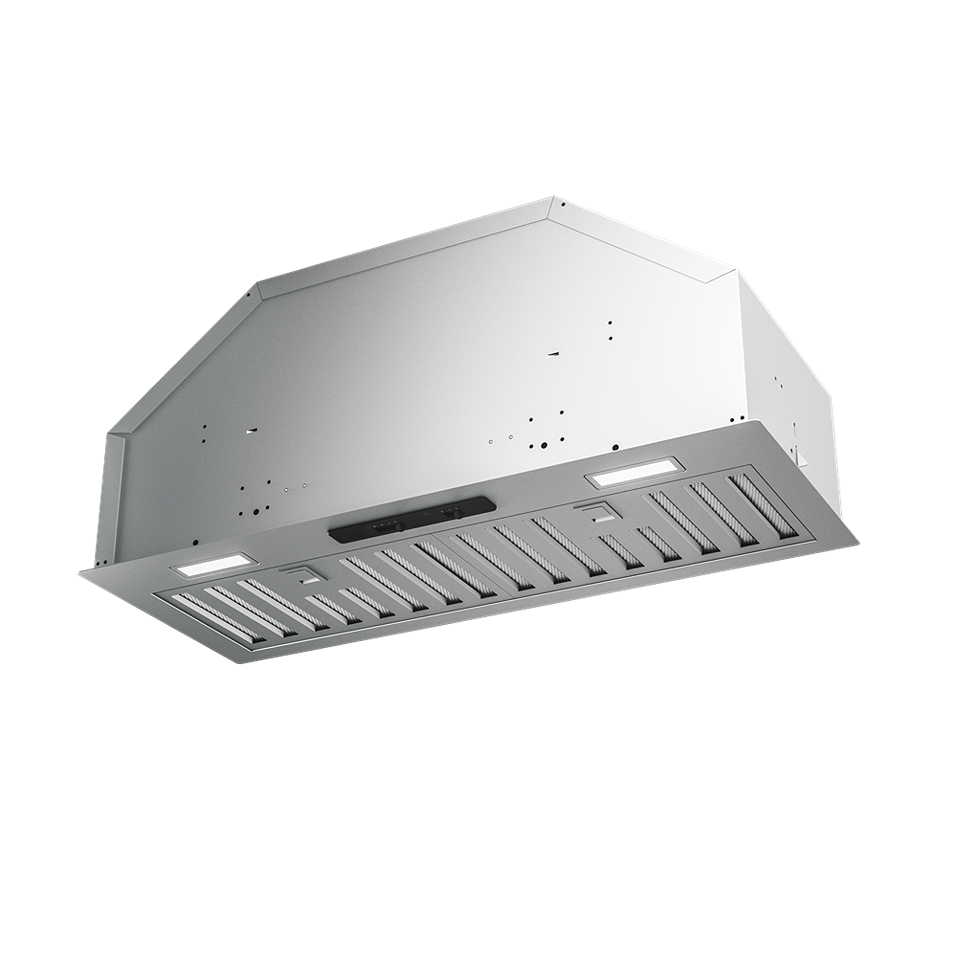

  • 34-inch stainless steel insert hood with LED lights and hybrid baffle filters in Over the Range Hoods collection
  • Modern kitchen with a dark island, three stools, wood cabinets, stone backsplash, and pendant lights in Kitchen & Kitchenware collection
  • Built-in kitchen range hood with LED lighting and hybrid baffle filters in Over the Range Hoods and Kitchen & Kitchenware collections
  • Stainless steel hybrid baffle insert range hood with dual LED lights and digital controls, designed for custom enclosures in kitchen appliances collections.

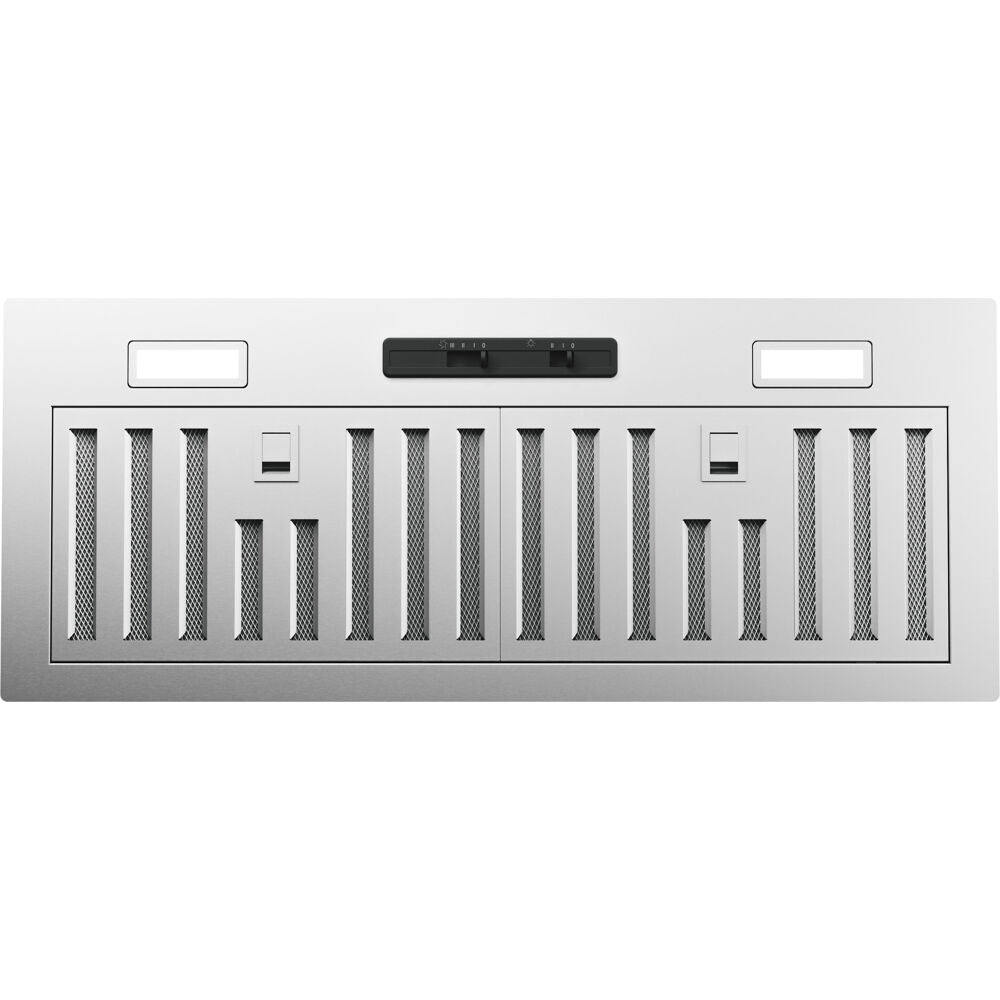

  • Stainless steel insert hood with hybrid baffle filters and LED lights for kitchen ventilation in range hood collection
  • Modern kitchen with marble countertop island, three stools, pendant lighting, wooden cabinetry, and large windows for natural light

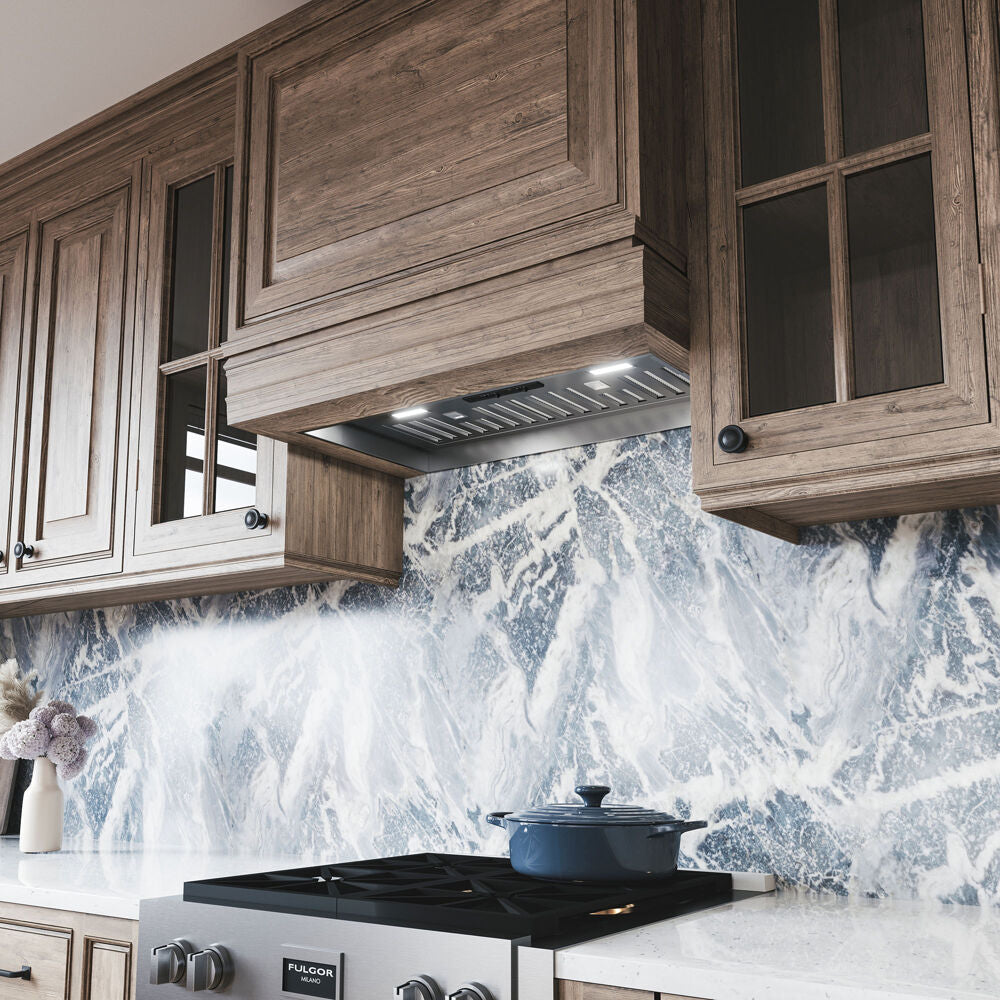

  • Wooden custom hood enclosure with under-cabinet LED range hood insert above stovetop in modern kitchen setup

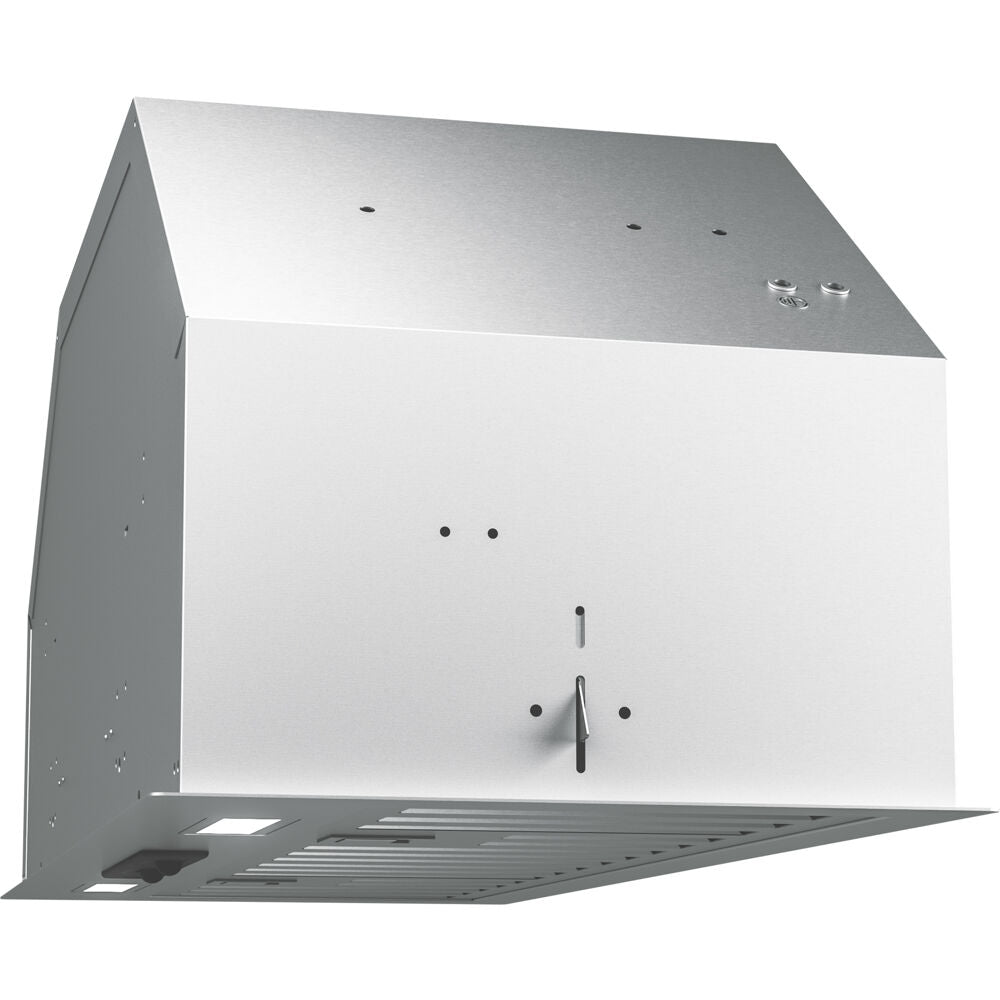

  • Stainless steel 34-inch insert hood with hybrid baffle filters and LED lighting for kitchen ventilation and appliances.

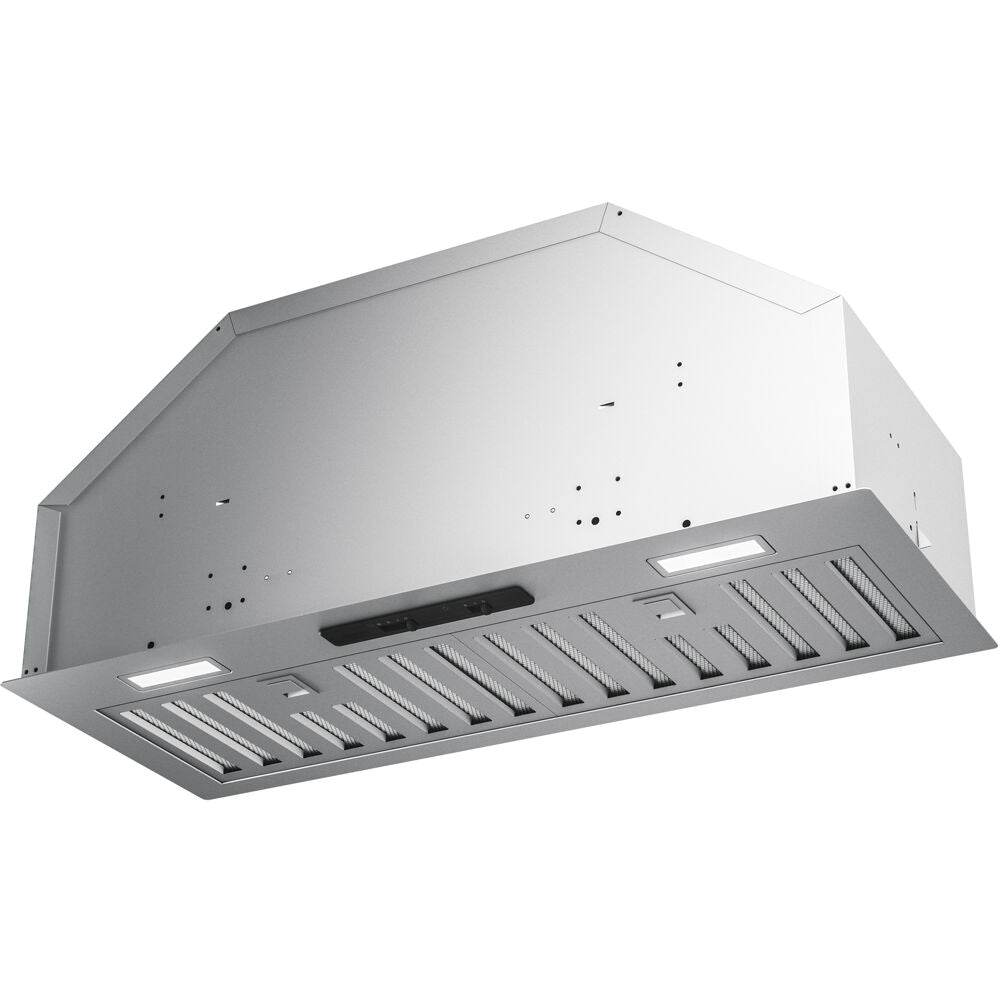

  • Stainless steel 34-inch insert range hood with LED lights and hybrid baffle filters for kitchen ventilation and appliances

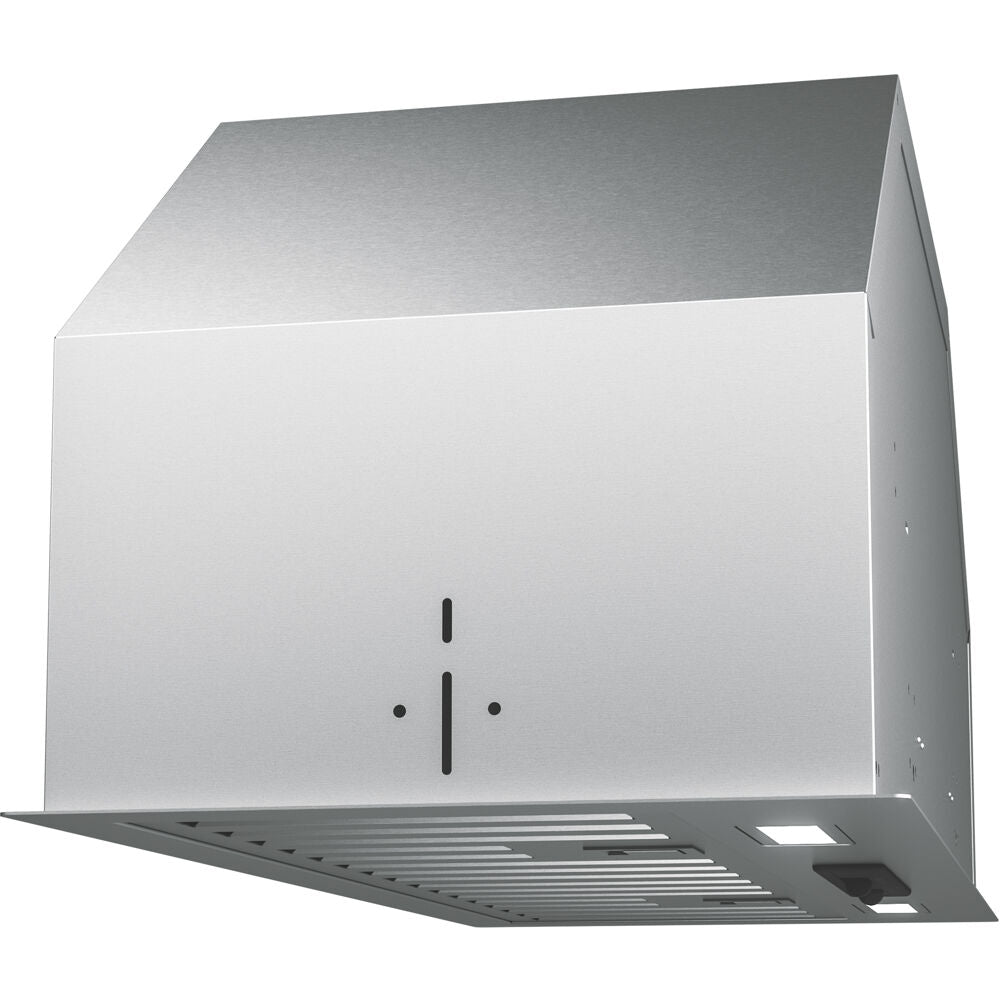

  • Stainless steel 34-inch range hood insert with LED lighting and hybrid baffle filters for kitchen ventilation.
1 11
Zephyr
Sale In Store Only IN-STORE ONLY

Tornado I Insert Hood 34" LED Hybrid Baffle

Tornado I Insert Hood 34" LED Hybrid Baffle

SKU: AK8134BS

Shop All Zephyr
Add to Favorites
now $849 .00 $949.00
Powerful 600-CFM insert with hybrid filters and dual-level LED lighting.
only 2 left in stock
The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
View full details

Technical Specs Technical Specs

Overview
The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
Measurements & Specs
Width Info
{"value":27.56,"unit":"in"}
Height Info
{"value":11.19,"unit":"in"}
Other Tech Specs
Appliance Type Info
Range Hood
Finish Color Info
Stainless Steel
ADA Compliant Info
Yes With Optional Wall Switch
Blower Included Info
Yes
Blower Speeds Info
3
CEC Title 20 Compliant Info
Yes
CEC Title 24 Compliant Info
Yes
Ceiling Height Maximum Info
12 Ft.
Ceiling Height Minimum Info
8 Ft.
Certification Info
UL
Compatible Appliances Info
ZRC 0080, Z0F C008, AK0836AS, MUA006A
Controls Type Info
Mechanical Slide
Cutout Depth In. Info
10.625
Cutout Width In. Info
26.875
Duct Discharge Info
Vertical Or Horizontal
Duct Size Horizontal In. Info
6
Duct Size Vertical In. Info
6
Duct Type Info
Vertical
Duct Type 2 Info
Horizontal
Grease Filter Type Info
Hybrid Baffle
Installation Type Info
Insert
Internal Blower 1 CFM Info
600
Internal Blower 1 Max Sones Info
6
Internal Blower 1 Min. Sones Info
1.4
Lighting Type Info
LED
Lights Levels Info
2
Lights Quantity Info
2
Maximum Amperage Info
3
Minimum CFM Info
200
Mounting Height Above Cooktop In. Info
20 - 34
Net Depth In. Info
11.1875
Net Height In. Info
10.5
Net Width In. Info
33.5625
Nominal Width In. Info
34
Primary Material Info
Stainless Steel
Voltage Info
120
Warranty Parts / Labor Info
3 / 1
Wattage Info
360
Watts Per Bulb Info
6
Weight Lbs. Info
22.5
