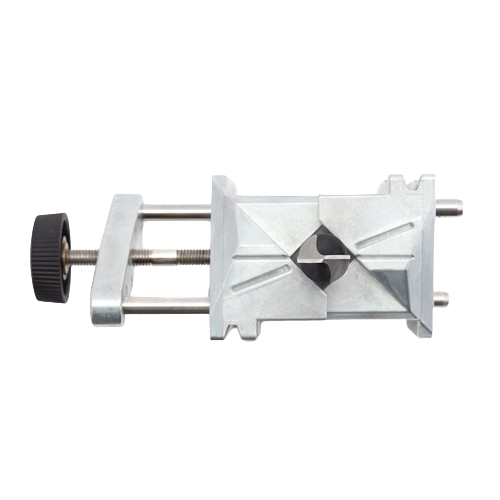

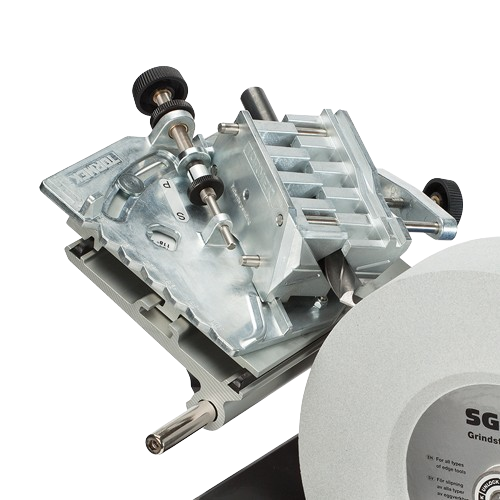

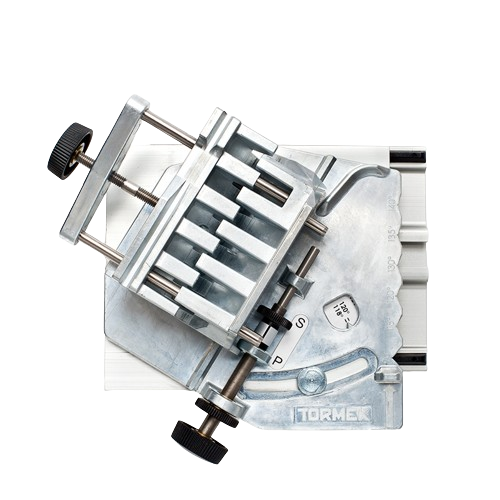

Tormek DBS-22 Drill Bit Sharpening Jig

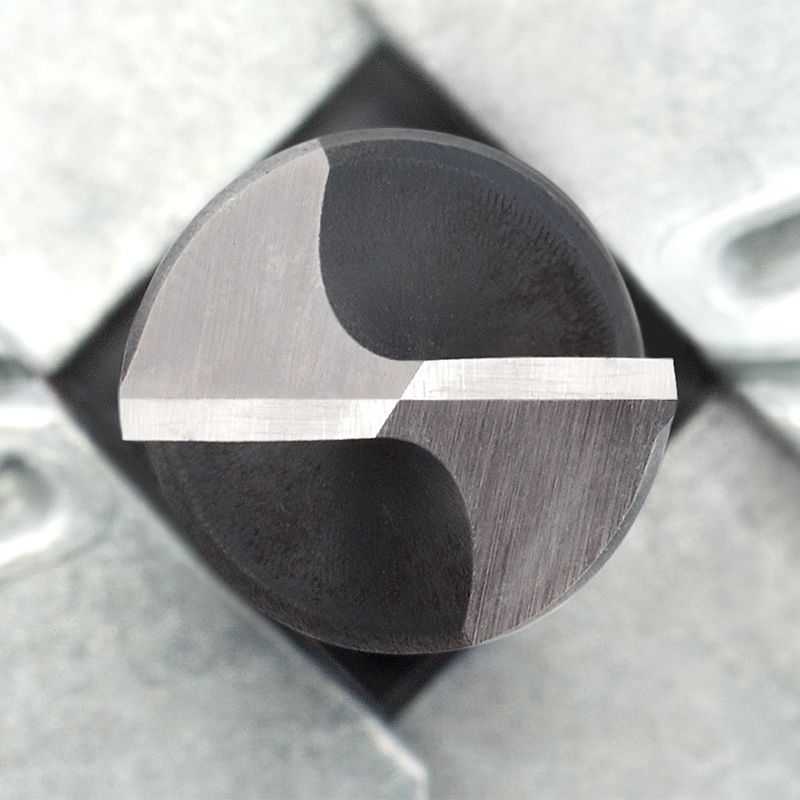

Tormek DBS-22 Drill Bit Sharpening Jig allows you to sharpen your drill bits with unmatched precision using its patented attachment. You can set the optimal point and clearance angles to perfectly match the size and material of your drill bit, restoring worn or even broken drills to a flawless condition. This jig creates a 4-facet point which enhances cutting performance by forming a sharp chisel edge instead of a flat one, preventing the drill from walking and reducing the thrust force needed compared to conventional cone point drills. The precision sharpening generates less heat, prolonging drill life significantly. Independent tests have shown that drills sharpened with the Tormek DBS-22 last up to four times longer than brand new conventional drill bits. By continuously cooling the edge during sharpening, it prevents overheating, loss of hardness, and micro cracks, giving you full control and visibility throughout the process. This versatile jig sharpens all point angles between 90° and 150°, sets clearance angles from 7° to 14°, and accommodates drill sizes from 3 mm (1/8”) to 22 mm (7/8”) without needing to change the chuck, ensuring consistently equal cutting edges for round, straight holes with close tolerances. Model Number: DBS-22
