Zephyr
Sold out In Store Only IN-STORE ONLY

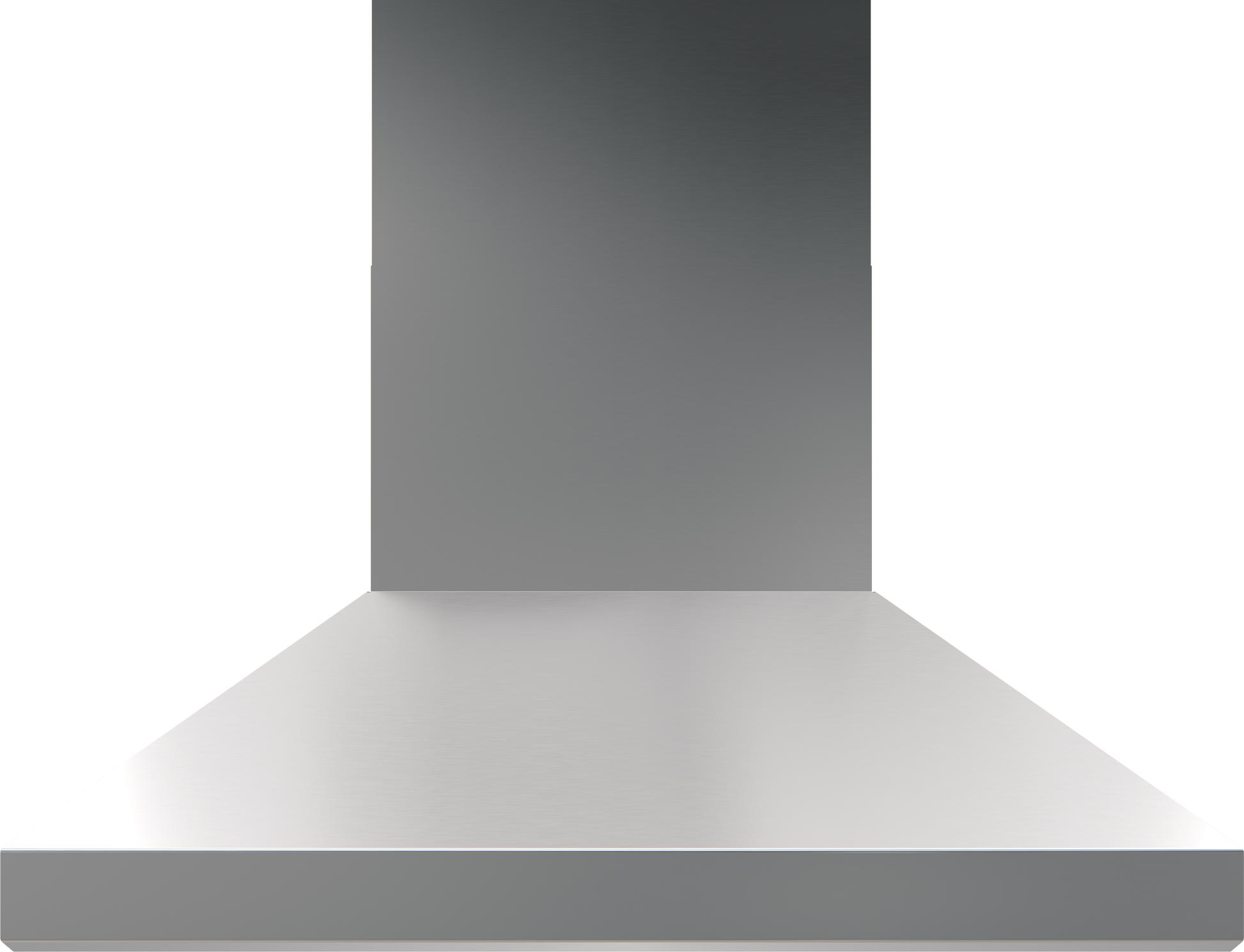

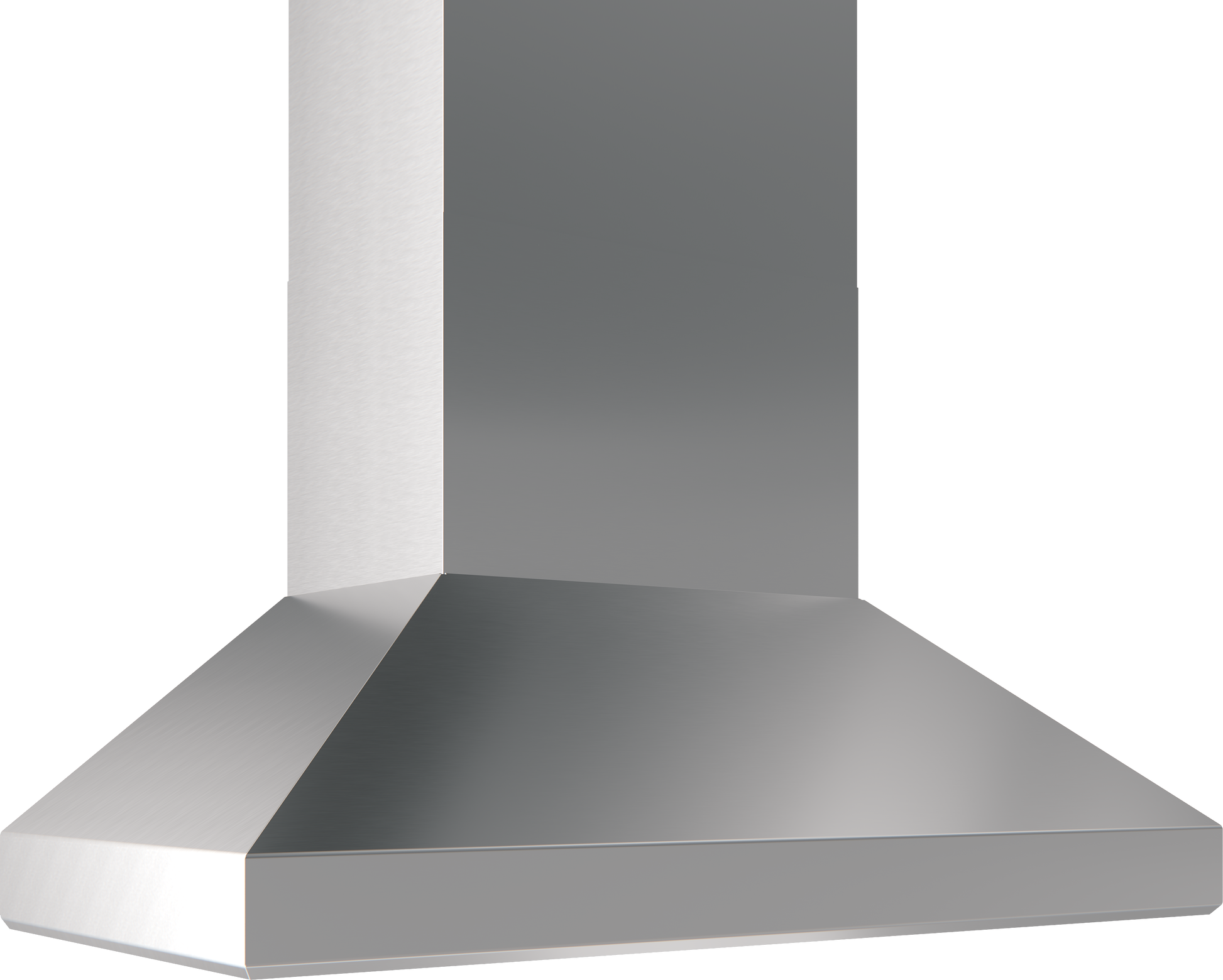

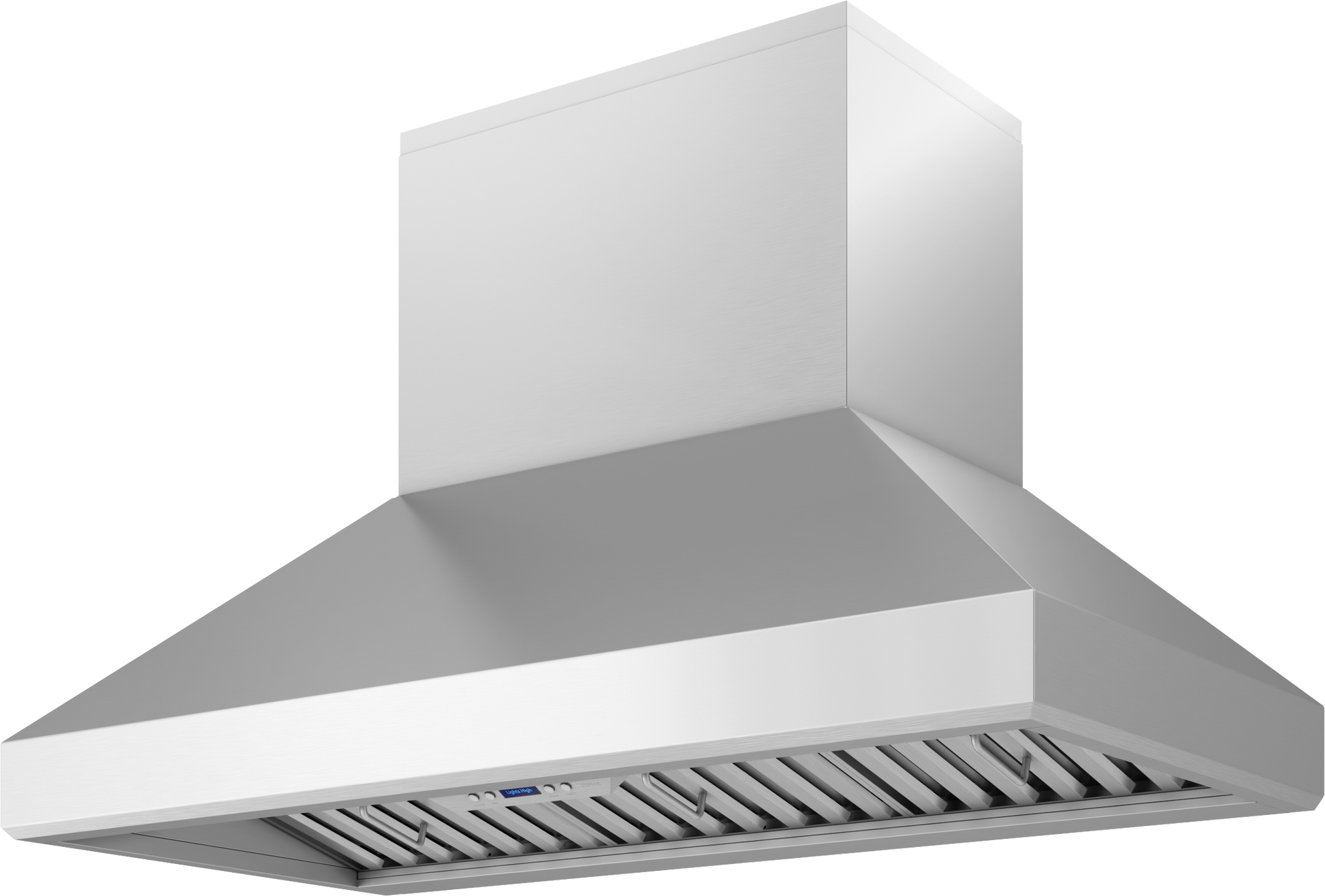

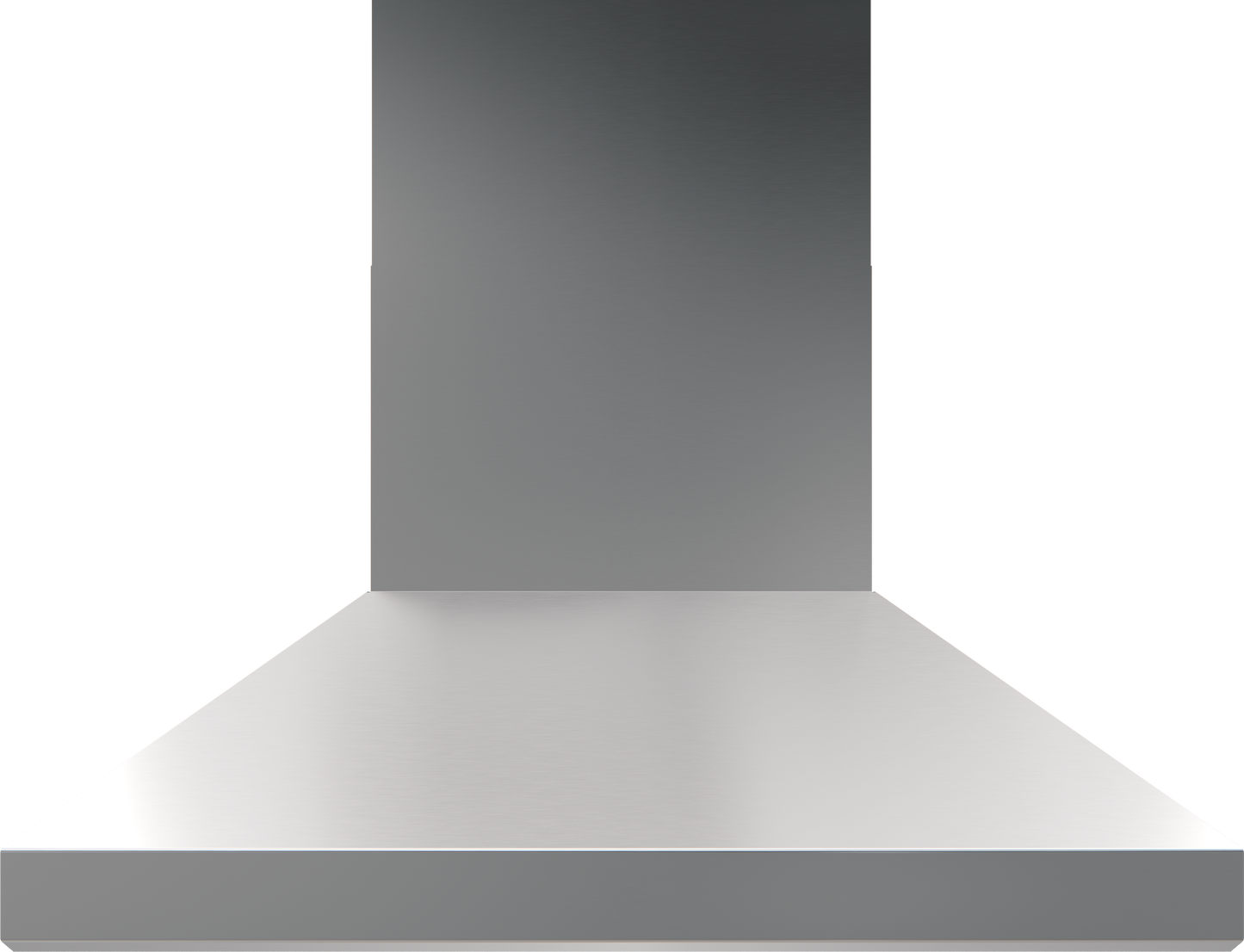

Titan Chimney Hood 54" PowerWave 750 CFM

Titan Chimney Hood 54" PowerWave 750 CFM

SKU: AK7654BS

Shop All Zephyr
Add to Favorites
now $2,999 .00 $3,199.00
Powerful 54" Titan Chimney Hood with quiet 750 CFM blower and LED lighting.
sorry, this item is out of stock
Titan challenges the definition of pro-style hoods with its impressive size, powerful blower, and stunning good looks. Featuring Zephyrs PowerWaveTM technology, Titan features a 750-CFM blower with the option to combine two blowers together to achieve 1,300 CFM. Its unique aerodynamic blades improve efficiency with unparalleled quiet operation. The ultimate workhorse in the kitchen, Titan is available up to 60 inches and features pro baffle filters and LumiLight LED lighting.
View full details

Technical Specs Technical Specs

Overview
Titan challenges the definition of pro-style hoods with its impressive size, powerful blower, and stunning good looks. Featuring Zephyrs PowerWaveTM technology, Titan features a 750-CFM blower with the option to combine two blowers together to achieve 1,300 CFM. Its unique aerodynamic blades improve efficiency with unparalleled quiet operation. The ultimate workhorse in the kitchen, Titan is available up to 60 inches and features pro baffle filters and LumiLight LED lighting.
Product Specifications
Appliance Type Info
Range Hood
Finish Color Info
Stainless Steel
Manufacturer Part Number Info
AK7654BS
ADA Compliant Info
Yes With Optional Remote
Automatic Delay Off Info
Yes
Blower CFM With ACT Info
590 390 290
Blower Included Info
Yes
Blower Speeds Info
6
CEC Title 20 Compliant Info
Yes
CEC Title 24 Compliant Info
Yes
Ceiling Height Maximum Info
9 Ft.
Ceiling Height Minimum Info
8 Ft.
Certification Info
UL
Chimney Depth In. Info
13.93
Chimney Height In. Info
15.5
Chimney Width In. Info
22
Clean Air Function Info
Yes
Compatible Appliances Info
PBD 1300B Z1C 0176 14000005 MUA008A MUA010A AK1714
Controls Type Info
Electronic LCD
Duct Discharge Info
Vertical Or Horizontal
Duct Size Horizontal In. Info
8 10
Duct Size Vertical In. Info
8 10
Duct Type Info
Vertical
Duct Type 2 Info
Horizontal
Grease Filter Type Info
Pro Baffle
Installation Type Info
Wall
Internal Blower 1 CFM Info
750
Internal Blower 1 Max Sones Info
7
Internal Blower 1 Min Sones Info
0.5
Lighting Type Info
LED
Lights Levels Info
2
Lights Quantity Info
4
Maximum Amperage Info
8
Minimum CFM Info
200
Mounting Height Above Cooktop In. Info
24 - 36
Net Depth In. Info
24
Net Height In. Info
30 - 42.5
Net Width In. Info
53.875
Nominal Width In. Info
54
Primary Material Info
Stainless Steel
Remote Optional Info
Yes
Voltage Info
120
Warranty Parts Labor Info
3 / 1
Wattage Info
300
Watts Per Bulb Info
6
Weight Lbs. Info
97
