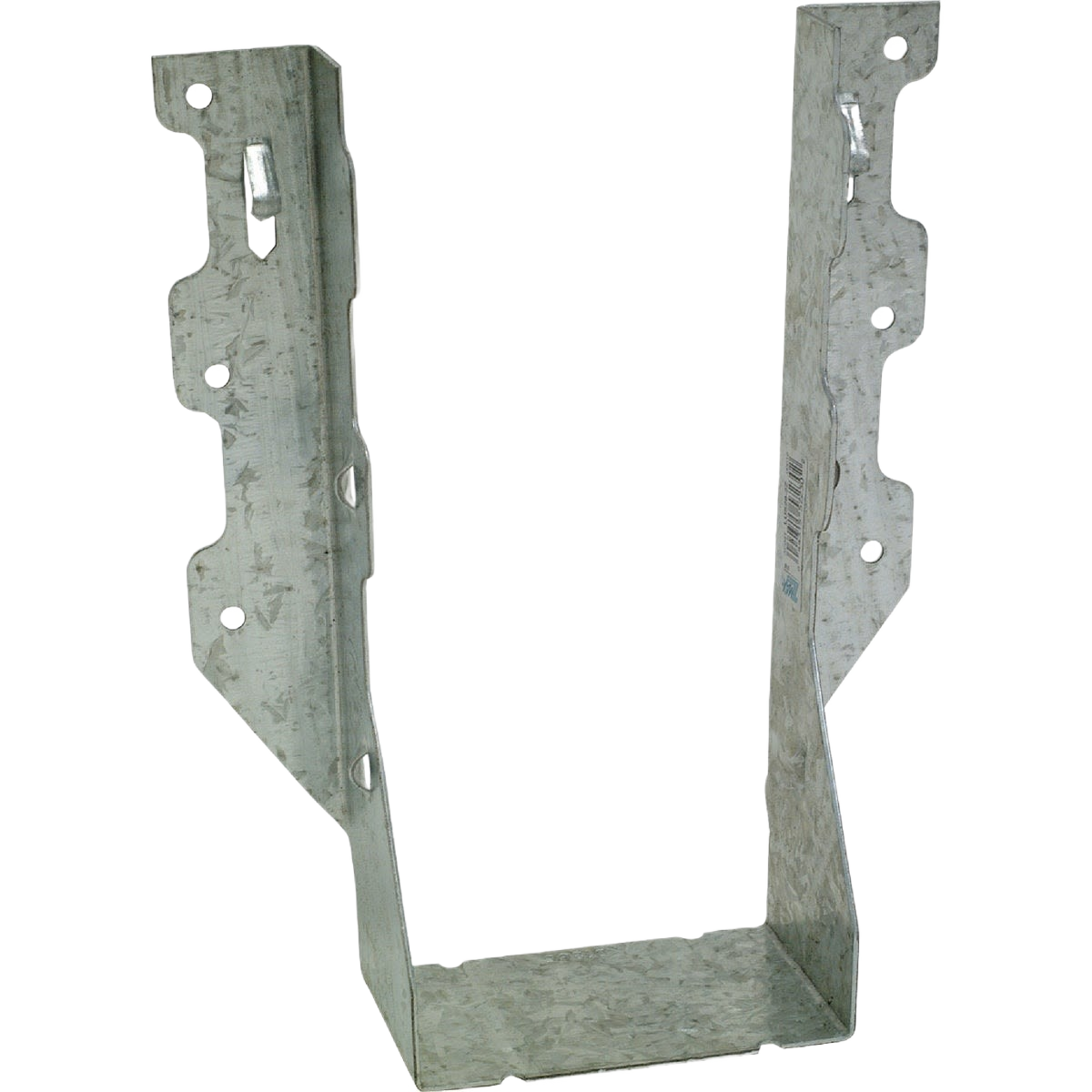

Simpson Strong-Tie 2X8 Galvanized Double Shear Face Mount Joist Hanger

Simpson Strong-Tie 2X8 Galvanized Double Shear Face Mount Joist Hanger

Regular price $5.47
Galvanized steel joist hanger with double-shear nailing for strong, fast installation.
The Simpson Strong-Tie 2X8 Galvanized Double Shear Face Mount Joist Hanger is an 18 gauge steel joist hanger with a ZMAX finish for 2 in. x 8 in. joists. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength, which allows for fewer nails, faster installation and the use of all common nails for the same connection. Speed prongs temporarily position and secure the connector for easier and faster installation, and LUS-series hangers are tested, load rated and code compliant. This double shear face mount joist hanger installs with 6-16d nails on the header and 4-16d nails in the joist, and it measures 3.125 in. wide and 7 in. high with a 2 in. base. Model Number: LUS28-2Z
View full details

Technical Specs Technical Specs

Overview
The Simpson Strong-Tie 2X8 Galvanized Double Shear Face Mount Joist Hanger is an 18 gauge steel joist hanger with a ZMAX finish for 2 in. x 8 in. joists. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength, which allows for fewer nails, faster installation and the use of all common nails for the same connection. Speed prongs temporarily position and secure the connector for easier and faster installation, and LUS-series hangers are tested, load rated and code compliant. This double shear face mount joist hanger installs with 6-16d nails on the header and 4-16d nails in the joist, and it measures 3.125 in. wide and 7 in. high with a 2 in. base. Model Number: LUS28-2Z
Warranty
Simpson Strong-Tie's Limited Warranty covers the original purchaser only. It warrants that the product will be free from substantial defects in material, manufacturing, and design, provided it is specified, installed, and maintained correctly and used within the load limits and technical specifications published in Simpson Strong-Tie's documentation for that product. The warranty does not cover product purchased from an unauthorized dealer, damage from improper handling or installation, cosmetic issues like discoloration, or use outside the product's rated conditions. There is no fixed number of years stated — coverage runs for as long as the connector remains in its original, undamaged installed condition under normal use.
Product Specifications
Steel
Yes
Yes
Galvanized
Wood Screw
Steel
US
Yes
Simpson Strong-Tie's Limited Warranty covers the original purchaser only. It warrants that the product will be free from substantial defects in material, manufacturing, and design, provided it is specified, installed, and maintained correctly and used within the load limits and technical specifications published in Simpson Strong-Tie's documentation for that product. The warranty does not cover product purchased from an unauthorized dealer, damage from improper handling or installation, cosmetic issues like discoloration, or use outside the product's rated conditions. There is no fixed number of years stated — coverage runs for as long as the connector remains in its original, undamaged installed condition under normal use.
LUS28-2Z
Limited Warranty
