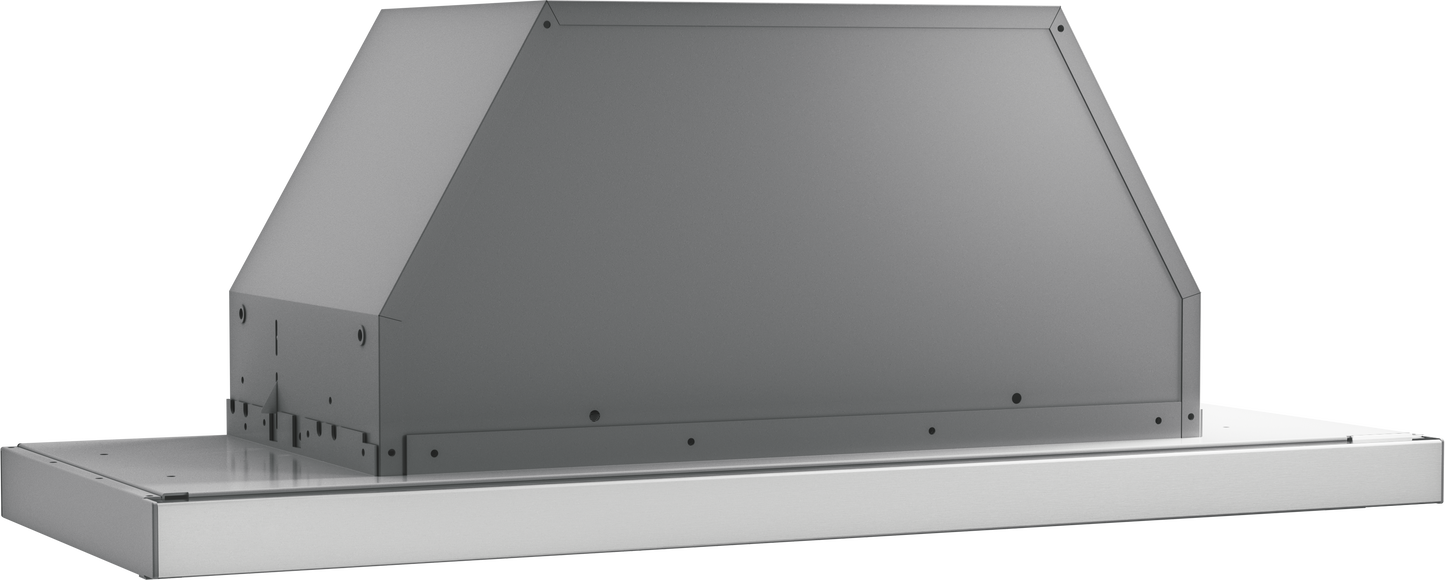

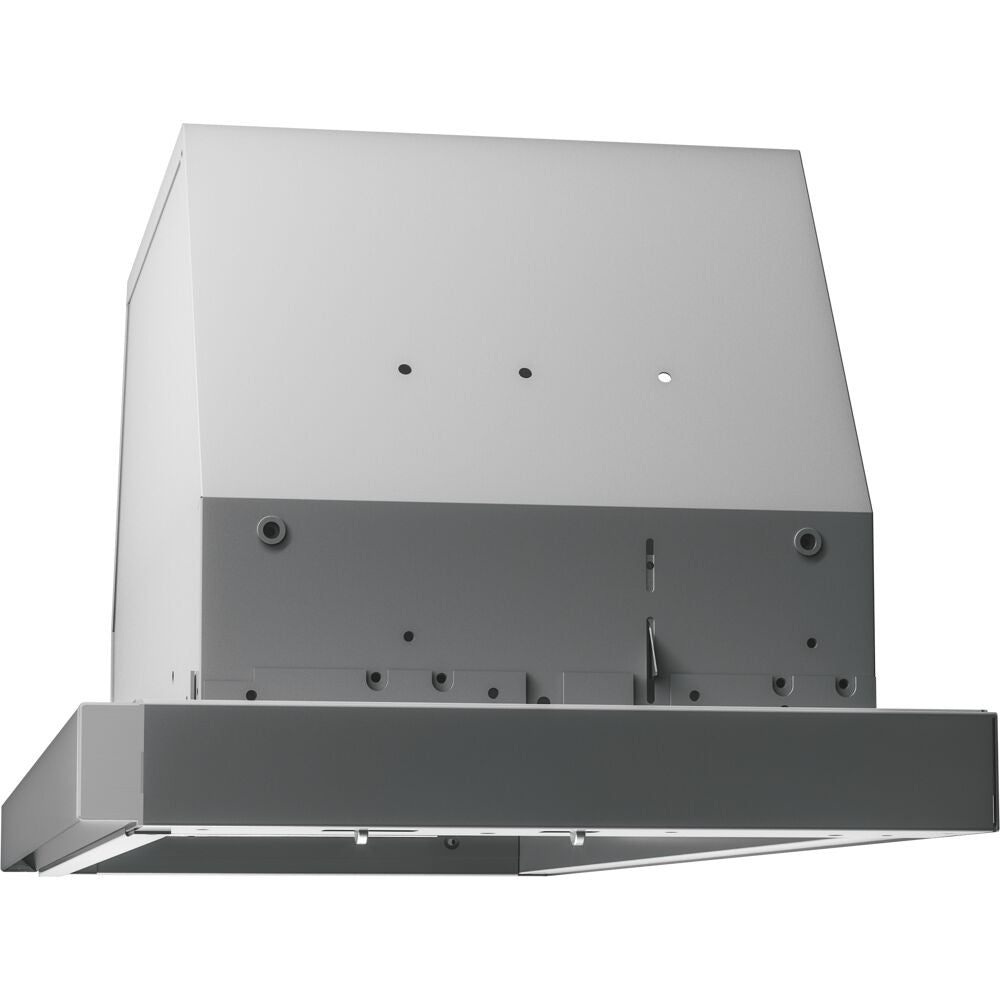

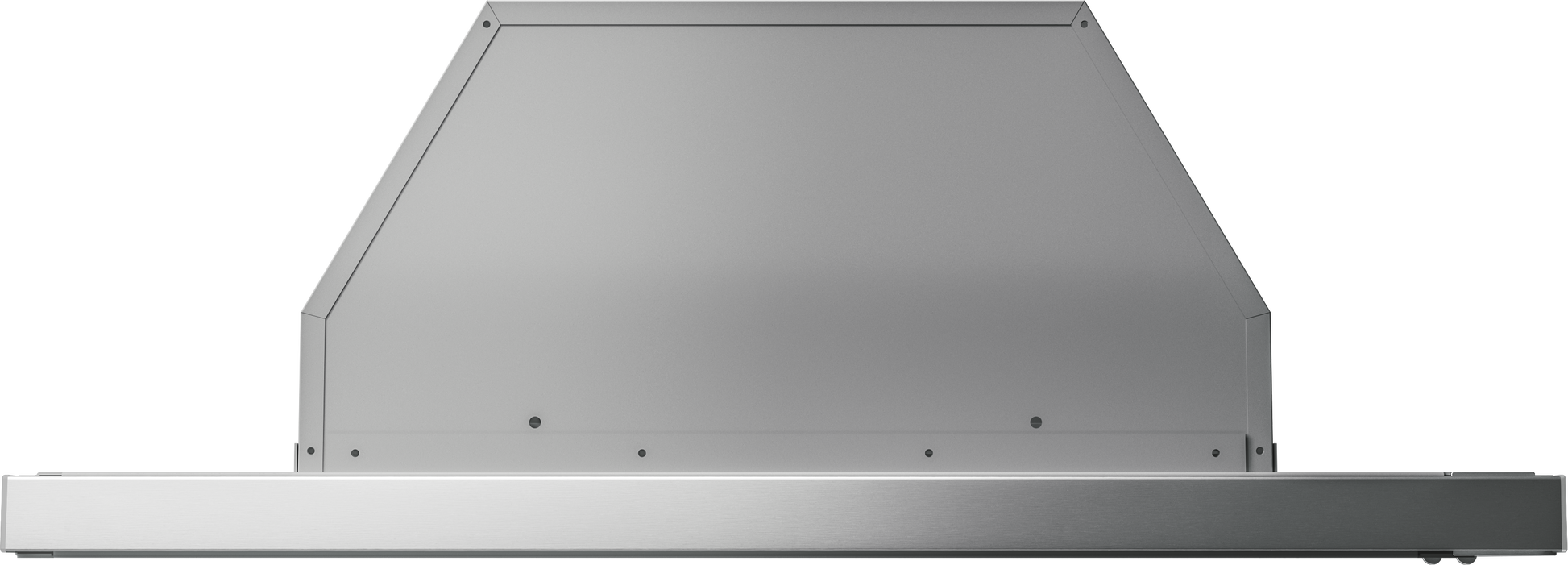

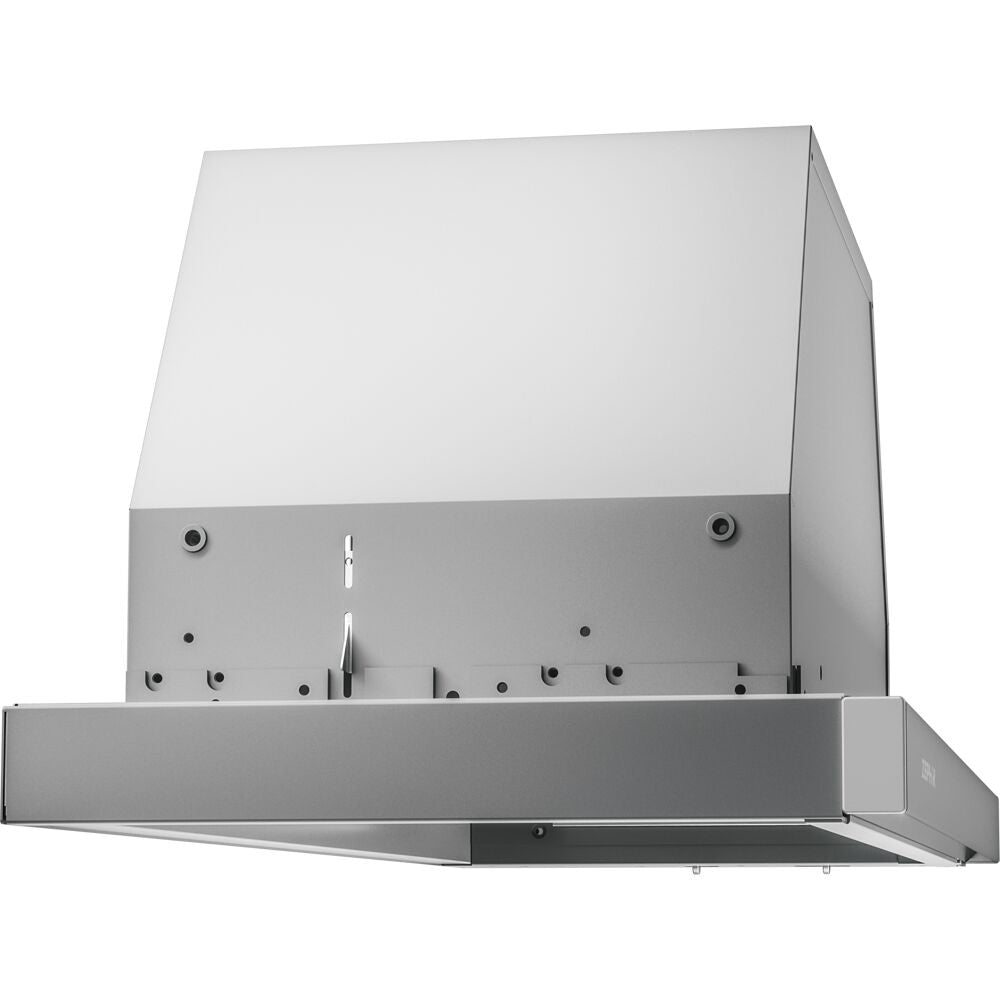

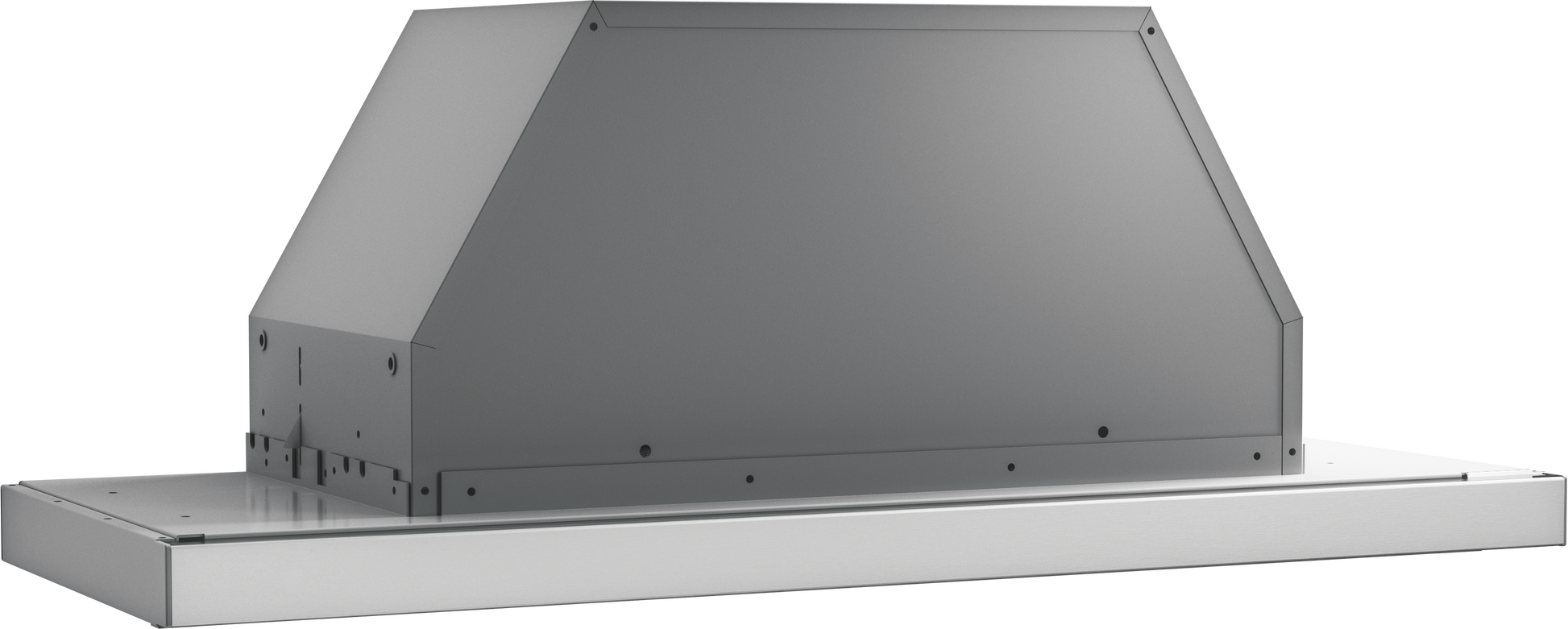

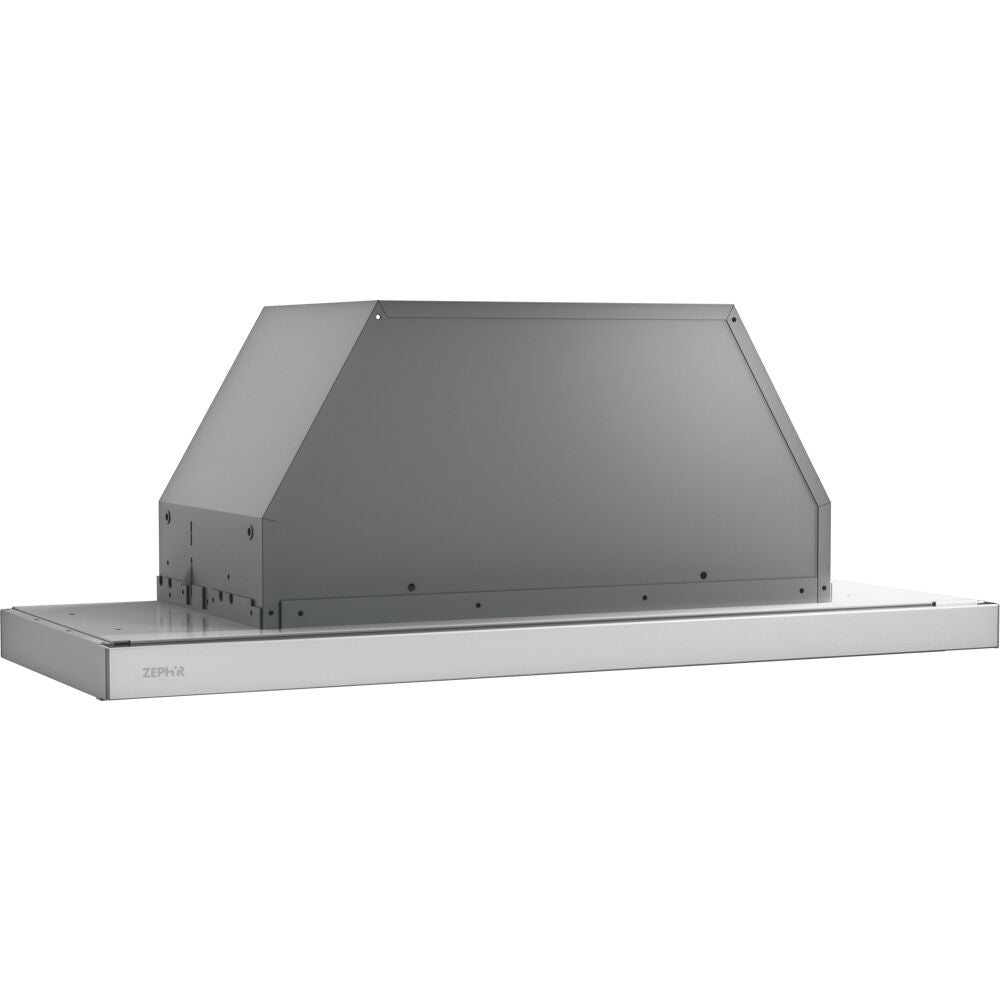

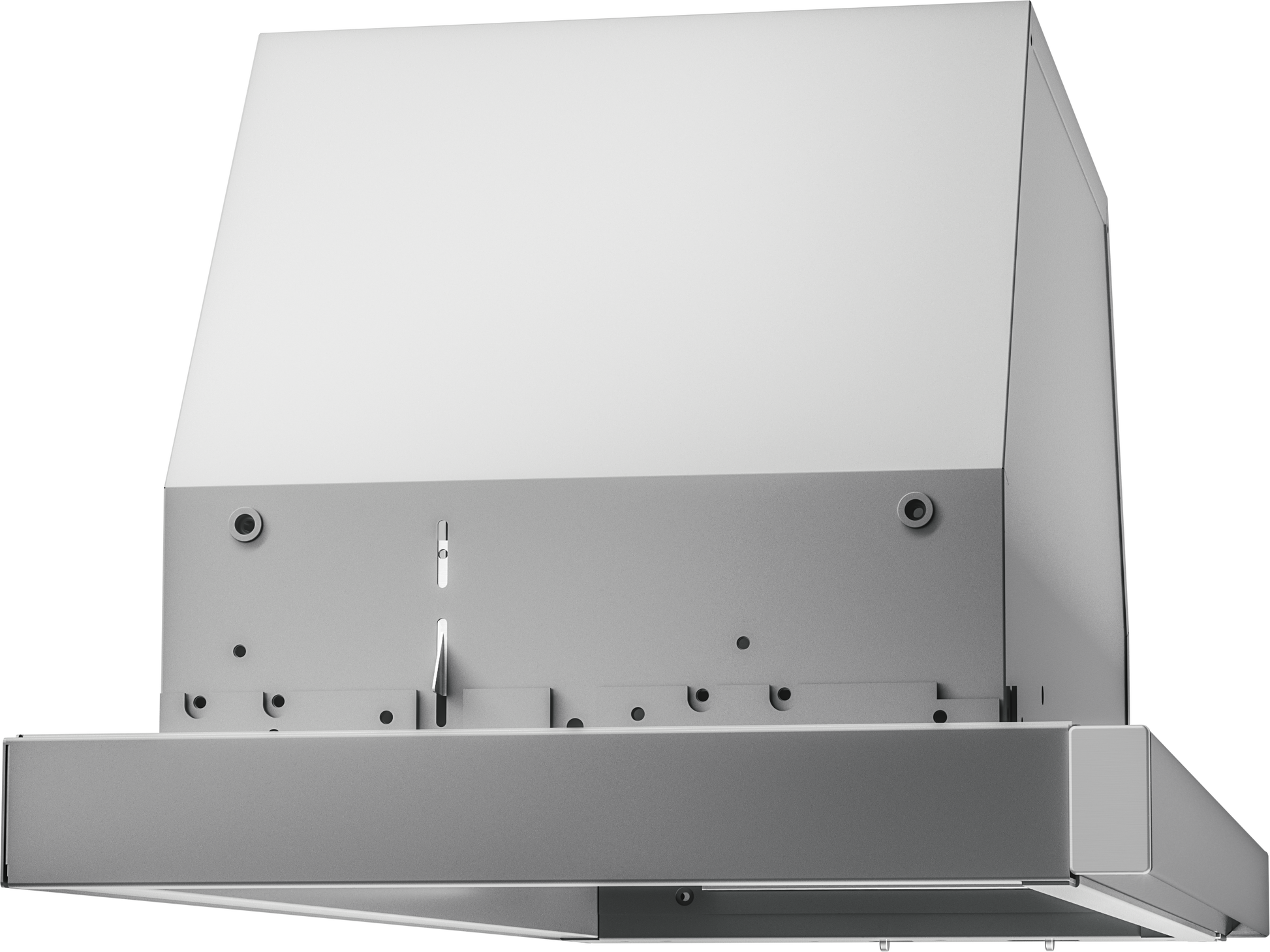

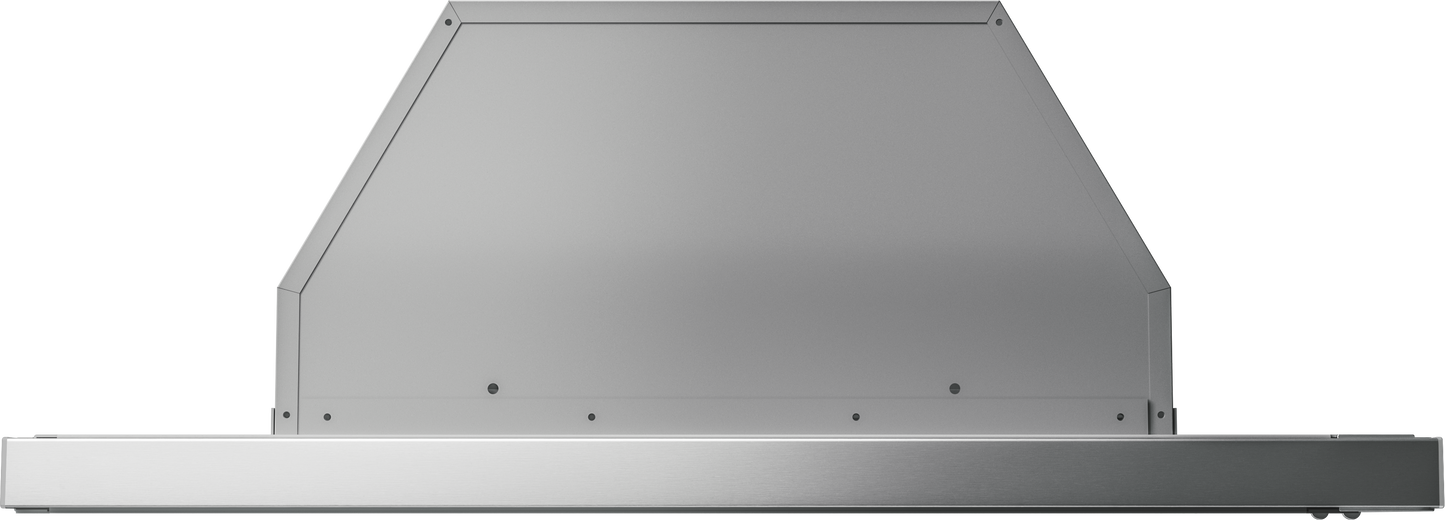

Pisa Under Cabinet Hood 30" LED 500 CFM
Pisa Under Cabinet Hood 30" LED 500 CFM
SKU: SKU: ZPIE30BG
Shop All Zephyr
Sale price
now
$849
.00
Regular price
$949.00
Unit price
per

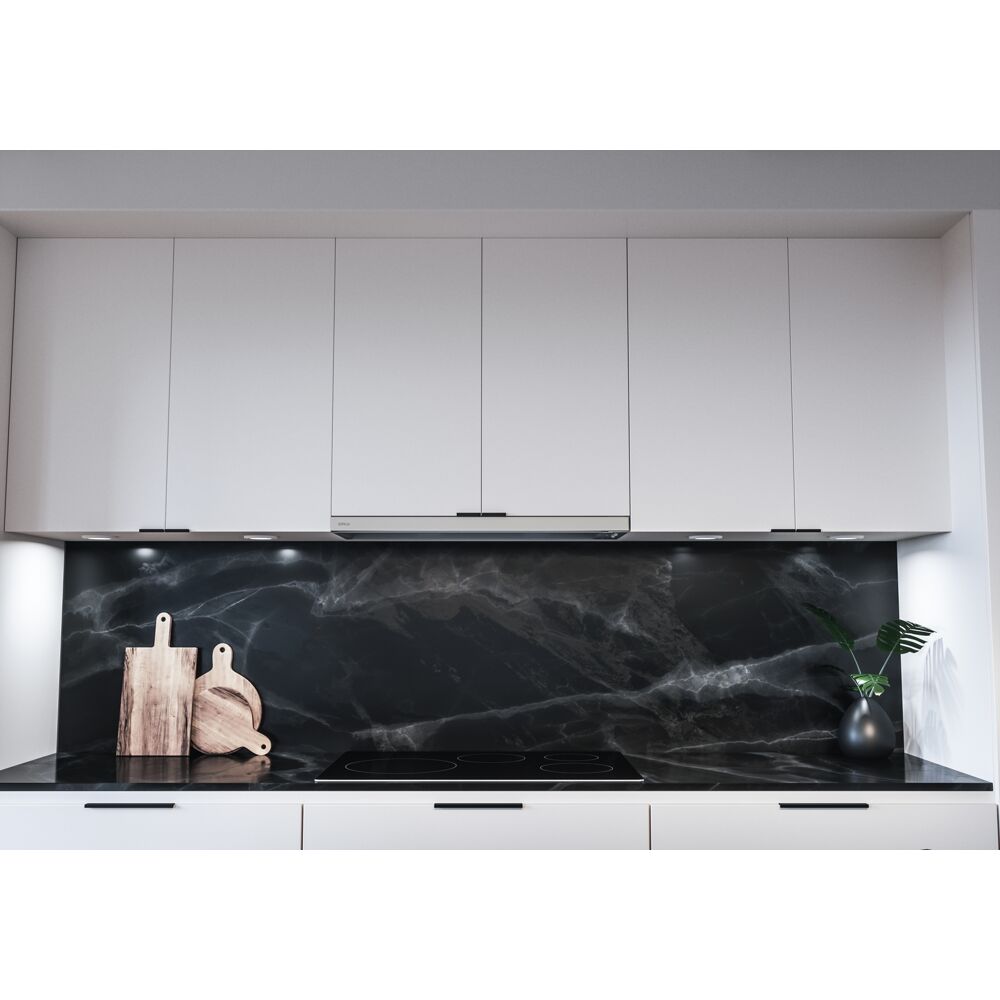

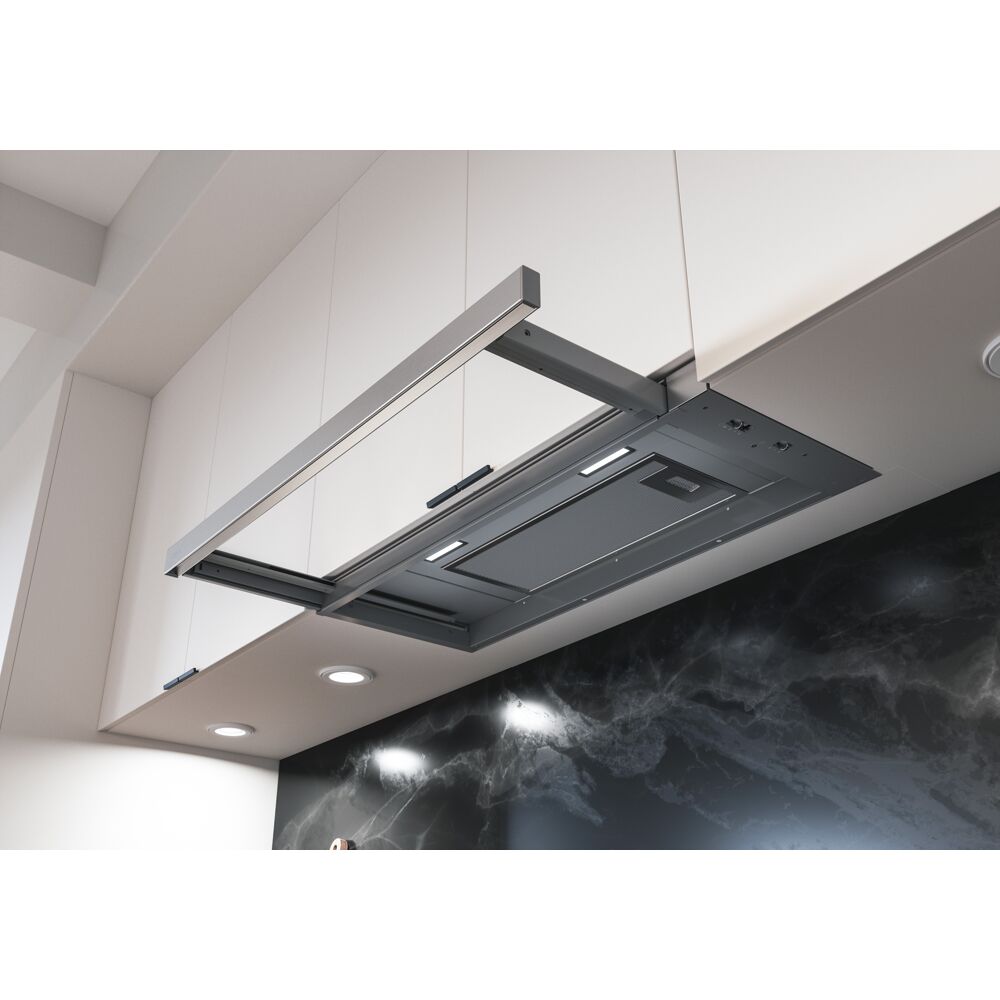

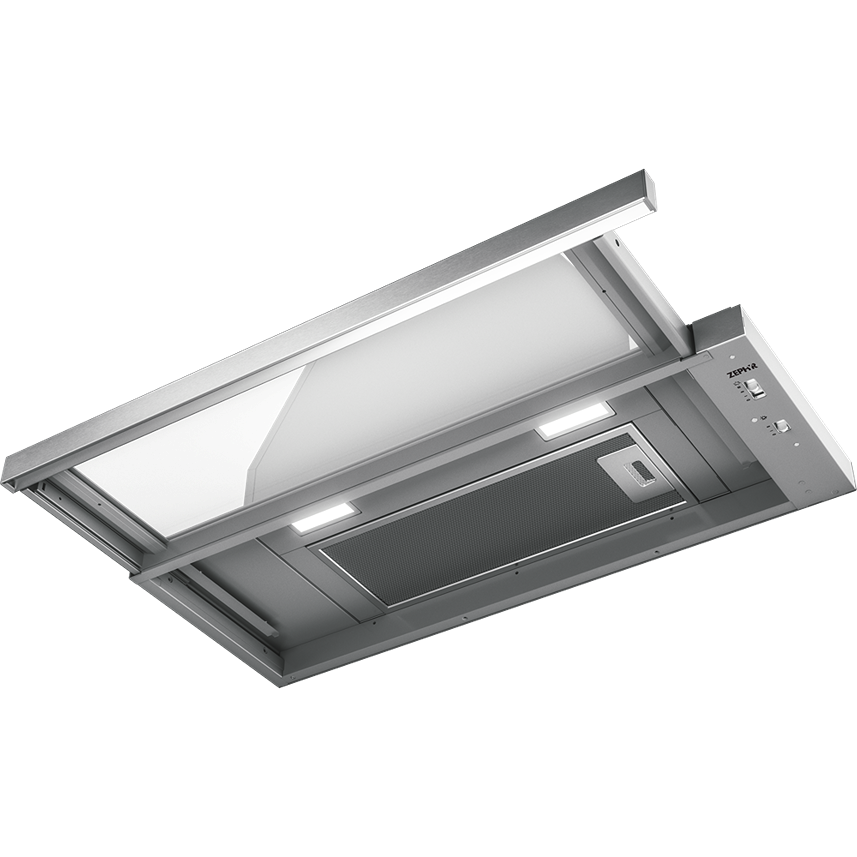

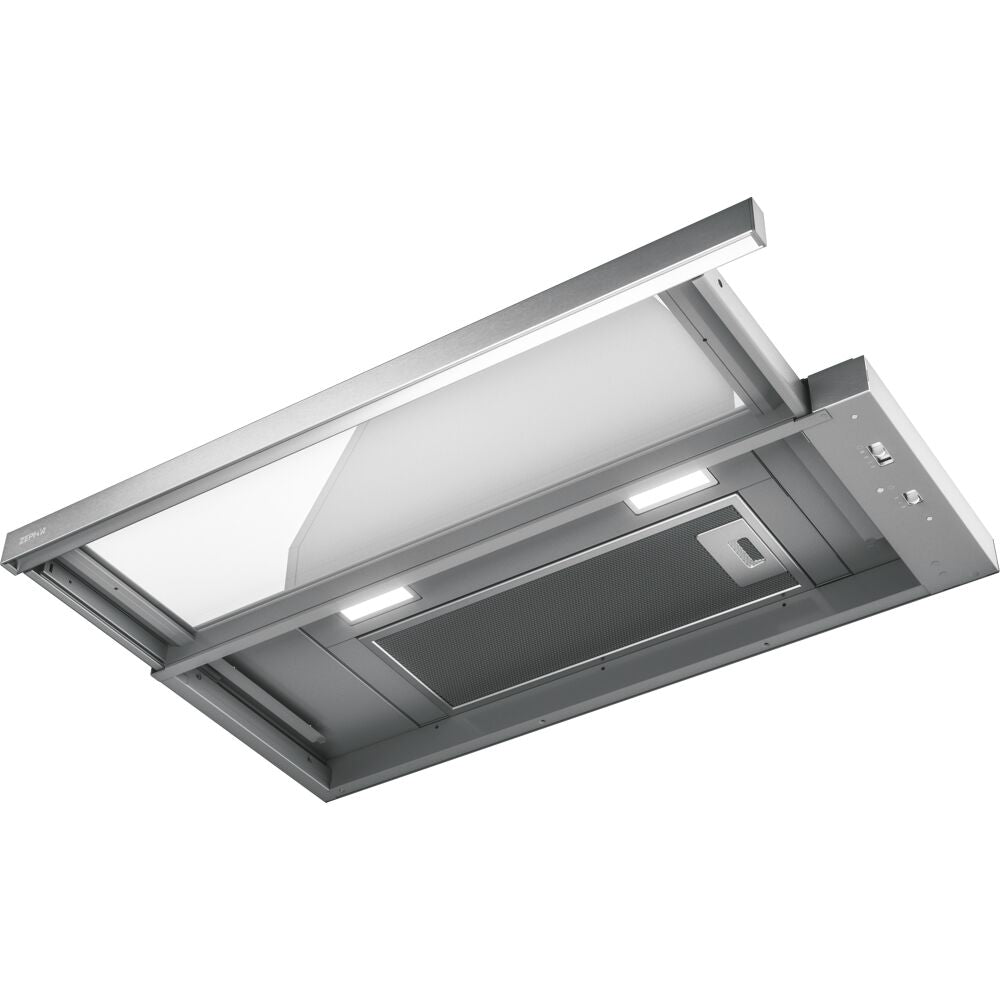

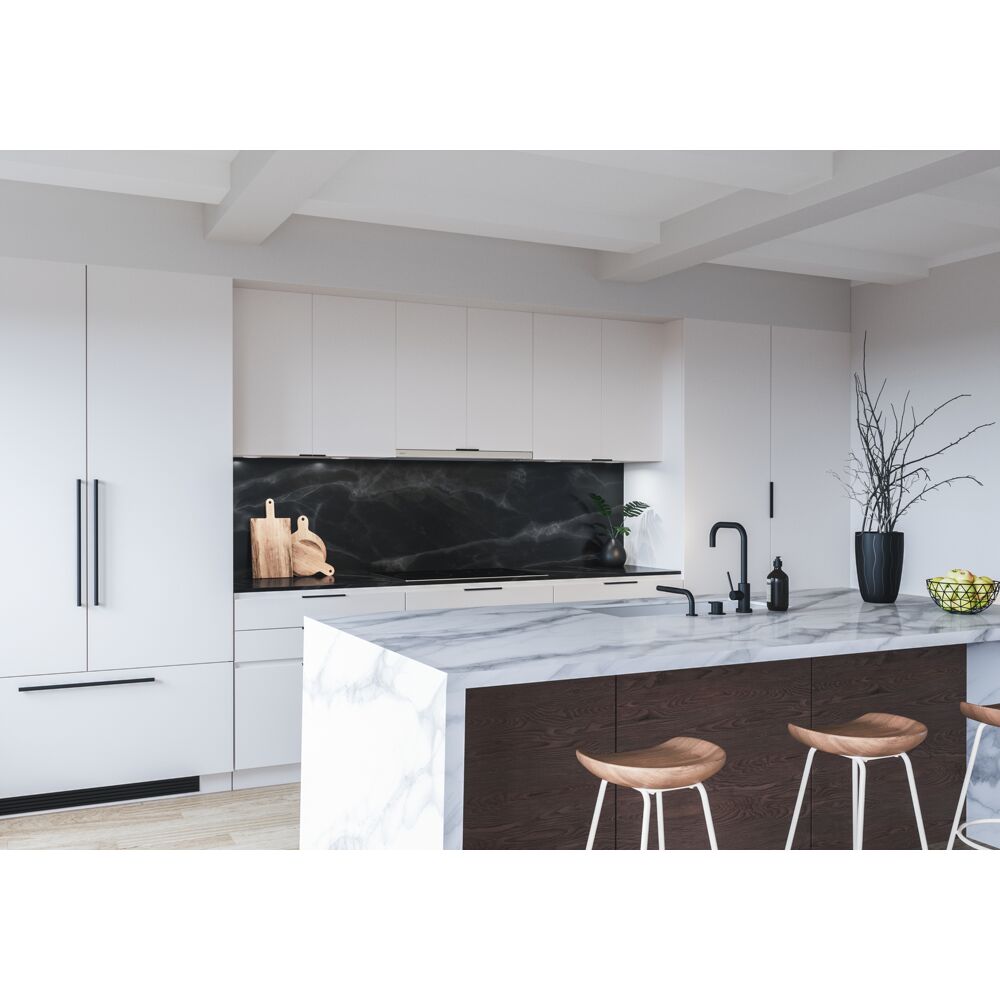

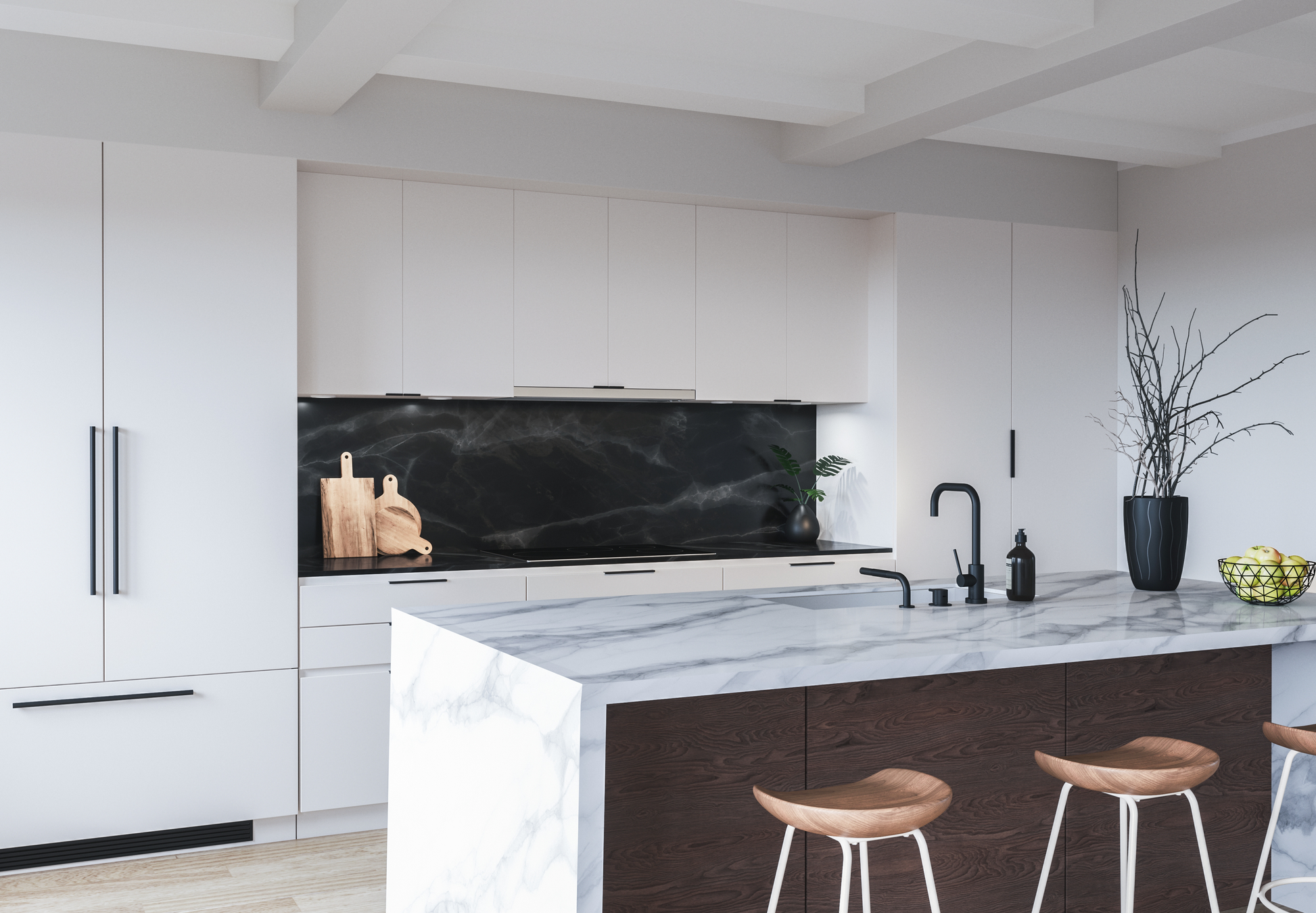

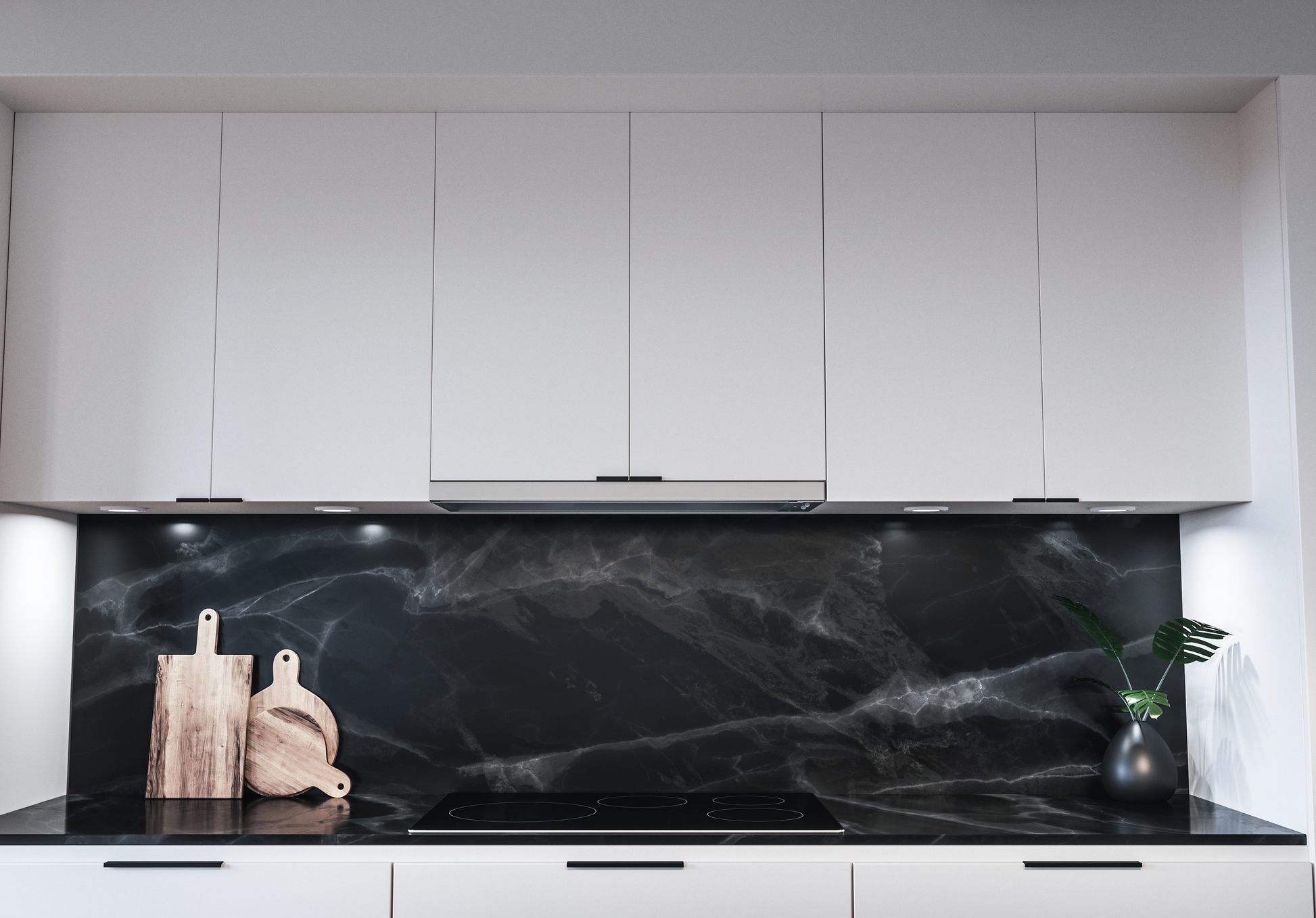

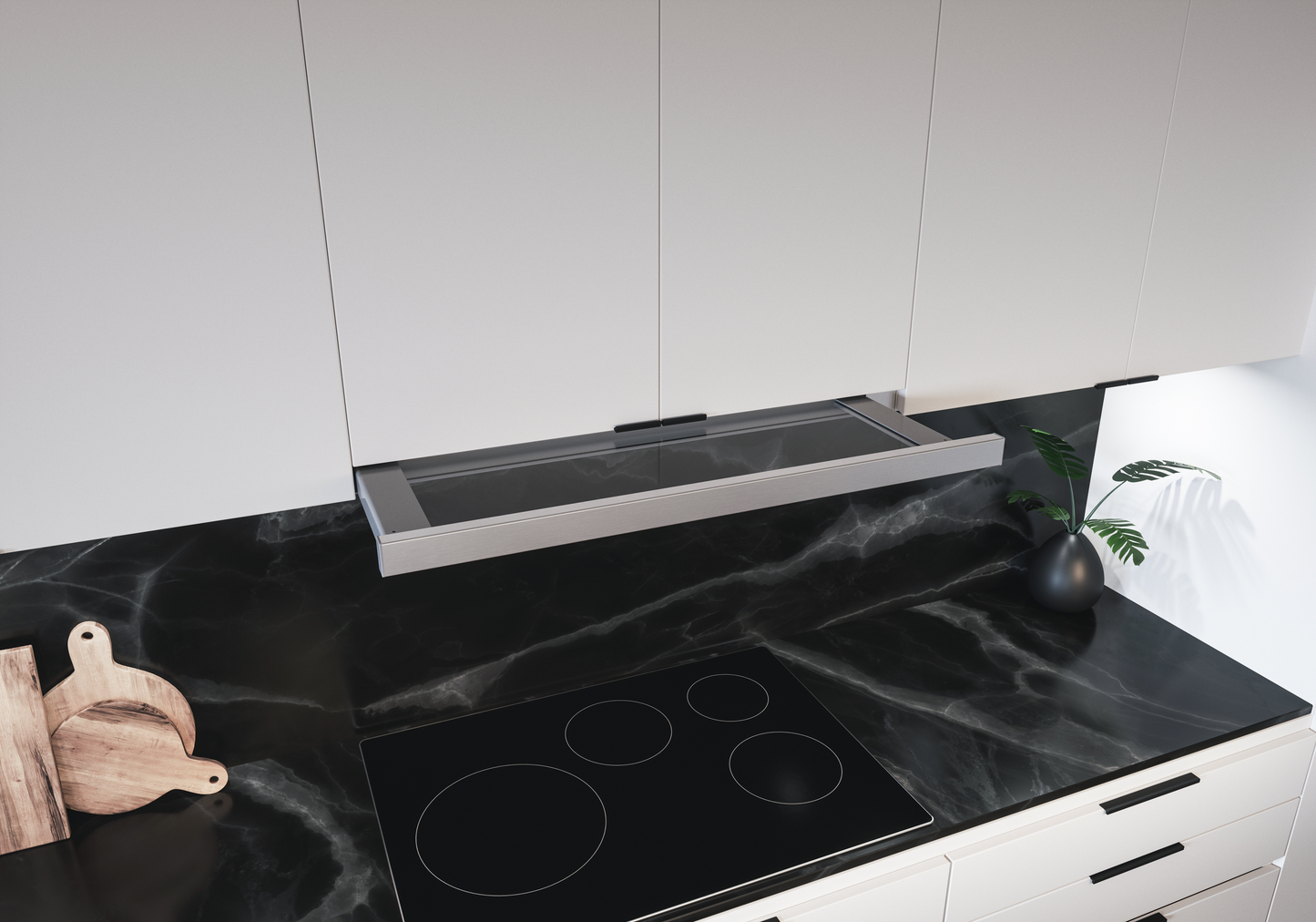

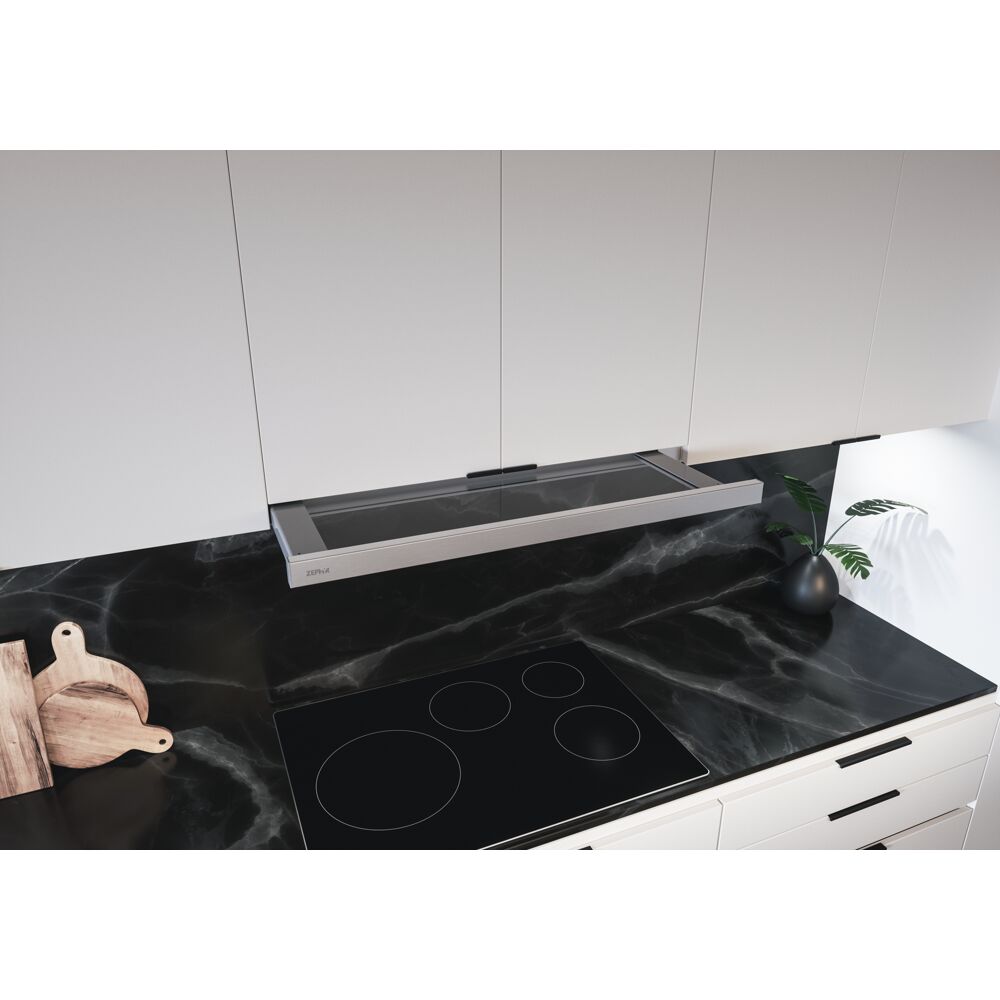

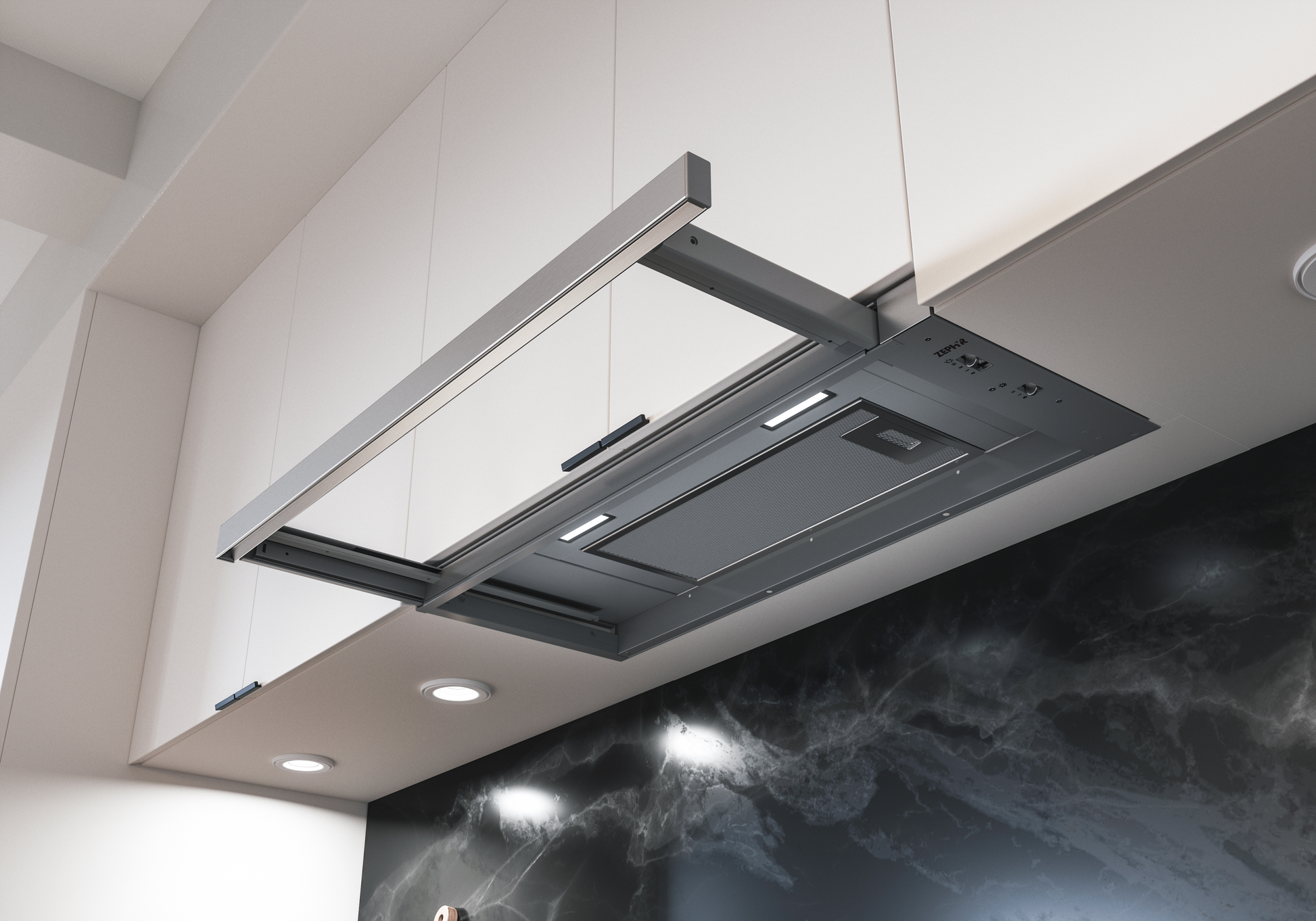

Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Adorned with LumiLight LED Lighting and powered by the strength of a 500-CFM or 290-CFM blower, Pisas low-profile body delivers stunning design and quality performance. Its retractable visor helps with the capture of air and puts control at your fingertips. Pisa is ideal for kitchens that require a more discreet, sophisticated look.
View full details
Technical Specs
Technical Specs
Overview
Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Adorned with LumiLight LED Lighting and powered by the strength of a 500-CFM or 290-CFM blower, Pisas low-profile body delivers stunning design and quality performance. Its retractable visor helps with the capture of air and puts control at your fingertips. Pisa is ideal for kitchens that require a more discreet, sophisticated look.
Measurements & Specs
-
Width
- {"value":29.875,"unit":"in"}
-
Height
- {"value":11.25,"unit":"in"}
Other Tech Specs
-
Appliance Type
- Range Hood
-
Finish Color
- Stainless Steel
-
Blower Included
- Yes
-
Blower Speeds
- 3
-
CEC Title 20 Compliant
- Yes
-
CEC Title 24 Compliant
- Yes
-
Ceiling Height Maximum
- 12 Ft.
-
Ceiling Height Minimum
- 8 Ft.
-
Certification
- UL
-
Compatible Appliances
- ZRC-00PI, Z0F-C0PI, AK1710, MUA006A
-
Controls Type
- Mechanical Slide
-
Duct Discharge
- Vertical Or Horizontal
-
Duct Size Horizontal In.
- 6
-
Duct Size Vertical In.
- 6
-
Duct Type
- Vertical
-
Duct Type 2
- Horizontal
-
Grease Filter Type
- Mesh
-
Installation Type
- Under Cabinet
-
Internal Blower 1 CFM
- 500
-
Internal Blower 1 Max Sones
- 5.3
-
Internal Blower 1 Min Sones
- 1.7
-
Lighting Type
- LED
-
Lights Levels
- 2
-
Lights Quantity
- 2
-
Maximum Amperage
- 3
-
Minimum CFM
- 230
-
Mounting Height Above Cooktop In.
- 20 - 32
-
Net Depth In.
- 11.125
-
Net Height In.
- 11.25
-
Net Width In.
- 29.875
-
Nominal Width In.
- 30
-
Primary Material
- Steel
-
Voltage
- 120
-
Warranty Parts Labor
- 3 / 1
-
Wattage
- 360
-
Watts Per Bulb
- 6
-
Weight Lbs.
- 33
