Pisa, UC, 24", Wht+Glass, 290 CFM
Pisa, UC, 24", Wht+Glass, 290 CFM
SKU: SKU: ZPIE24AW290
Shop All Zephyr
Sale price
now
$579
.00
Regular price
$599.00
Unit price
per

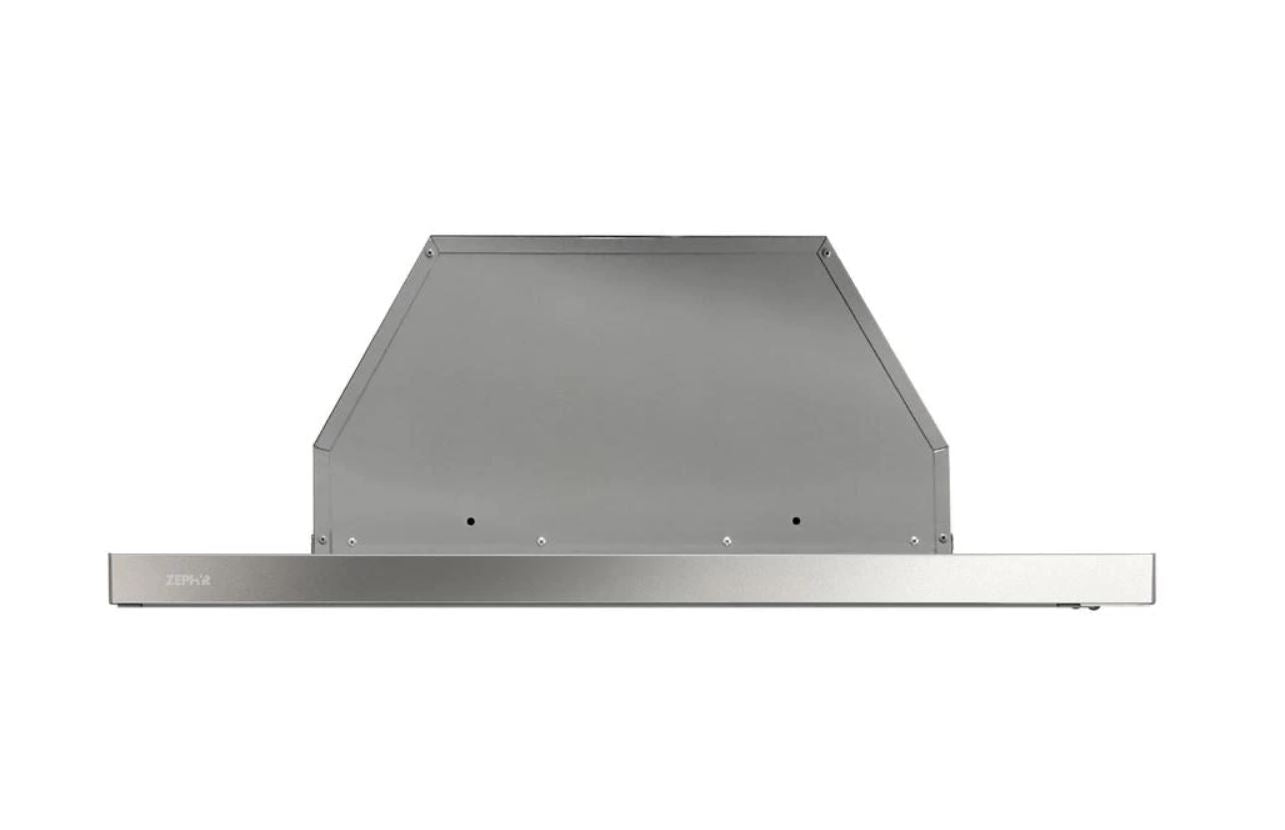

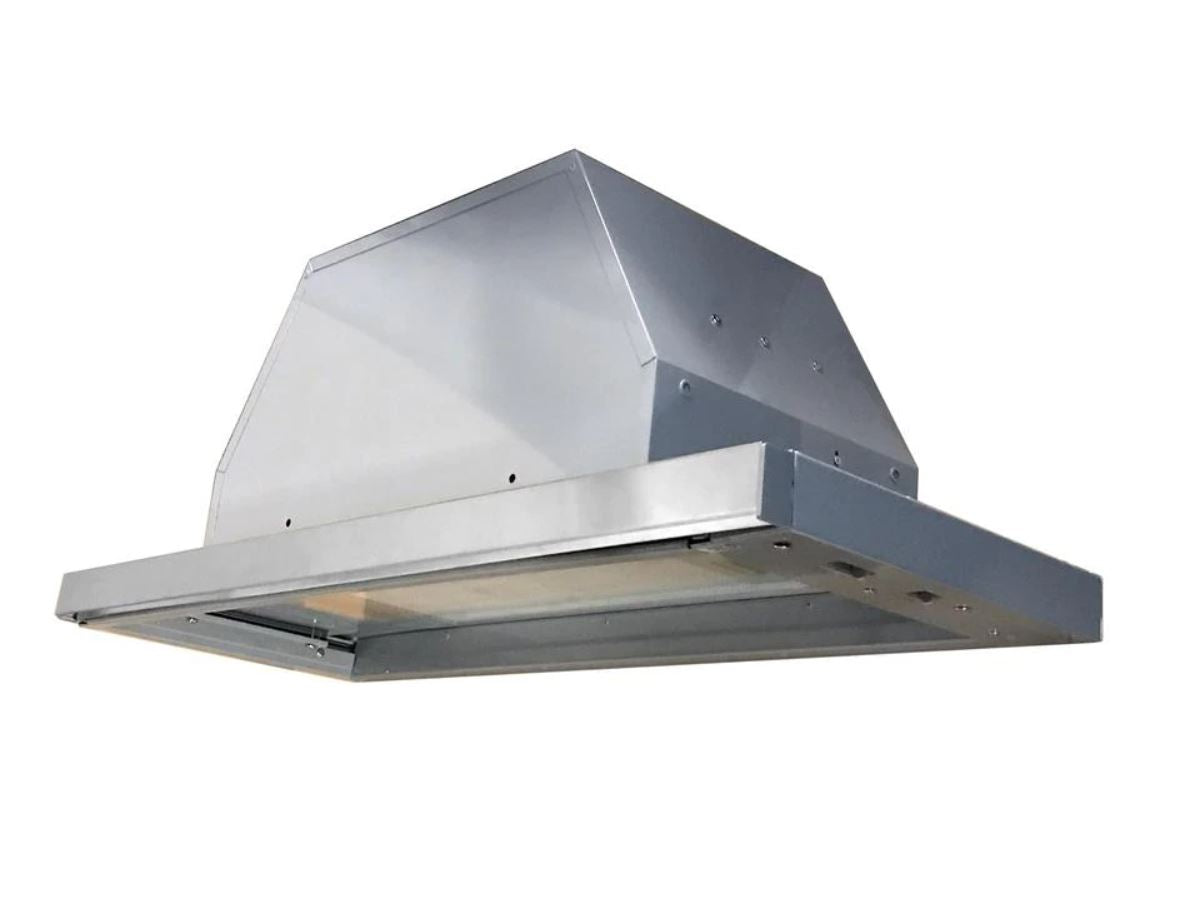

Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Powered by the strength of a 500-CFM or 290-CFM blower, Pisa’s low-profile body delivers stunning design and quality performance. Its retractable visor helps in the capture of air and puts control at your fingertips. Pisa is perfect for kitchens that require a more discreet look.
View full details
Technical Specs
Technical Specs
Overview
Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Powered by the strength of a 500-CFM or 290-CFM blower, Pisa’s low-profile body delivers stunning design and quality performance. Its retractable visor helps in the capture of air and puts control at your fingertips. Pisa is perfect for kitchens that require a more discreet look.
Measurements & Specs
-
Width
- 24.9375 in
-
Height
- 1.5 in
Other Tech Specs
-
Appliance Type
- Range Hood
-
Finish Color
- White
-
Blower Included
- Yes
-
Blower Speeds
- 3
-
CEC Title 20 Compliant
- Yes
-
Ceiling Height Maximum
- 12 Ft.
-
Ceiling Height Minimum
- 8 Ft.
-
Certification
- UL
-
Compatible Appliances
- ZRC 00 PI, Z0B0040, Z0F C0 PI
-
Controls Type
- Mechanical Slide
-
Duct Discharge
- Vertical Or Horizontal
-
Duct Size Vertical In.
- 6
-
Duct Type
- Vertical
-
Duct Type 2
- Horizontal
-
For Outdoor Use
- No
-
Grease Filter Type
- Mesh
-
Installation Type
- Under Cabinet
-
Internal Blower 1 CFM
- 290
-
Internal Blower 1 Max Sones
- 3.2
-
Internal Blower 1 Min. Sones
- 1.3
-
Lighting Type
- Halogen
-
Lights Levels
- 2
-
Lights Quantity
- 2
-
Maximum Amperage
- 1.55
-
Minimum CFM
- 180
-
Mounting Height Above Cooktop In.
- 24 - 32
-
Net Depth In.
- 11.9375 - 18.75
-
Net Height In.
- 1.5
-
Net Width In.
- 24.9375
-
Nominal Width In.
- 24
-
Primary Material
- Steel
-
Voltage
- 120
-
Warranty Parts Labor
- 3 / 1
-
Wattage
- 186
-
Watts Per Bulb
- 50
-
Weight Lbs.
- 26.2
