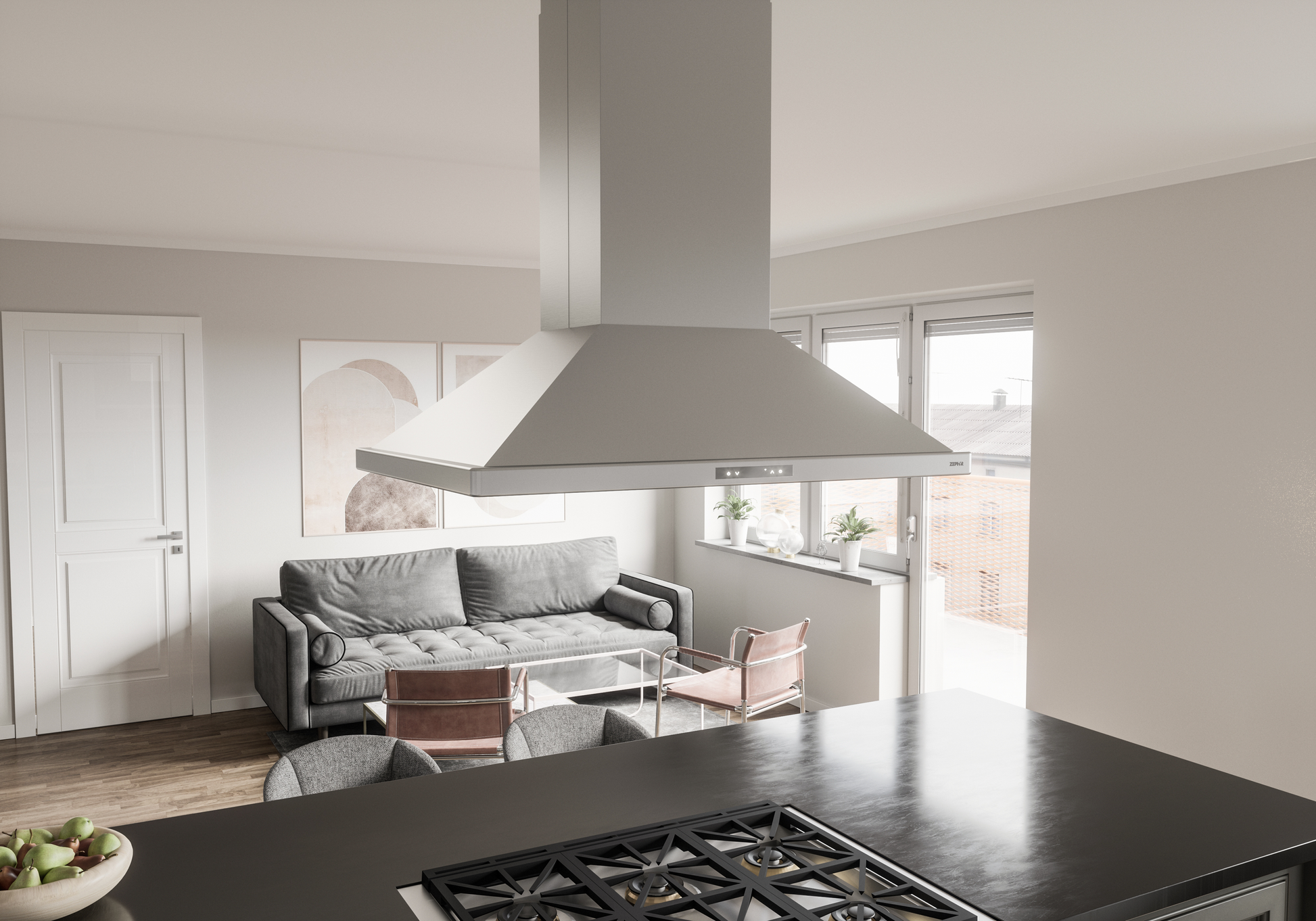

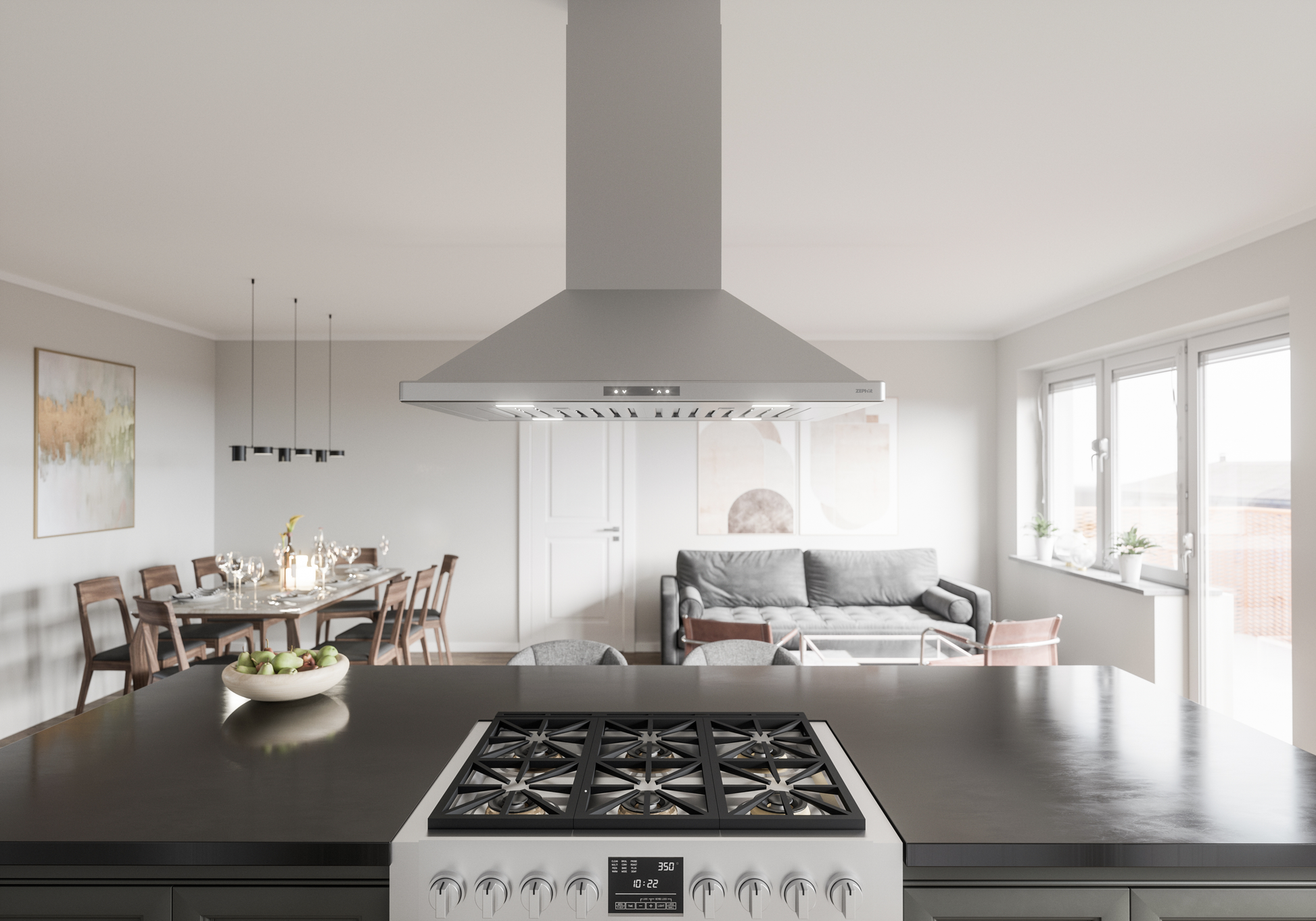

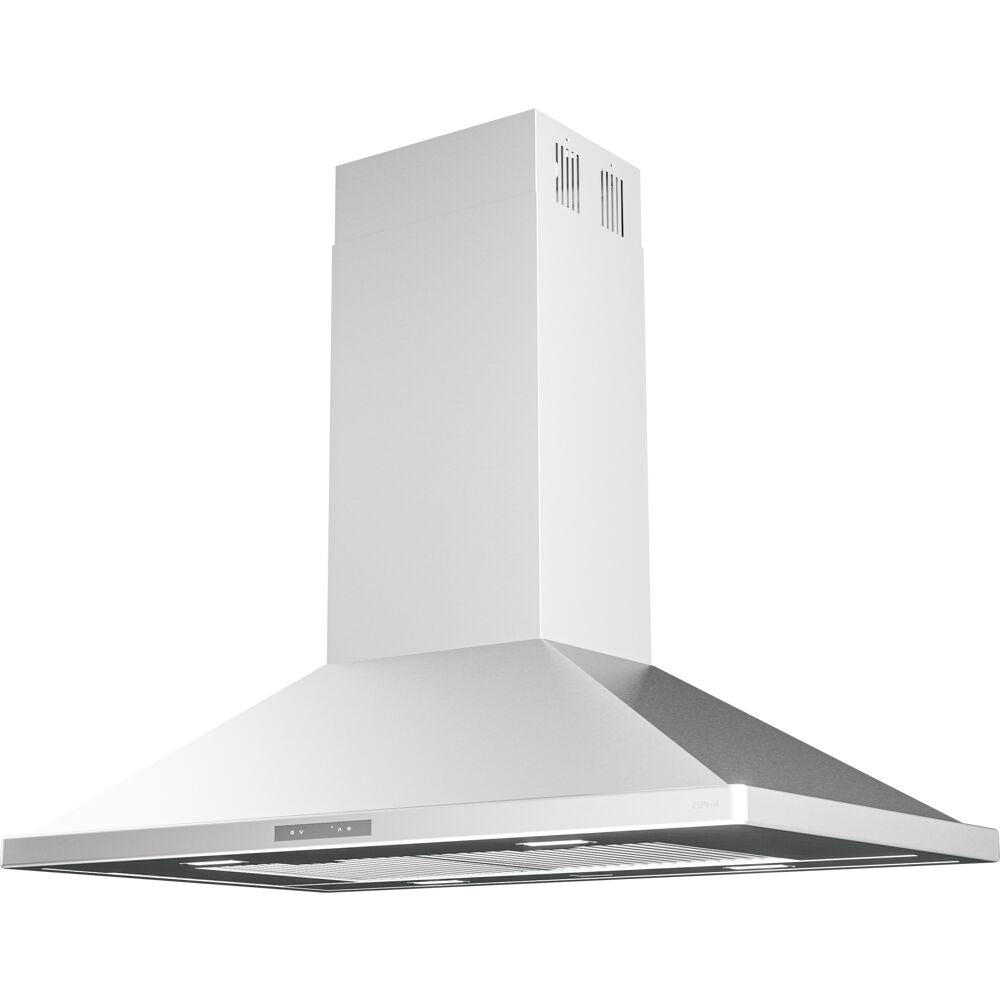

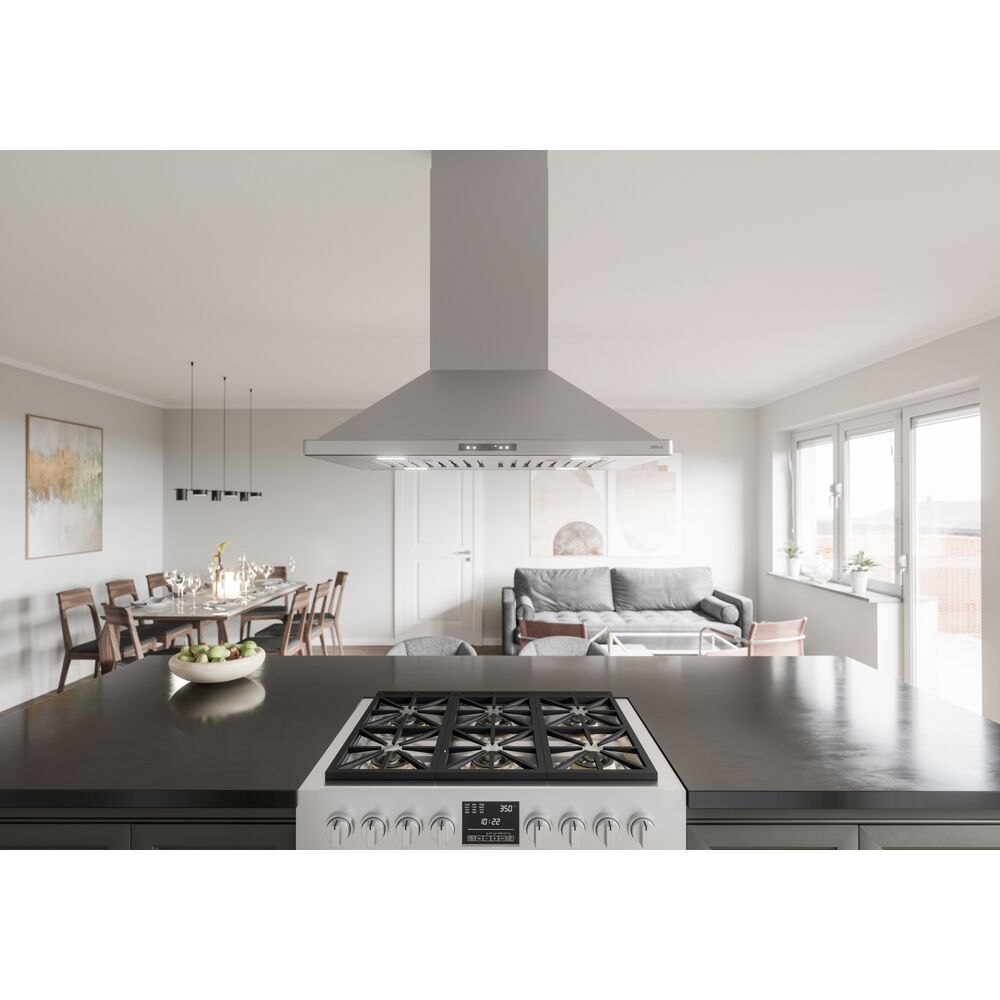

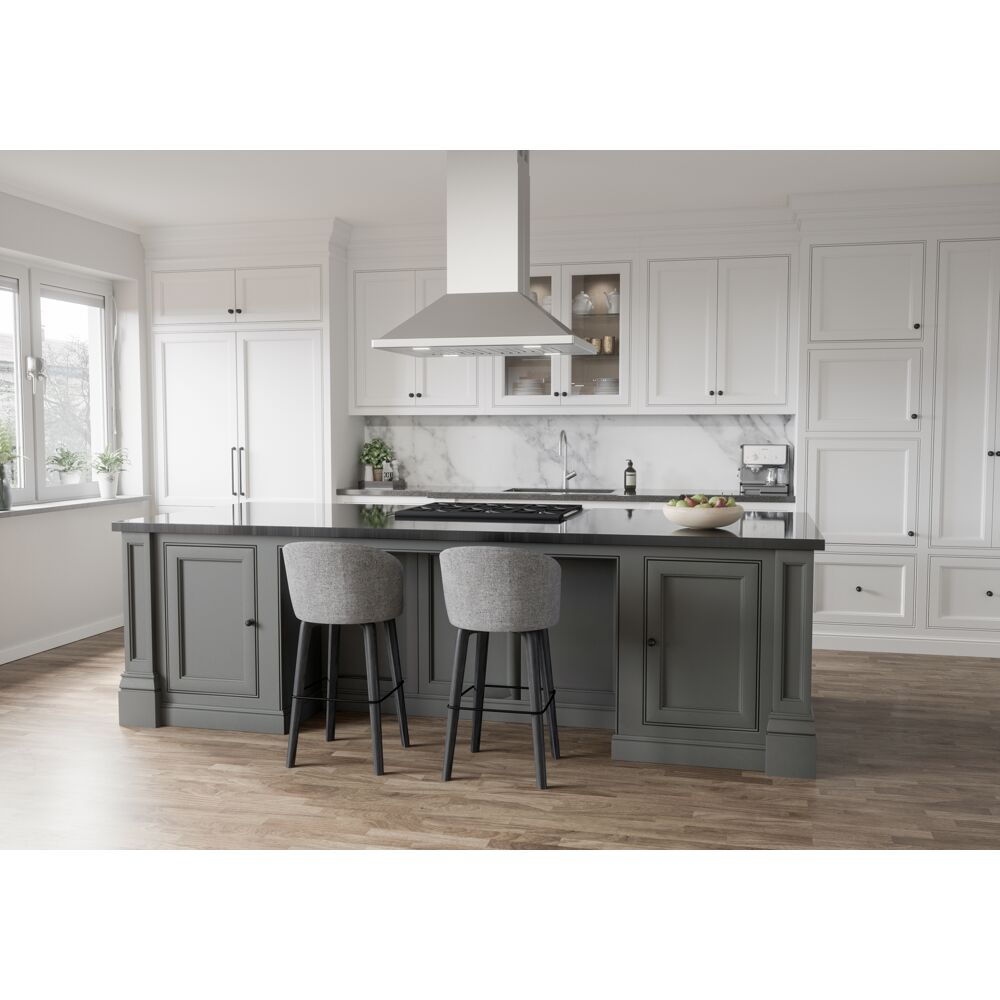

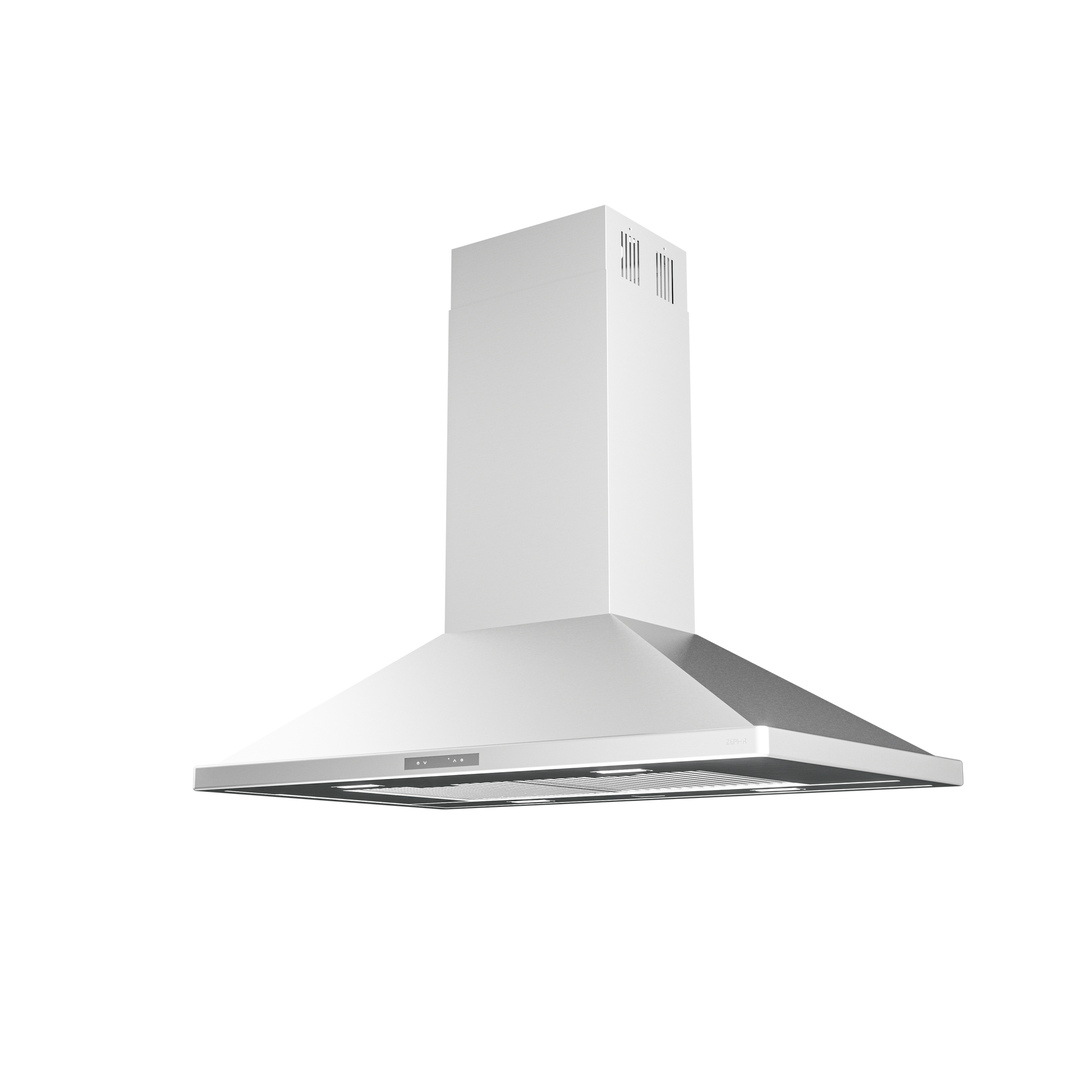

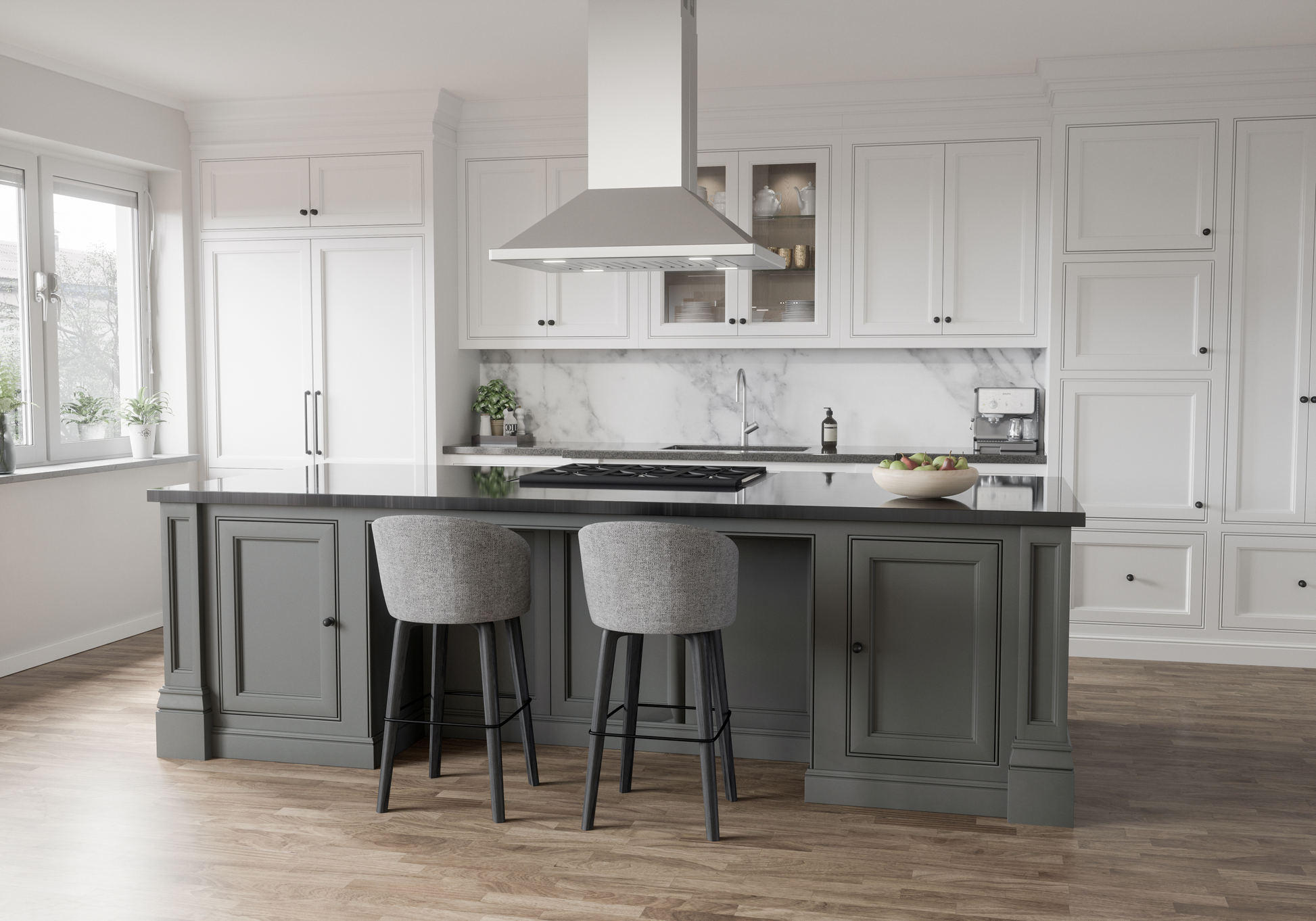

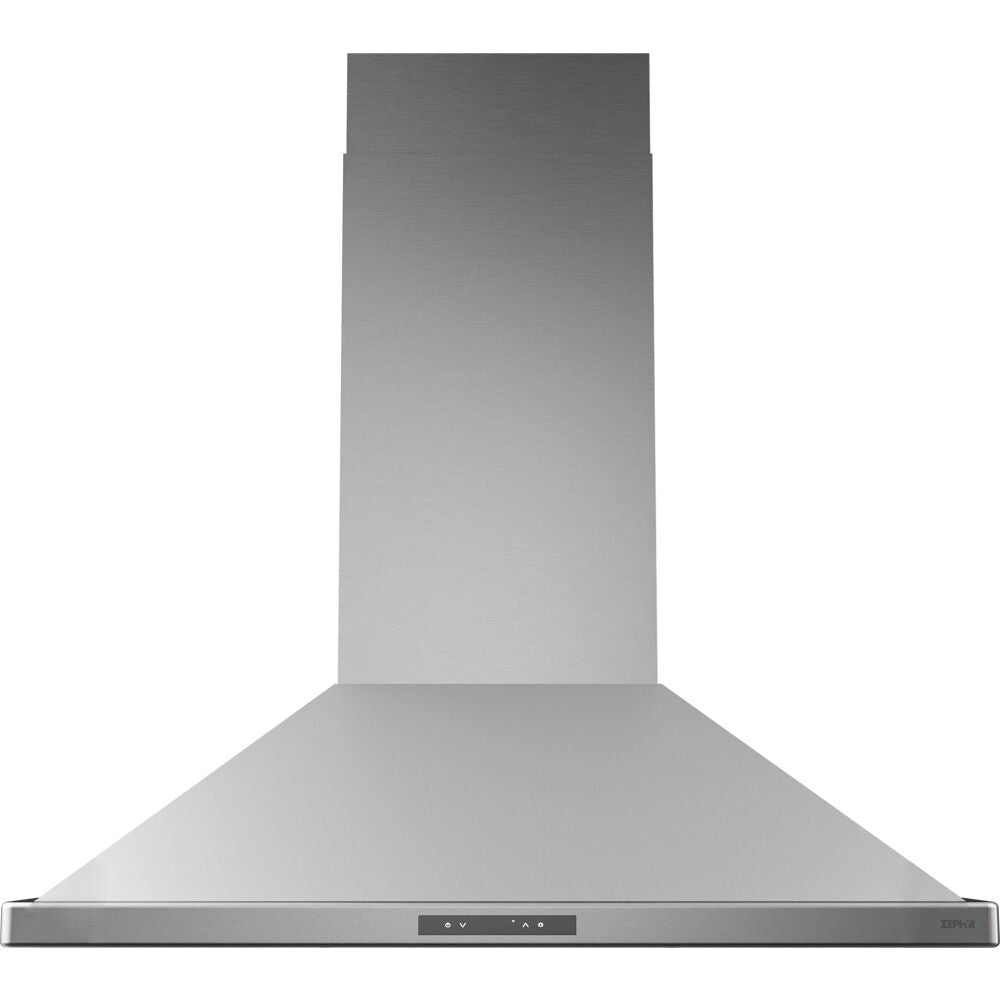

Napoli Connect Island Hood 36" LED AC
Napoli Connect Island Hood 36" LED AC
SKU: SKU: ZNAM90DS
Shop All Zephyr
Sale price
now
$2,499
.00
Regular price
$2,649.00
Unit price
per

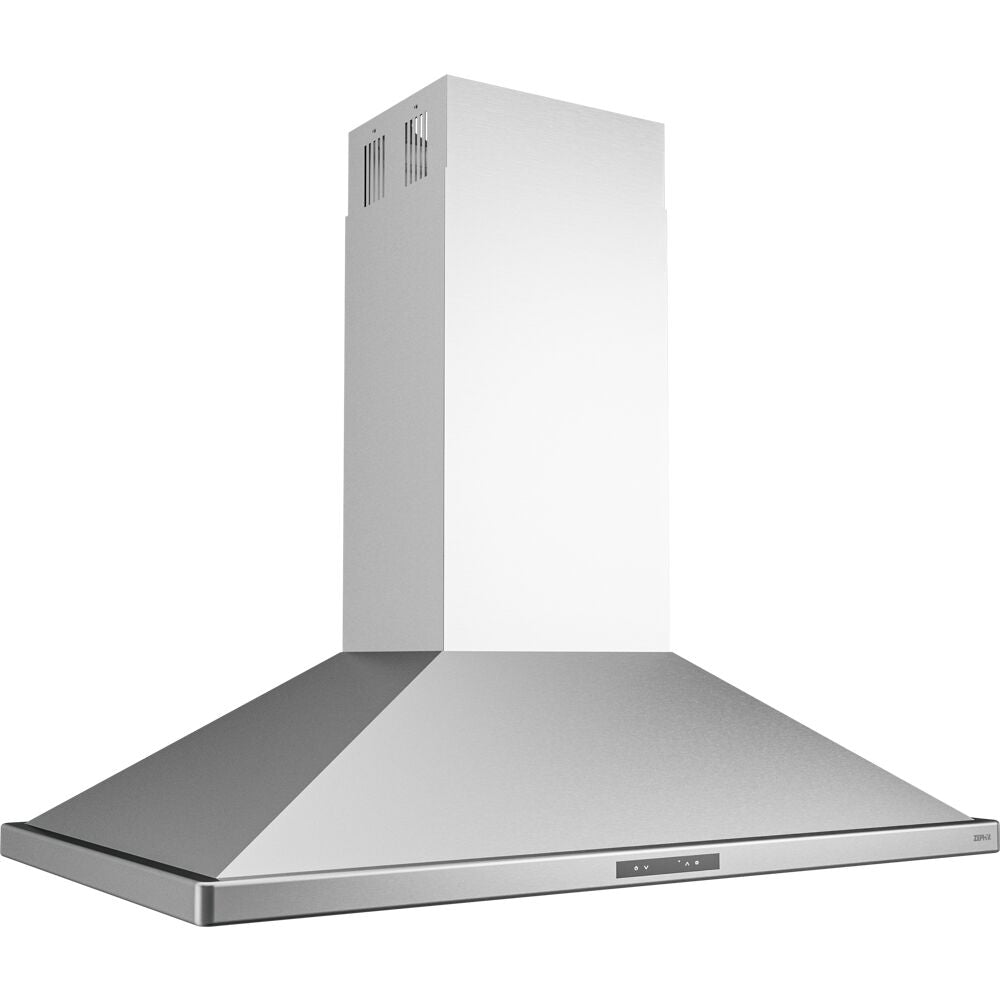

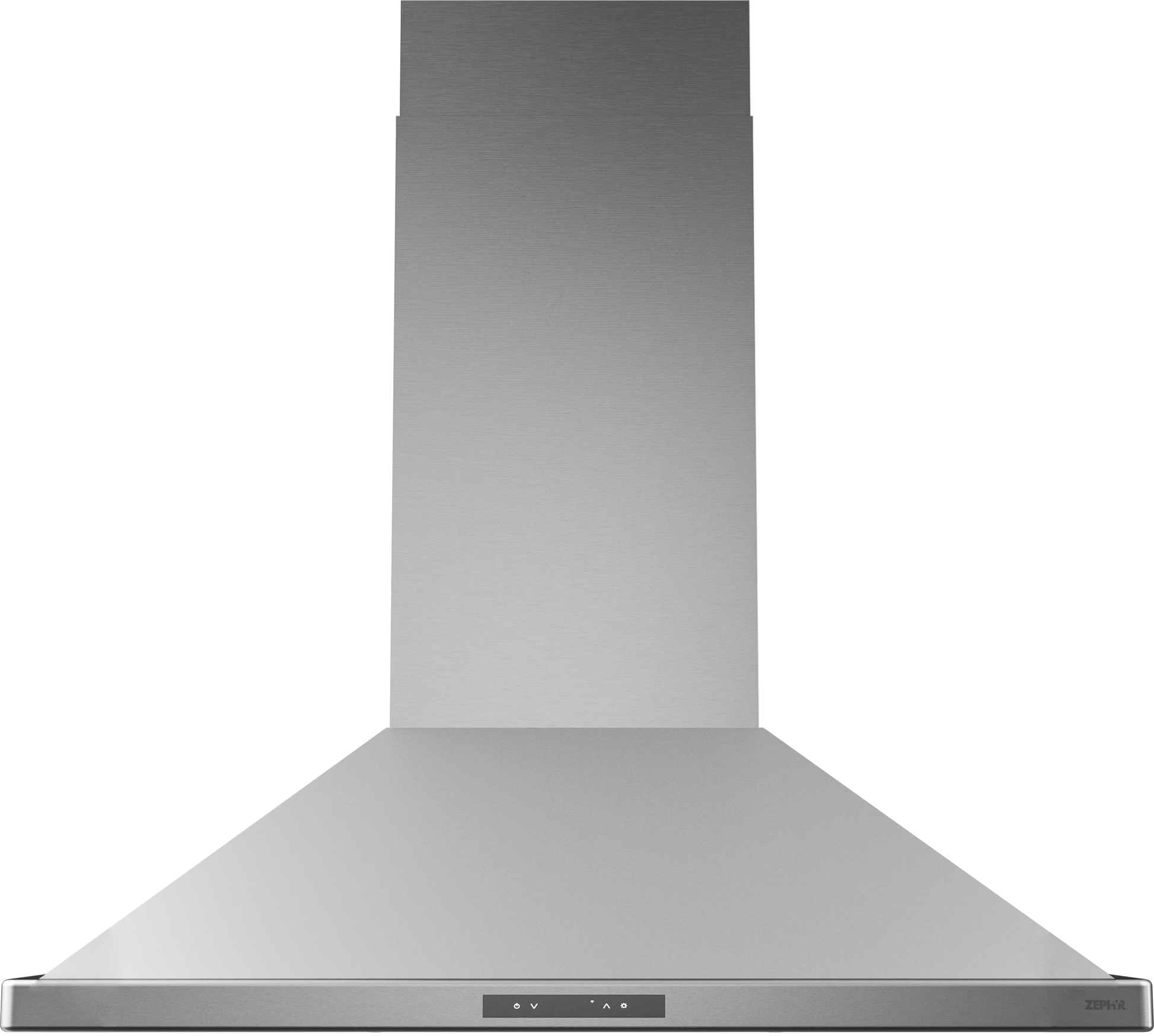

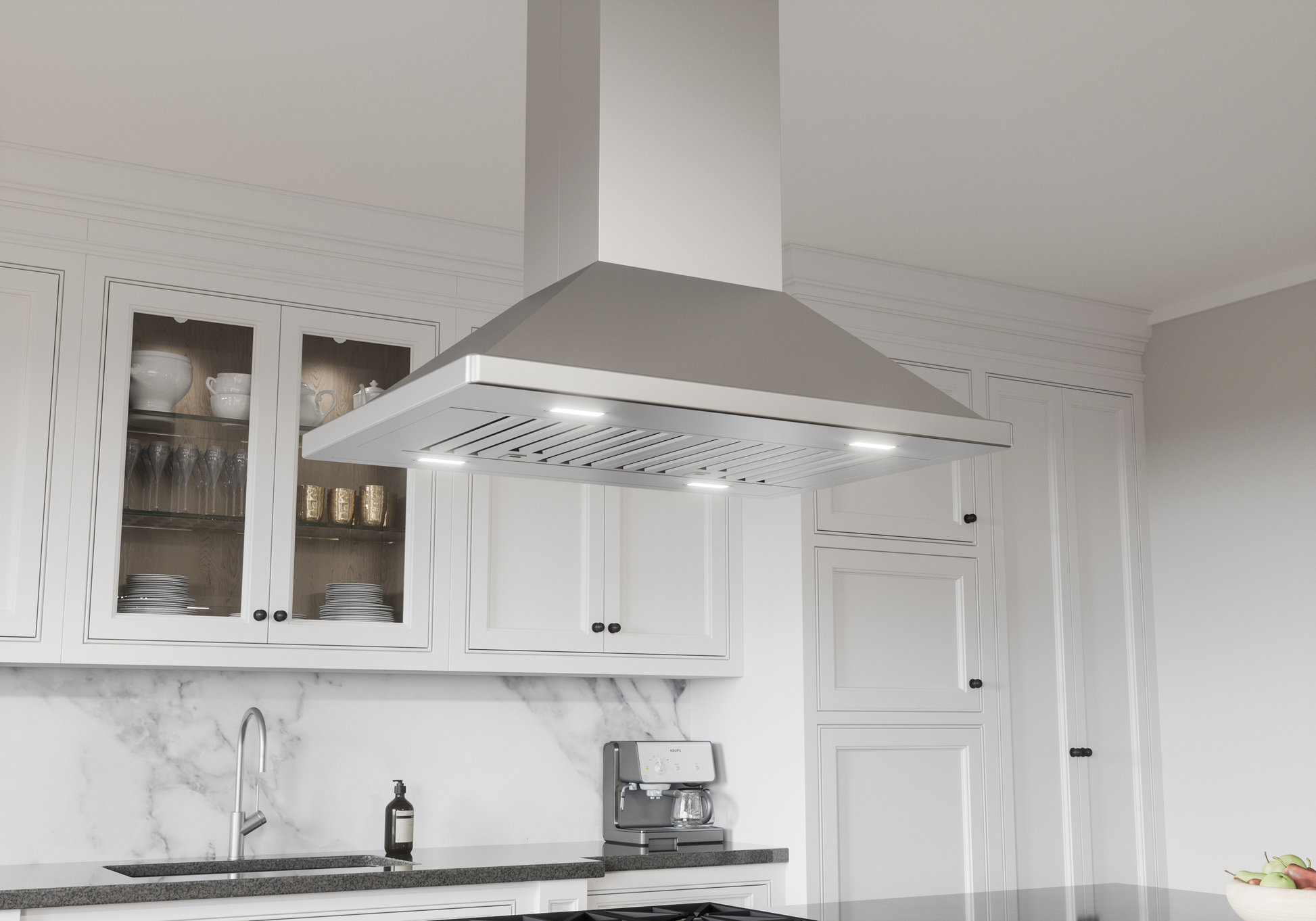

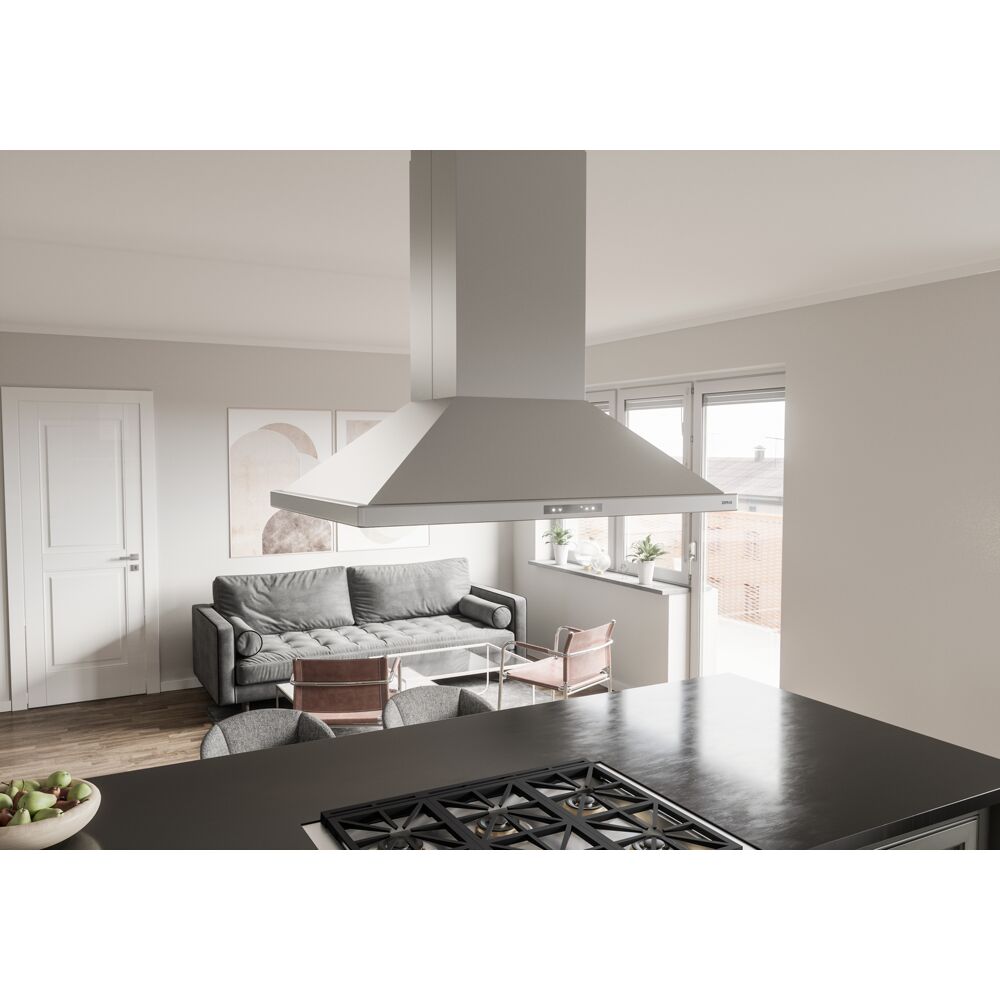

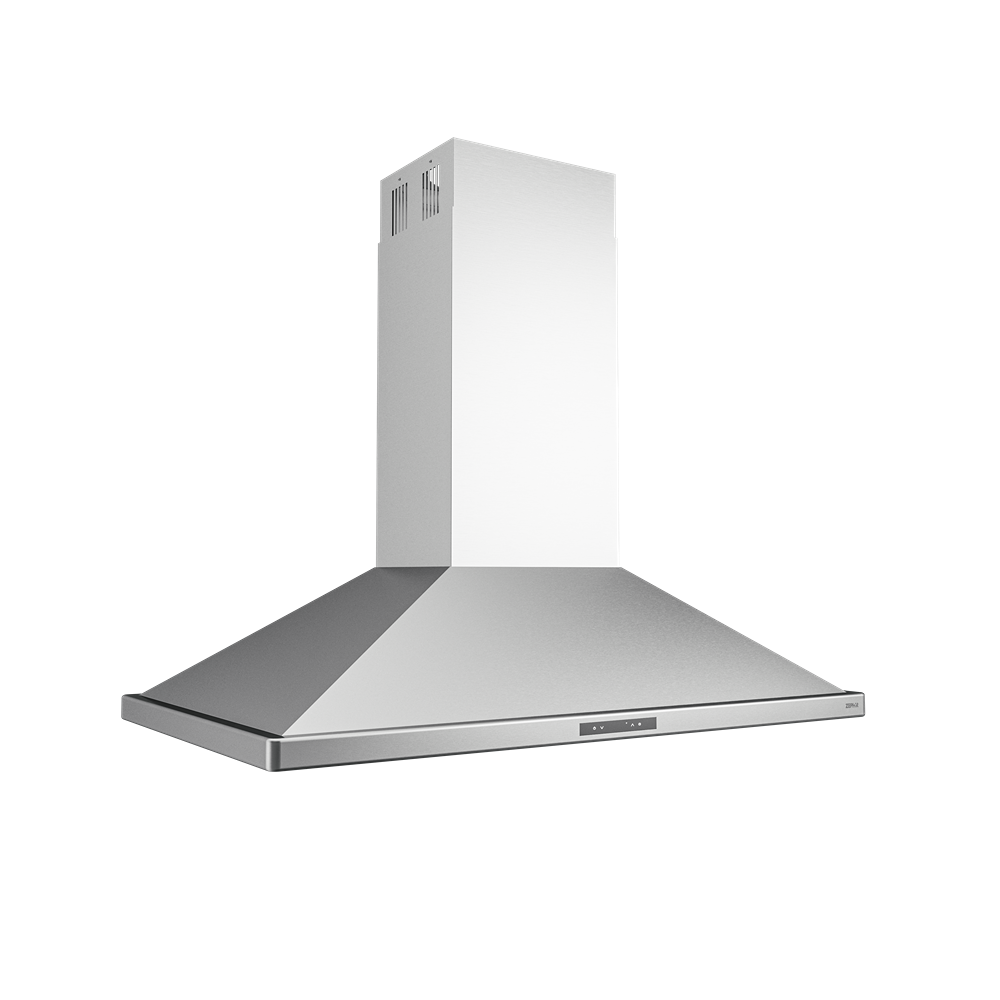

Strong and sophisticated with upward-angled walls, 700-CFM PowerWave blower, Zephyr Connect capabilities, tri-level LumiLight LED lighting, 6-speed Proximity Touch Controls and Quick-Lock Installation System with magnetic duct covers.
View full details
Technical Specs
Technical Specs
Overview
Strong and sophisticated with upward-angled walls, 700-CFM PowerWave blower, Zephyr Connect capabilities, tri-level LumiLight LED lighting, 6-speed Proximity Touch Controls and Quick-Lock Installation System with magnetic duct covers.
Measurements & Specs
-
Width
- {"value":35.5,"unit":"in"}
-
Height
- {"value":32.0,"unit":"in"}
Other Tech Specs
-
Appliance Type
- Range Hood
-
Finish Color
- Stainless Steel
-
ADA Compliant
- Yes with Optional Remote
-
Alexa & Google Home Compatible
- Yes
-
Automatic Delay Off
- Yes
-
Blower CFM w ACT
- 590 390 290
-
Blower Included
- Yes
-
Blower Speeds
- 6
-
CEC Title 20 Compliant
- Yes
-
CEC Title 24 Compliant
- Yes
-
Ceiling Height Maximum
- 10 Ft
-
Ceiling Height Minimum
- 8 Ft
-
Certification
- UL
-
Chimney Depth In
- 9.81
-
Chimney Height In
- 21.5
-
Chimney Width In
- 12.81
-
Clean Air Function
- Yes
-
Clean Filter Alert
- Yes
-
Compatible Appliances
- 14000005 ZRC 03NA Z1C 02NA MUA008A Z0F C091
-
Controls Type
- Proximity Touch
-
Duct Discharge
- Vertical
-
Duct Size Vertical In
- 8
-
Duct Type
- Vertical
-
For Outdoor Use
- No
-
Grease Filter Type
- Hybrid Baffle
-
Installation Type
- Island
-
Internal Blower 1 CFM
- 700
-
Internal Blower 1 Max Sones
- 6
-
Internal Blower 1 Min Sones
- 0.8
-

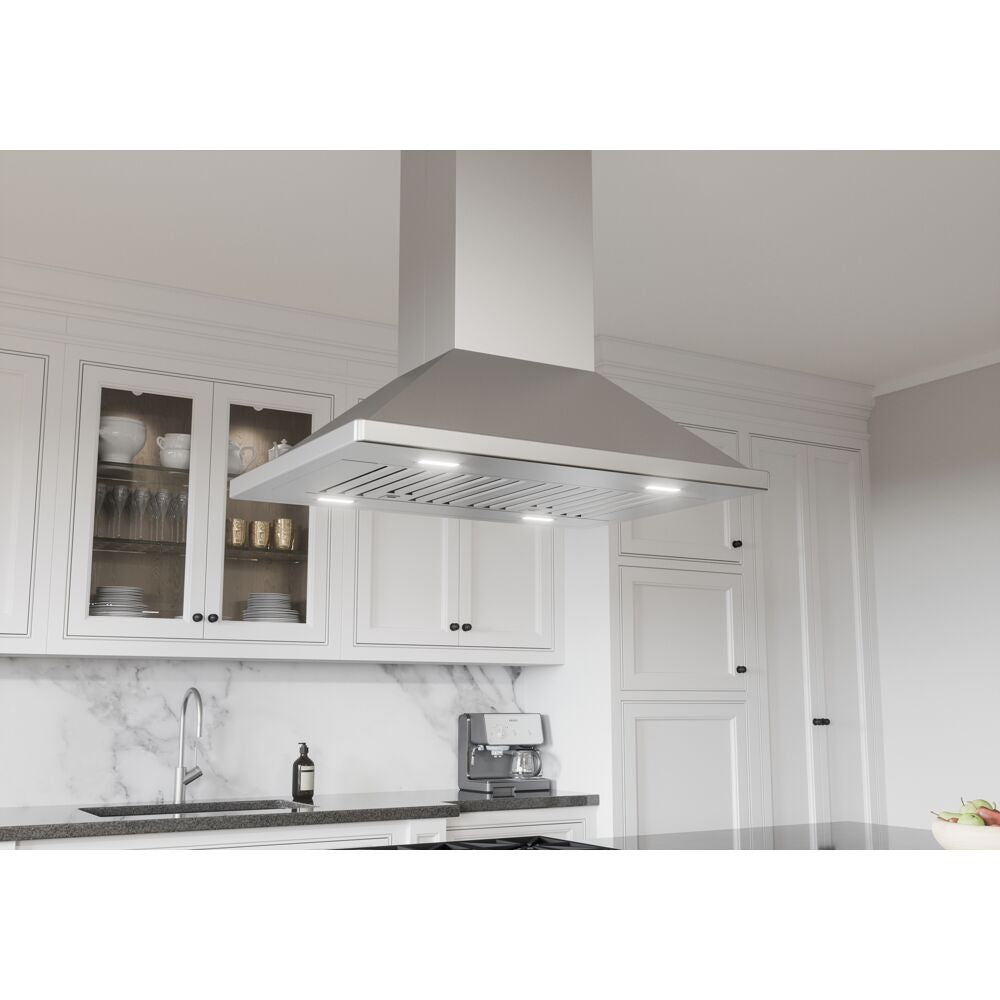

Lighting Type
- LED
-
Lights Levels
- 3
-
Lights Quantity
- 4
-
Maximum Amperage
- 5
-
Minimum CFM
- 200
-
Mounting Height Above Cooktop In
- 24 - 36
-
Net Depth In
- 25.56
-
Net Height In
- 32 - 50
-
Net Width In
- 35.5
-
Nominal Width In
- 36
-
Primary Material
- Stainless Steel
-
Remote Optional
- Yes
-
Voltage
- 120
-
Warranty Parts Labor
- 3 1
-
Wattage
- 600
-
Watts Per Bulb
- 6
-
Weight Lbs
- 70
-
Wi Fi Connected
- Yes
