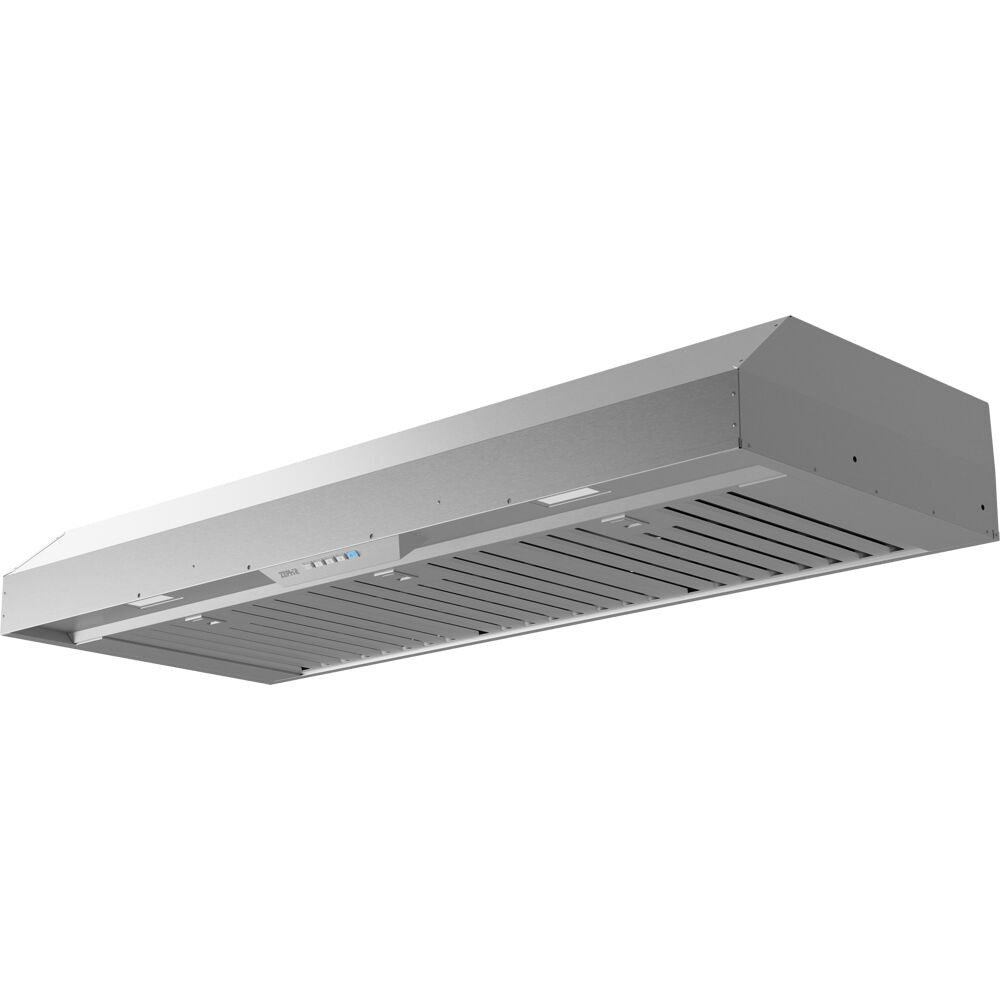

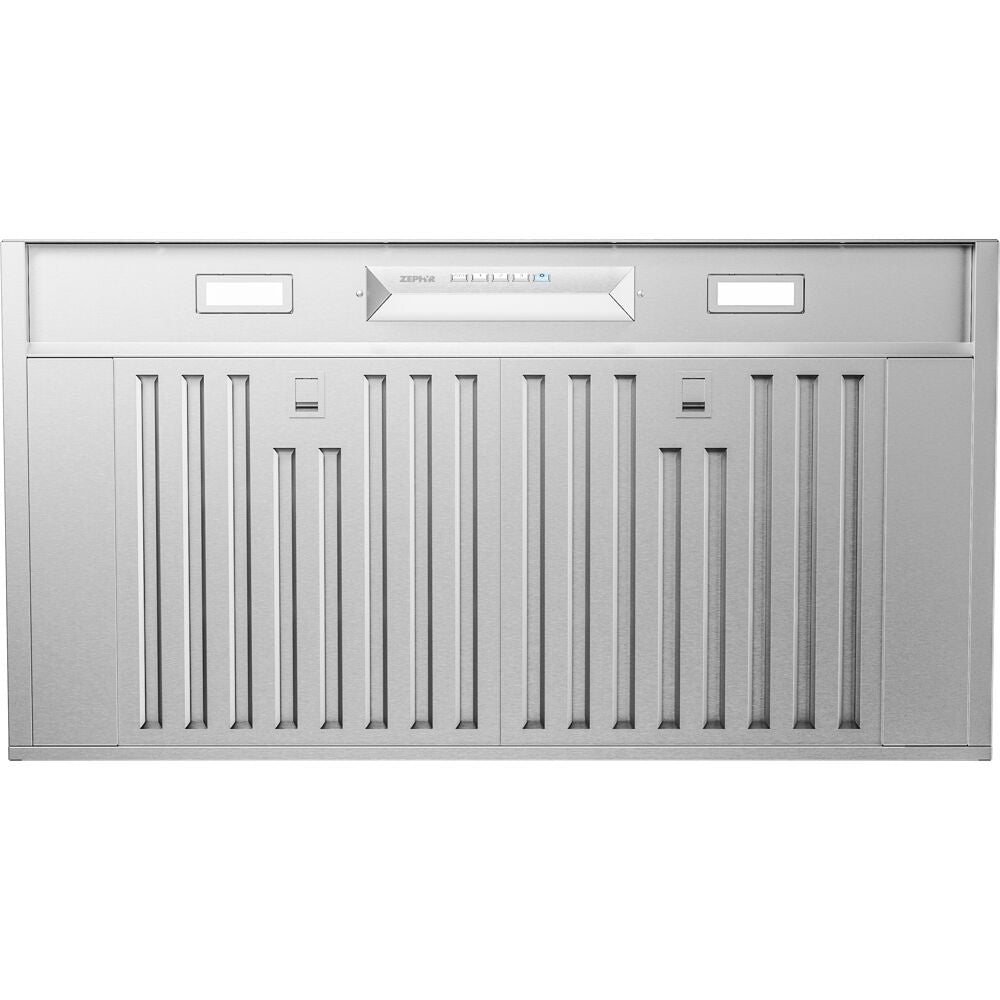

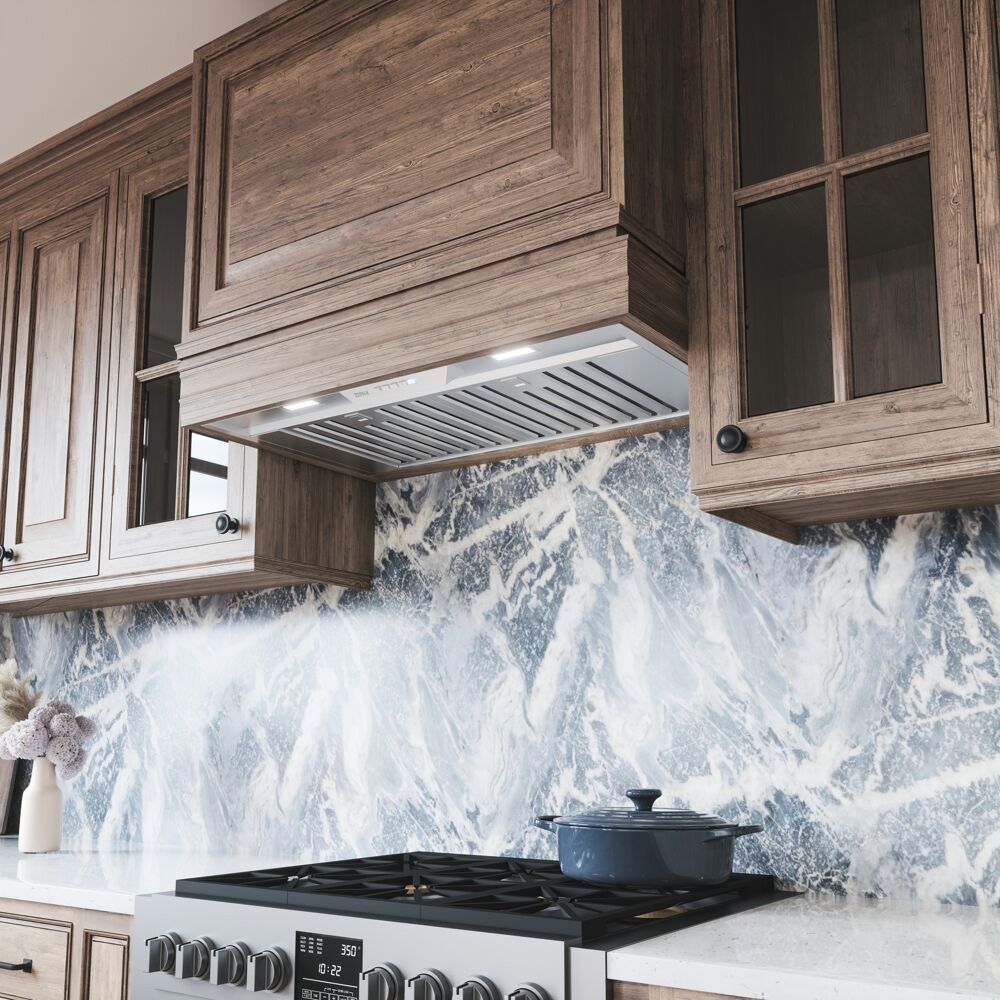

Monsoon Mini II Insert Hood 36" LED ACT
Monsoon Mini II Insert Hood 36" LED ACT
SKU: SKU: AK9534AS
Shop All Zephyr
Sale price
now
$999
.00
Regular price
$1,099.00
Unit price
per

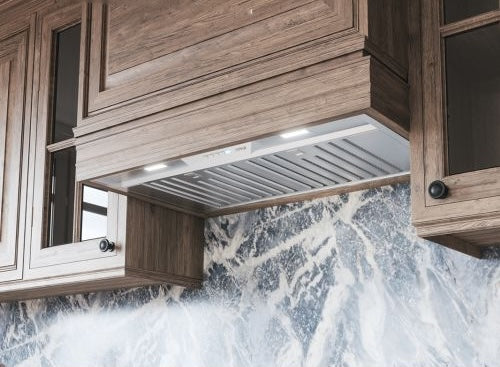

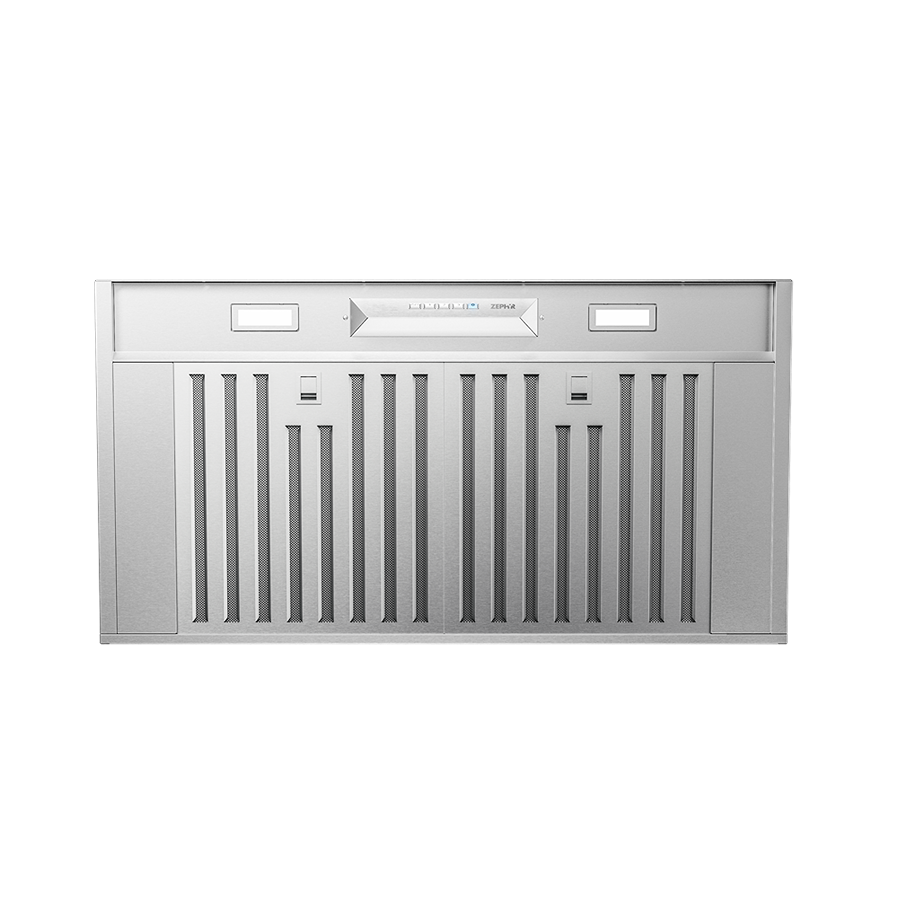

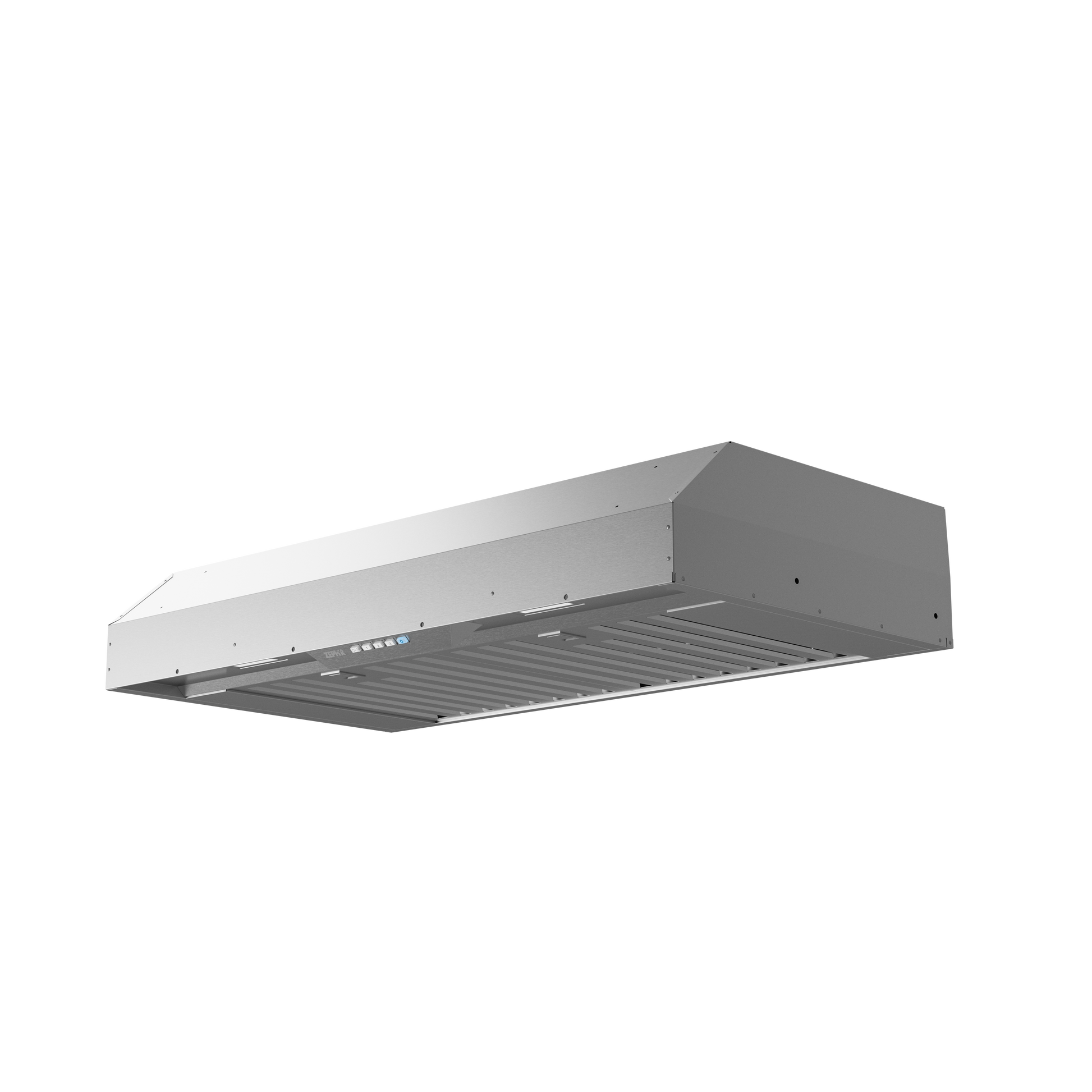

36-Inch Monsoon Mini II insert hood with LED and ACT, Stainless. A quiet storm of air clearing power in a designer package, the Monsoon Mini II gets the job done with features like 600 CFM blower, hybrid baffle filters, Airflow Control Technology, and dual-level LumiLight LED lighting.
View full details
Technical Specs
Technical Specs
Overview
36-Inch Monsoon Mini II insert hood with LED and ACT, Stainless. A quiet storm of air clearing power in a designer package, the Monsoon Mini II gets the job done with features like 600 CFM blower, hybrid baffle filters, Airflow Control Technology, and dual-level LumiLight LED lighting.
Measurements & Specs
-
Width
- 34.375 in
-
Height
- 6.125 in
Other Tech Specs
-
Finish Color
- Stainless Steel
-
Range Hood Type
- Cabinet Insert
-
Appliance Type
- Range Hood
-
Manufacturer Part Number
- Ak9534As
-
Automatic Delay Off
- Yes
-
Blower Included
- Yes
-
Blower Speeds
- 3
-
CEC Title 20 Compliant
- Yes
-
CEC Title 24 Compliant
- Yes
-
Ceiling Height Maximum
- 12 Ft.
-
Ceiling Height Minimum
- 8 Ft.
-
Certification
- Ul
-
Clean Filter Alert
- Yes
-
Compatible Appliances
- Zrc 9100A, Z0F C091, Ak00067, Mua006A
-
Controls Type
- Electronic
-
Cutout Depth In.
- 18
-
Cutout Width In.
- 34.5
-
Duct Discharge
- Vertical Or Horizontal
-
Duct Size Horizontal In.
- 3.25 X 10
-
Duct Size Vertical In.
- 7, 3.25 X 10
-
Duct Type
- Vertical
-
Duct Type 2
- Horizontal
-
For Outdoor Use
- No
-
Grease Filter Type
- Hybrid Baffle
-
Installation Type
- Insert
-
Internal Blower 1 Cfm
- 600
-
Internal Blower 1 Max Sones
- 6
-
Internal Blower 1 Min. Sones
- 1.4
-
Lighting Type
- Led
-
Lights Levels
- 2
-
Lights Quantity
- 2
-
Maximum Amperage
- 2
-
Minimum Cfm
- 200
-
Mounting Height Above Cooktop In.
- 24 - 34
-
Net Depth In.
- 17.875
-
Net Height In.
- 6.125
-
Net Width In.
- 34.375
-
Nominal Width In.
- 36
-
Primary Material
- Stainless Steel
-
Voltage
- 120
-
Warranty Parts / Labor
- 3 / 1
-
Wattage
- 240
-
Watts Per Bulb
- 6
-
Weight Lbs.
- 33.5
