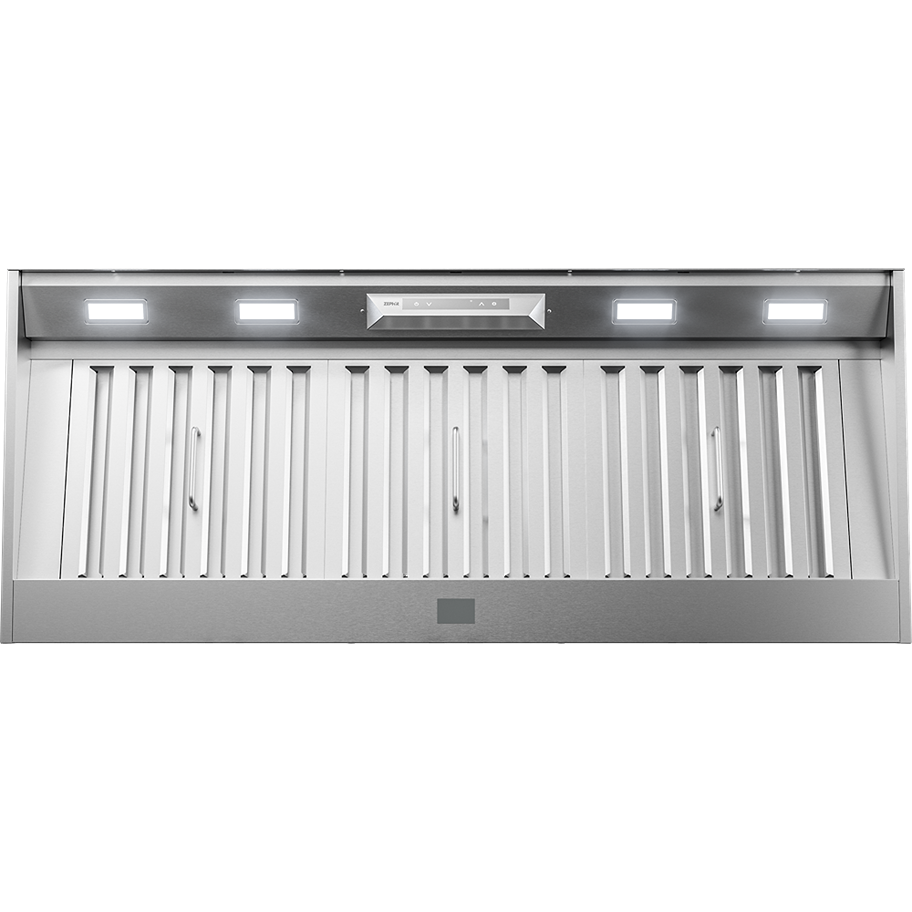

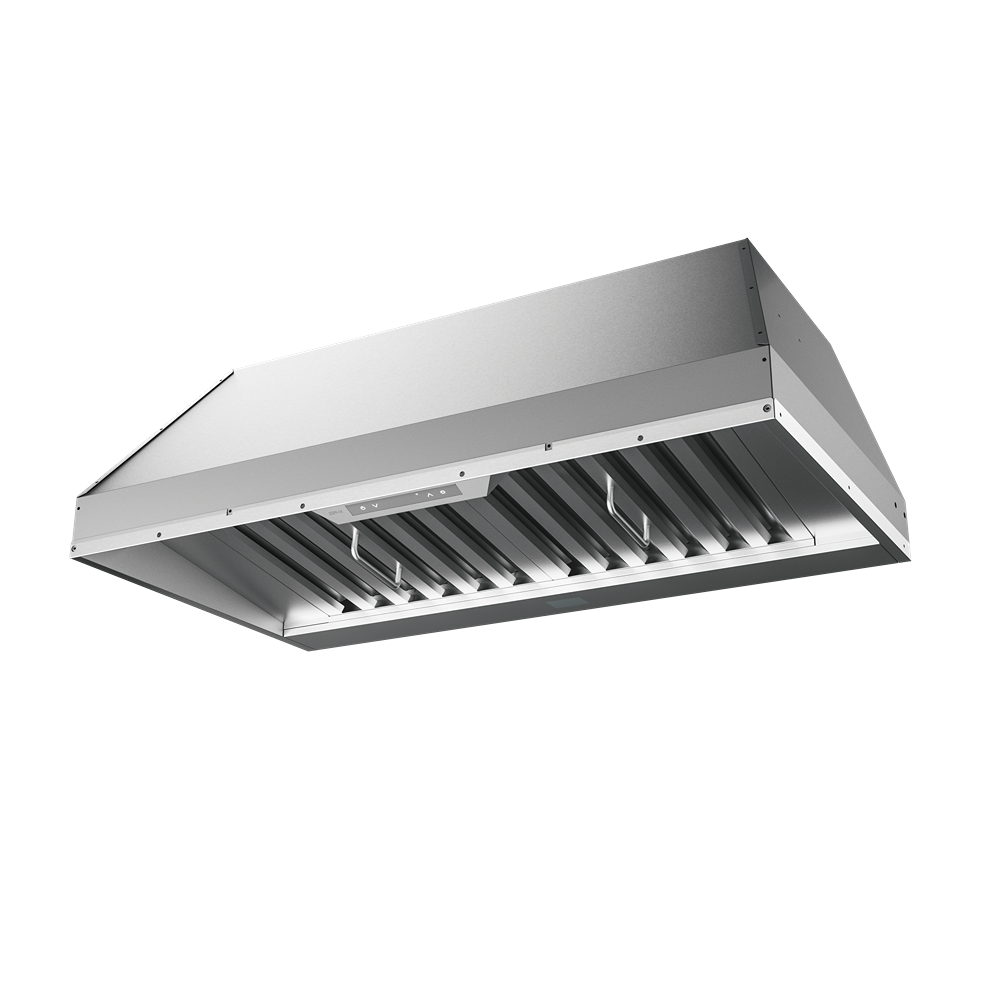

Monsoon Connect Insert Hood 48" LED
Monsoon Connect Insert Hood 48" LED
SKU: SKU: AK9446BS
Shop All Zephyr
Sale price
now
$1,899
.00
Regular price
$1,999.00
Unit price
per
Monsoon Connect is unique in the marketplace. Optional dual 290, 390, 590, 700, or 1300 CFM PowerWave blowers and stainless steel baffle filters make for a powerful, performance-driven range hood insert that is easy to clean. With a wireless remote-control option and Zephyr Connect, our most advanced operation system makes the Monsoon Connect the most quiet and energy efficient, one-piece liner available today. Dual blowers available on the 36-inch, 42-inch and 48-inch models. Control your range hood from anywhere using your mobile device with the Zephyr Connect App. Get real time diagnostics and product information, and connect to smart devices such as Amazon Alexa or Google Home smart speakers. Download on mobile from the Apple App Store and Google Play today.
View full details
Technical Specs
Technical Specs
Overview
Monsoon Connect is unique in the marketplace. Optional dual 290, 390, 590, 700, or 1300 CFM PowerWave blowers and stainless steel baffle filters make for a powerful, performance-driven range hood insert that is easy to clean. With a wireless remote-control option and Zephyr Connect, our most advanced operation system makes the Monsoon Connect the most quiet and energy efficient, one-piece liner available today. Dual blowers available on the 36-inch, 42-inch and 48-inch models. Control your range hood from anywhere using your mobile device with the Zephyr Connect App. Get real time diagnostics and product information, and connect to smart devices such as Amazon Alexa or Google Home smart speakers. Download on mobile from the Apple App Store and Google Play today.
Measurements & Specs
-
Width
- {"value":46.375,"unit":"in"}
-
Height
- {"value":12.0,"unit":"in"}
Other Tech Specs
-
Finish Color
- Stainless Steel
-
Appliance Type
- Range Hood
-
ADA Compliant
- Yes With Optional Remote
-
Alexa And Google Home Compatible
- Yes
-
Automatic Delay-Off
- Yes
-
Blower CFM With ACT
- 590 390 290
-
Blower Included
- Yes
-
Blower Speeds
- 6
-
CEC Title 20 Compliant
- Yes
-
CEC Title 24 Compliant
- Yes
-
Ceiling Height Maximum
- 12 Ft.
-
Ceiling Height Minimum
- 8 Ft.
-
Certification
- UL
-
Clean Air Function
- Yes
-
Clean Filter Alert
- Yes
-
Compatible Appliances
- 14000005 PBD-1300B MUA008A MUA010A
-
Controls Type
- Proximity Touch
-
Cutout Depth In.
- 19.625
-
Cutout Width In.
- 46.5
-
Duct Discharge
- Vertical Or Horizontal
-
Duct Size Horizontal In.
- 8
-
Duct Size Vertical In.
- 8
-
Duct Type
- Vertical
-
Duct Type 2
- Horizontal
-
Grease Filter Type
- Pro Baffle
-
Installation Type
- Insert
-
Internal Blower 1 CFM
- 700
-
Internal Blower 1 Max Sones
- 6
-
Internal Blower 1 Min Sones
- 0.8
-
Internal Blower 2 CFM
- 1300
-
Lighting Type
- LED
-
Lights Levels
- 3
-
Lights Quantity
- 4
-
Maximum Amperage
- 5
-
Minimum CFM
- 200
-
Mounting Height Above Cooktop In.
- 24 - 36
-
Net Depth In.
- 19.25
-
Net Height In.
- 12
-
Net Width In.
- 46.375
-
Nominal Width In.
- 48
-
Primary Material
- Stainless Steel
-
Remote Included
- Yes
-
Voltage
- 120
-
Warranty Parts Labor
- 3 / 1
-
Wattage
- 600
-
Watts Per Bulb
- 6
-
Weight Lbs.
- 57
-
Wi-Fi Connected
- Yes
