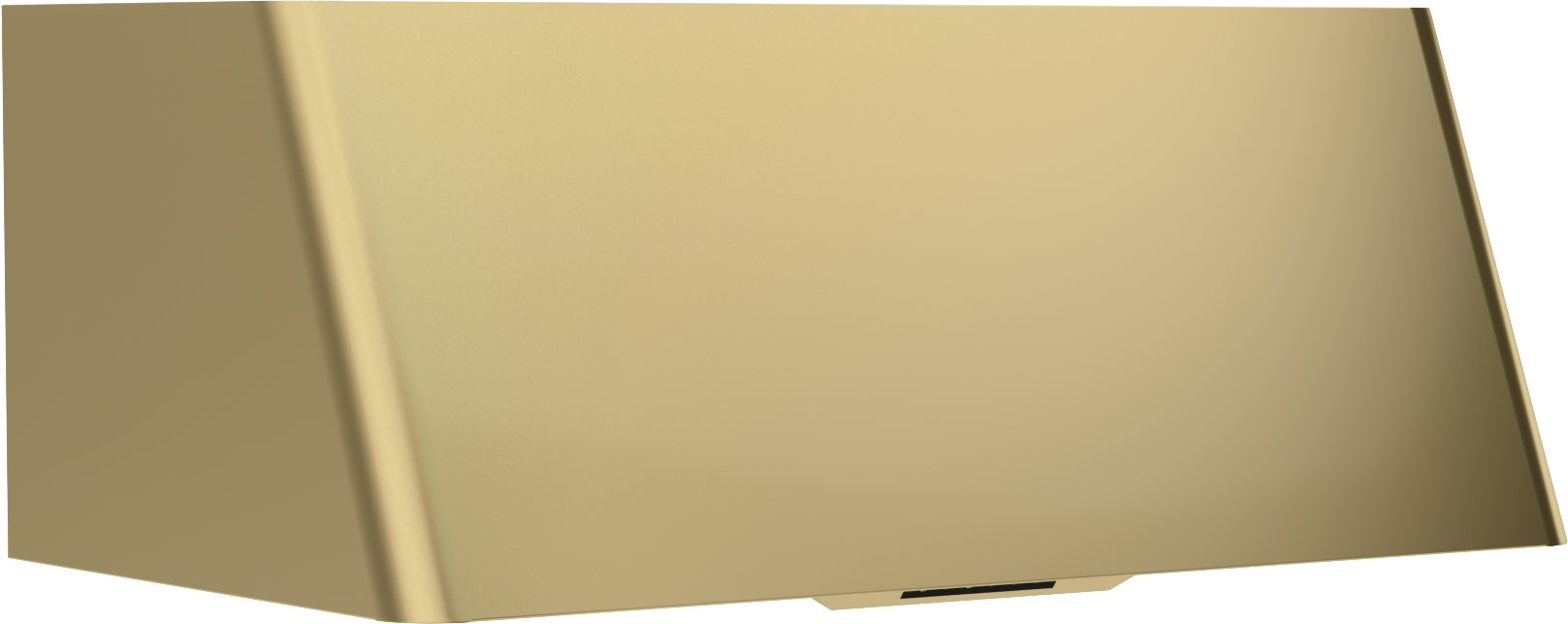

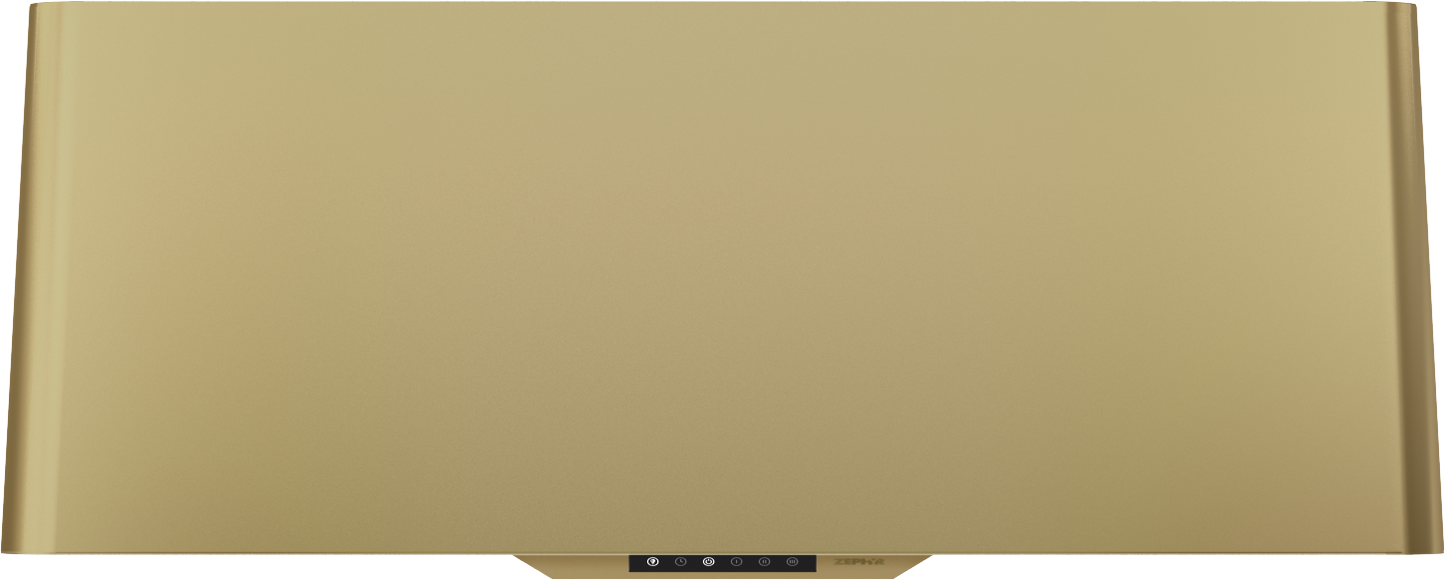

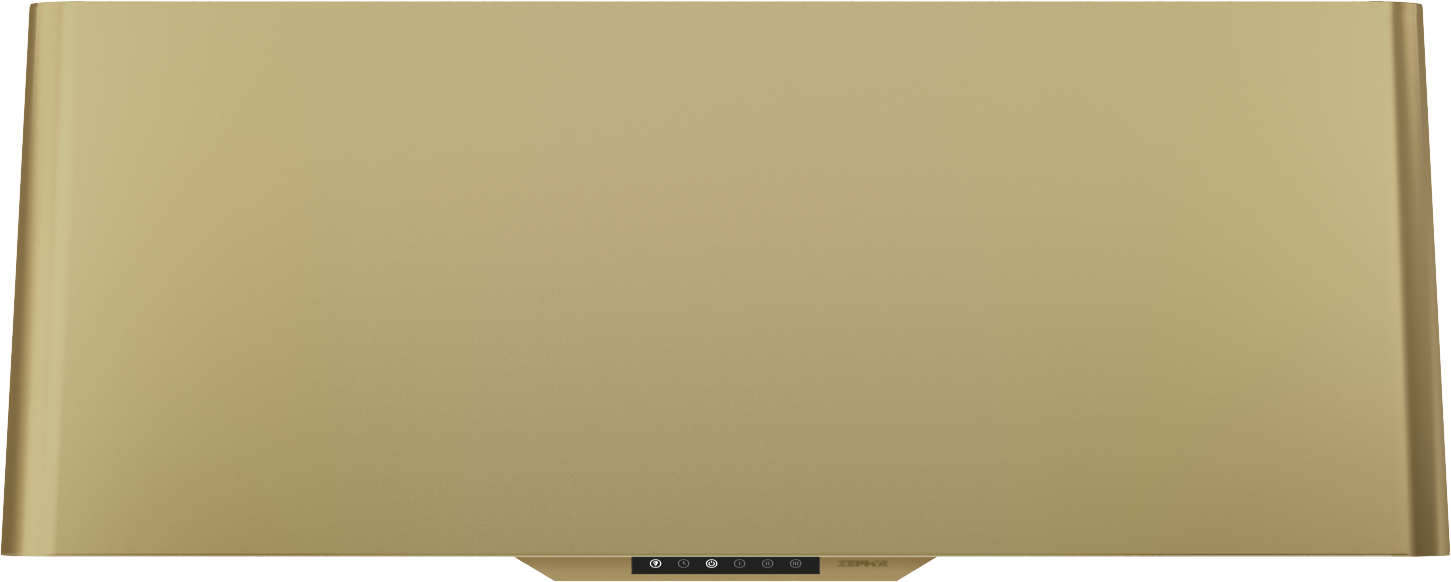

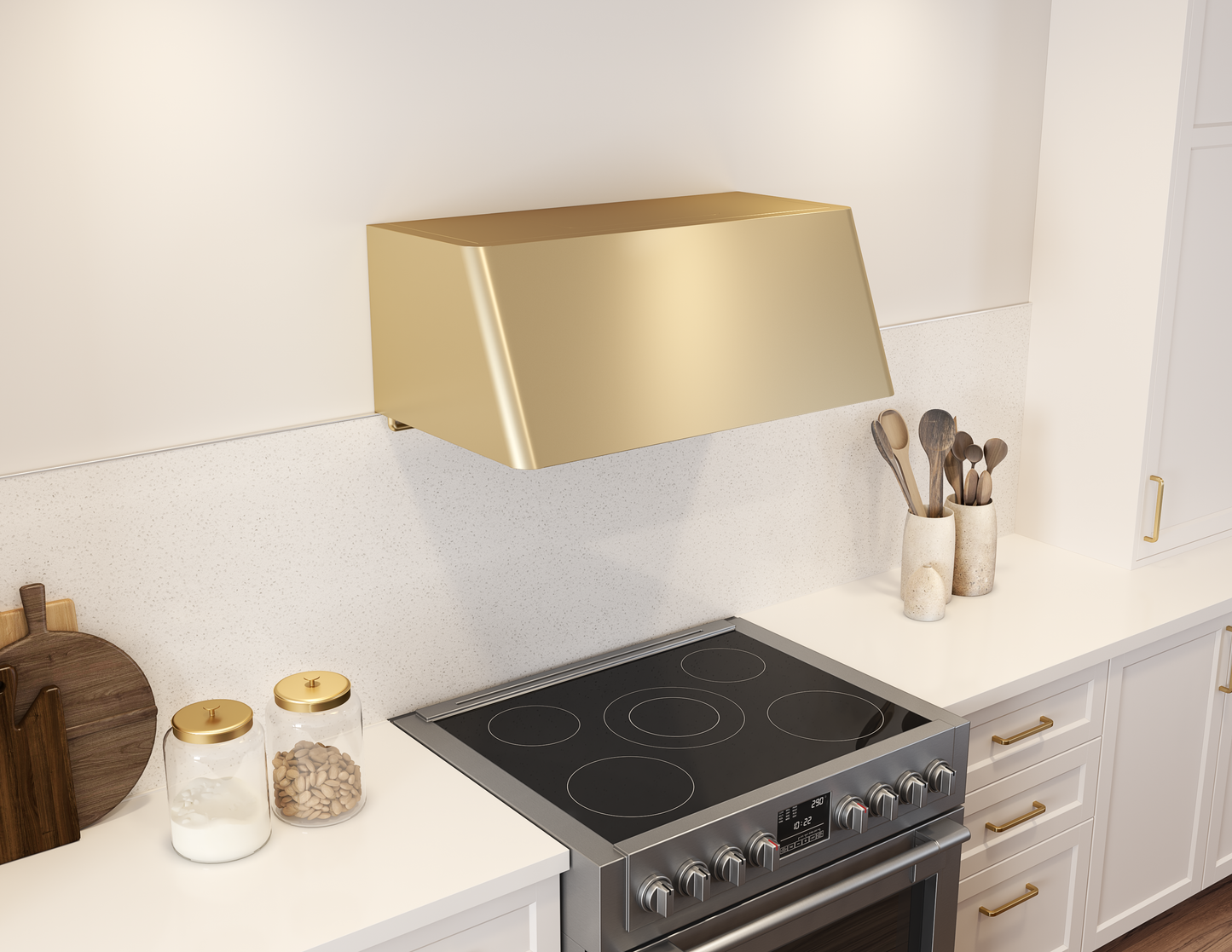

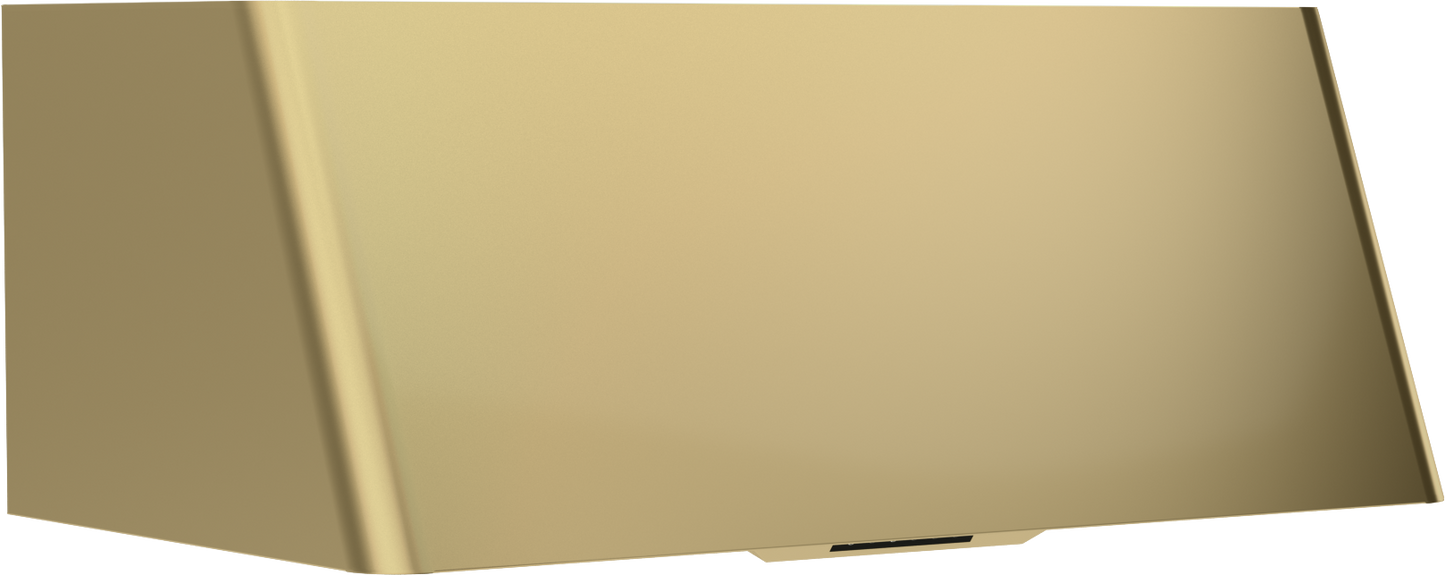

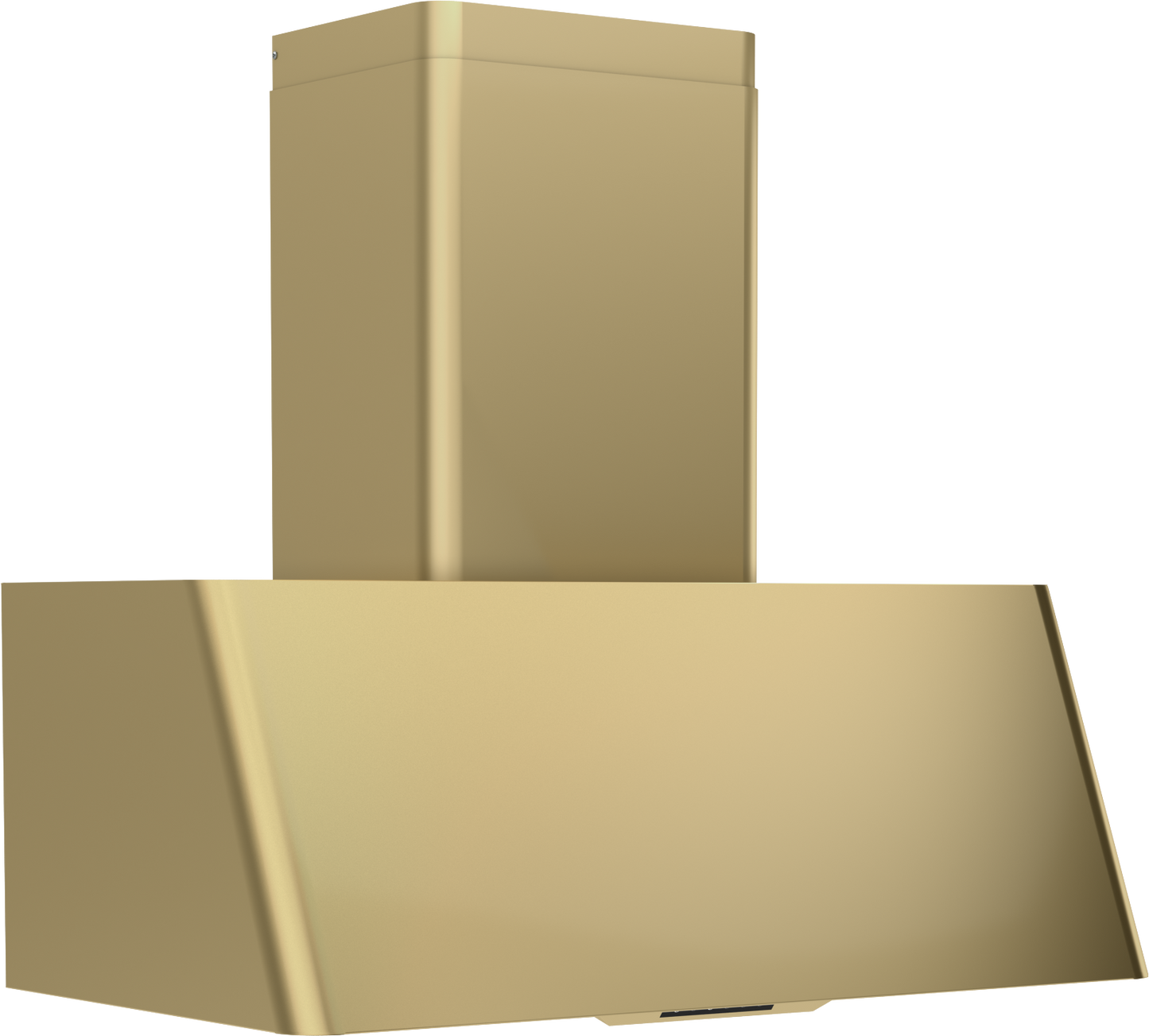

Mesa Wall Hood 36" BODY ONLY
Mesa Wall Hood 36" BODY ONLY
SKU: SKU: DMEM90ASGX
Shop All Zephyr
Sale price
now
$2,099
.00
Regular price
$2,299.00
Unit price
per

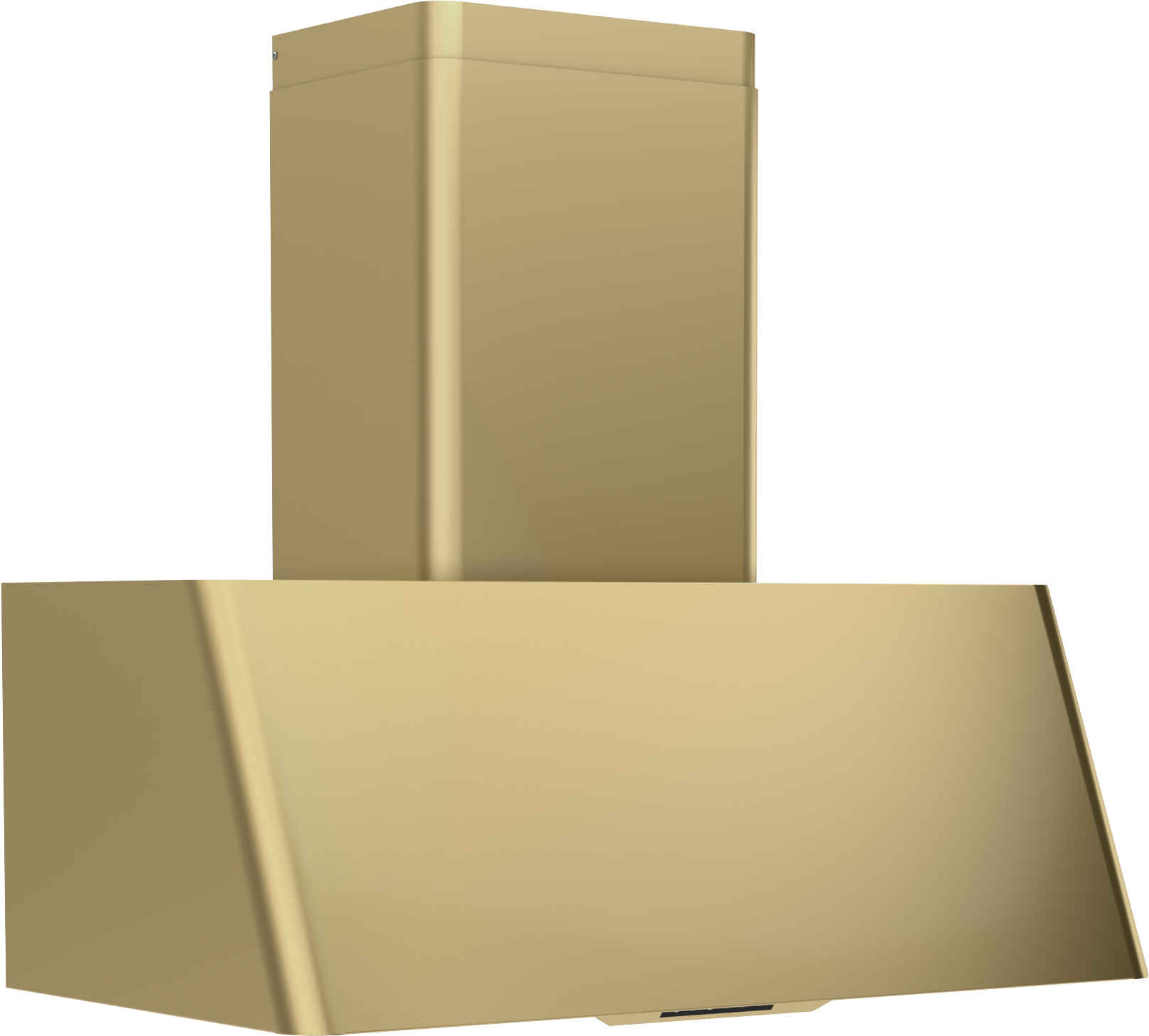

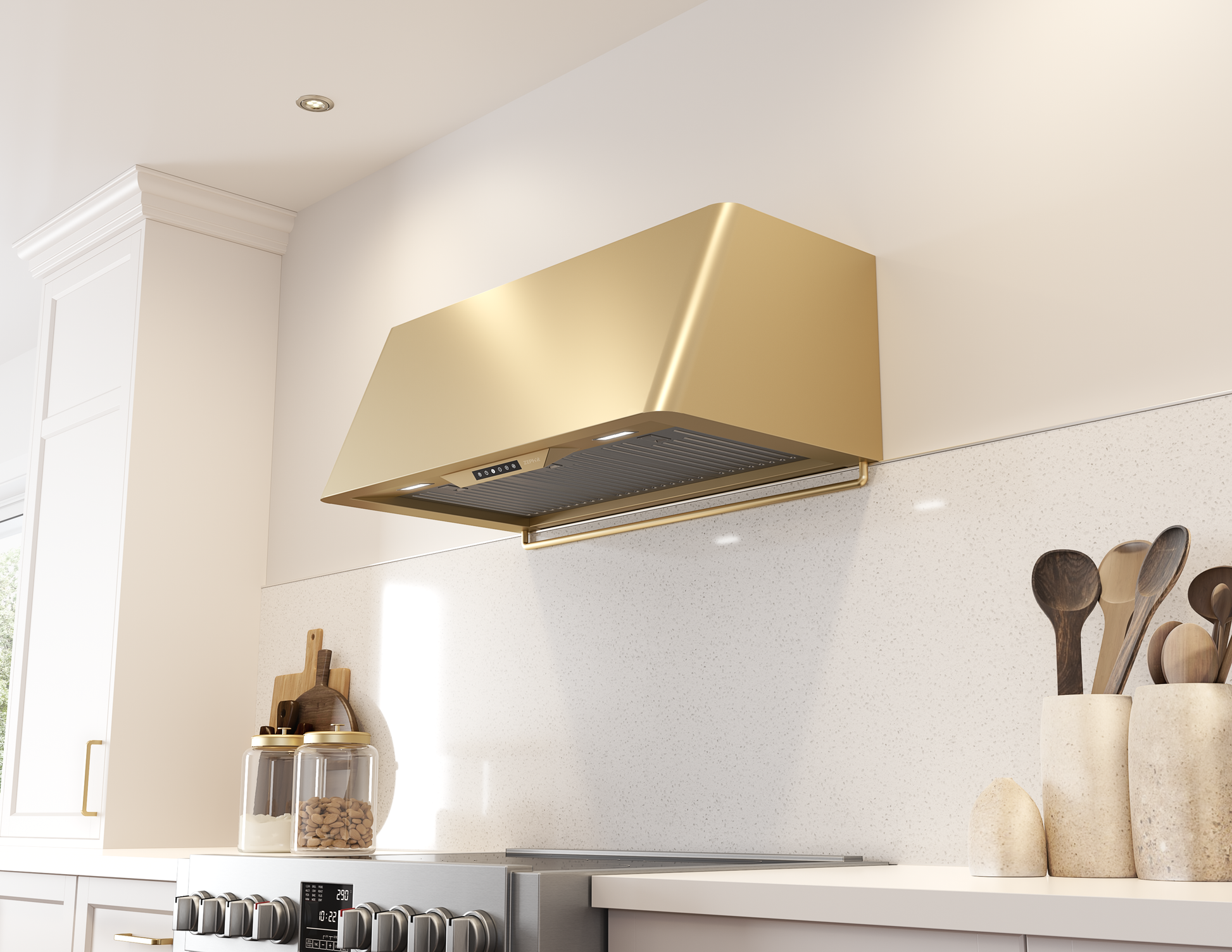

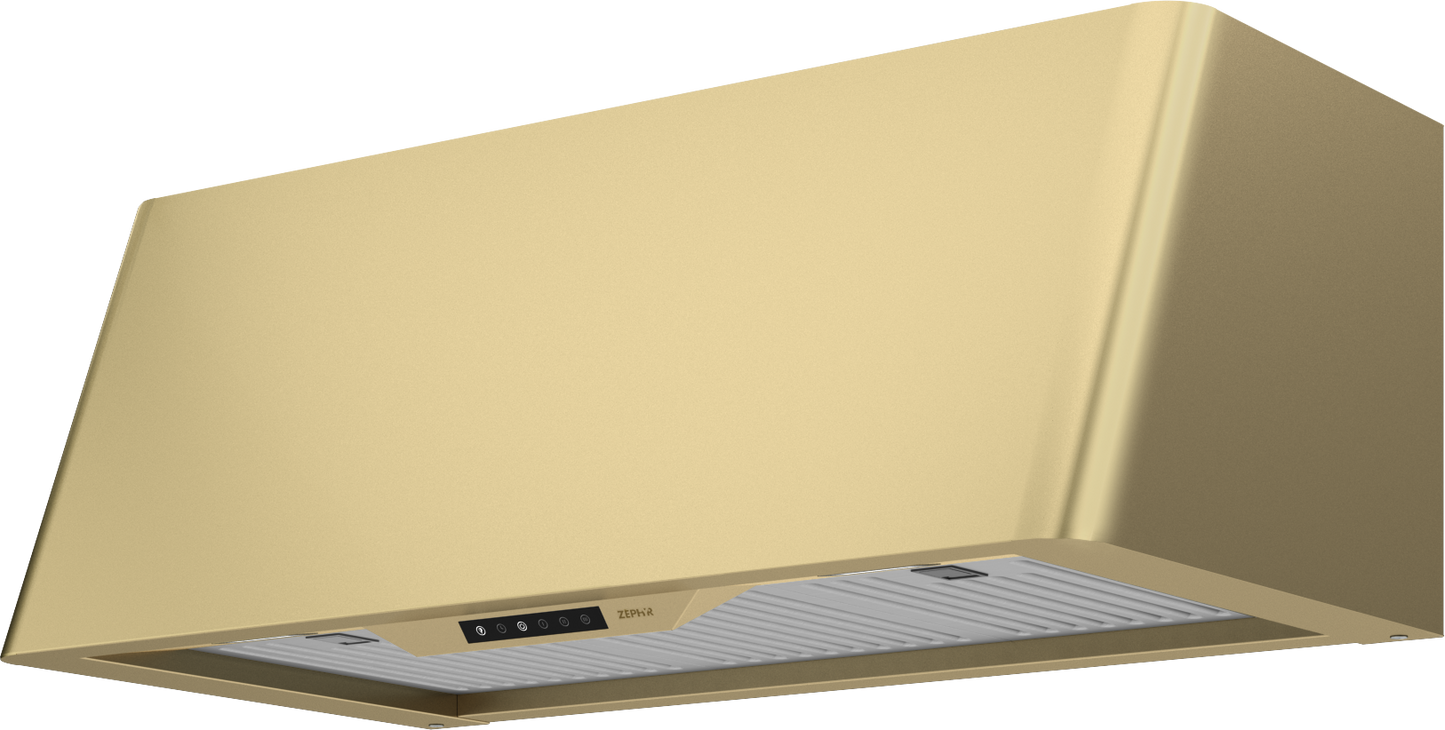

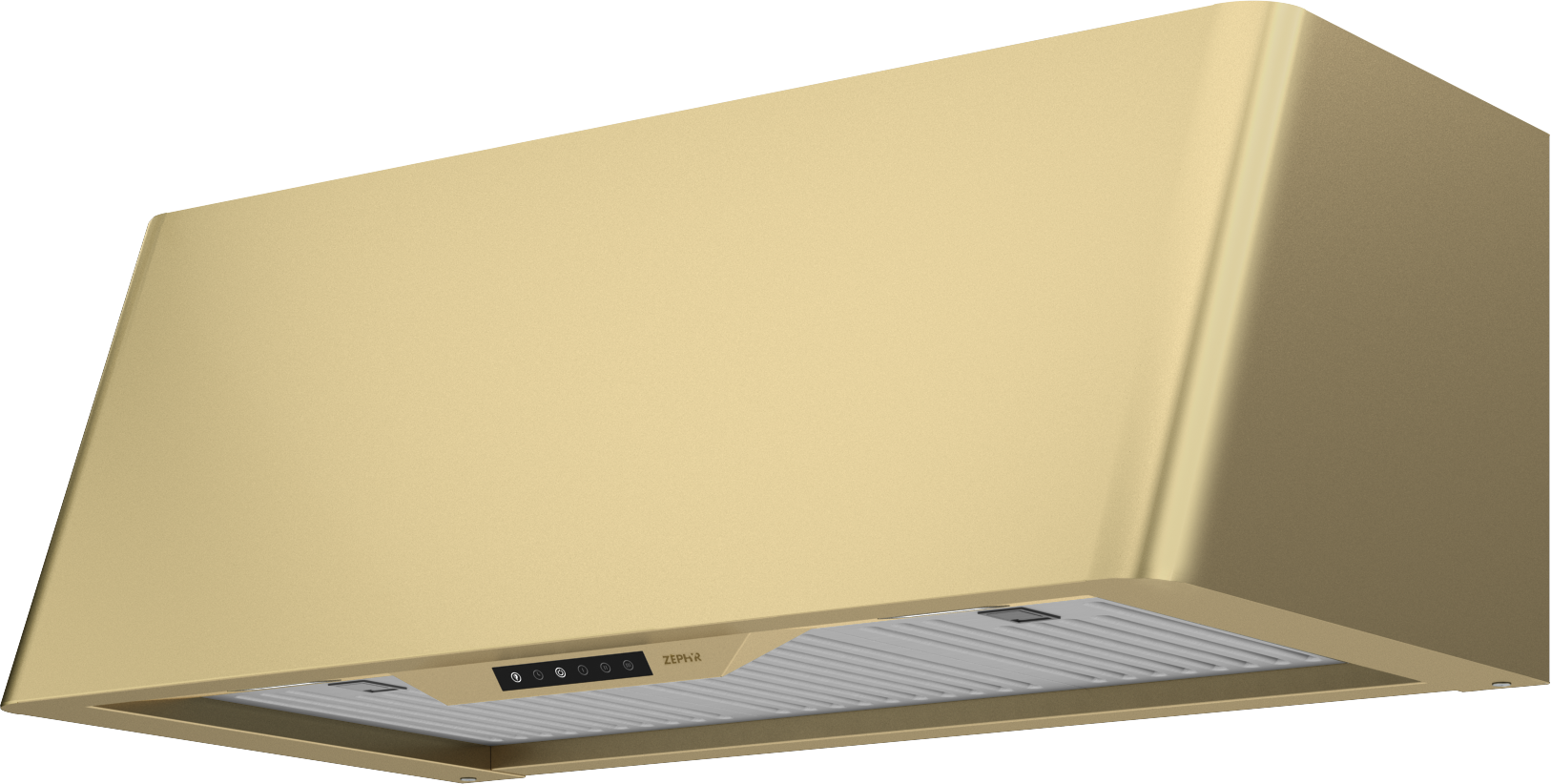

Taking kitchen glamour to new heights, the Mesa Wall hood is available in three high-style finishes: satin gold, matte black, and stainless steel, for the very latest in kitchen design trends. With Invisible Touch Controls, hybrid baffle filters and multiple blower options, the Mesa is set to become the hardworking star of the most fashionable kitchens. Additional options include an accent rail in satin gold or stainless steel; remote control; and duct cover in satin gold, matte black, or stainless steel.
View full details
Technical Specs
Technical Specs
Overview
Taking kitchen glamour to new heights, the Mesa Wall hood is available in three high-style finishes: satin gold, matte black, and stainless steel, for the very latest in kitchen design trends. With Invisible Touch Controls, hybrid baffle filters and multiple blower options, the Mesa is set to become the hardworking star of the most fashionable kitchens. Additional options include an accent rail in satin gold or stainless steel; remote control; and duct cover in satin gold, matte black, or stainless steel.
Measurements & Specs
-
Width
- {"value":35.32,"unit":"in"}
-
Height
- {"value":13.813,"unit":"in"}
Other Tech Specs
-
Appliance Type
- Range Hood
-
Finish Color
- Satin Gold
-
ADA Compliant
- Yes
-
Automatic Delay Off
- Yes
-
Blower Speeds
- 3
-
CEC Title 20 Compliant
- Yes
-
Ceiling Height Maximum
- 10.5 Ft.
-
Ceiling Height Minimum
- 8 Ft.
-
Certification
- UL
-
Clean Air Function
- Yes
-
Clean Filter Alert
- Yes
-
Compatible Appliances
- CBI 390A, CBE 1000, CBI 290A, CBI 600A, PBN 1000A, CBI 290C, PBI 1000B DME, Z0F C010, Z1C 00MEMB, ZRC 01ME, MERAIL 00SG, MERAIL 00SS, MERAIL 00MB, MUA006A, MUA008A, Z1C 00MESG, RC 0003
-
Controls Type
- Invisible Touch
-
Duct Discharge
- Vertical Or Horizontal
-
Duct Size Horizontal In.
- 8
-
Duct Size Vertical In.
- 6, 8
-
Duct Type
- Vertical
-
Duct Type 2
- Horizontal
-
External Blower CFM
- 1000
-
For Outdoor Use
- No
-
Grease Filter Type
- Hybrid Baffle
-
In Line Blower CFM
- 1000
-
Installation Type
- Wall
-
Internal Blower 1 CFM
- 600
-
Internal Blower 1 Max Sones
- 6
-
Internal Blower 1 Min Sones
- 1.4
-
Internal Blower 2 CFM
- 290
-
Internal Blower 2 Max Sones
- 3
-
Lighting Type
- LED
-
Lights Levels
- 3
-
Lights Quantity
- 2
-
Maximum Amperage
- 6.53
-
Minimum CFM
- 200
-
Mounting Height Above Cooktop In.
- 24 - 36
-
Net Depth In.
- 19.6875
-
Net Height In.
- 13.8125
-
Net Width In.
- 35.3125
-
Nominal Width In.
- 36
-
Primary Material
- Steel
-
Remote Optional
- Yes
-
Voltage
- 120
-
Warranty Parts / Labor
- 2 / 1
-
Wattage
- 783
-
Watts Per Bulb
- 5
-
Weight Lbs.
- 70
